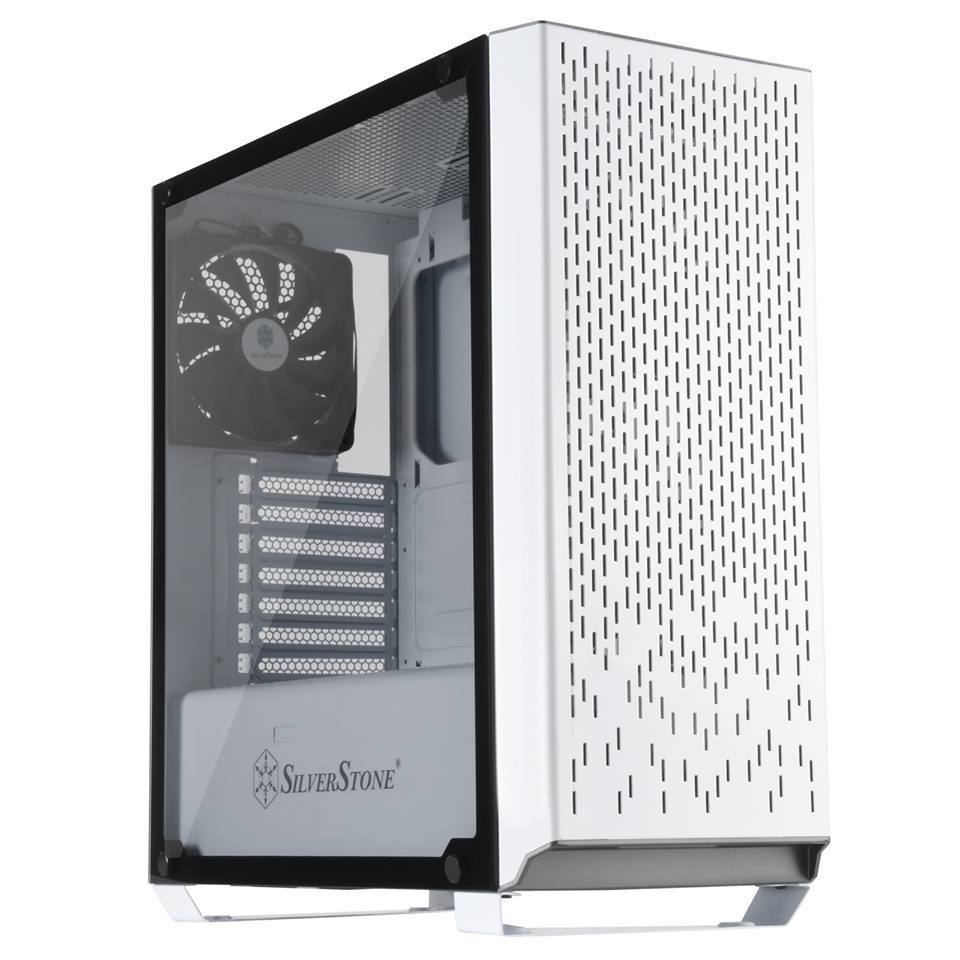

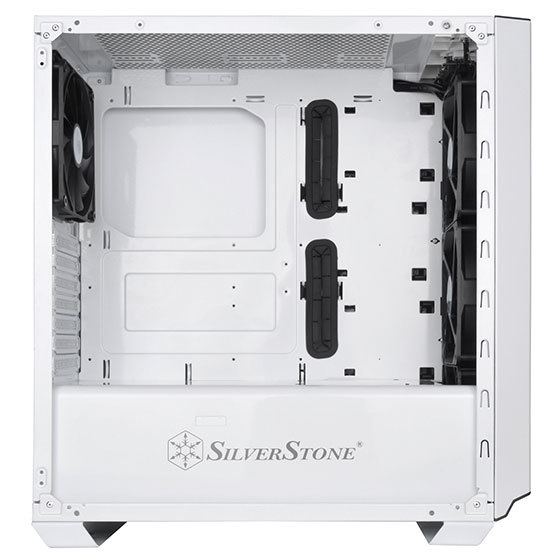

Silverstone PM02 Mid Tower Gaming Chassis

Sorry, this product is not currently available to order

Here are some other products you might consider...

Silverstone PM02 Mid Tower Gaming Chassis

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

  • Full tempered-glass side panel
  • Includes front mounted USB 3.1 Gen1 Type-C port
  • Super clean internal look with PSU and drive bay cover
  • Removable filters with positive air pressure design for dust reduction
  • Supports graphics cards up to 16.3" (415mm)
  • Classic front panel design with projected logo lighting
  • Includes four 140mm PWM fans

SilverStone created the Primera PM02 tower cassis to further extend its mission of bringing rich feature set and trend-setting aesthetics into PC chassis designs. It has many modern features such as front USB Type-C connector, power supply / drive cover, convenient tool-less drive trays, and smart backside cable routing design. The PM02 not only has highly flexible space for installing all popular core components, it also has incredible support for a myriad of cooling configurations. There are six total 120 / 140mm fan slots around the case with maximum radiator support of up to 360mm. True to SilverStone tradition, the PM02 also has excellent dust protection thanks to implementation of easily removable filters and positive pressure airflow setup. For those looking to get a case that can deliver cooling performance as good as it looks and want deeper personal customization, the PM02 is it!

  • Material Steel front panel, steel body, tempered glass window
  • Motherboard ATX ( up to 12" x 11") , Micro-ATX
  • Drive bay
    • Internal 3.5" x 3 (compatible with 2.5") , 2.5" x 3
  • Cooling system
    • Front 3 × 120 / 140mm fan slot (includes 3 × 140mm PWM fan)
    • Rear 1 × 120mm / 140mm fan slot (includes 1 × 140mm PWM fan)
    • Side --
    • Top 2 × 120mm / 140mm fan slot
    • Bottom --
    • Internal --
  • Radiator support
    • Front 1 × 120mm ; 1 × 240mm / 280mm / 360mm
    • Rear 1 × 120mm / 140mm
    • Top 2 × 120mm ; 1 × 240mm / 280mm
    • Bottom --
  • Expansion slot 7
  • Front
    • I/O port USB 3.0 Type-A x 3, USB 3.1 Gen1 Type-C x 1
    • Audio x 1
    • MIC x 1
  • Power supply Optional PS2(ATX)
  • Expansion card Compatible up to 16.3" (415mm) in length, width restriction –6.85" (174mm)
  • Limitation of CPU cooler 167mm
  • Limitation of PSU 190mm
  • Net weight 8.82 kg
  • Dimension
    • 220mm (W) x 491mm (H) x 456mm (D), 49.3 Liters
    • 8.66" (W) x 19.33" (H) x 17.95" (D), 49.3 Liters
Release date NZ
January 31st, 2018
Manufacturer code:
PM02
Supported Motherboard Form Factor(s)
  • ATX
  • microATX
Maximum CPU Cooler Height (mm)
167
Maximum Water Cooling Radiator Size (mm)
360
Supported PSU Form Factor(s)
  • ATX
Maximum PCI Express Card Length (mm)
415
Number of 2.5″ Internal Drive Mounts
3
Number of 3.5″ Internal Drive Mounts
3
Number of 3.5″ External Drive Bays
0
Number of 5.25″ External Drive Bays
0
Number of Full Length Full Height Expansion Slots
7
Number of Full Length Half Height Expansion Slots
0
Number of MD1 Low Profile Expansion Slots
0
Number of MD2 Low Profile Expansion Slots
0
Front Fan 1 Size
140mm
Front Fan 2 Size
140mm
Front Fan 3 Size
140mm
Rear Fan 1 Size
140mm
Brand
Manufacturer
Warranty Period
12 months
Product ID
27506496
