PC Parts & Components:

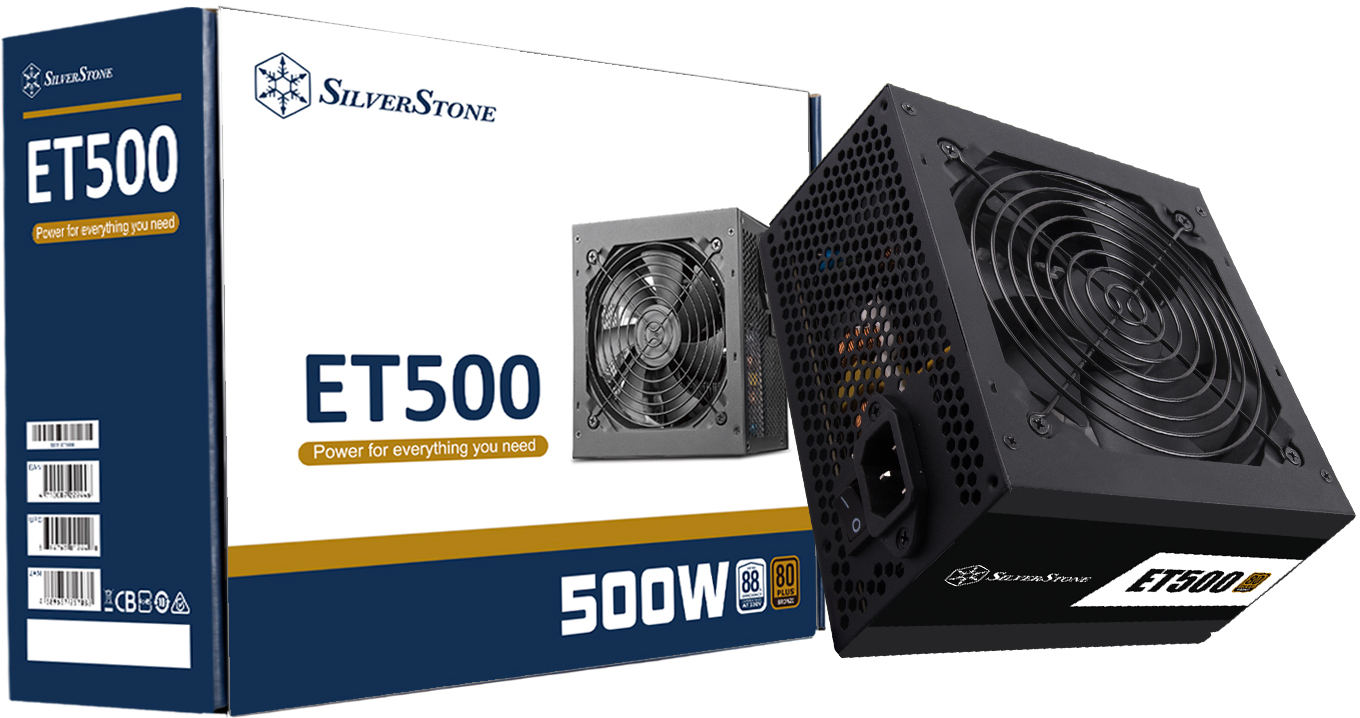

500W SilverStone ET500 PSU

Non-Modular | 80 PLUS Bronze
Click to share your rating 12 ratings (4.2/5.0 average) Thanks for your vote!
Save $20
$79.00 was $99.00
On Special

Available on orders $100 to $1000 Learn more

Available from supplier

The item is brand new and in-stock with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships in 8-12 days
Free Delivery with Primate
Join Now or upgrade at checkout

Availability

Delivering to:

Estimated arrival:

  • Around 2-7 December using standard courier service
    In time for Christmas

Buy together

5% of people buy 500W SilverStone ET500 80 PLUS Bronze Non-Modular PSU and BIOSTAR Radeon RX570 8GB GPU.

Buy together: $356.88

Customer reviews

4.2 out of 5 stars Based on 12 Customer Ratings

5 star
(8)
4 star
(2)
3 star
(0)
2 star
(0)
1 star
(2)
Write a Review
"Easy to fit and super quiet"
5 stars"
Purchased on Mighty Ape

Replaced a 400w PSU after upgrading graphics card monitor and extra ram.

Description

Power for everything you need

  • High efficiency with 80 PLUS Bronze certification
  • 24/7 continuous power output with 40℃ operating temperature
  • Powerful single +12V rail design, for high-end component needs
  • Multiple protection circuitry

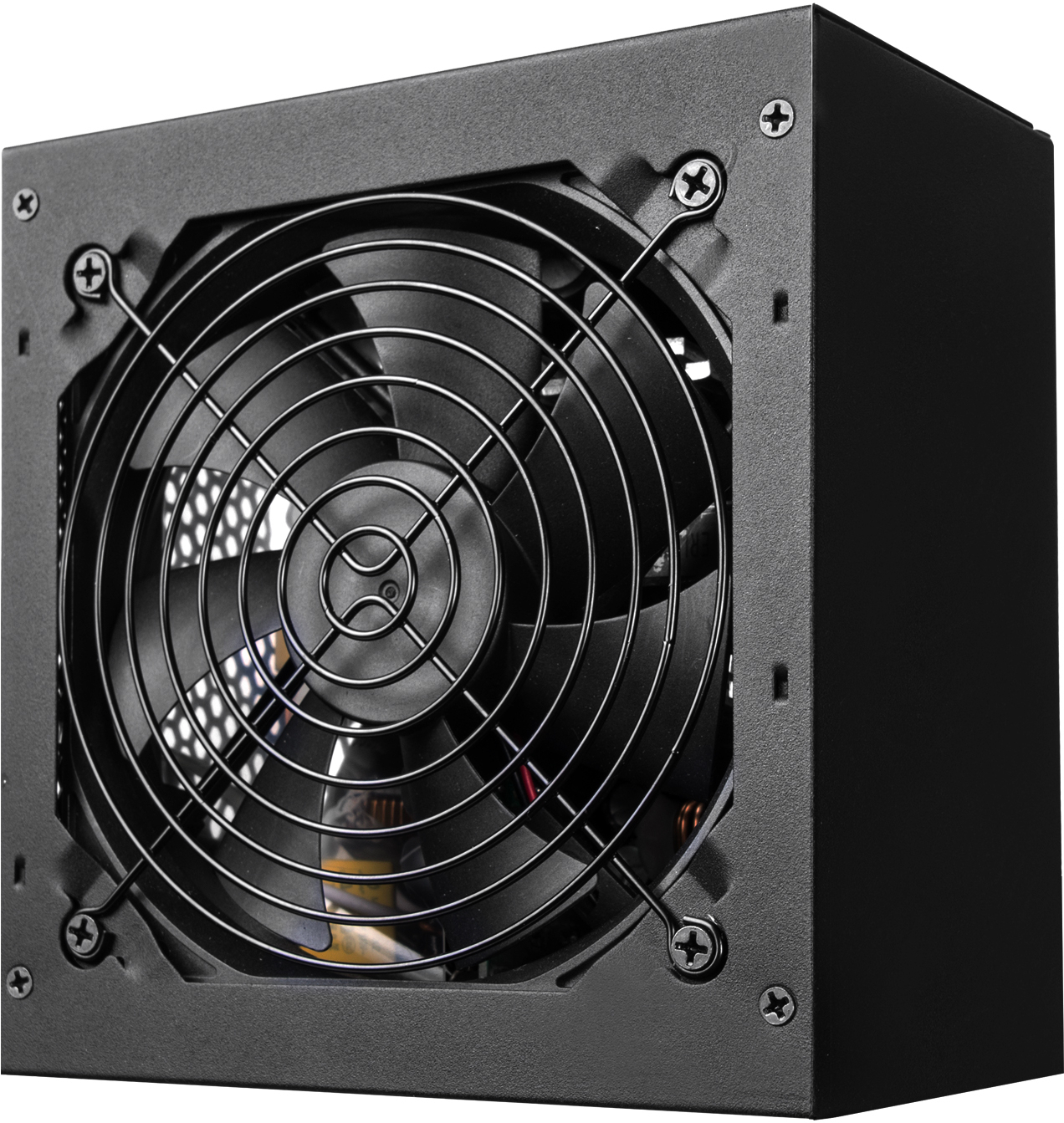

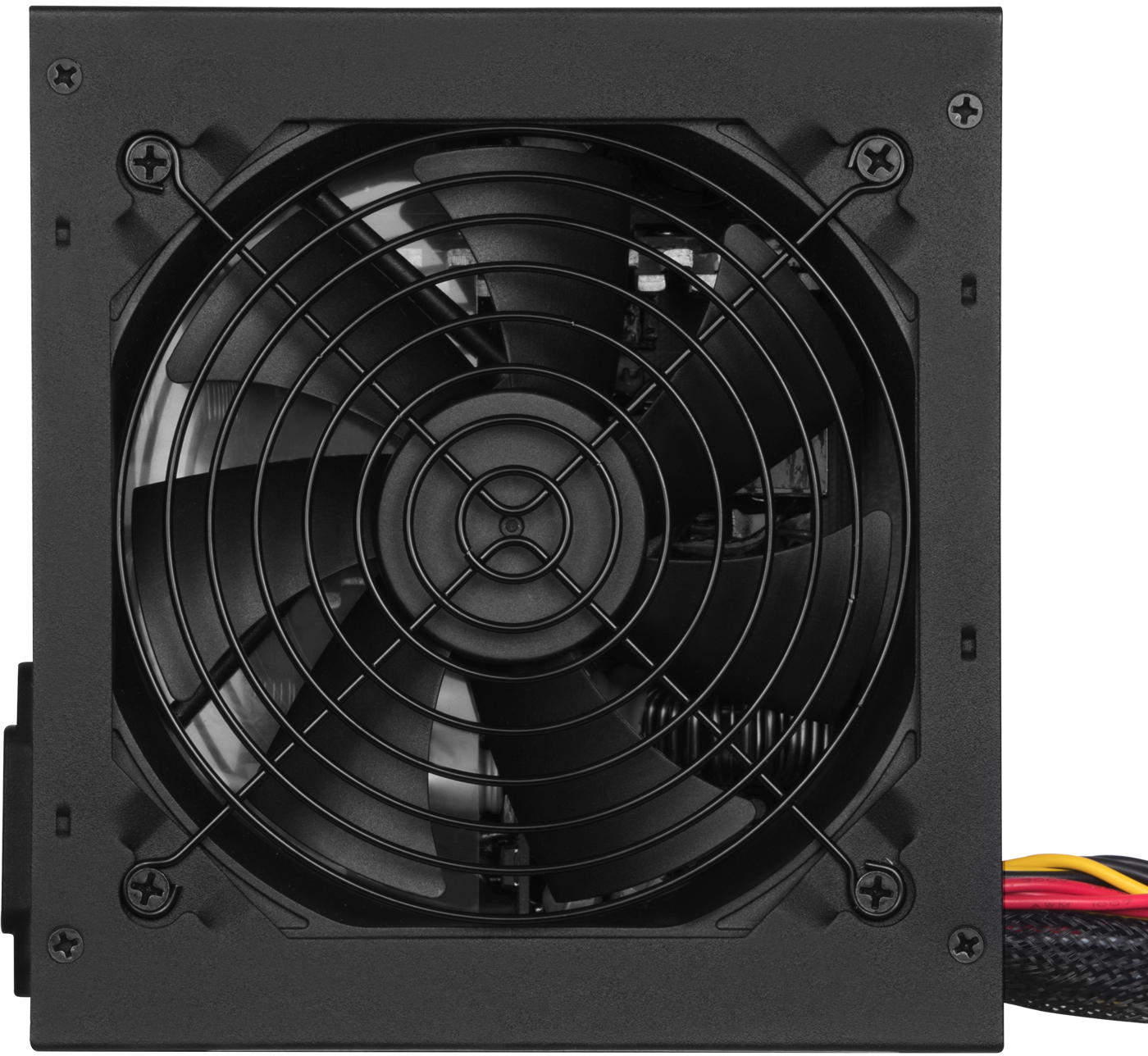

  • Silent running 120mm fan with 18 dBA
  • PCI-E 8pin and PCI-E 6pin connectors support
  • Active PFC

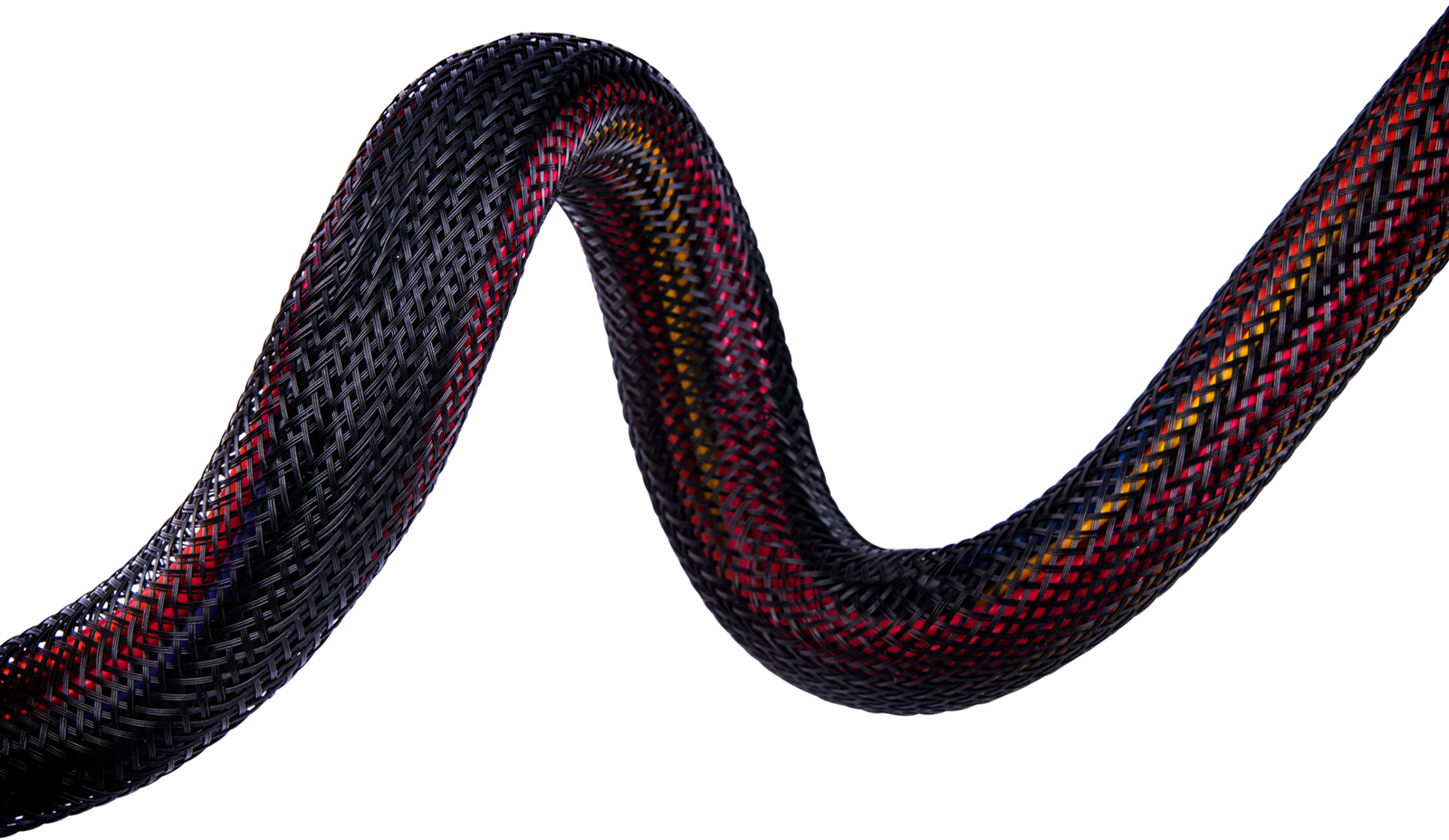

  • 20 + 4pin black motherboard wire is individually sleeved
  • 24/7 continuous power output with 40℃ operating temperature
  • SPECIFICATIONS:
  • Model No.: SST-ET500
  • Max. DC Output: 500W
  • Power density: 277W per liter

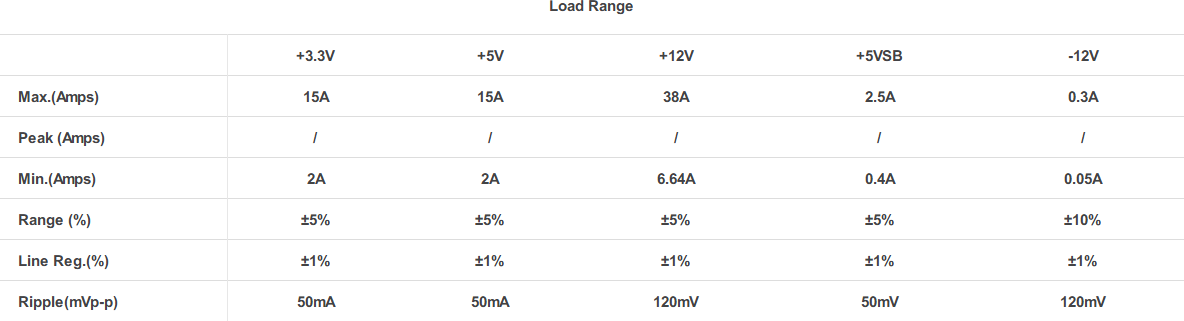

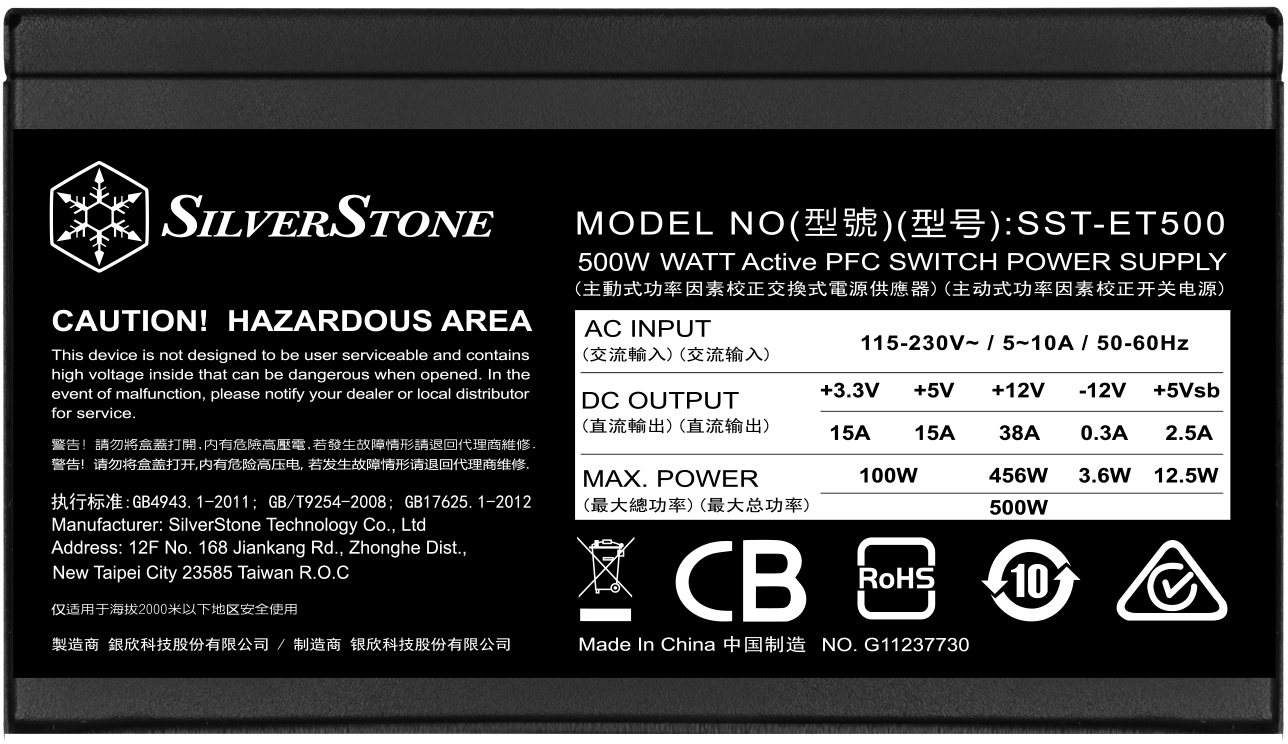

  • Load Range (+3.3V / +5V / +12V / +5VSB / –12V):
    • Max.(Amps): 15A / 15A / 38A / 2.5A / 0.3A
    • Peak (Amps): / / / / /
    • Min.(Amps): 2A / 2A / 6.64A / 0.4A / 0.05A
    • Range (%): ±5% / ±5% / ±5% / ±5% / ±10%
    • Line Reg.(%): ±1% / ±1% / ±1% / ±1% / ±1%
    • Ripple(mVp-p): 50mA / 50mA / 120mV / 50mV / 120mV
  • Color: Black(Lead-Free Paint)
  • Combined +3.3V & +5V: 100W
  • Combined +12V: 456W
  • Input Voltage: 100 ~ 264 Vrms
  • Input Frequency Range: 47Hz ~ 64Hz
  • PFC: Active PFC(PF>0.9 at full load)
  • Efficiency: 82% ~ 85% at 20% ~ 100% loading
  • MTBF: 100,000 hours
  • Operating temperature: 0°C ~ 40°C
  • Protection:
    • Over power protection
    • Over voltage protection
    • Under voltage protection
    • Short circuit protection
  • Connectors:
    • 1 × 24 / 20-Pin motherboard connector(”500mm”)
    • 1 × 8 / 4-Pin EPS / ATX 12V connector(”600mm”)
    • 2 × 8/6-Pin PCIE connector(”500mm/1­00mm”)
    • 6 x SATA connector(“500mm /100mm / 100mm” x 2)
    • 3 × 4-Pin Peripheral connector(”500mm / 100mm / 100mm”)
  • Cooling System: Single 120mm silent fan
  • Form factor: ATX
  • Noise Level: 18dBA minimum
  • Weight: 1.44 Kg
    • 150 mm (W) x 86 mm (H) x 140 mm (D)
    • 5.91" (W) x 3.39" (H) x 5.51" (D)
  • Certification: 80 PLUS Bronze
  • Other: Compatible with ATX12V v2.4
Release date NZ
February 19th, 2020
Manufacturer code:
SST-ET500
PSU Form Factor
ATX
PSU ATX Revision
ATX12V Version 2.4
Supported Motherboard Main Power Connector
  • ATX 20-pin
  • ATX 24-pin
Supported Motherboard 12V Power Connector
  • ATX12V 4-pin
  • ATX12V 8-pin
PSU Cabling System
Non-Modular
PSU Efficiency Certification
  • 80 PLUS Bronze
Brand
Manufacturer
Box Dimensions (mm)
235x200x95
UPC
4710007229446
Product ID
33174857
