Gold plated metal plugs for improved signal transference
Reduction of the susceptibility by ferrite
Reduction of interfering signals by multiple screening
High-quality cable for digital HD television reception
Ideal suitable for 100 Hz/200 Hz/400 Hz TV's
Suitable for cable and aerial installations

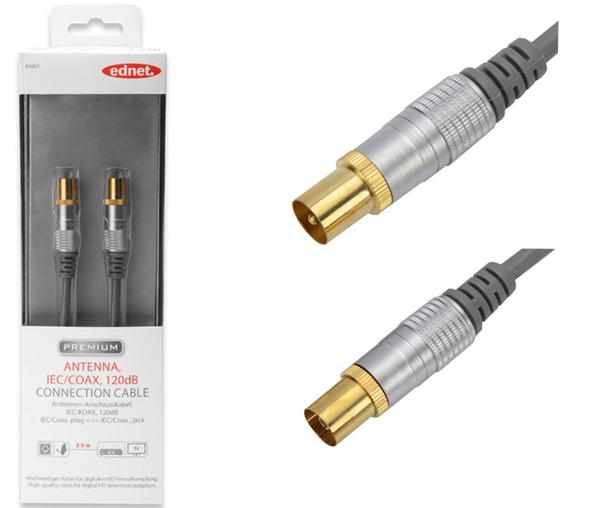

The antenna cable is suited for the connection of e.g. television, DVB T or DVB C receiver to wall mounts with coax interface. Also as a extension usable.
Technical Details
- Coaxial plug – Coaxial jack
- 75 Ohm
- Double shielded
- 100 Hz
- Ferrite filter
- Length: 2,50 m
- Cable color: black
- Class A
- Connector 1: IEC/Coax plug
- Connector 2: IEC/Coax jack
- EMV Class: Class A++
- Screening attenuation: 90 dB
- Impedance: 75 Ohm
- Hoods: Metallic housing
- Shielding: Double shielding
- Conductor diameter: 1.0 mm
- Wire material: CU
- Connector surface: gold-plated
- Ferrite filter: 2 x ferrite beads
- Outer diameter: 8.0 mm
- Color cable: grey
- Color connector: silver
- Length: 2.5 m
