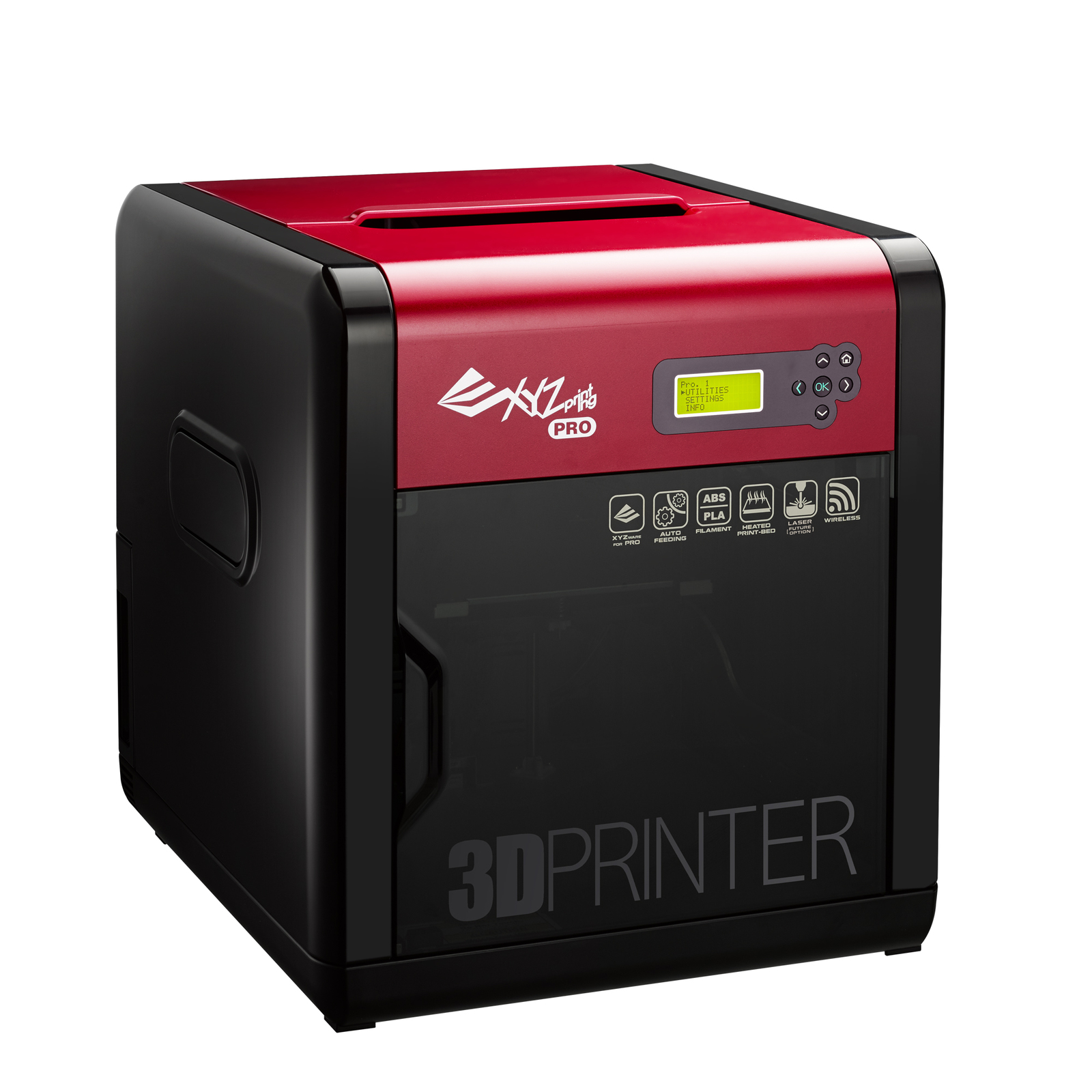

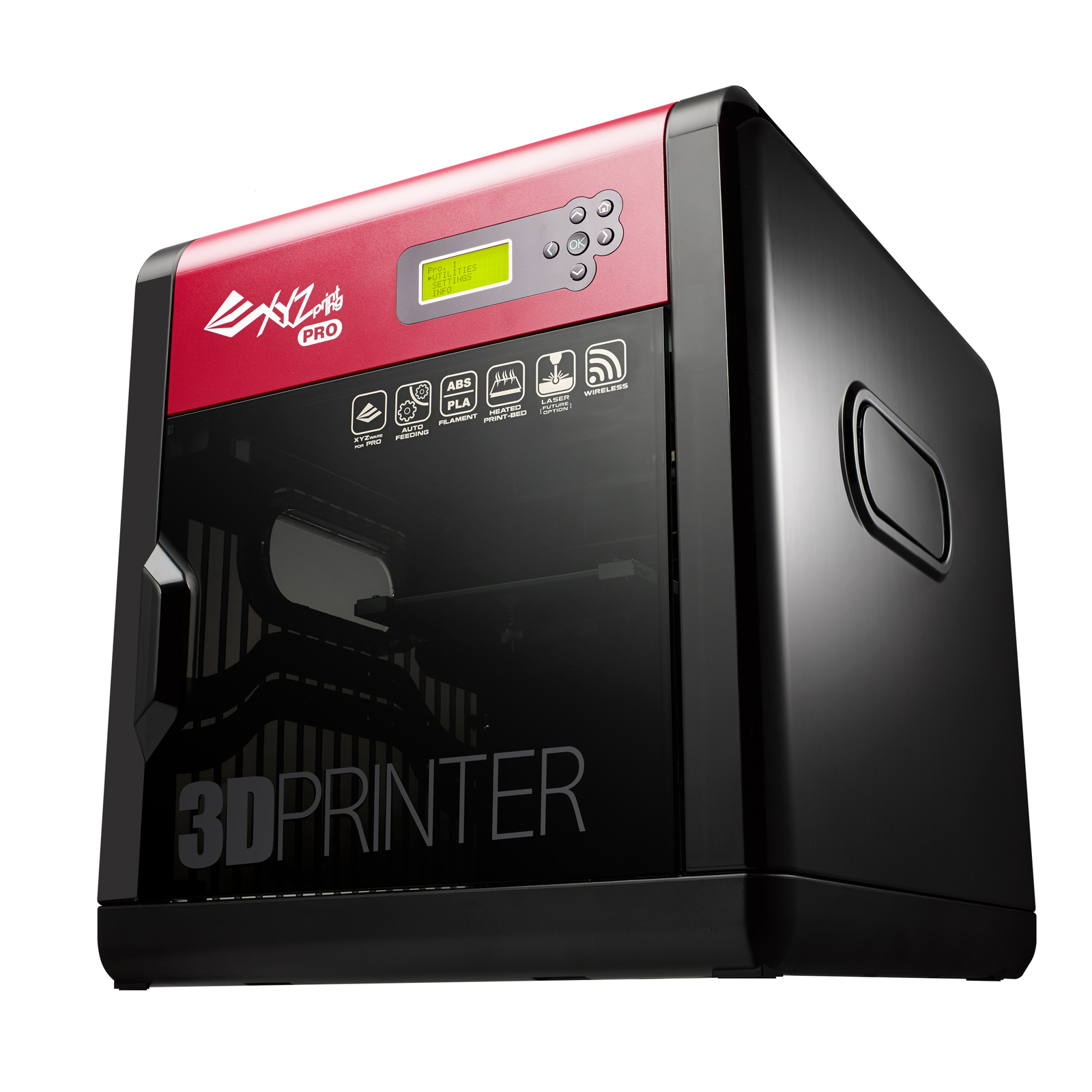

Xyz Da Vinci 1.0 Pro 3D Printer
A Compact 3D Printer for Professionals
XYZprinting’s da Vinci 3D printers are the world’s most affordable
plug-and-play 3D printers. Each da Vinci 3D printer model is user-friendly and
has its unique features allowing users to experience the best of 3D printing.
The da Vinci 3D printers are perfectly suitable for domestic and professional
use. Revolutionize your life with XYZprinting's fully comprehensive line of 3D
printers. Get yours today!
Print with any 3rd Party Filament
The da Vinci 1.0 Pro has adjustable temperature settings for the extruder
nozzle, making it compatible with 3rd party 1.75mm PLA filaments.
With it's auto-loading filament system, the da Vinci 1.0 Pro ensures that all
filament is fed properly.
Perfect Prints Every Time
The da Vinci 1.0 Pro uses an intuitive 9-point calibration detection system
that accurately determines the distance between the extruder and the
print bed.
XYZware Pro
The new XYZware Pro has increased maximum printing speed of 100mm/sec.,
decreasing the time you have to wait for your prints to be finished. With
adjustable software settings, you can change the nozzle and print bed
temperature, speed, print support and retraction settings.
XYZware Pro is compatible with third party g-codes (Cura and Slic3r)
Nozzle Upgrade Available
A 0.3mm diameter extruder is available as a separate purchase add-on for the
da Vinci series and it is perfect for intricate print jobs. The 0.3mm diameter
extruder can provide a smoother print surface at a spectacular 50 micron
resolution.
New Design, Better Prints
The da Vinci 1.0 Pro features a new wind duct design which enhances the
cooling effect to provide a smoother printing performance.
SPECIFICATIONS
Technology: FFF (Fused Filament Fabrication)
Product Dimension (WxDxH): 42 × 43 × 38 cm
Package Dimension: 54.7 × 58.1 × 47.5 cm
Gross Weight: 15kg
Maximum Build Volume (WxDxH): 19.8×19.8×19.8cm
Resolution:
Fast 0.1 mm (100 microns)
Standard 0.2 mm (200 microns)
Speed 0.3 mm (300 microns)
Ultra Fast 0.4 mm (400 microns)
Print Head: Single Nozzle
Maximum Printing Speed: up to 100mm/s (Note: maximum printing
speed tested by actual material extrusion speed under laboratory testing
conditions, actual printing results may vary).
Nozzle Diameter: 0.4 mm /0.3 mm (Optional)
Filament Diameter: 1.75 mm
Filament Material: PLA
Display: Panel Type 2.6” FSTN LCM
Language: Multi Language
Connectivity: USB 2.0, SD card *Systems are compatible with
SDHC cards up to 32GB in size
Printing Temperature Range: Printed Extruder 190°C ~ 230°C
(374°F ~ 446°F)
Software: XYZware Pro
File Types: .stl, XYZ Format (.3w, .nkg), Windows (.3mf ).
G-code
OS Support:
Windows 7 and above (for PC)
Mac OSX 10.9 and above (for Mac)
Note: Stardard VGA driver on operating system, or a graphics card doesn't
support OpenGL 2.1, may cause unknown error in XYZware.
Hardware:
Hardware Requirements (for PC/Mac)
X86 32/64-bit compatible PCs with 4GB+ DRAM (for PC)
X86 64-bit compatible Macs with 4GB+ DRAM (for Mac)
*Product features, price and specification are subject to change without
notice.
