PoE Switches for Your Ultra Convenience

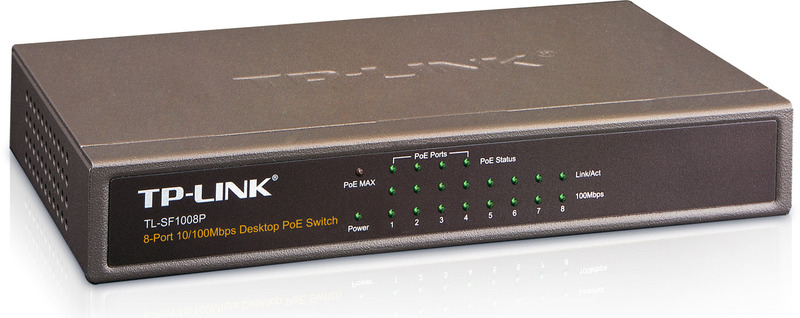

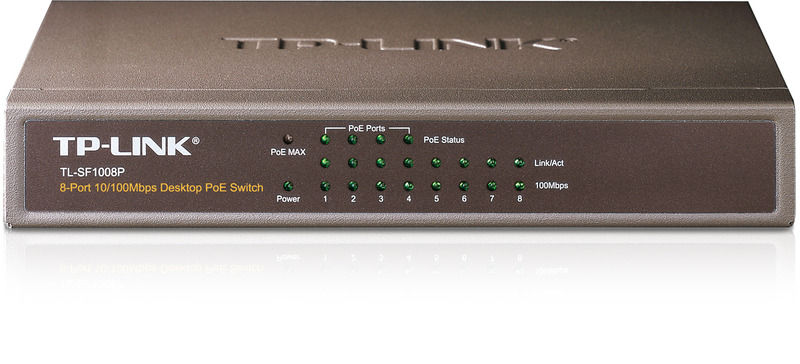

8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.

FEATURES

• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE power up to 15.4W for each PoE port
• Supports PoE power up to 66W for all PoE ports
• Requires no configuration and installation
• Power over Ethernet: 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
• Intelligent Power Management: When total power consumption excels 66W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
• Sturdy Metal Casing: Sturdy, compact metal casing and shielded RJ45 ports, with desktop design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.

SPECIFICATIONS

• HARDWARE FEATURES:
  • Interface:

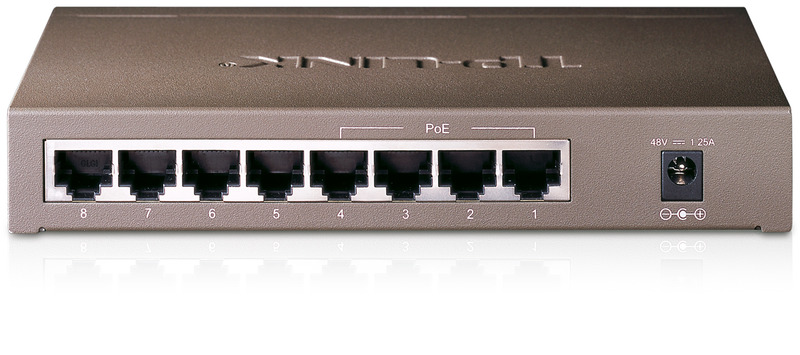

    • 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
    • AUTO Negotiation
    • AUTO MDI/MDIX
  • Network Media:
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
  • Packet Forwarding Rate: 1.1904 Mpps
  • PoE Ports (RJ45):
    • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 66 W
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Switching Capacity: 1.6 Gbps
  • Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
  • Max Power Consumption:
    • 2.27 W (220 V/ 50 Hz. no PD connected)
    • 75.33 W (220 V/ 50 Hz. with 66 W PD connected)
  • Max Heat Dissipation:
    • 7.74 BTU/h(no PD connected)
    • 256.88 BTU/h(with 66 W PD connected)
• SOFTWARE FEATURES:
  • Transmission Method: Store-And-Forward
  • Advanced Functions:
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • PoE Auto Recovery Button (Ports 1–4)
    • Mac Address Auto-Learning and Auto-Aging
• OTHERS:
  • Certification: FCC, CE, RoHS
  • Package Contents: TL-SF1008P, Power Adapter, Installation Guide, Rubber Feet
  • Environment:
    • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: –40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
