Easy to carry, and zoom into everyday life
The WX800 lets you capture the beauty of life around you and share it easily. Whether shooting stills or 4K1 2 video, the camera's powerful zoom lens, fast and precise AF and 180° tiltable LCD touch screen ensure that selfies, and even shots at challenging angles, always look their best, and you'll get clear images even with hand-held telephoto shooting.

Powerful and compact, it's ready to go where you go
The world's smallest camera with 24–720mm zoom, the WX800 has Fast Intelligent AF and responsive Eye AF to help capture even distant subjects beautifully, while built-in Wi-Fi®/NFC™ makes sharing easy.

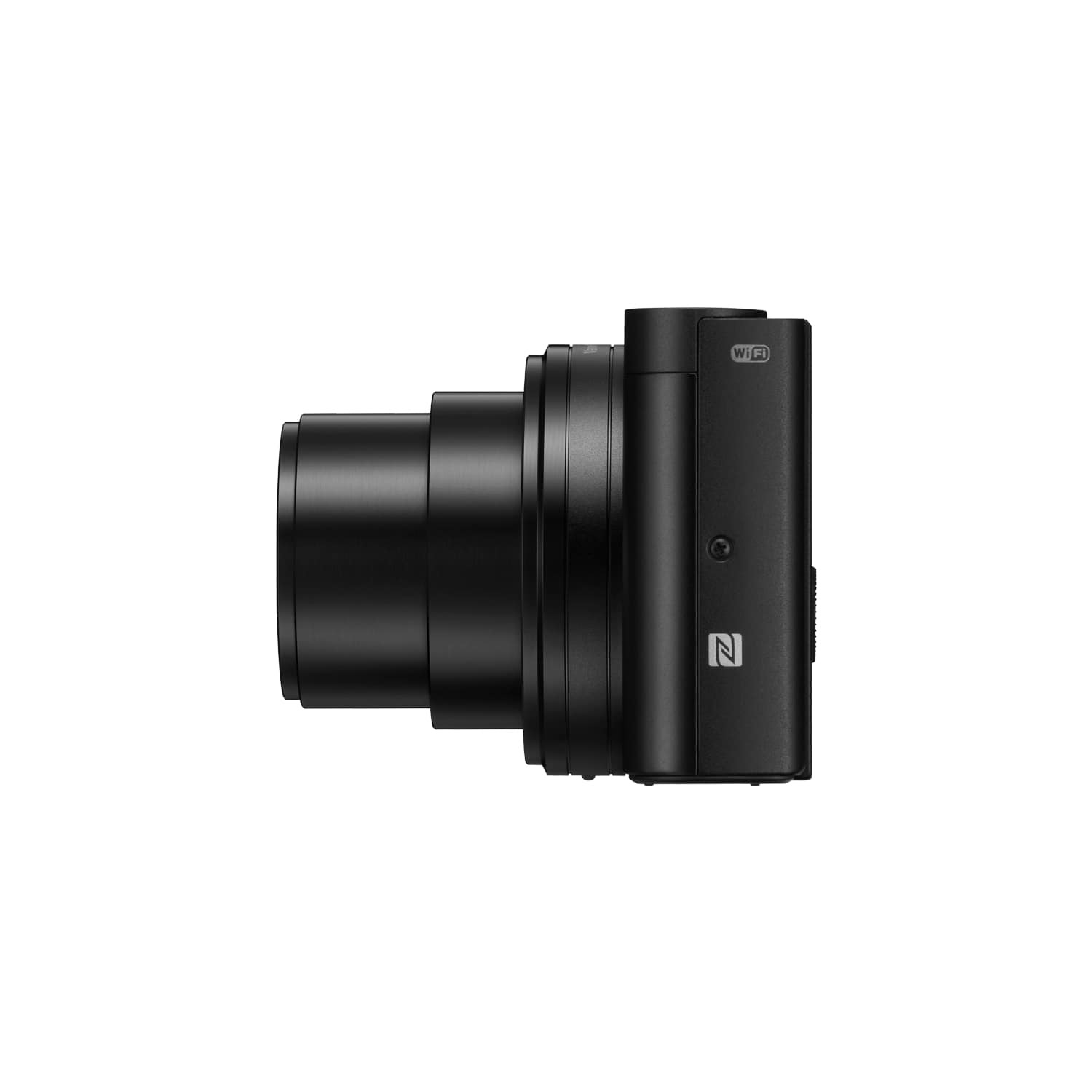

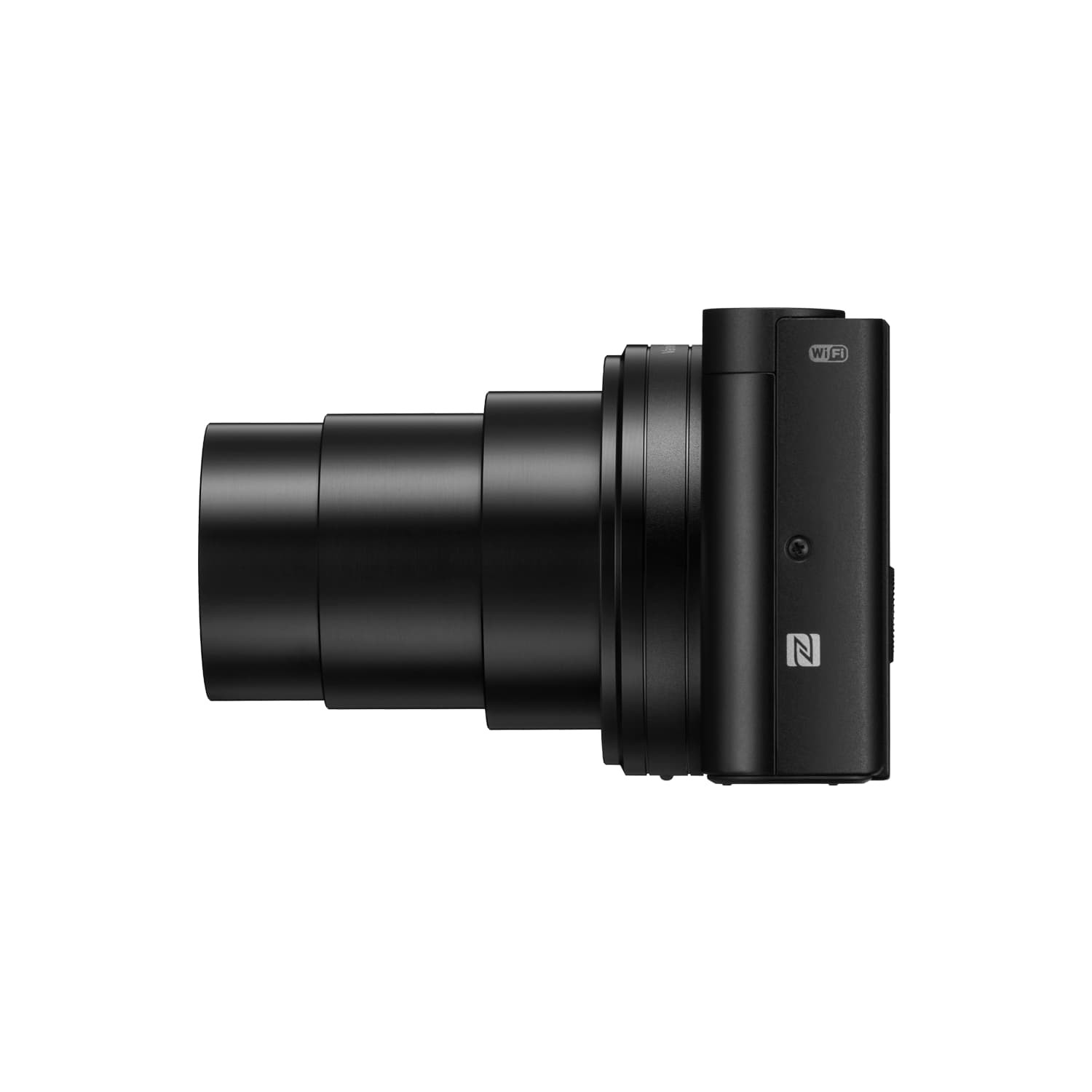

Impressive zoom range

The world's smallest compact camera with 24–720mm zoom
With high-magnification ZEISS® Vario-Sonnar T lens*
Despite its compact size the camera offers a broad zoom range, from wide-end 24mm4 to 720mm4 telephoto, and with Clear Image Zoom the subject can be magnified while effectively preserving high resolution, at up to 1440mm4.

Optical SteadyShotTM for high-quality images
The WX800's sophis­ticated algorithms and high-performance gyro-sensor work together to compensate for camera shake. This provides a significant reduction in shake even with hand-held shooting at high zoom magnifications.

Zoom Assist for easy framing of moving subjects
Zoom Assist enables fast, easy framing of moving subjects at telephoto range. Assign a custom button to this function and, when it’s pressed, the camera will temporarily zoom back out so you can find your subject and quickly reframe.

Clear, beautiful images

High-resolution 4K video and high-quality still images
Advanced imaging technology provides superior image quality in both videos and still shots. From natural-looking portraits to vibrant images even in dim lighting conditions, you'll get beautiful images suited to your shooting conditions.

Beautiful depiction of fine textures
Advanced image-processing technology delivers high-resolution images with low noise
The back-illuminated Exmor RTM CMOS sensor, with 18.2-megapixel5 effective resolution, and the advanced BIONZ XTM image-processing system work together to reduce noise at high ISO settings like ISO6400 (expanded). Fine textures are accurately reproduced, and even dimly lit scenes can be beautifully shot. Colour reproduction is also improved, especially for human skin tones.

4K video recording captures fine details
4K videos (QFHD: 3840 × 2160) recorded with full pixel readout and no pixel binning
The camera records approx. 1.6 times as much information as is required for 4K video output, resulting in outstanding resolution with reduced moiré and jaggies. Videos also accurately reproduce textures and fine details to an extent not possible with full HD.

Fast AF performance

Capture special moments when they happen
Speedy AF, combined with 10fps (max.) continuous shooting, helps you keep up with fast-moving subjects, making it easier to capture those decisive action shots.

Fast Intelligent AF with 0.09-second response
The WX800's spatial subject detection algorithm and fast lens drive help capture even fleeting moments. The algorithm predicts the focus point, then as the shutter button is half-pressed the AF quickly focuses on the subject.

Eye AF for perfect portrait shots
The Eye AF feature automatically detects and focuses on the eyes of the main subjects. It performs well even under difficult conditions, such as when the subject is looking downward or when faces are backlit or dimly lit.

High-speed continuous shooting at up to 10fps
Shoot continuous images for up to 155 frames
When you're following fast-moving action you'll appreciate the camera's impressive continuous shooting capabilities. Continuously shot images can also be displayed, deleted and protected in groups.

Easy and convenient features

Taking selfies and sharing shots are easier than ever
The camera's rotating LCD screen helps you check the composition of self-portrait shots before you shoot, and the One-touch sharing feature lets you transfer photos to your mobile device, for easier sharing with friends.

Touch functions that are simple and intuitive
Touch Focus lets you set the focus simply by touching the monitor. You can also trip the shutter by touching the LCD screen.

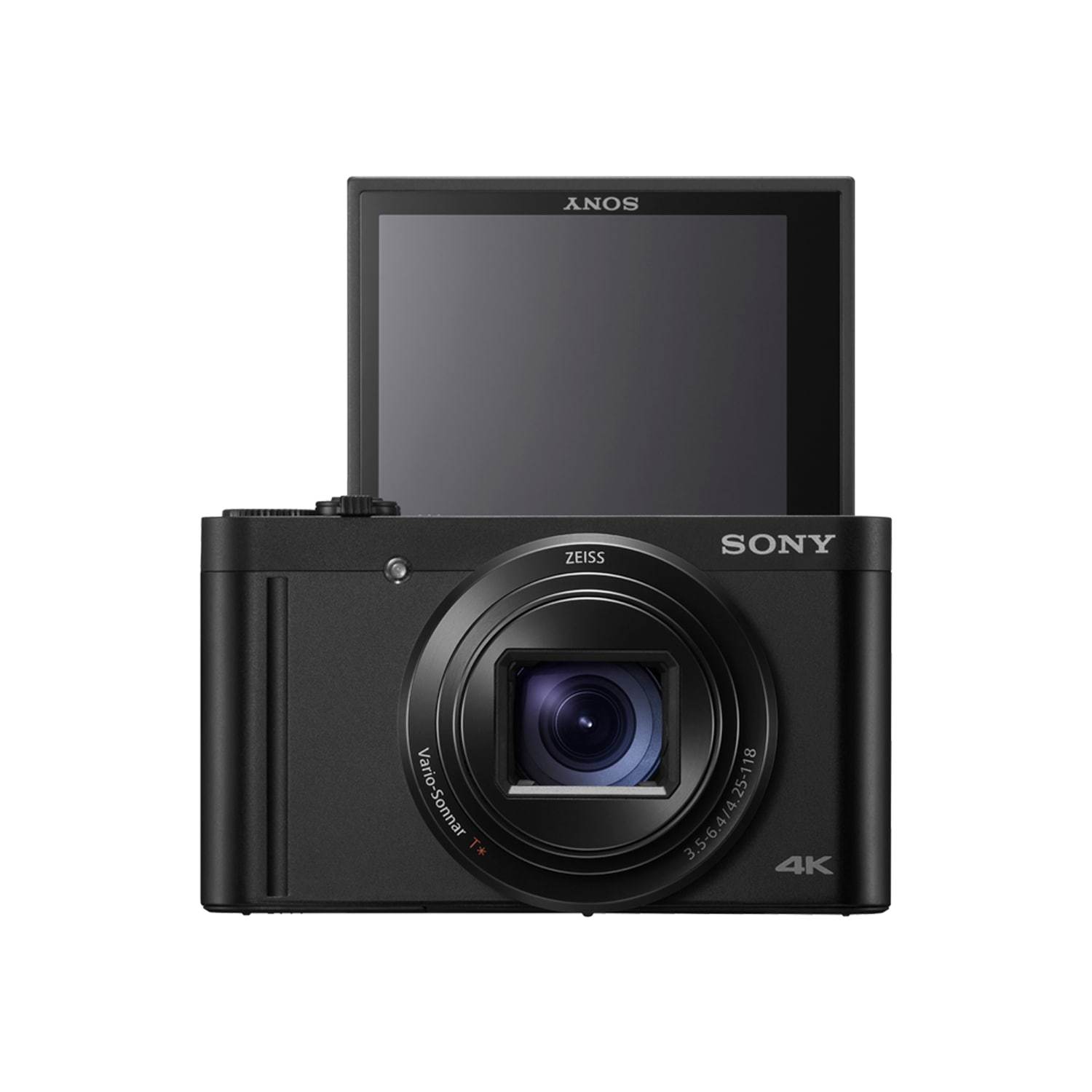

A 180° tiltable LCD screen for easier selfies
The 3.0-type Extrafine LCD screen, with 922k-dot resolution, can be rotated upwards by around 180° so you can quickly check the composition of self-portraits or souvenir photos with friends.

Flexible My Menu feature
With My Menu, you can register up to 30 menu items for instant recall, and create your own custom menus. You can also delete items and change their order, to build an easy-to-use menu that meets your specific needs.

Easy wireless sharing with the Imaging Edge Mobile app
You can remotely control the camera's shutter, zoom and other operations from a smartphone or tablet device, and also transfer still photos and videos wirelessly. And, using a Bluetooth® connection to your smartphone, it’s even possible to automatically geo-tag your images with your shooting location.

Specifications

Sensor
SENSOR TYPE

• 1/2.3 type (7.82mm) Exmor R CMOS sensor

NUMBER OF PIXELS (EFFECTIVE)

• Approx. 18.2 Megapixels

Lens
LENS TYPE

• ZEISS Vario-Sonnar T* Lens, 11 elements in 10 groups (5 aspheric elements)

F-NUMBER (MAXIMUM APERTURE)

• F3.5 (W) – 6.4 (T)

FOCAL LENGTH

• f=4.25–118mm

ANGLE OF VIEW (35MM FORMAT EQUIVALENT) (STILL IMAGE)

• 84deg.-3deg.30min.(24–720mm1)2

FOCUS RANGE (FROM THE FRONT OF THE LENS)

• Auto: AF (W: Approx. 5cm (0.16 ft.) to Infinity, T: Approx. 250cm (8.20 ft.) to Infinity) / Program Auto: AF (W: Approx. 5cm (0.16 ft.) to Infinity, T: Approx. 250cm (8.20 ft.) to Infinity)

OPTICAL ZOOM

• 28×

CLEAR IMAGE ZOOM (STILL IMAGE)

• 18M Approx.60× / 10M Approx.80× / 5.0M Approx.113× / VGA Approx.459× / 13M(16:9) Approx.60× / 2.1M(16:9) Approx.153×3

CLEAR IMAGE ZOOM (MOVIE)

• 4K:Approx. 45×, HD:Approx. 60×3

DIGITAL ZOOM (STILL IMAGE)

• 18M Approx.120× / 10M Approx.161× / 5.0M Approx.226× / VGA Approx.459× / 13M(16:9) Approx.120× / 2.1M(16:9) Approx.306×3

DIGITAL ZOOM (MOVIE)

• Approx. 120×3

Screen
SCREEN TYPE

• 7.5cm (3.0type) (4:3) / 921,600 dots / Xtra Fine / TFT LCD

ADJUSTABLE ANGLE

• Up by approx. 180 degrees

TOUCH PANEL

• Yes

Camera
IMAGE PROCESSING ENGINE

• Yes (BIONZ X)

STEADYSHOT

• Optical

STEADYSHOT (FOR MOVIE)

• Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type)

FOCUS TYPE

• Contrast detection AF

FOCUS MODE

• Single-shot AF, Continuous AF (Movie Only)

FOCUS AREA

• Wide,Center,Fle­xible Spot (S/M/L),Expanded Flexible Spot

LOCK ON AF

• Yes

LIGHT METERING MODE

• Multi Pattern,Center Weighted,Spot,En­tire Screen Avg,Highlight

EXPOSURE COMPENSATION

• +/- 3.0 EV, 1/3 EV step

ISO SENSITIVITY (STILL IMAGE)(RECOMMENDED EXPOSURE INDEX)

• Auto(ISO80–3200, selectable with upper / lower limit),80/100/­200/400/800/1600/3200(Ex­tendable to ISO6400),Multi-Frame NR:Auto(ISO80–3200 same as selected range in Auto), 100/200/400/8­00/1600/3200/64004/12800­45

ISO SENSITIVITY (MOVIE)

• Auto(ISO80–3200, selectable with upper / lower limit),80/100/­200/400/800/1600/3200(Ex­tendable to ISO6400)

MINIMUM ILLUMINATION (MOVIE)

• Auto: 9lux (Shutter Speed 1/30)

WHITE BALANCE MODES

• Auto,Daylight,Sha­de,Cloudy,Incan­descent,Fluor­.: Warm White,Fluor.: Cool White,Fluor.: Day White,Fluor.: Daylight,Flash,C­.Temp./Filter,Cus­tom1,Custom2,Cus­tom3,Custom Se­tup

WB MICRO ADJUSTMENT

• G7-M7 (57 steps) , A7-B7 (29 steps)

SHUTTER SPEED

• iAuto (4" – 1/2000) / Program Auto (1" – 1/2000) / Aperture Priority (8" – 1/2000) / Shutter Priority (30" – 1/2000) / Manual (30" – 1/2000)6

APERTURE

• iAuto(F3.5-F6.3(W)) / Program Auto(F3.5-F6.3(W) ) / Manual(F3.5-F8.0(W)) / Aperture Priority(F3.5-F8.0(W)) / Shutter Priority(F3.5-F6.3(W))

IMAGE CONTROL

• Contrast,Satu­ration,Sharpnes­s,Creative Style,Color Space,Quality(Extra fine, Fine, Standard)

NOISE REDUCTION

• high ISO NR:Normal/Low, Multi Frame NR:Auto, ISO100–12800

DYNAMIC RANGE FUNCTIONS

• Off, Dynamic Range Optimizer (Auto/Level 1–5), Auto High Dynamic Range: Off, Auto Exposure Difference, Exposure difference Level (1.0–6.0EV, 1.0EV step)

SHOOTING MODE

• Auto(Intelligent Auto/Superior Auto),Program Auto,Aperture Priority,Shutter Speed Priority,Manual Exposure,MR(Memory Recall) 1,2,Movie Mode(Program Auto,Aperture Priority,Shutter Speed Priority,Manual Exposure),Sweep Panorama,Scene Selection

SCENE SELECTION

• Portrait,Macro,Lan­dscape,Sunset,Nig­ht Scene,Handheld Twilight,Night Portrait,Anti Motion Blur,Pet,Gourmet,Fi­reworks,High Sensitivity

CONTINUOUS SHOOTING SPEED (MAXIMUM) (WITH MAX. RECORDING PIXELS)

• Spd Priority Cont. Approx. 10 fps, Cont. Shooting Approx. 3 fps789

SELF-TIMER

• Off / 10sec. / 5sec. / 2sec. / 3 consecutive shots with 10sec. 5sec. or 2sec. / 5 consecutive shots with 10sec. 5sec. or 2sec.

DRIVE MODES

• Single,Continuous shooting,Spd Priority Cont,Self-timer,Self-timer(cont.),Cont.-bracketing,Single-bracketing,White balance bracketing,DRO bracketing

PANORAMA (SHOOTING)

• Sweep Panorama

PICTURE EFFECT

• [Still Image]:Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono., Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolor, Illustration;
• [Movie]:Toy camera,Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono.

CREATIVE STYLE

• Standard, Vivid, Portrait, Landscape, Sunset, Black & White, Sepia

NUMBER OF RECOGNISED SCENES

• [Still Image]:Superior Auto: 44 / iAuto: 33;
• [Movie]:44

Flash
FLASH MODE

• Flash Off / Autoflash / Fill Flash / Slow Sync. / Rear Sync.

FLASH TYPE

• Built-in, manual pop-up

AF ILLUMINATOR

• Auto / Off

BRACKETING

• Yes

FLASH RANGE

• ISO Auto: Approx.0.3m to 5.4m(11 13/16 inches to 17 feet 8 19/32 inches)(W) / Approx.2.5m to 3.0 m(8feet 2 27/64 inches to 9 feet 10 7/64 inches)(T)

Recording
COMPATIBLE RECORDING MEDIA

• Memory Stick Micro,Memory Stick Micro (Mark2),microSD Memory Card,microSDHC Memory Card,microSDXC Memory Card10

RECORDING FORMAT

• [Still Image]:JPEG(DCF Ver.2.0,Exif Ver.2.31,MRF Baseline compliant),　
• [Movie]:XAVC S,Movie:AVCHD format Ver.2.0 compatible

RECORDING FORMAT (MOVIE AUDIO)

• XAVC S:LPCM 2ch,AVCHD:Dolby Digital(AC-3) 2ch(Dolby Digital Stereo Creator)

COLOUR SPACE (STILL)

• sRGB,Adobe RGB

DCF/DPOF

• DCF/DPOF/EXIF/MPF

STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE)

• 3:2mode:16M(4,896­×3,264)/8.9M(3,648×2,­432)/4.5M(2,592×1,­728),4:3mode:18M(4,896­×3,672)/10M(3,648×2,736)­/5M(2,592×1,944)/VGA(640­×480),16:9mode:13M(4,896­×2,752)/7.5M(3,648×2,­056)/2.1M(1,920×1,­080),1:1mode:13M(3,664­×3,664)/7.5M(2,736×2,­736)/3.7M(1,920×1,­920),Sweep Panorama:Wide(12,416×1,­856/5,536×2,160),Stan­dard(8,192×1,85­6/3,872×2,160)

MOVIE RECORDING MODE (NTSC)

• PAL/NTSC Selector: [NTSC] AVCHD: 24M FX(1,920×1,08­0/60i)/ 17M FH(1,920×1,08­0/60i), XAVC S 4K: 30p 100M(3,840×2,­160/30p)/ 30p 60M(3,840×2,1­60/30p)/ 24p 100M(3,840×2,­160/24p)/ 24p 60M(3,840×2,1­60/24p), XAVC S HD: 60p 50M(1,920×1,0­80/60p)/ 60p 25M(1,920×1,0­80/60p)/ 30p 50M(1,920×1,0­80/30p)/ 30p 16M(1,920×1,0­80/30p)/ 24p 50M(1,920×1,0­80/24p)/ 120p 100M(1,920×1,­080/120p)/120p 60M(1,920×1,0­80/120p)

MOVIE RECORDING MODE (PAL)

• PAL/NTSC Selector AVCHD: 24M FX(1,920×1,08­0/50i)/ 17M FH(1,920×1,08­0/50i), XAVC S 4K: 25p 100M(3,840×2,­160/25p)/ 25p 60M(3,840×2,1­60/25p)/ XAVC S HD: 50p 50M(1,920×1,0­80/50p)/ 50p 25M(1,920×1,0­80/50p)/ 25p 50M(1,920×1,0­80/25p)/ 25p 16M(1,920×1,0­80/25p)/ 100p 100M(1,920×1,­080/100p)/ 100p 60M(1,920×1,0­80/100p)

PROXY RECORDING

• Yes

Interface
INPUT AND OUTPUT TERMINALS

• Multi/Micro USB Terminal11, Hi-Speed USB (USB2.0), Micro HDMI

NFC

• NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing

WI-FI

• Yes(IEEE802.11b/g/n(2­.4GHz band))

BLUETOOTH

• Yes(Ver.4.1)

Power
POWER SOURCE

• DC3.6V(supplied battery)/ DC5.0V(supplied AC adaptor)

BATTERY SYSTEM

• NP-BX1

POWER CONSUMPTION (CAMERA MODE)

• Approx. 1.5W (CIPA standard)

USB CHARGE/USB POWER SUPPLY

• Yes (with supplied AC adaptor and supplied battery)

BATTERY LIFE(STILL IMAGES)(CIPA)

• Approx. 370 / Approx. 185min. (When Auto Monitor off is set to 2sec):Approx. 460 / Approx. 230min.

BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA)

• Approx. 55min

BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA)

• Approx. 95min.

Others
SHOOTING FUNCTIONS

• Eye AF,Face Detection,Face Registration,Smile Shutter,Grid Line,Digital Level Gauge,WB Bracketing,DRO Bracketing,Ze­bra,Marker Display,Micref Level,Zoom Assist,My Menu Setting,Self-portrait timer

PLAYBACK FUNCTIONS

• BRAVIA Sync(Control for HDMI),9/25-frame index view,Auto Orientation,Slide Show,Forward/Rewind (Movie),Delete,Pro­tect,Motion Shot Video,Automatic Image Rotation,Cont Shoot Grouping

TRILUMINOS COLOR

• Yes

4K IMAGE OUTPUT

• Yes

OPERATING TEMPERATURE

• 0 degrees C. – +40 degrees C. / 32 degrees F. – 104 degrees F.

Print
PRINT

• Exif Print,PRINT Image Matching (PIM3)

Size & Weight
DIMENSIONS (W X H X D) (APPROX.)

• 101.6mm x 58.1mm x 35.5mm(4 1/8 in. x 2 3/8 in. x 1 7/16 in.)

WEIGHT (CIPA COMPLIANT)

• Approx. 233g (8.3oz) (Battery and Memory Card are included)/Approx. 207g (7.3oz) (Body Only)

What's In The Box

• Rechargeable Battery Pack NP-BX1
• AC Adaptor
• Micro USB cable
• Wrist Strap
• Instruction Manual
