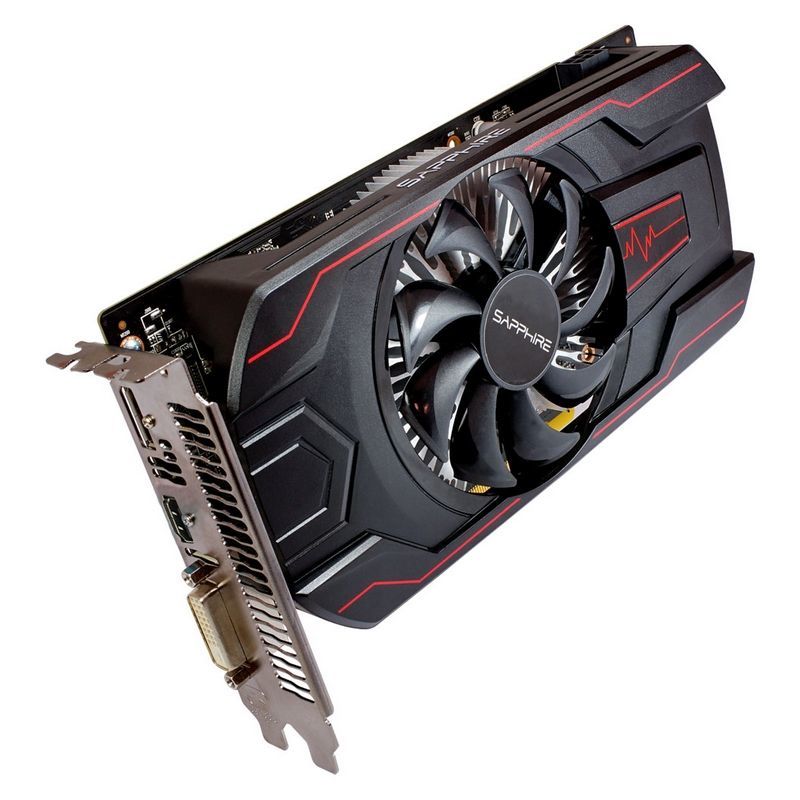

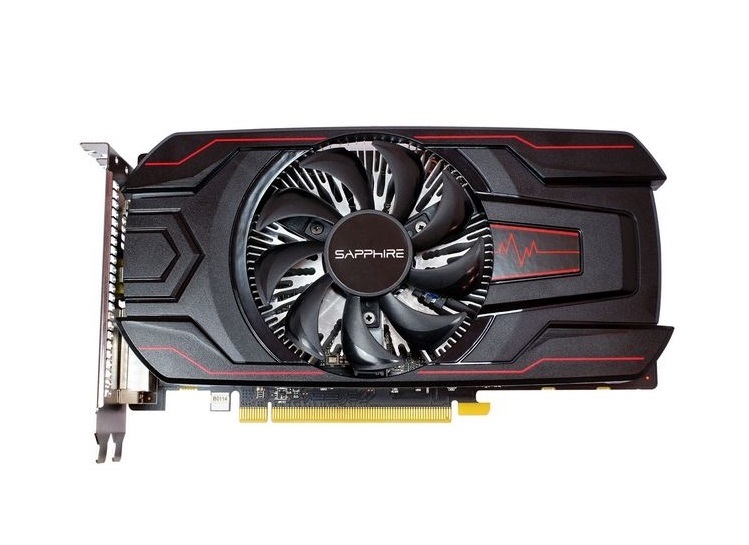

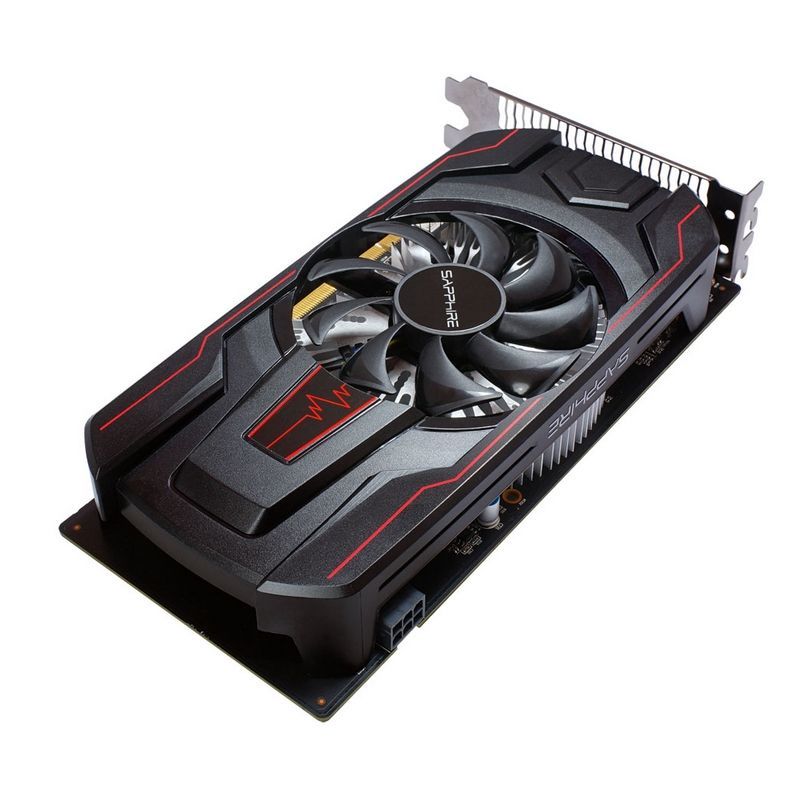

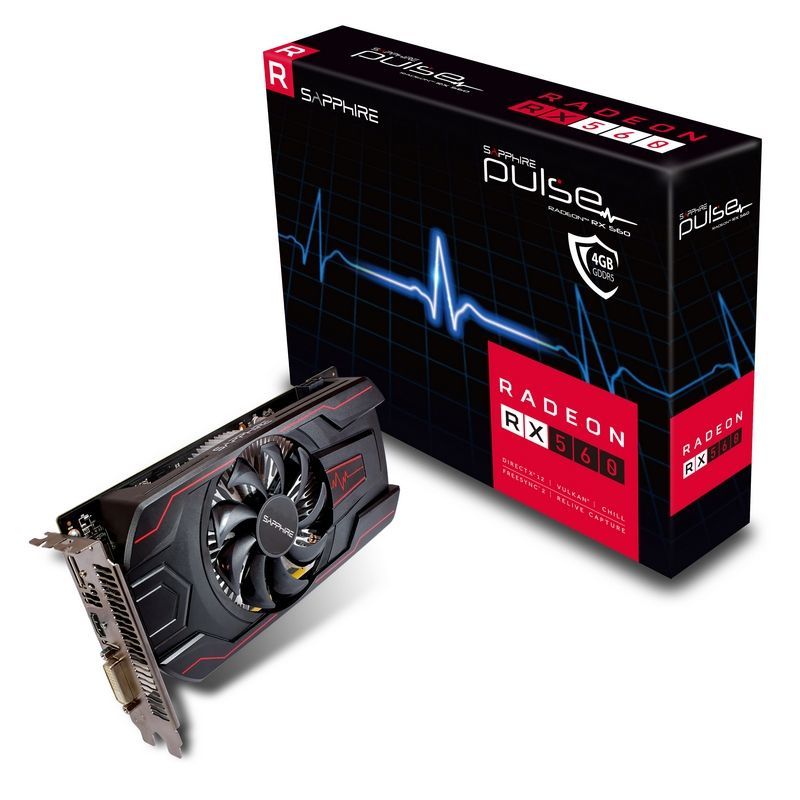

Sapphire Pulse: Radeon RX560 OC – 4G GDDR5 Graphics Card
The SAPPHIRE Pulse Radeon RX560 plays your favorites at a smooth 1080p, from the latest eSports games and MOBAs to the most popular, graphically-intensive AAA titles. Built on the future-ready Polaris architecture and sporting 1024 GCN stream processors . The card is ready for the latest technologies like DisplayPort 1.4 HBR3/HDR , HDMI 4K60, and Freesync 2 technology delivering a high level of graphical fidelity in your favorite games and multimedia experience.
Frame Rate Target Control: Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.
DirectX® 12": This is a new, “console-like” graphics API from Microsoft® that empowers game developers with more direct and obvious control of PC hardware. This direct or “explicit” control better exposes the hardware resources of AMD Radeon™ GPUs to yield higher hardware throughput and, ultimately, more performance for users.
Harness the power of multiple GPUs: AMD CrossFire™ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFire™ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance.1 AMD CrossFire™ technology ready graphics cards fit practically every budget.
Specifications:
- GPU: 896 Stream Processors, 14 nm FinFET, 4th Graphics Core Next (GCN), 1226 MHz Boost Engine Clock
- Memory: 128 bit Memory Bus, GDDR5 Memory Type, 1500 MHz, 6000 MHz Effective, 4 GB Size
- Resolution: 5120×2880 (60Hz) Pixel DisplayPort Resolution, 2560×1600(60Hz) Pixel Dual Link DVI Resolution, 4096×2160 (60 Hz) HDMI Resolution
- Output: 1 x DVI-D, 1 x HDMI, 1 x DisplayPort 1.4
- API: OpenGL® 4.5, OpenCL 2.0, DirectX® 12, Shader Model 5.0
- Form Factor: 2 Part Slot Occupied (210 × 112 × 36mm)
- Displays: Maximum 3 Outputs
- Power Consumption: 75W
- BIOS Support: UEFI BIOS
- Cooling: Single fan
