- Supports 8th and 9th Gen Intel® Core™ / Pentium® Gold /Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Core Boost: With premium layout optimized power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device
- EZ Debug LED: Easiest way to troubleshoot.
BUILT FOR HARDCORE GAMERS AND PC ENTHUSIAST
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core
processors, ready to deliver world class performance when gaming.
CONQUER THE BATTLEFIELD
Featuring heavy plated heat sinks and fierce looks, MSI ARSENAL GAMING
motherboards are packed with gaming features for a refined gaming
experience.
Specifications
- PROCESSOR
- Supports 8th and 9th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151
- CHIPSET
- Intel® H370 Chipset
- MEMORY
- 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666/ 2400/ 2133 MHz1
- Dual channel memory architecture
- Supports non-ECC UDIMM memorye
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory
- SLOTS
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 3.0 x1 slots
- ONBOARD GRAPHICS
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
- 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
- STORAGE
- Intel® H370 Chipset
- 6 x SATA 6Gb/s ports1
- 1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Intel® Optane™ Memory Ready2
- The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
- Intel® H370 Chipset
- * RAID
- Intel® H370 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- Intel® H370 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- Intel® H370 Chipset
- AUDIO
- Dual Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
- LAN
- 1 x Realtek 8111H Gigabit LAN controller
- INTERNAL CONNECTORS
- 1 × 24-pin ATX main power connector
- 1 × 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 × 4-pin CPU fan connector
- 2 × 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x Parallel port connector
- 1 x Serial port connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Thunderbolt add-on card connector
- 1 x RGB LED connector
- 1 x Clear CMOS jumper

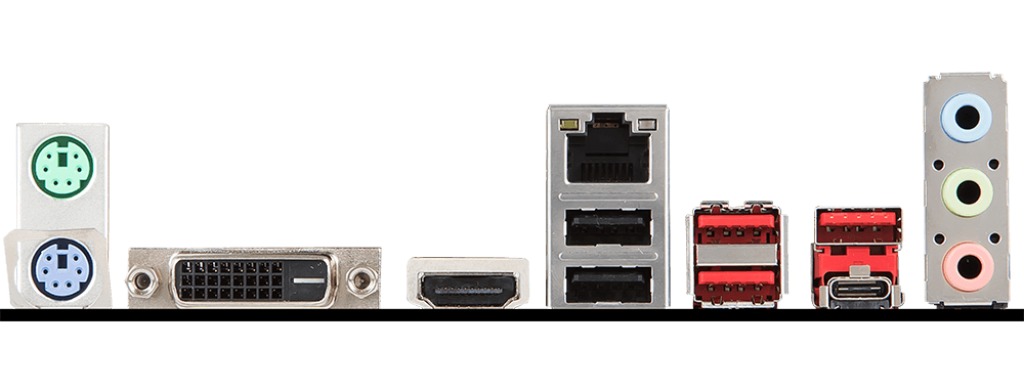

- BACK PANEL PORTS
- Mouse and Keyboard Port
- LAN Port
- USB 3.1 Gen1 Type A
- HD Audio Connectors
- DVI-D Port
- HDMI Port
- USB 2.0 Port
- USB 3.1 Gen1 Type C
- MSI H370M BAZOOKA back panel ports
- DIMENSIONS
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- m-ATX Form Factor
