Computer Components:

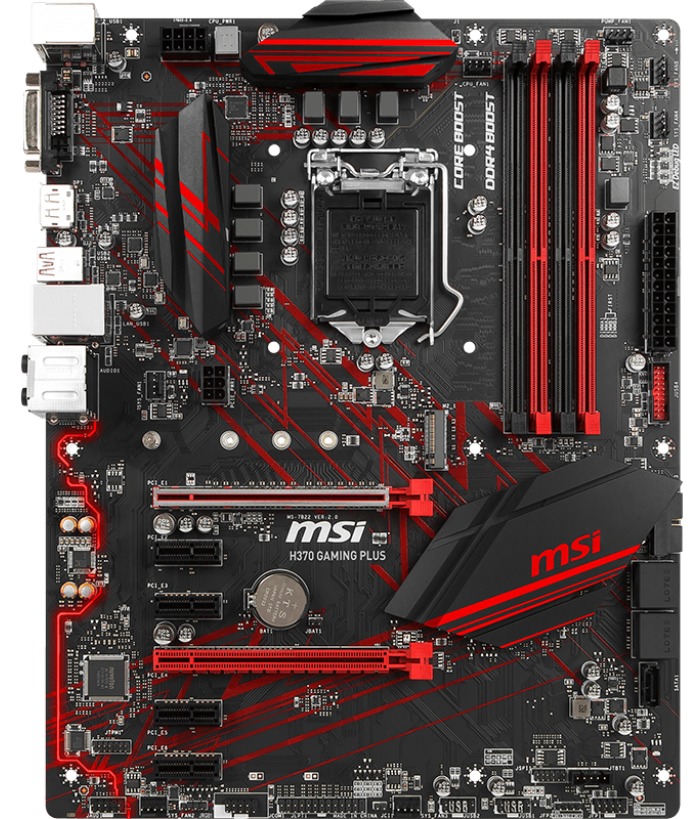

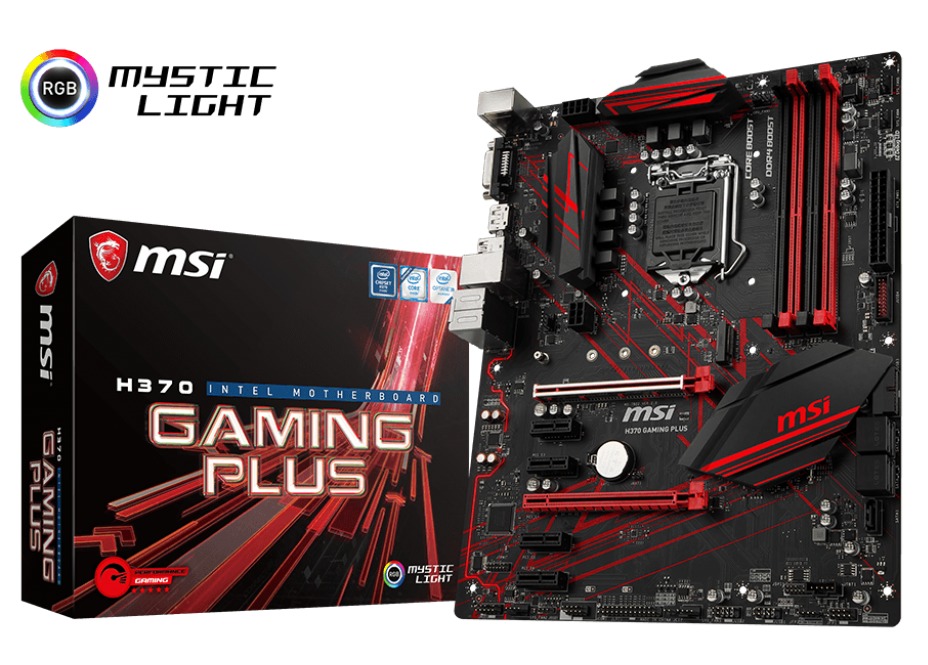

MSI H370 GAMING PLUS ATX Motherboard

Customer rating

Click to share your rating 2 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

$209.00
Hurry! Only 4 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
    In time for Christmas
  • Friday using standard courier delivery
    In time for Christmas

Description

  • Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA 1151
  • Supports DDR4 Memory, up to 2666MHz
  • MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device.
  • Lightning Fast Game experience: TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2
  • AUDIO BOOST with NAHIMIC: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
  • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
  • VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
  • In-Game Weapons: GAMING Hotkey, X-Boost, Voice Boost.
  • EZ Debug LED: Easiest way to troubleshoot.
  • Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.
  • GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.

BUILT FOR HARDCORE GAMERS AND PC ENTHUSIASTS
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

GAME IN STYLE
Unlimited customization options and packed with exclusive gaming features, MSI PERFORMANCE GAMING motherboards offer the best possible gaming experience.

Specifications

  • PROCESSOR
    • Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151
  • CHIPSET
    • Intel® H370 Chipset
  • MEMORY
    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer to www.msi.com for more information on compatible memory
  • SLOTS
    • 2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)
    • 4 x PCIe 3.0 x1 slots
  • ONBOARD GRAPHICS
    • 1 x DisplayPort 1.2, supports a maximum resolution of 4096×2304 @ 60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz
  • MULTI-GPU
    • Supports 2-Way AMD® CrossFire™ Technology
  • STORAGE
    • Intel® H370 Chipset
      • 5 x SATA 6Gb/s ports1
      • 1 x M.2 slots (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
    • Intel® Optane™ Memory Ready
    • SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • RAID
    • Intel® H370 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    • Intel® H370 Chipset
      • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
      • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
      • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • AUDIO
    • Dual Realtek® ALC892 Codec
    • 7.1-Channel High Definition Audio
  • LAN
    • 1 x Intel I219-V Gigabit LAN controller
  • INTERNAL CONNECTORS
    • 1 × 24-pin ATX main power connector
    • 1 × 8-pin ATX 12V power connector
    • 1 × 6-pin ATX PCIe power connector
    • 5 x SATA 6Gb/s connectors
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 × 4-pin CPU fan connector
    • 1 × 4-pin water pump fan connector
    • 5 × 4-pin system fan connectors
    • 1 x Front panel audio connector
    • 2 x Front panel connectors
    • 1 x Series port connector
    • 1 x Parallel port connector
    • 1 × 5050 RGB LED strip 12V connector
    • 1 x TPM module connector
    • 1 x Thunderbolt Add-on Card Connector
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
  • BACK PANEL PORTS
    • PS/2 Combo Port
    • LAN Port
    • HD Audio Connectors
    • USB 2.0 Port
    • DVI-D
    • DisplayPort
    • USB 3.1 Gen2 Type A + C
    • USB 3.1 Gen1
    • MSI H370 GAMING PLUS back panel ports
  • DIMENSIONS
    • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
    • ATX Form Factor
Release date NZ
April 9th, 2018
Manufacturer code:
H370-GAMING-PLUS
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
64
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
1
Number of HDMI Ports
0
Number of PCI Express x16 Slots
2
Number of PCI Express x1 Slots
4
Number of M.2 Sockets
1
Number of SATA Headers
5
Number of U.2 Headers
0
Number of USB 3.0 Headers
2
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
3
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
350x275x70
UPC
824142159439
Product ID
27821843
