TAKE THE ESSENTIALS

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It's powered by Ampere—NVIDIA's 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.

FEATURES

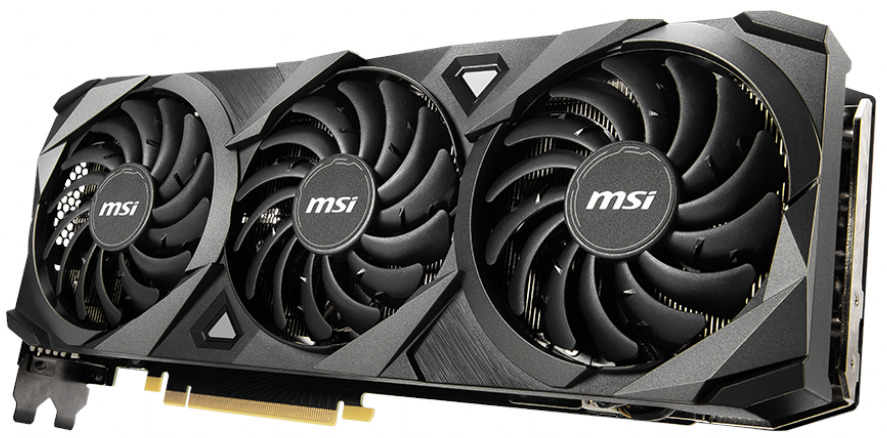

• Triple Fan: Three fans and a huge heatsink ensure a cool and quiet experience for you.
• TORX FAN 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr: Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
• Custom PCB: The custom PCB has been engineered with hardened circuits and optimized trace routing for performance and reliability.
• Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
• Dragon Center: MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
• Support Bracket Included

SPECIFICATIONS

• Model Name: GeForce RTX™ 3090 VENTUS 3X 24G OC
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 3090
• Interface: PCI Express® Gen 4
• Cores: 10496
• Core Clocks: Boost: 1725 MHz
• Memory Speed: 19.5 Gbps
• Memory: 24GB GDDR6X
• Memory Bus: 384-bit

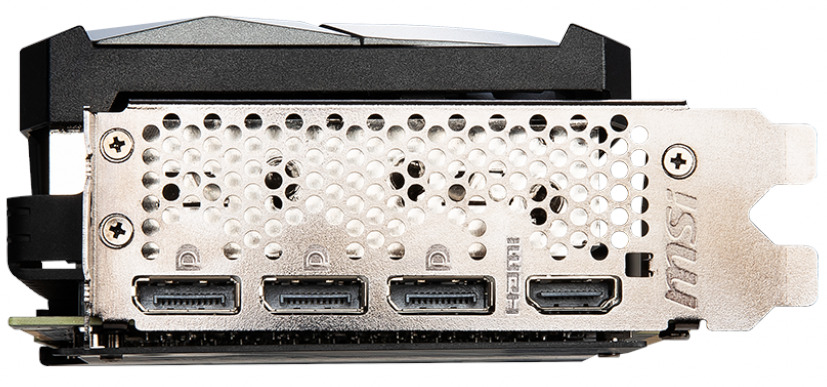

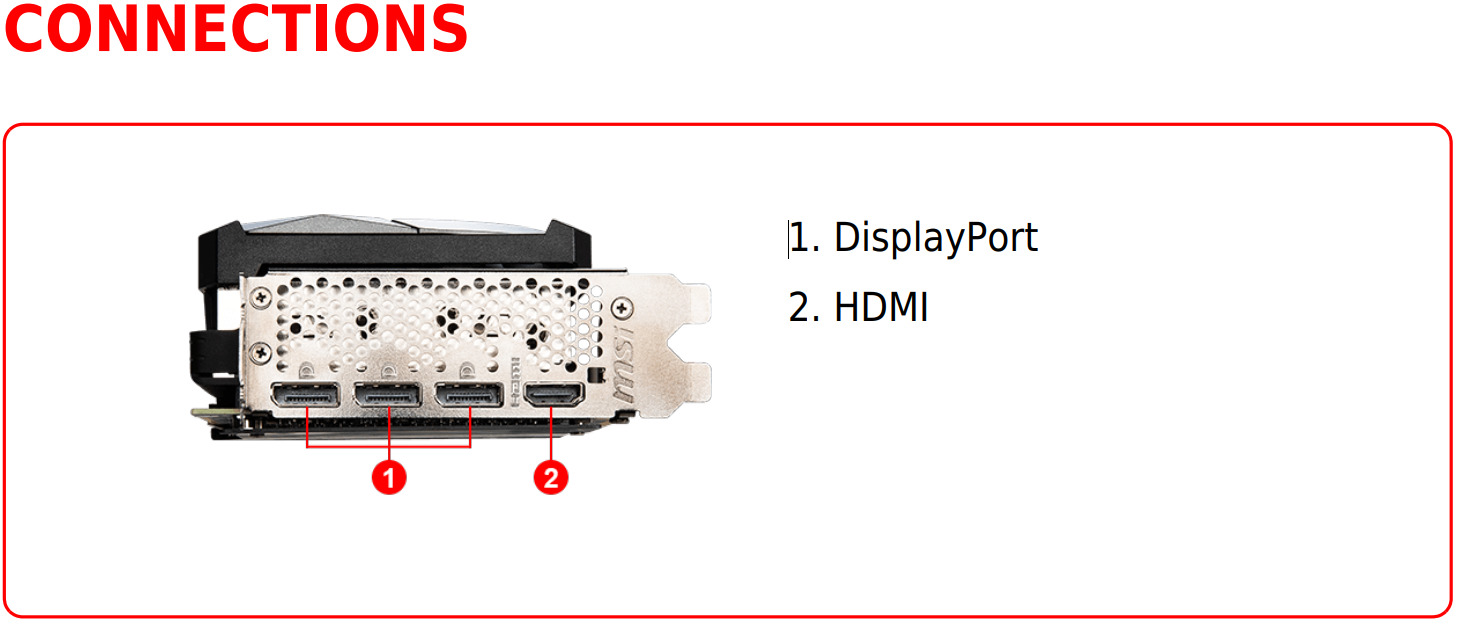

• Output: DisplayPort x 3 (v1.4a) / HDMI 2.1 × 1
• HDCP Support: Y
• Power consumption: TBD
• Power Connectors: 8-pin x 2
• Recommended PSU (W): 750W
• Card Dimension(mm): 305 × 120 × 57 mm
• Weight (Card / Package): 1387g / 2004g
• DirectX Version Support: 12 API
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• VR Ready: Y
• G-SYNC™ technology: Y
• Adaptive Vertical Sync: Y
• Digital Maximum Resolution: 7680×4320
• PCB (custom/referen­ce): Y
