- Core/Memory
- Boost Clock / Base Clock / Memory Speed: 1740 MHz / 1410 MHz / 14Gbps
- 8GB GDDR6
- DisplayPort x 3 / HDMI x 1 / USB Type-C x 1
- Armor Thermal Design
- TORX Fan 2.0 with Double Ball Bearings
- Dispersion fan blade: Steep curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
- Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high.
- Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.
- TORX Fan 2.0 with Double Ball Bearings
- RGB Mystic Light: Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
NVIDIA Turing™ Architecture
This revolutionary architecture, combined with our all-new GeForce RTX™
platform, fuses together real-time ray tracing, artificial intelligence, and
programmable shading. You’ve never created and enjoyed games like this
before.
Real-Time Ray Tracing In Games
Ray tracing is the definitive solution for lifelike lighting, reflections, and
shadows, offering a level of realism far beyond what’s possible using
traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of
real-time ray tracing.
PERFORMANCE
GeForce RTX™ gaming GPUs come loaded with next-generation GDDR6 memory,
support for DirectX 12 features, and more. This is graphics reinvented.
ARMOR SERIES
Game in style & dare to be different with MSI's unique ARMOR graphics
cards. Inspired by advanced armor shielding with a classy black & white
finish. ARMOR graphics cards are perfect for gamers and case modders who are
looking for something different. This is where gaming meets class.

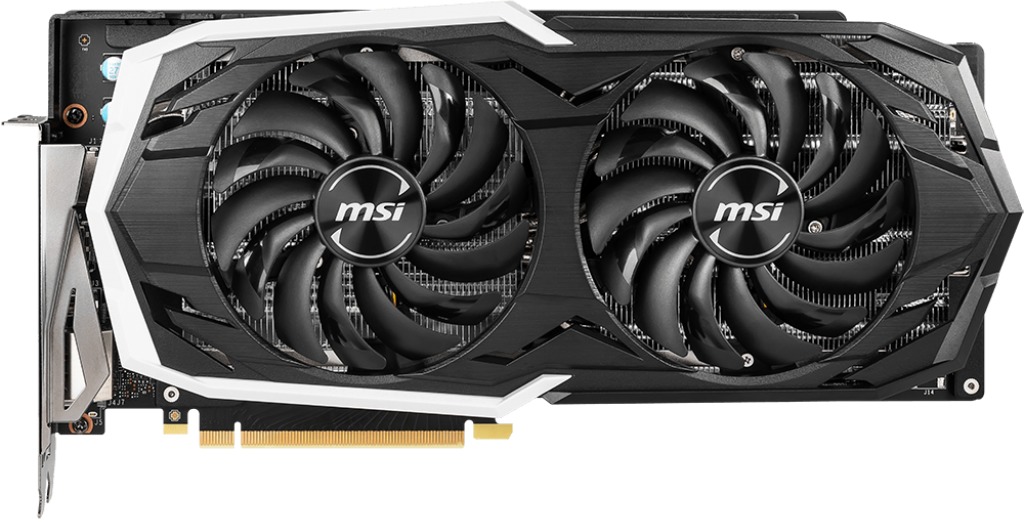

ARMOR THERMAL DESIGN
Using two of the award-winning TORX Fans 2.0 with Double Ball Bearings, ARMOR
provides excellent air cooling.
TRACES OF BRILLIANCE
Underneath all the metal are the multilayered electric highways that make up the
Printed Circuit Board. They connect all the vital components and allow them to
communicate at lightning speed.
Specs

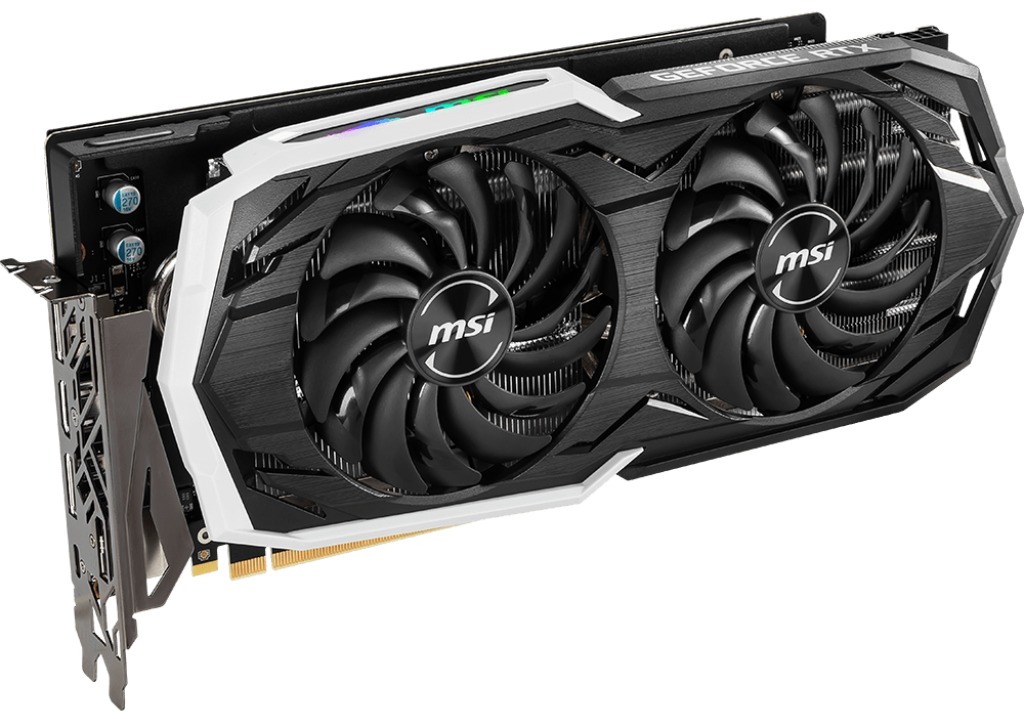

- Model Name GeForce RTX™ 2070 ARMOR 8G OC
- Graphics Processing Unit NVIDIA® GeForce RTX™ 2070
- Interface PCI Express x16 3.0
- Cores 2304 Units
- Core Clocks
- Boost: 1740 MHz
- Base: 1410 MHz
- Memory Speed 14 Gbps
- Memory 8GB GDDR6
- Memory Bus 256-bit

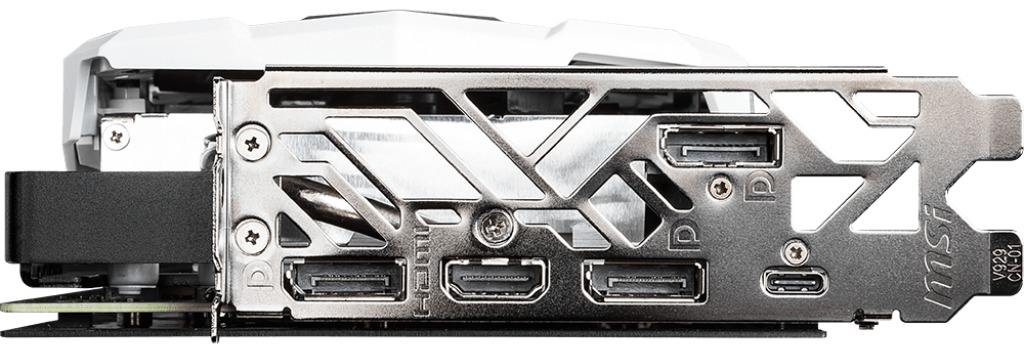

- Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1 / USB Type-C x 1
- HDCP Support 2.2
- Power consumption 185W
- Power connectors 8-pin x 1, 6-pin x 1
- Recommended PSU 550W
- Card Dimension(mm) 309 × 155 × 50 mm
- Weight (Card / Package) 1177 g / 1699 g
- Afterburner OC Y
- DirectX Version Support 12 API
- OpenGL Version Support 4.5
- Maximum Displays 4
- VR Ready Y
- G-SYNC™ technology Y
- Adaptive Vertical Sync Y
- Digital Maximum
- Resolution: 7680×4320
