• Core Clock & Memory
  • 1721 MHz / 1531 MHz (Boost / Base)
  • 8192 MB GDDR5 / 8008 MHz
  • DisplayPort x 2 / HDMI x 2 / DL-DVI-D
• ITX Thermal Design
  • TORX Fan
    • Dispersion fan blade: Steep curved blade accelerating the airflow.
    • Traditional fan blade: Provides steady airflow to massive heat sink below.
  • Zero Frozr Stopping the fan in low-load situations, keeping a noise-free environment.
  • Airflow Control Improves cooling efficiency by using advanced aerodynamics to focus the airflow.
  • Super Pipe Improved dissipation by using thick 8mm heat pipe in optimized layout.
• Afterburner Overclocking Utility
  • Wireless control through Android/iOS.
  • Predator: In-game video recording.
  • Kombustor: built-in DirectX12 benchmark.
• NVIDIA G-SYNC™
  • Synchronizes the display refresh to your GeForce GTX GPU for the fast, smooth gaming.

SMALL PACKAGE, BIG PUNCH
The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.

TORX FAN
AERO ITX cards are equipped with the award winning MSI TORX fan. Thanks to the patented blade design, MSI TORX fans provide strong cooling performance while remaining incredibly silent.

ZERO FROZR
ZeroFrozr technology which was first introduced by MSI back in 2008. ZeroFrozr technology eliminates fan noise in low-load situations by stopping the fans when they are not needed, literally bringing noise down to 0dB.

MIGHTY COOLING IN A TINY PACKAGE
Underneath the AERO ITX shroud is an incredibly compact heatsink comprised of 8mm copper super pipes and countless aluminum fins. Airflow Control deflects the airflow to where it’s most needed to keep the GPU cool during demanding gaming sessions.

PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.

MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for AERO ITX cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.

gSYNC – THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating screen tearing, display shutter and input lag.

PREPARE FOR VR WITH MSI
To experience and enjoy the impressive world of Virtual Reality, high-performance hardware is required. MSI, world leading brand in high-end gaming and eSports, provides the right advice to make sure your system is VR Ready. Integrating the very best of cutting edge technologies in recommended MSI VR gaming hardware for smooth performance. Together with our VR partners, MSI brings gamers an extremely realistic VR experience where games come alive.

AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.

SPECIFICATIONS

• Model Name: GeForce® GTX 1070 AERO ITX 8G OC
• Graphics Processing Unit: NVIDIA® GeForce® GTX 1070
• Interface: PCI Express x16 3.0
• Core Name: GP104–200
• Cores: 1920 Units
• Core Clocks: 1721 MHz / 1531 MHz
• Memory Clock Speed: 8008 MHz
• Memory: 8GB GDDR5
• Memory Bus: 256-bit

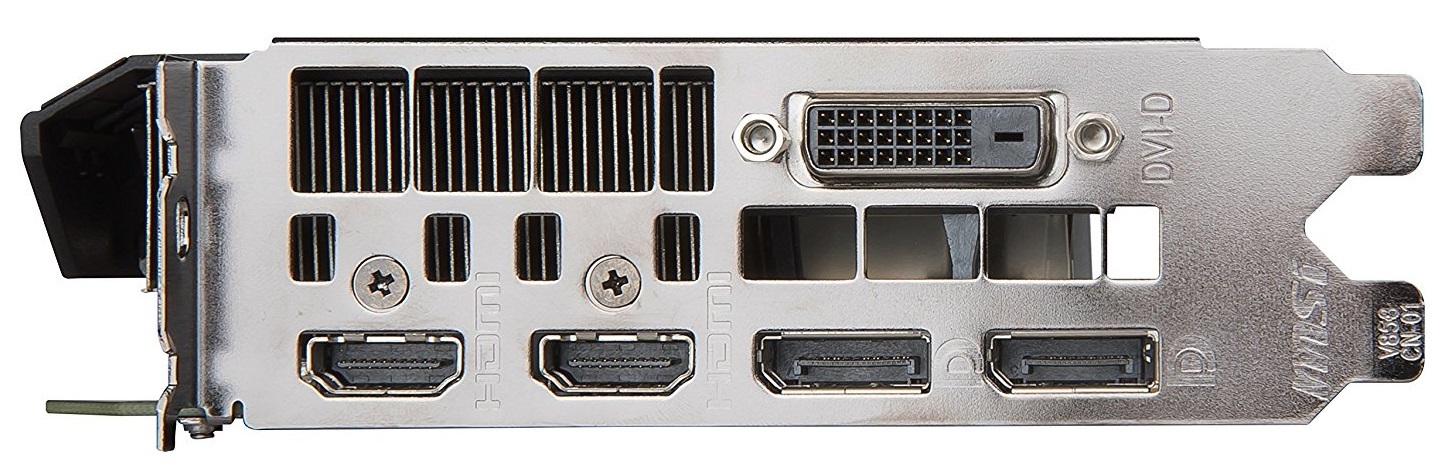

• Output: DisplayPort x 2 (Version 1.4) / HDMI x 2 (Version 2.0) / DL-DVI-D
• HDCP Support: 2.2
• Power consumption: 150 W
• Power connectors: 8-pin x 1
• Recommended PSU: 500 W
• Card Dimension(mm): 175 × 129 × 37 mm
• Weight (Card / Package): 580 g / 990 g
• Afterburner OC: Y
• DirectX Version Support: 12
• OpenGL Version Support: 4.5
• Multi-GPU Technology: SLI, 2-way
• Maximum Displays: 4
• VR Ready: Y
• G-SYNC™ technology: Y
• Adaptive Vertical Sync: Y
