• Core/Memory
  • Boost Clock / Base Clock / Memory Frequency
    • 1809 MHz / 1594 MHz / 8108 MHz (OC Mode)
    • 1784 MHz / 1569 MHz / 8008 MHz (Gaming Mode)
    • 1708 MHz / 1506 MHz / 8008 MHz (Silent Mode)
  • 3072 MB GDDR5

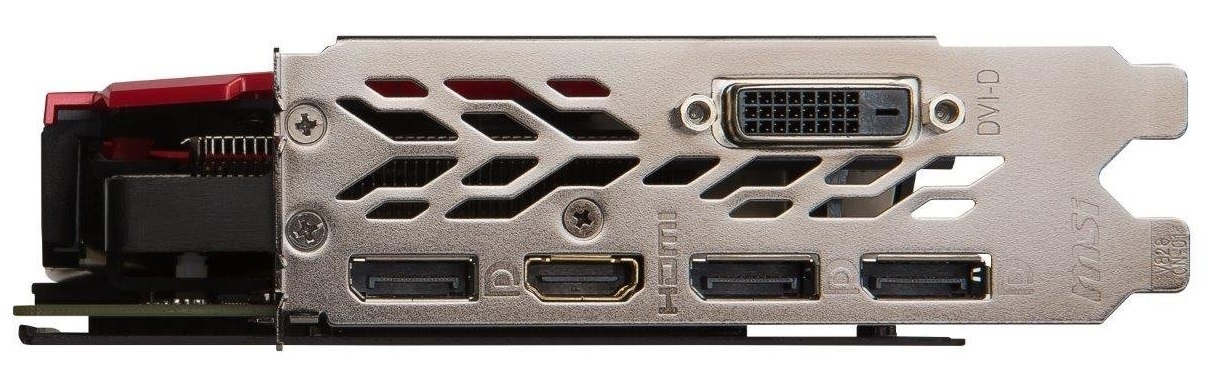

• Video Output Function
  • DisplayPort x 3
  • HDMI x 1
  • Dual-link DVI-D x 1
• Features
  • Virtual Reality Ready
  • DirectX 12 Ready
  • Gamestream to NVIDIA® SHIELD

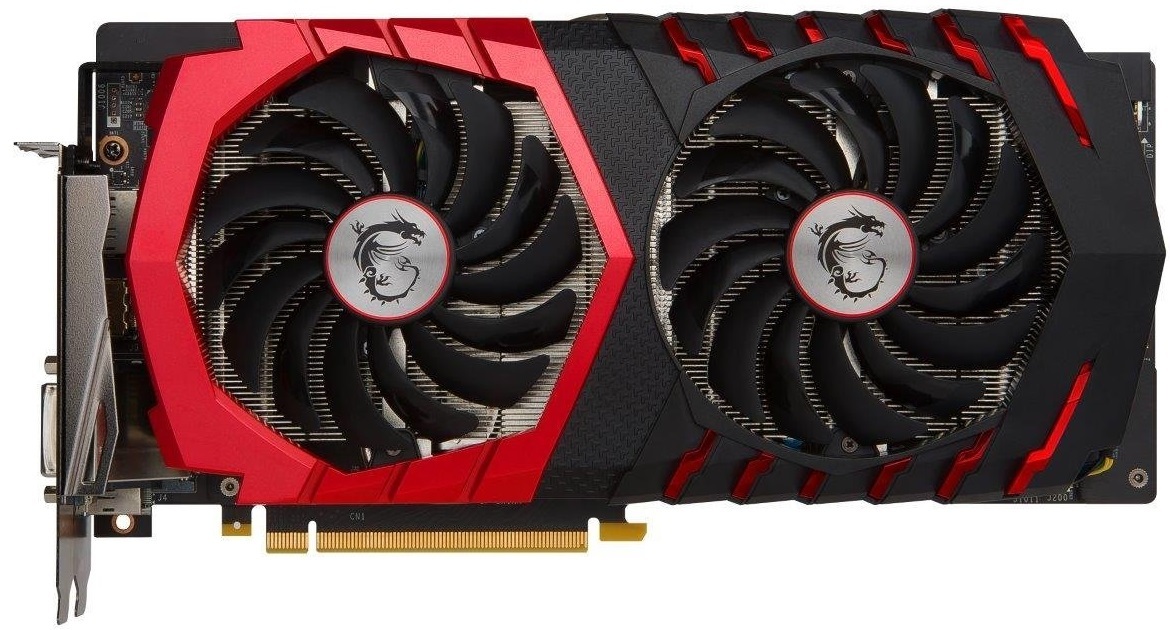

TORX 2.0 FAN
TEAMWORK FOR GREATER STRENGTH
Just like in games, the exclusive MSI TORX 2.0 Fan technology uses the power of teamwork to allow the TWIN FROZR VI to achieve new levels of cool.

TORX 2.0 Fan design generates 22% more air pressure for supremely silent performance in the heat of battle.

ZERO FROZR-STAY UNDETECTED
First introduced in 2008 by MSI, ZeroFrozr technology has made its mark and is now the industry standard among graphics cards. It eliminates fan noise by stopping the fans in low-load situations. This means you can focus on gaming without the noise of spinning fans.

CATCH THE VIBE WITH COOL LED EFFECTS
Each LED can be controlled individually by choosing any of the animation effects availiable in the MSI Gaming App, ranging from responding to your game sounds or music to steady light, breathing and flashing. Of course, you can also turn them off.

HEATSINK
Lurking under the cover of the GAMING graphics card is an engineering masterpiece designed to keep the graphics card cool. Every tiny detail of the intricate heatsink plays an essential part in providing a cool & quiet gaming experience.

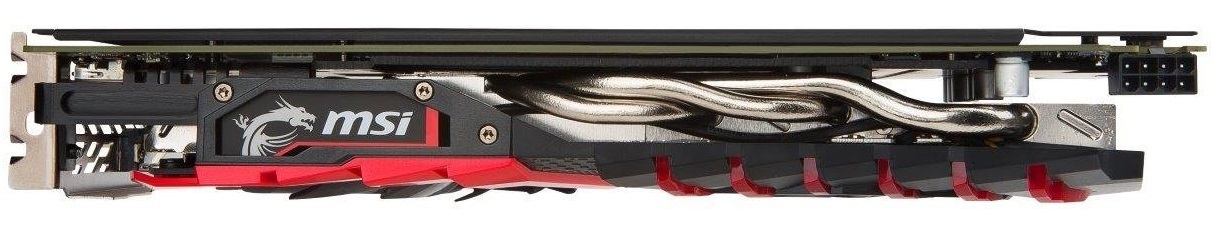

SMOOTH HEAT PIPES
Up to 8mm thick copper heat pipes with a smooth squared shape at the bottom maximize heat transfer from the surface of the copper base plate.

SOLID BASEPLATE
To temper the heat generated by a powerful GPU, MSI GAMING series graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation so you can keep cool.

PREMIUM THERMAL COMPOUND
Every detail counts when it comes to creating the ultimate thermal design, which is why TWIN FROZR VI uses a premium thermal compound to make sure it outlives the competition.

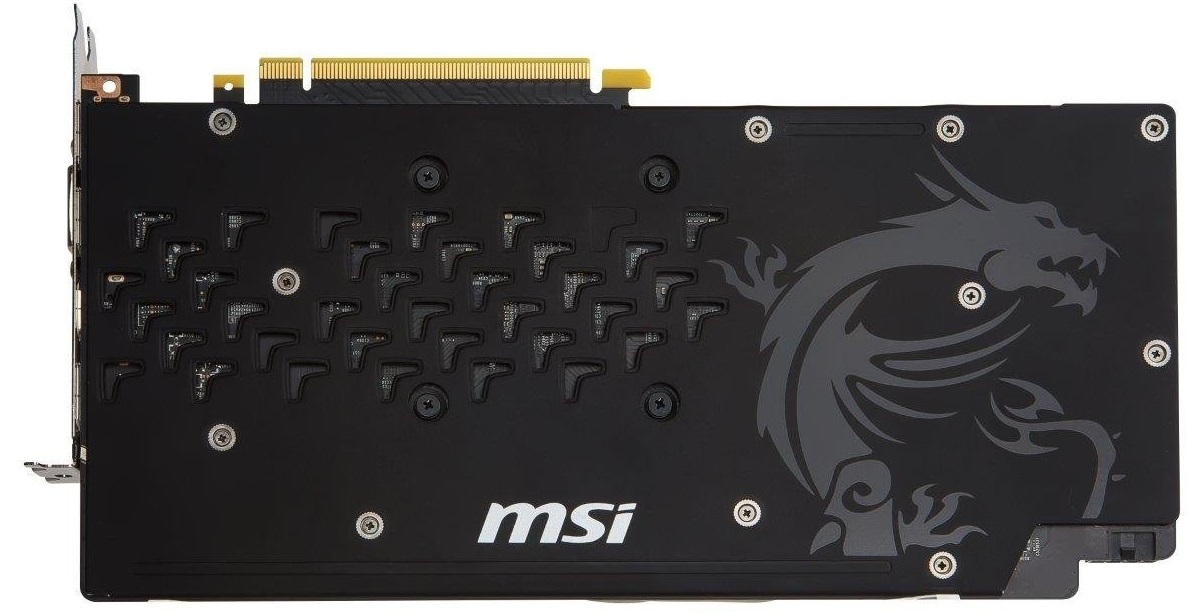

BACKPLATE
A powerful graphics card needs a strong build to harness its performance. MSI GAMING X graphics cards are fitted with a solid metal back plate to make it extra tough. The matte black finish completes the TWIN FROZR VI design to perfection.

gSYNC – THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating screen tearing, display shutter and input lag.

PREPARE FOR VR WITH MSI
To experience and enjoy the impressive world of Virtual Reality, high-performance hardware is required. MSI, world leading brand in high-end gaming and eSports, provides the right advice to make sure your system is VR Ready. Integrating the very best of cutting edge technologies in recommended MSI VR gaming hardware for smooth performance. Together with our VR partners, MSI brings gamers an extremely realistic VR experience where games come alive.

GAMING APP
The MSI Gaming App allows for one-click performance profiles that unlock extra performance for gaming or keep your card silent during light use. It also features the EyeRest tab, giving you easy access to image quality improving technology. The LED control tab gives you full control over your MSI GAMING LED lights to set the mood.

SPECIFICATIONS

• Model Name: GeForce® GTX 1060 GAMING X 3G
• Graphics Processing Unit: NVIDIA® GeForce® GTX 1060
• Interface: PCI Express x16 3.0
• Core Name: GP106–300
• Cores: 1152 Units
• Core Clocks
  • 1809 MHz / 1594 MHz (OC Mode)
  • 1784 MHz / 1569 MHz (Gaming Mode)
  • 1708 MHz / 1506 MHz (Silent Mode)
• Memory Clock Speed
  • 8108 MHz (OC Mode)
  • 8008 MHz (Gaming Mode)
  • 8008 MHz (Silent Mode)
• Memory: 3GB GDDR5 (192-bit)
• Output: DisplayPort x 3 (Version 1.4) / HDMI (Version 2.0) / DL-DVI-D
• HDCP Support: 2.2
• Power consumption: 120 W
• Power connectors: 8-pin x 1
• Recommended PSU: 400 W
• Card Dimension(mm): 277 × 140 × 39 mm
• Weight (Card / Package): 1017 g / 1610 g
• Afterburner OC: Y
• DirectX Version Support: 12
• OpenGL Version Support: 4.5
• Maximum Displays: 4
• VR Ready: Y
• G-SYNC™ technology: Y
• Adaptive Vertical Sync: Y
• Digital Maximum Resolution: 7680 × 4320
