- Core/Memory
- Boost Clock / Base Clock
- 1759 MHz / 1544 MHz
- 6144 MB GDDR5 / 8008 MHz Memory
- Video Output Function
- DisplayPort x 1
- HDMI x 1
- Dual-link DVI-D x 1
- Features
- Virtual Reality Ready
- DirectX 12 Ready
- Gamestream to NVIDIA® SHIELD
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components
used. That is why MSI only uses MIL-STD-810G certified components. Only these
components have proven durable enough to withstand the torturous circumstances
of extreme gaming and overclocking for extended usage.
gSYNC – THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating
screen tearing, display shutter and input lag.
PREPARE FOR VR WITH MSI
To experience and enjoy the impressive world of Virtual Reality,
high-performance hardware is required. MSI, world leading brand in high-end
gaming and eSports, provides the right advice to make sure your system is VR
Ready. Integrating the very best of cutting edge technologies in recommended MSI
VR gaming hardware for smooth performance. Together with our VR partners, MSI
brings gamers an extremely realistic VR experience where games come alive.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card
overclocking utility which gives you full control of your graphics cards. It
also provides an incredibly detailed overview of your hardware and comes with
some additional features such as customizing fan profiles, benchmarking and
video recording.
SPECIFICATIONS

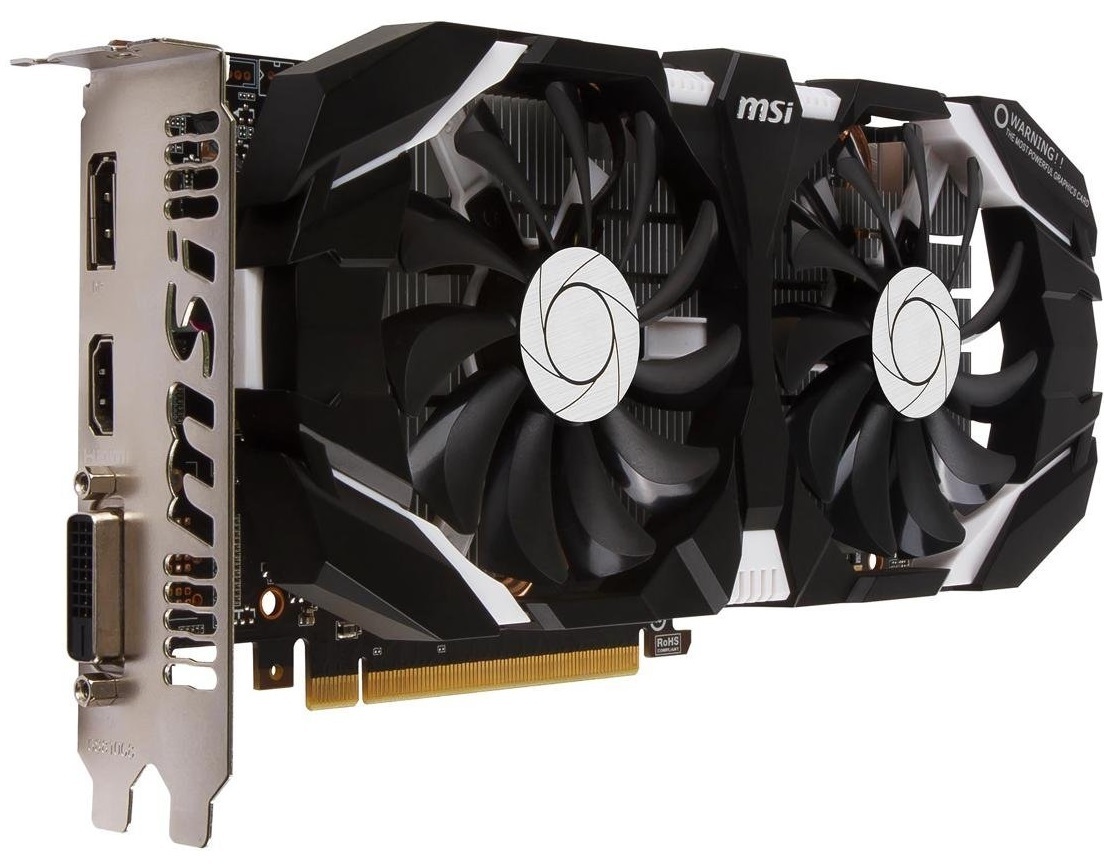

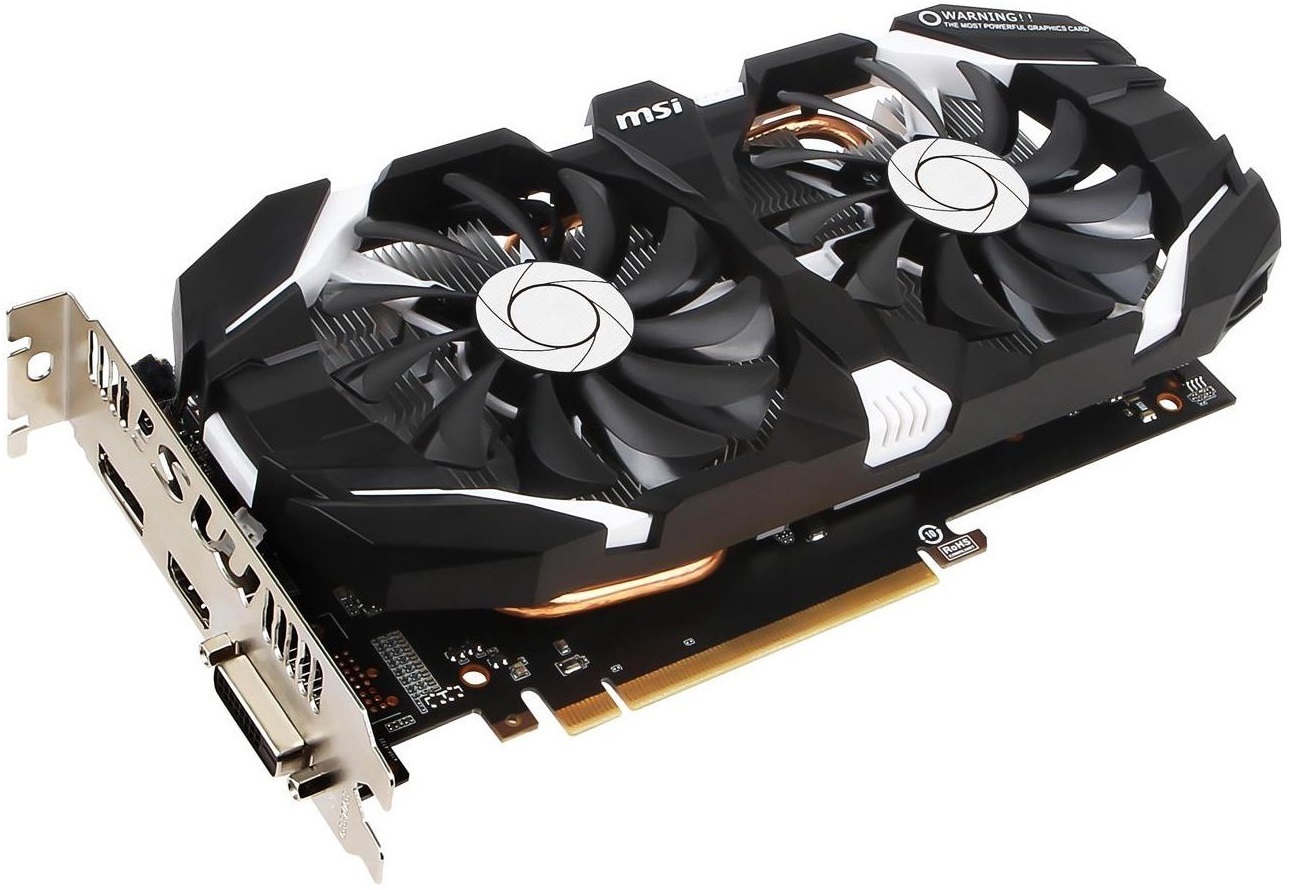

- Model Name: GeForce® GTX 1060 6GT OC
- Graphics Processing Unit: NVIDIA® GeForce® GTX 1060
- Interface: PCI Express x16 3.0
- Core Name: GP106–400
- Cores: 1280 Units
- Core Clocks: 1759 MHz / 1544 MHz
- Memory Clock Speed: 8008 MHz
- Memory: 6GB GDDR5 (192-bit)

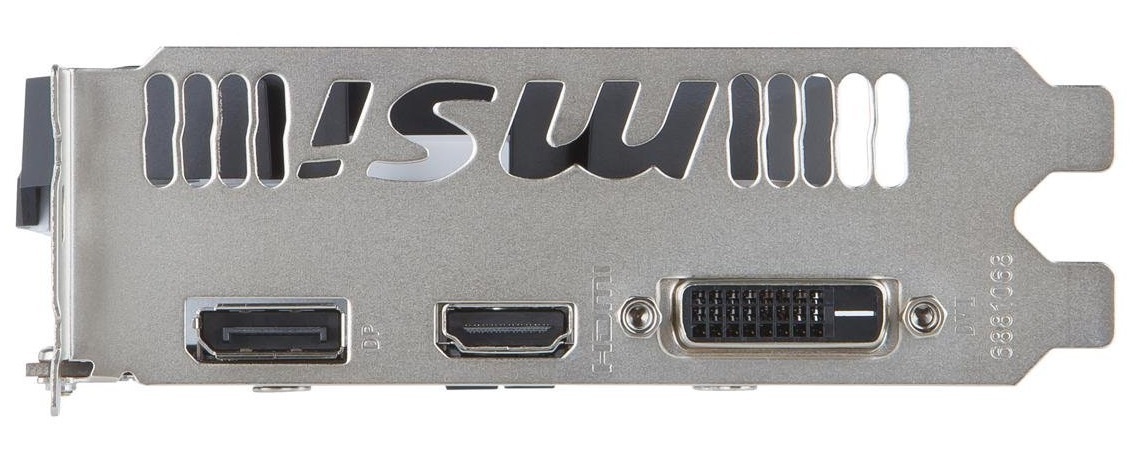

- Output: DisplayPort (Version 1.4) / HDMI (Version 2.0) / DL-DVI-D
- HDCP Support: 2.2
- Power consumption: 120 W
- Power connectors: 6-pin x 1
- Recommended PSU: 400 W
- Card Dimension(mm): 247 × 115 × 39 mm
- Weight (Card / Package): 591 g / 940 g
- Afterburner OC: Y
- DirectX Version Support: 12
- OpenGL Version Support: 4.5
- Maximum Displays: 2
- VR Ready: Y
- G-SYNC™ technology: Y
- Adaptive Vertical Sync:Y
