- Supports 8th and 9th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA 1151
- Supports DDR4 Memory, up to 2666MHz
- MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device.
- Lightning Fast Game experience: TURBO M.2, Intel Optane Memory Ready.
- Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
- AUDIO BOOST with NAHIMIC: Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- GAMING LAN, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness.
- In-Game Weapons: GAMING Hotkey, X-Boost, Voice Boost.
- EZ Debug LED: Easiest way to troubleshoot.
- Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function.
- GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players.
BUILT FOR HARDCORE GAMERS AND PC ENTHUSIASTS
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core
processors, ready to deliver world class performance when gaming.
GAME IN STYLE
Unlimited customization options and packed with exclusive gaming features, MSI
PERFORMANCE GAMING motherboards offer the best possible gaming experience.
Specifications
- PROCESSOR
- Supports 8th and 9th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151
- CHIPSET
- Intel® B360 Chipset
- MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz1
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to www.msi.com for more information on compatible memory
- SLOTS
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 3.0 x1 slots
- ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hzz
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
- 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
- STORAGE
- Intel® B360 Chipset
- 6 x SATA 6Gb/s ports1
- 1 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
- Intel® Optane™ Memory Ready2
- The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
- Intel® B360 Chipset
- USB
- Intel® B360 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- Intel® B360 Chipset
- AUDIO
- Dual Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
- LAN
- 1 x Intel I219-V Gigabit LAN controller
- INTERNAL CONNECTORS
- 1 × 24-pin ATX main power connector
- 1 × 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 × 4-pin CPU fan connector
- 2 × 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x RGB LED connector
- 1 x Parallel port connector
- 1 x Serial port connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- BACK PANEL PORTS
- PS/2 Combo Port
- VGA
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- DVI-D
- HDMI
- USB 3.1 Gen1 Type A + C
- USB 3.1 Gen1

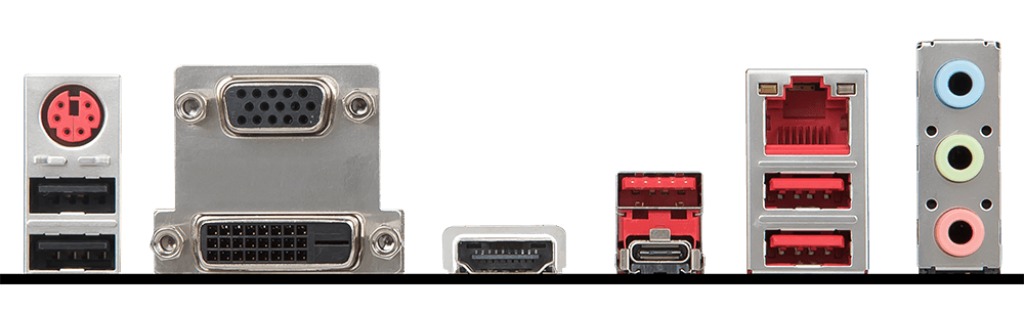

- MSI B360M GAMING PLUS back panel ports
- DIMENSIONS
- 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
- m-ATX Form Factor
