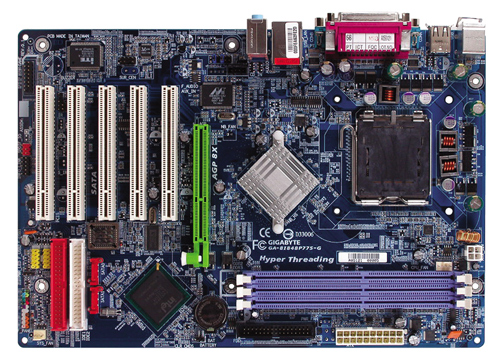

Gigabyte Motherboard LGA775 Intel GA-8I848P775-G

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!
Sorry, this product is not currently available to order


GA-8I848P775-G is the smart solution for the latest LGA775 Intel® Pentium® 4 processor with 800MHz FSB and Hyper-Threading Technology. Powered by the Intel® high performance 848P chipset and a variety of cutting edge technologies, GA-8I848P775-G is designed to be the full function platform with excellent performance. The architecture of 800MHz FSB, AGP 8x, DDR 400 provides promising framework for excellent performance. This platform features Marvell 8001(GbE) and delivers optimized network throughput & platform performance. The Serial ATA, USB 2.0 are integrated to provide superior I/O performance and data protection. GA-8I848P775-G will definitely delivers the uppermost platform with unprecedented computing power and rock-solid stability.

Supports 800MHz FSB Intel® Pentium® 4 Processor with HT Technology
Leveraging the Intel® 848P chipset to support 3GHz+ P4 CPUs on 800MHz FSB, Intel Hyper-Threading Technology and advanced features, the GA-8I848P775-G delivers a full-value, highest performance solution for today's most demanding tasks.

Supports DDR 400/333/266 up to 2GB Memory
Available with 3 DIMM slots supporting up to 2GB of DDR400/333/266 memory, GA-8I848P775-G provides the highest performance platform with the high-bandwidth (3.2GB/s) mainstream DDR memory solution.

AGP 8X Graphics Interface
AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.

Marvell® Gigabit LAN
Marvell®, the industry leader in innovation of highest performance broadband communications technologies offers Gigabit LAN for an astounding network throughput of 1000 Mb/s! With high-speed data transfer along with superior quality and reliability, Marvell is the best and most efficient option for fast growing small office and home networks.

Serial ATA Interface
Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

GIGABYTE Xpress3 Series Software
The Xpress3 series software includes 3 unique software features, 1) Xpress Install for easier driver installation ,2) Xpress BIOS Rescue for restoring BIOS back to its original stage if the BIOS is crashed, 3) Xpress Recovery a revolutionary software feature that backup or restore system files thru BIOS function.

High quality 8-channel audio with UAJ function
Featuring incredible sound quality especially with its S/PDIF-IN/OUT function that enables users to experience high quality audio for multimedia entertainment. With new Universal Audio Jack (UAJ) feature users won't have the worries about how to install speakers correctly.


1. LGA775 for Intel® Pentium® 4 processor.

1. Norht Bridge : Intel® 848P MCH
2. South Bridge : Intel® ICH5
3. Integrated Peripherals :
1. Realtek ALC850 CODEC
2. Integrated Marvel Gigabit Ethernet controller

Front Side Bus
1. 800 / 533 / 400 MHz FSB

1. Type: DDR 400 / 333 / 266 support
2. Max capacity: 2 GB
3. DIMM slots: 3

Internal I/O Connectors
1. 2 x Serial ATA ports
2. 2 x USB 2.0 (supports 4 ports by cable)
3. 1 x S/P DIF input/output pin header
4. 2 x UltraDMA 100/66 Bus Master IDE
5. 1 x FDD
6. CD in
7. 1 x Game port pin header

Rear Panel I/O
1. PS/2 Keyboard / Mouse
2. 1 x RJ45 port
3. 4 x USB 2.0 ports
4. 2 x COM ports
5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports

Form Factor
1. ATX
2. 30.5cm x 20.5cm

H/W Monitoring
1. ITE 8712F
2. System health status auto-detect and report by BIOS
3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.

1. 2M bit flash ROM, Award BIOS

Other Features
1. Xpress3
2. EasyTuneTM 4
3. @BIOS
4. Q-FlashsTM

Bundle Software
1. Norton Internet Security
1. Norton Anti VirusTM
2. NortonTM Personal Firewall
3. NortonTM Privacy Control
4. NortonTM Parental Control
5. NortonTM Spam Alert

2. GIGABYTE Windows Utility Manager
3. Adobe Acrobat Reader
Release date NZ
August 31st, 2005
