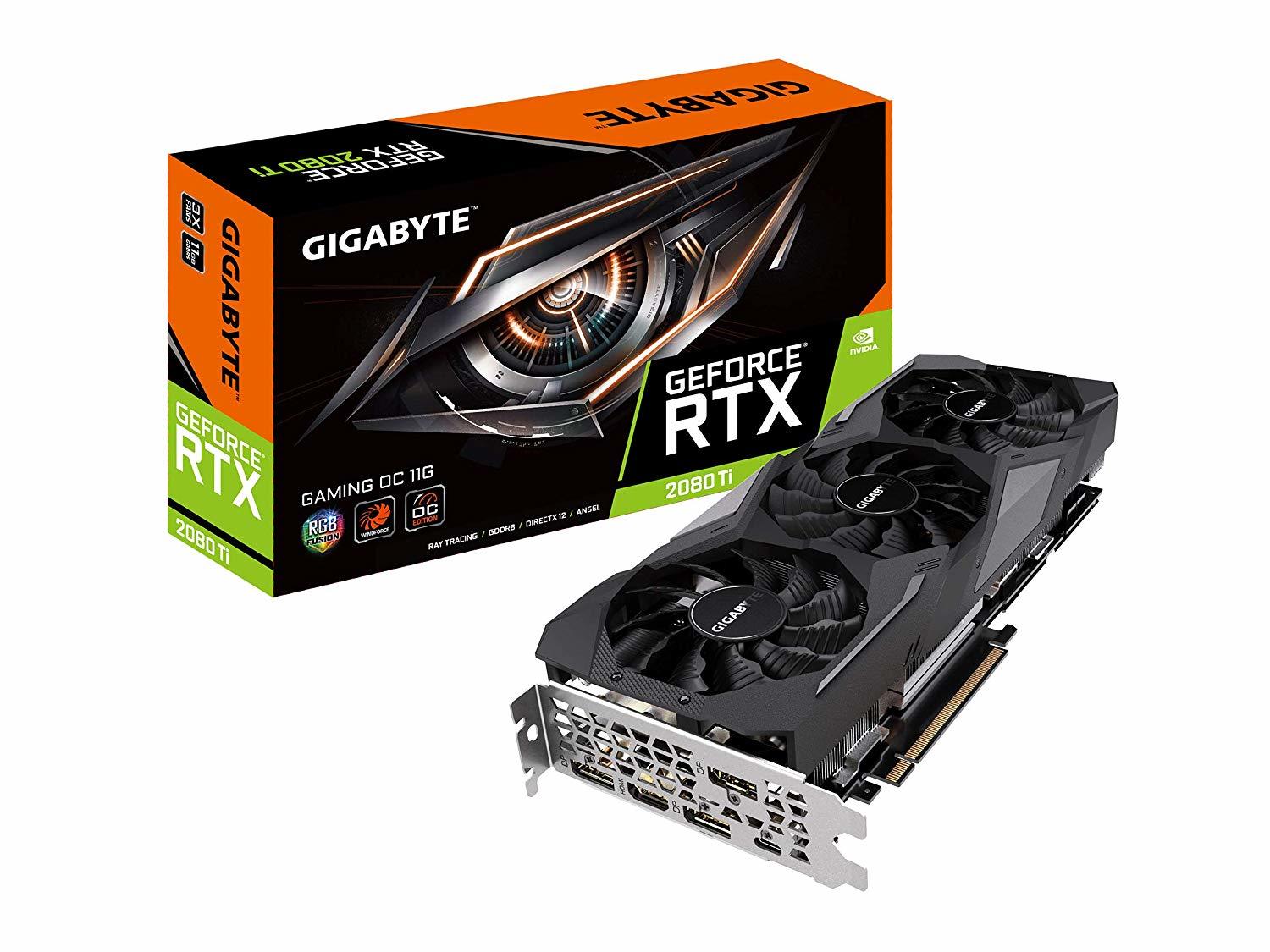

Features
Powered by GeForce® RTX 2080 Ti
Integrated with 11GB GDDR6 352-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion – 16.7M customizable color lighting
Metal Back Plate
4 Years Warranty (Online registration required)
Core Clock
1665 MHz in OC mode
1650 MHz in Gaming mode
(Reference Card: 1545 MHz)

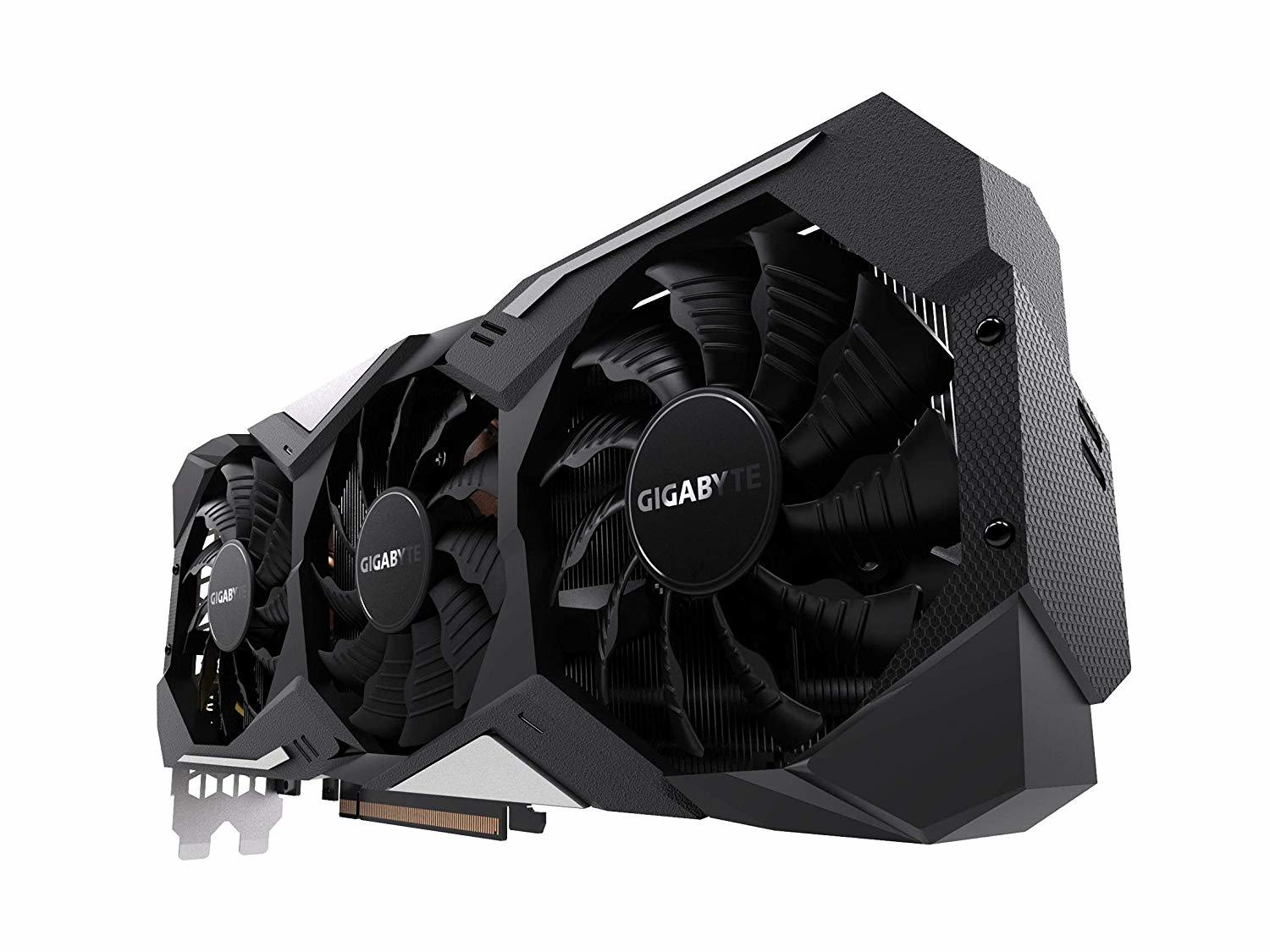

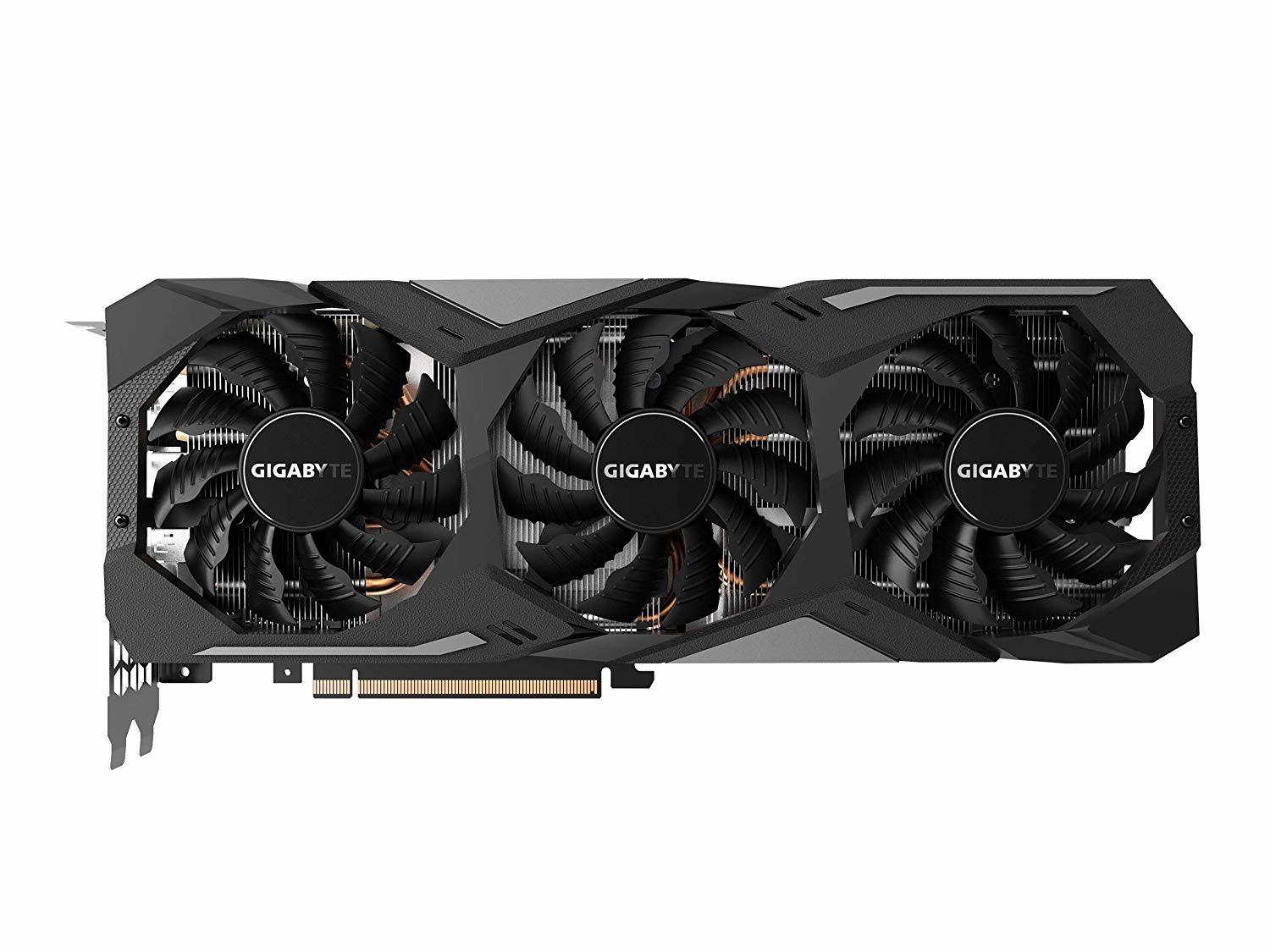

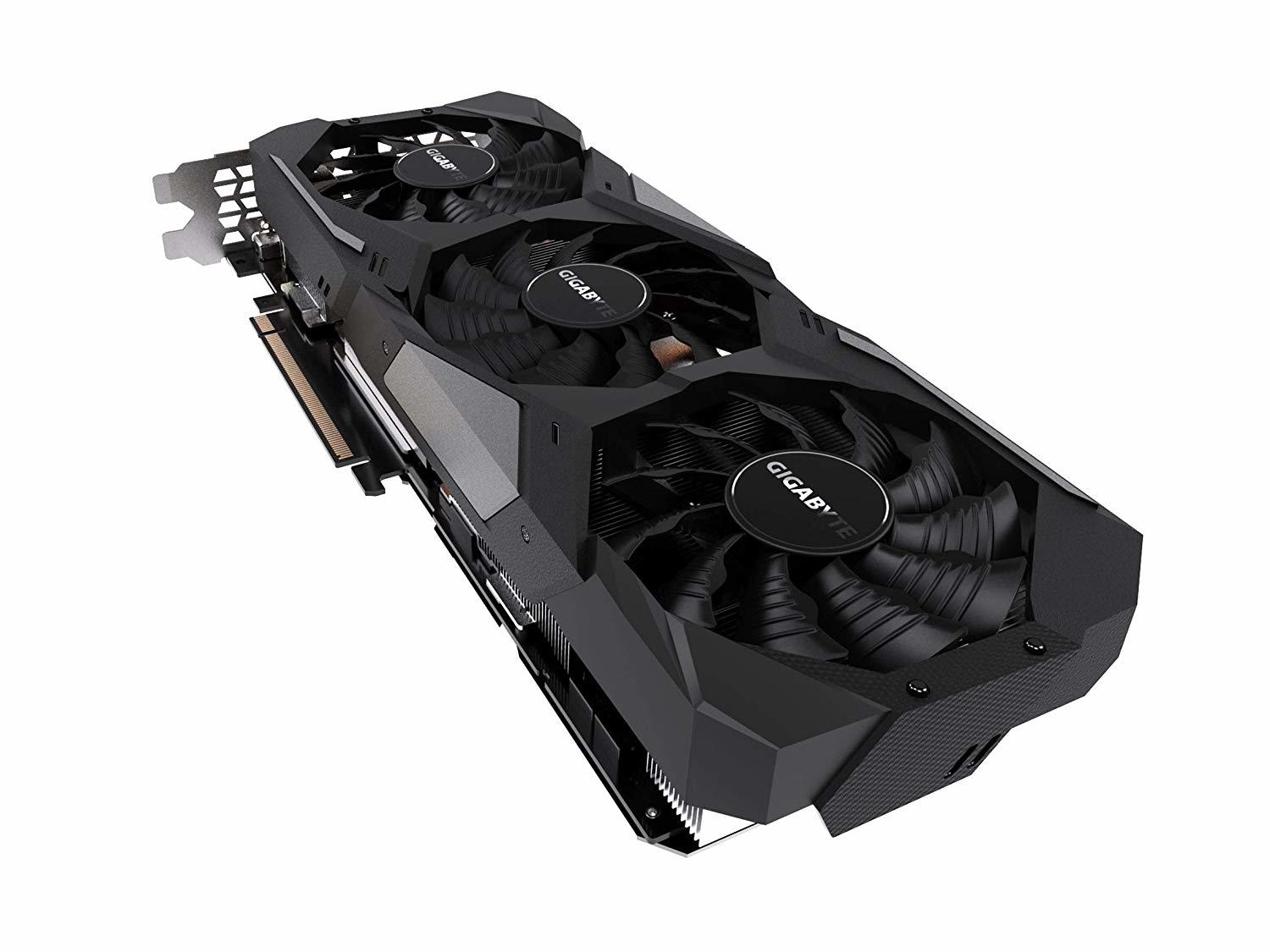

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3× 82mm unique blade fans, alternate
spinning fan, 6 composite copper heat pipes, heat-pipe direct touch and 3D
active fan functionality, together delivering an effective heat dissipation
capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve
the turbulent airflow of three fans. The biggest problem with the three fans is
turbulence. Since the fans rotate in the same direction, the airflow direction
is opposite between the fans, which will cause turbulent airflow and reduce heat
dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction,
so that the airflow direction between the two fans is the same, reducing the
turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the
3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off
when the GPU is in a low load or low power game. It allows gamers to enjoy
gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with
the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a
large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPES
The composite heat-pipes combines thermal conductivity and phase transition to
efficiently manage the heat transfer between two solid interfaces which
increases cooling capacity.
GAME IN STYLE
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can
choose the right scheme for your gaming rig with the AORUS engine.
BUILT STRONG
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 13 + 3 power phase design to allow the MOSFET to
operate at lower temperature, and over-temperature protection design and load
balancing for each MOSFET, plus the Ultra Durable certified chokes and
capacitors, to provide excellent performance and longer system life.

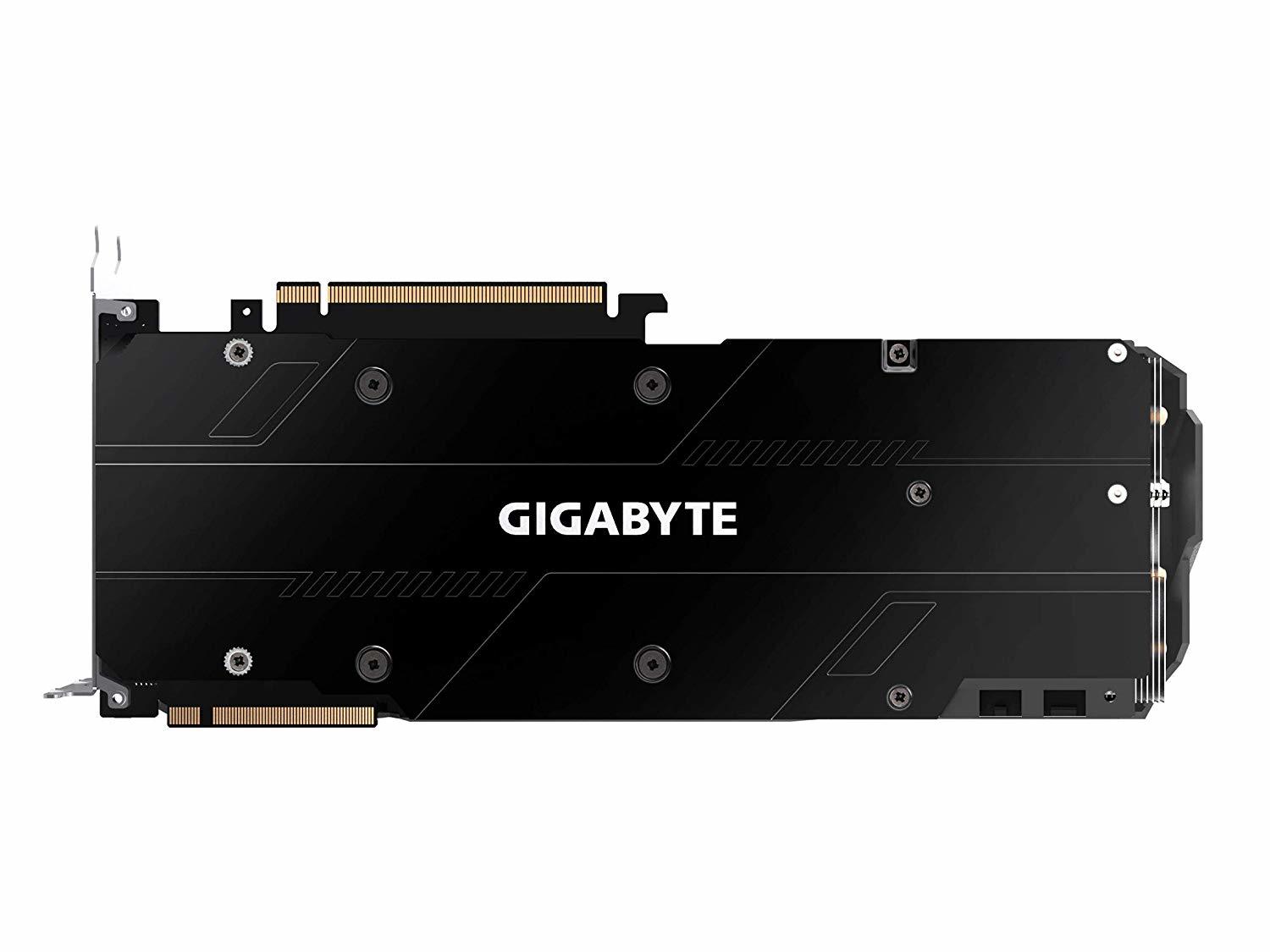

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances
the structure of the graphics card to provide complete protection.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is
abnormal.
NVIDIA NVLINKTM SUPPORT
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical
GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K
gaming or VR gaming. You can also adjust the light effect on the bridge with the
AORUS Engine.
Graphics Processing: GeForce® RTX 2080 Ti
Core Clock:
1665 MHz in OC mode
1650 MHz in Gaming mode
(Reference Card: 1545 MHz)
CUDA® Cores: 4352
Memory Clock: 14000 MHz
Memory Size: 11 GB
Memory Type: GDDR6
Memory Bus: 352 bit
Memory Bandwidth (GB/sec): 616 GB/s
Card Bus: PCI-E 3.0 × 16
Digital max resolution: 7680×4320@60Hz
Multi-view: 4
Card size: 286.5114.550.2mm
PCB Form: ATX
DirectX: 12
OpenGL: 4.5
Recommended PSU: 650W ( With Two 8-Pin EXTERNAL POWER CONNECTOR)
SLI support: 2-way NVIDIA NVLINKTM

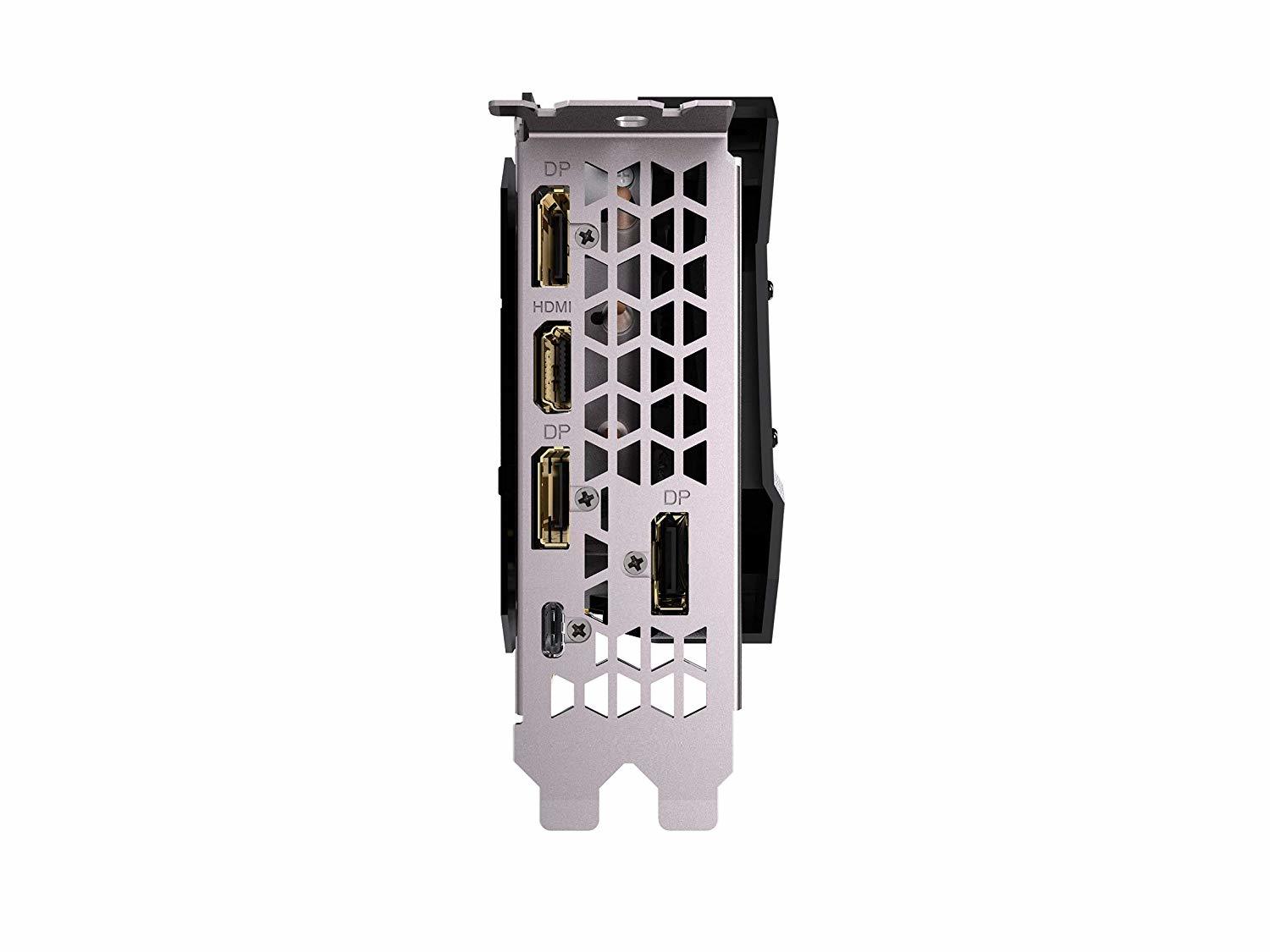

I/O:
DisplayPort 1.4 x3, HDMI 2.0b x1,
USB Type-C ™ (support VirtualLinkTM) x1
