PC Parts & Components:

Gigabyte GeForce GTX 1660 Ti OC 6GB GPU

Customer rating

Click to share your rating 9 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

$578.00
Hurry! Only 3 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Note: This is a bulky item. Delivery to the South Island may take an extra 1-2 business days.

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
  • Saturday using Saturday Delivery
    Mighty Ape can deliver this product on Saturday to most cities and towns in NZ. Learn more
  • Monday using standard courier delivery

Description

  • Features
    • Powered by GeForce® GTX 1660 Ti
    • Integrated with 6GB GDDR6 192-bit memory interface
    • WINDFORCE 3X Cooling System with alternate spinning fans
    • RGB Fusion 2.0 – synchronize with other AORUS devices
    • Protection back plate
  • Core Clock
    • 1860 MHz (Reference card is 1770 MHz)

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3× 80mm unique blade fans, alternate spinning fan, 3 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

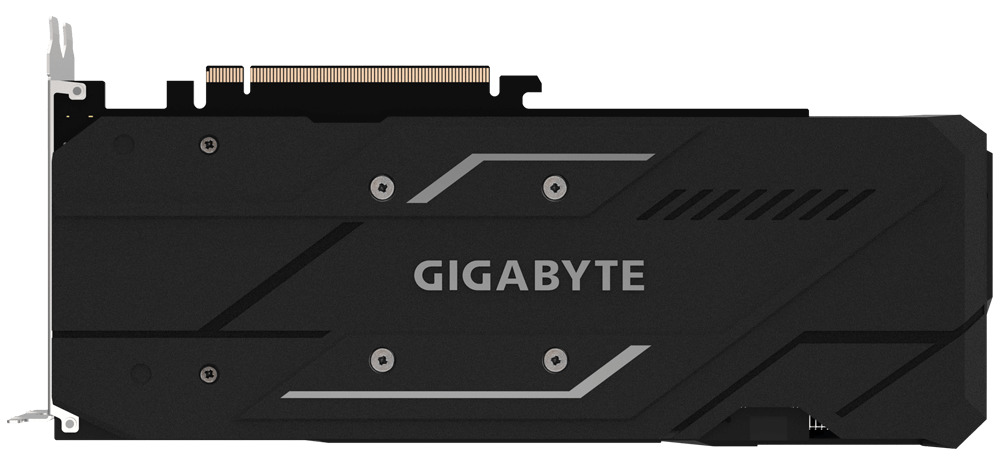

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s require­ments.

  • Graphics Processing: GeForce® GTX 1660 Ti
  • Core Clock: 1860 MHz (Reference card is 1770 MHz)
  • CUDA® Cores: 1536
  • Memory Clock: 12000 MHz
  • Memory Size: 6 GB
  • Memory Type: GDDR6
  • Memory Bus: 192 bit
  • Memory Bandwidth (GB/sec): 288 GB/s
  • Card Bus: PCI-E 3.0 × 16
  • Digital max resolution: 7680×4320@60Hz
  • Multi-view: 4
  • Card size: L=280 W=116.7 H=40.4 mm
  • PCB Form: ATX
  • DirectX: 12
  • OpenGL: 4.5
  • Recommended PSU: 450W
  • Power Connectors: 8 Pin*1

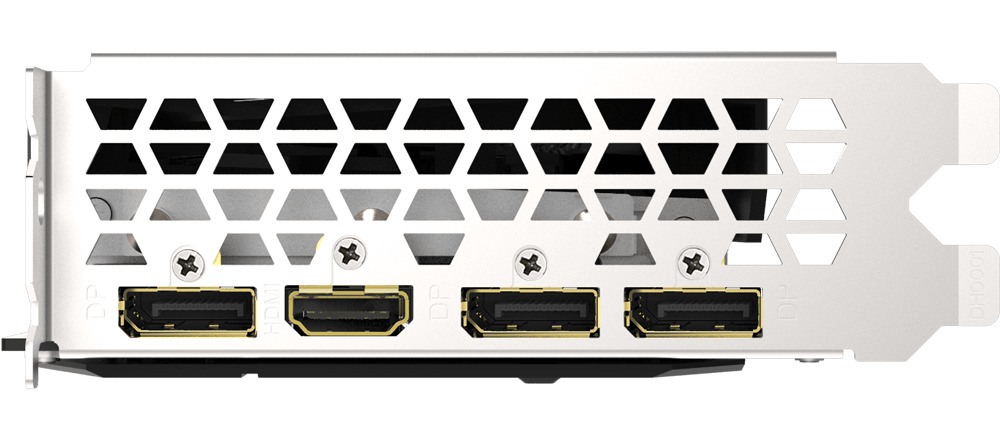

  • Output
    • DisplayPort 1.4 *3 (Max Resolution: 4096×2160 @60 Hz)
    • HDMI 2.0b *1 (Max Resolution: 7680×4320 @60 Hz)
  • SLI support: No
  • Accessories
    • 1. Quick guide
    • 2. Driver CD
Release date NZ
March 15th, 2019
Manufacturer code:
GV-N166TGAMING OC-6GD
Warranty Period
1 year
Brand
Manufacturer
Number of Full Length Full Height Expansion Slots
2
Number of Full Length Half Height Expansion Slots
0
Number of MD1 Low Profile Expansion Slots
0
Number of MD2 Low Profile Expansion Slots
0
Depth (mm)
280
Interface Type
PCI Express x16
Number of PCI Express 6-pin Power Connectors
0
Number of PCI Express 6+2-pin Power Connectors
0
Number of PCI Express 8-pin Power Connectors
1
GPU Memory Size (GB)
6
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
1
Number of HDMI Ports
2
Minimum PSU Output Wattage (W)
450
Box Dimensions (mm)
406x235x92
UPC
889523016824
Product ID
29233398
