Features

• Supports AMD Ryzen™ & 7th Generation A-series / Athlon™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Turbo B-Clock, Built-in Advanced Performance Tuning IC
• Fast 2 USB 3.1 Gen 2 with USB Type-A
• 2-Way CrossFire™ Multi-Graphics Support with Dual Armor and Ultra Durable™ Design
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
• Killer™ E2500 Gaming Network
• USB DAC-UP 2 Ports with Adjustable Voltage
• High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
• Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers
• GIGABYTE™ UEFI DualBIOS™
• APP Center Including EasyTune™ and Cloud Station™ Utilities

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE's M.2 so­lution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics-preventing issues such as low volume and distortion.

Dual Armor DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. AORUS' proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC's life.

Specifications

Supported CPU
CPU Socket Type
AM4
CPU Type
Ryzen / Athlon / A-Series

Chipsets
Chipset
AMD X370

Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133

• Support for higher than DDR4 2667 MHz may vary by CPU.

Maximum Memory Supported
64GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express 3.0 x16
1 x PCI Express x16 slot, running at x16 (PCIEX16)

• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Actual support may vary by CPU.

(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1
3 x PCI Express x1 slots

• The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Devices
SATA 6Gb/s
8 x SATA 6Gb/s
SATA Express
2 x SATA Express connectors
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4*/x2 SSD support)

• Actual support may vary by CPU.

SATA RAID
0/1/10

Onboard Video
Onboard Video Chipset
Integrated Graphics Processor
1 x HDMI port, supporting a maximum resolution of 4096×2160@ 24Hz

• Support for HDMI 1.4 version.

Maximum shared memory of 2GB

• Actual support may vary by CPU.

Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1 Channels

Onboard LAN
LAN Chipset
Rivet Networks Killer E2500
Max LAN Speed
10/100/1000Mbps

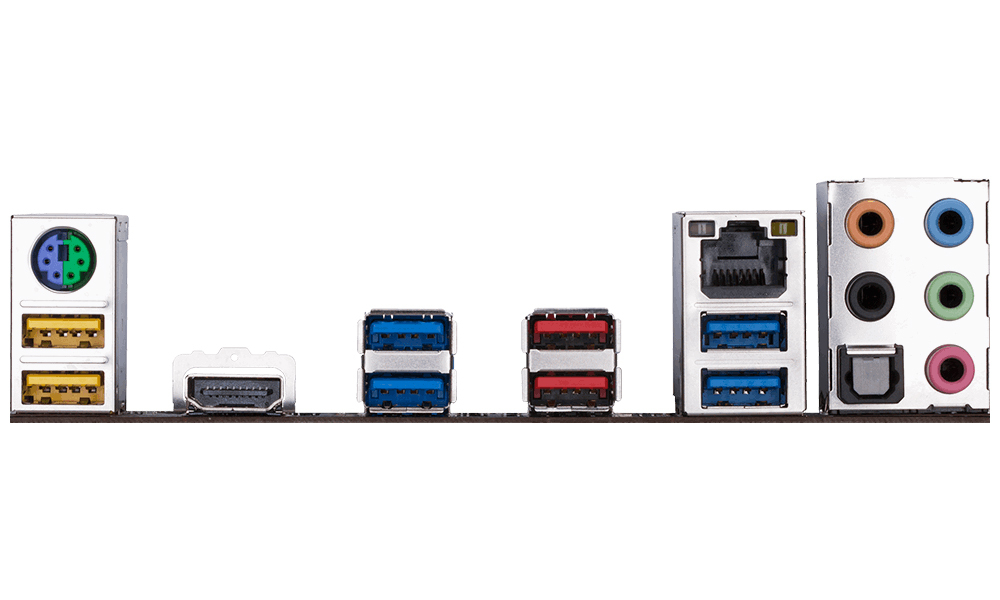

Rear Panel Ports
1 x PS/2 keyboard/mouse port
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen 2 Type-A ports (red)
6 x USB 3.1 Gen 1 ports
S/PDIF Out
1 x Optical
Audio Ports
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors **
Onboard USB
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
**Other Connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector

Features
Multi-Graphics Technology

• Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

• Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

• 2 × 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center

• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS
3D OSD
Ambient LED
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC UP 2
V-Tuner

• Support for Q-Flash
• Support for Xpress Install

Bundle Software

• Norton Internet Security (OEM version)

Operating System

• Support for Windows 10 64-bit
• Support for Windows 7 64-bit

• Please download the “Windows USB Installation Tool” from GIGABYTE's website and install it before installing Windows 7
