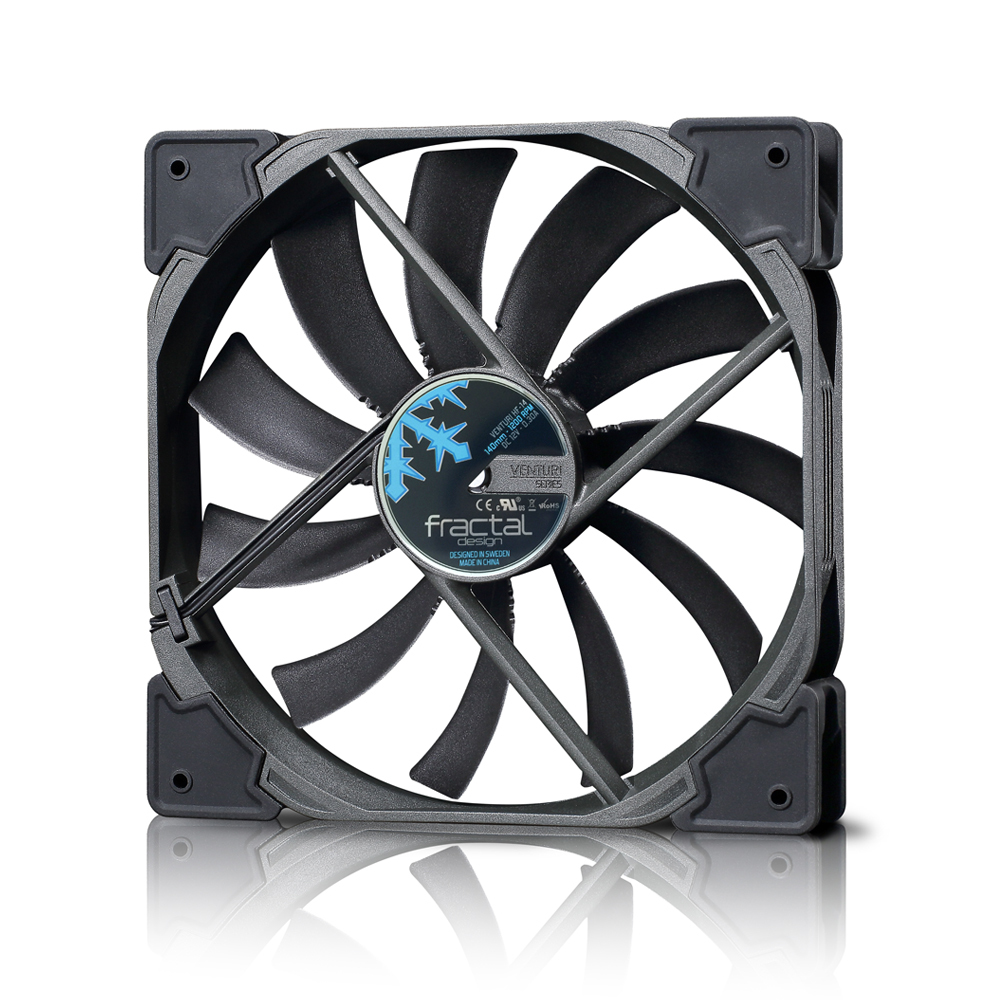

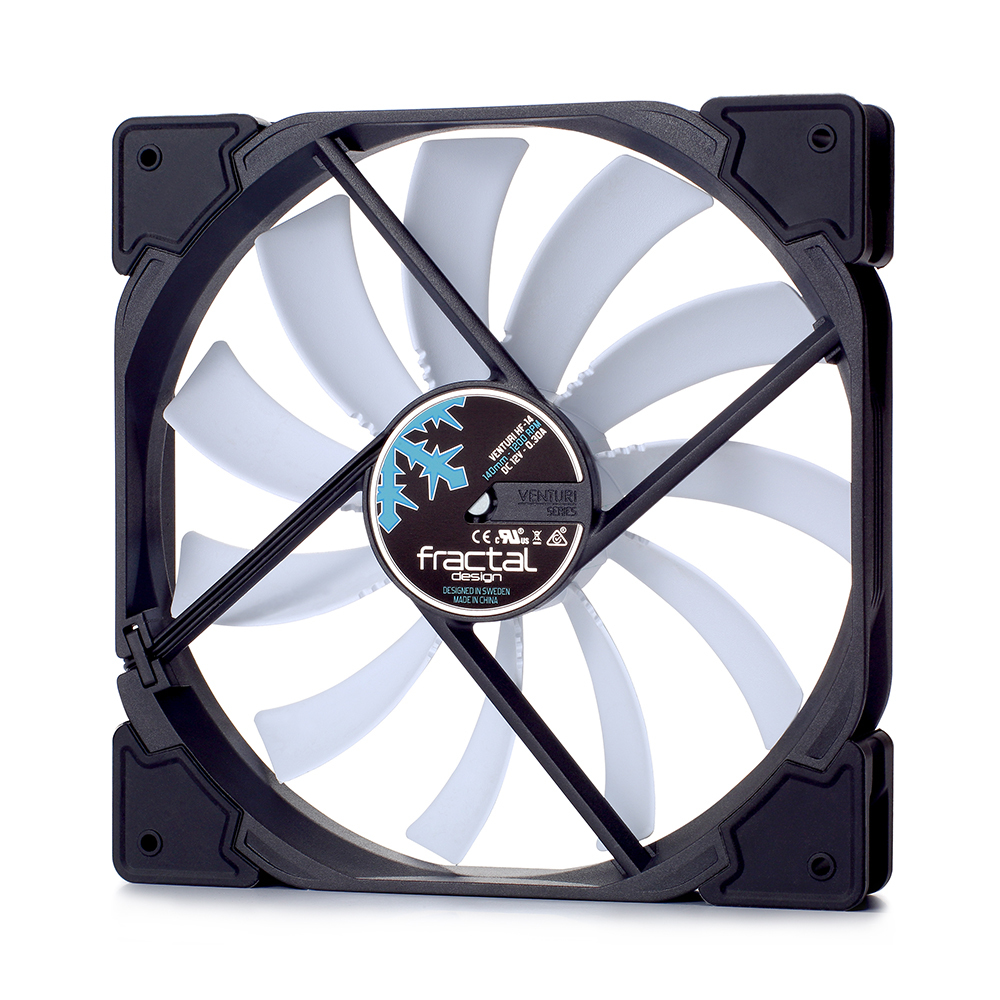

The Venturi High Flow Series fans, HF-14, are optimized for low-restriction
airflow environments, making them an excellent choice for computer case fans, or
other low-restriction usage scenarios.
Designed with a variety of performance-increasing and noise-reducing
features, these fans can move an amazing amount of air compared to other fans at
the same, minimal noise level.

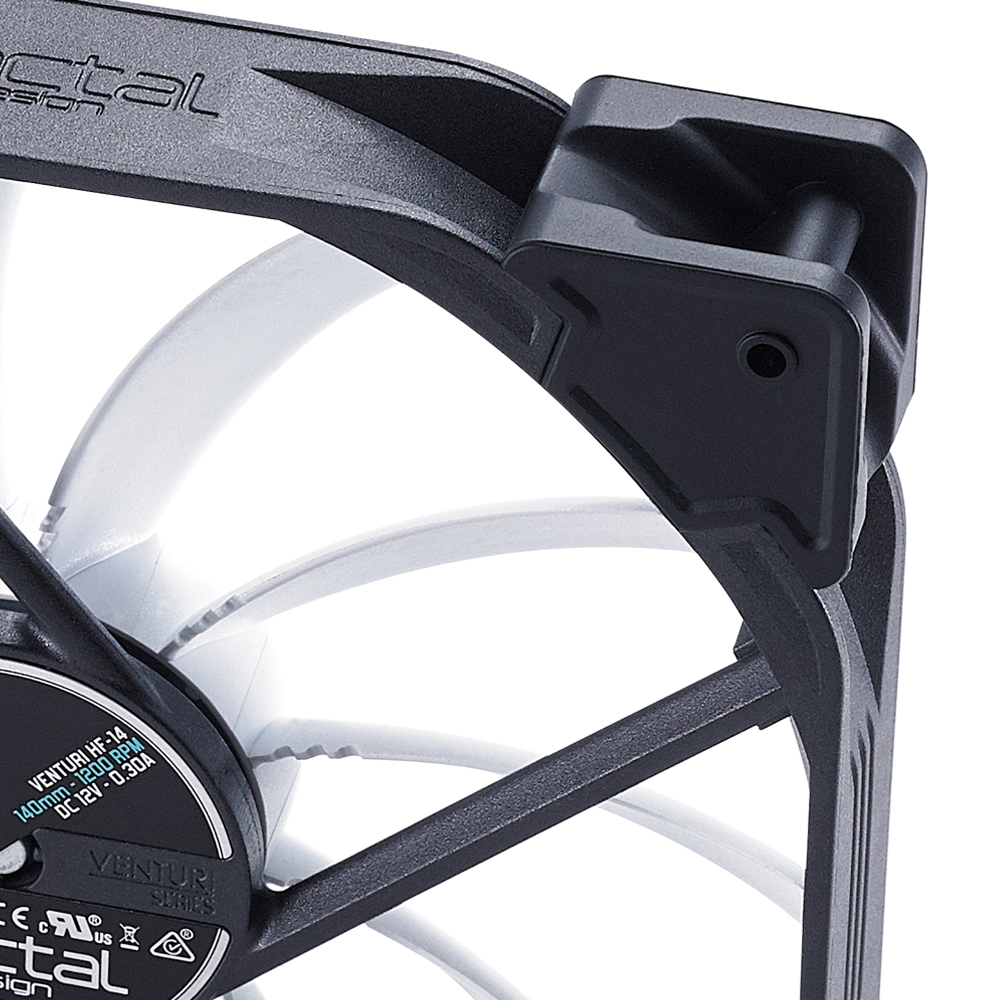

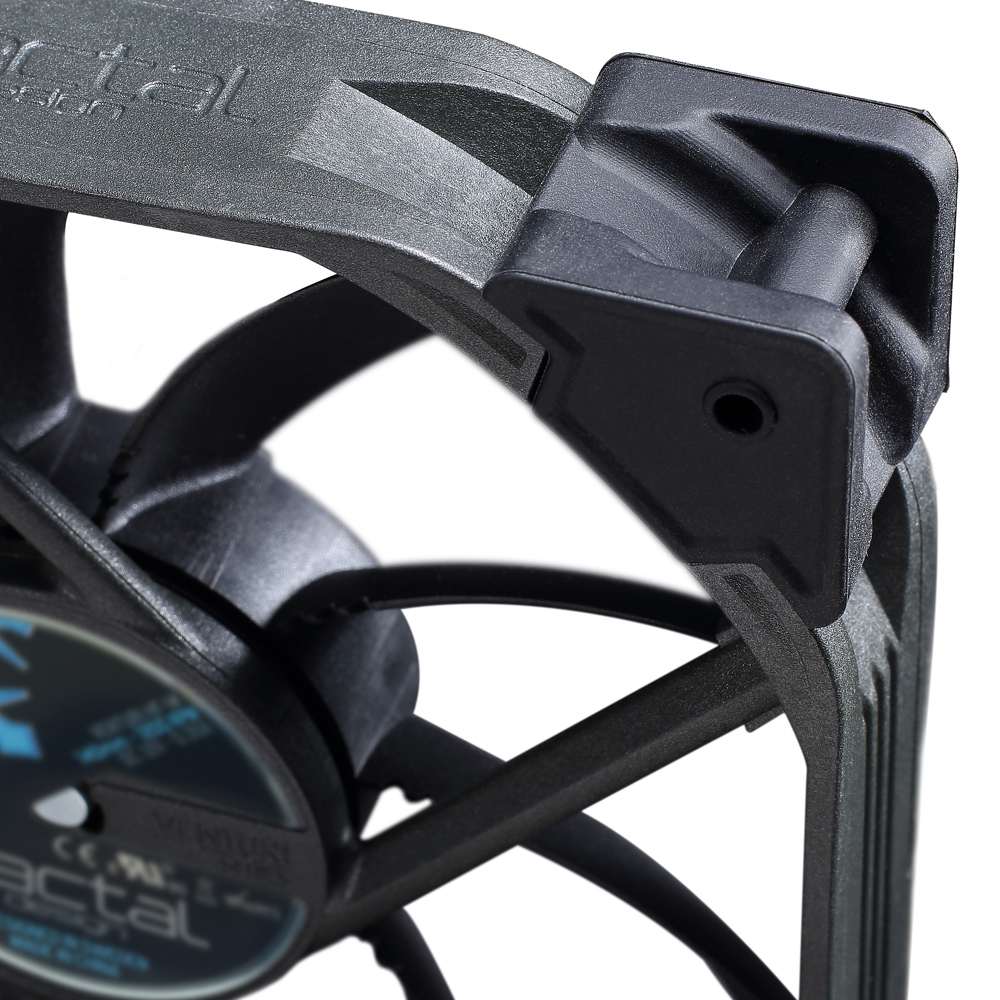

The HF-14 comes with two sets of solid vibration-dampening rubber corners:
one for standard 140mm fan hole spacing (125mm) and one compatible with the
standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal
for those looking for a perfect balance between high performance and low noise
built from sturdy, high quality materials.
Key features
- Featuring true FDB-bearings, providing silent operation coupled with a long
lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on
the bearing
*Features integrated vibration-dampening corners, made from solid
high-quality synthetic rubber
- Dense, sturdy construction, made from high-grade glass fiber reinforced
thermoplastic polymer
- Fan geometry is optimized for a ground-breaking airflow, perfect for
low-restriction usage scenarios such as computer case ventilation and
low-density heatsinks or radiators.
- Aerodynamically shaped thin stator struts reduce noise and unwanted
turbulence
- Strategically placed notches on the blades further reduce and diffuse any
humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats
elements that negatively affect performance, resulting in quieter operation

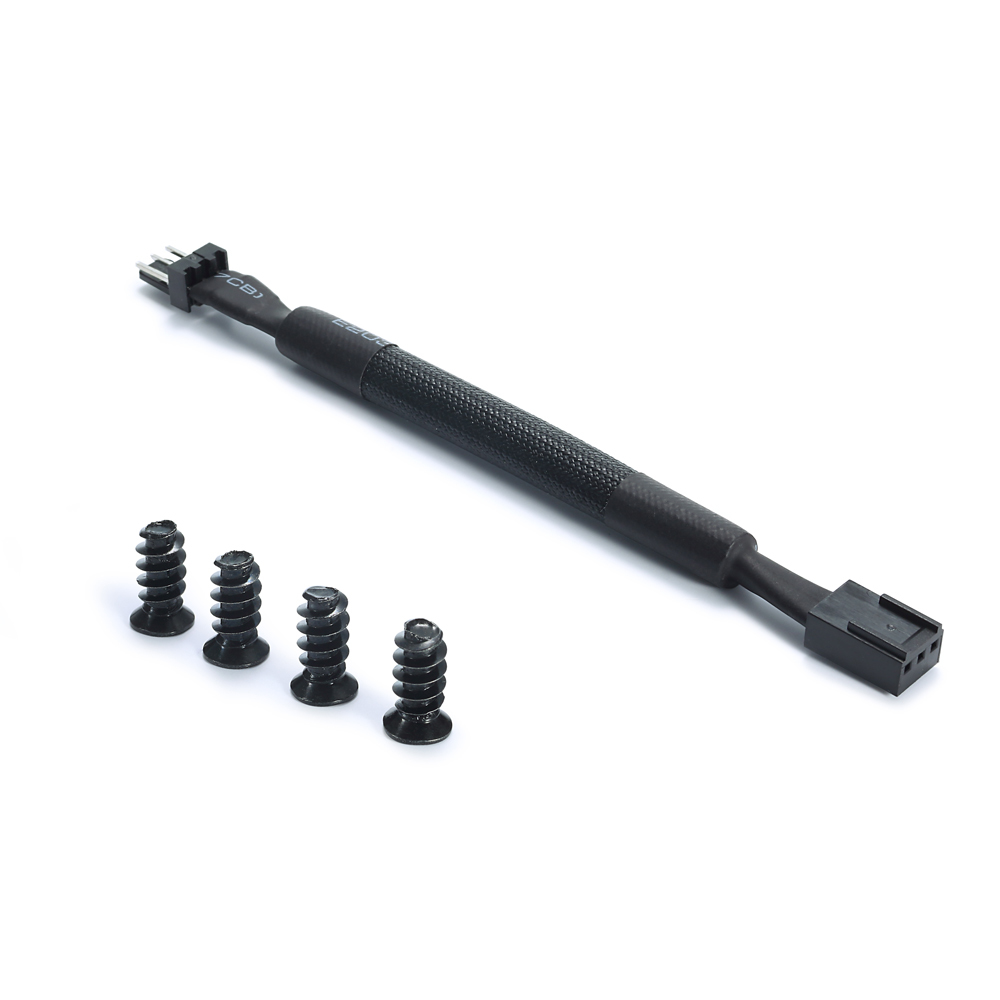

- Featuring a powerful motor to maintain a reliable speed and a low-speed
adapter for reducing the speed without the use of a fan controller

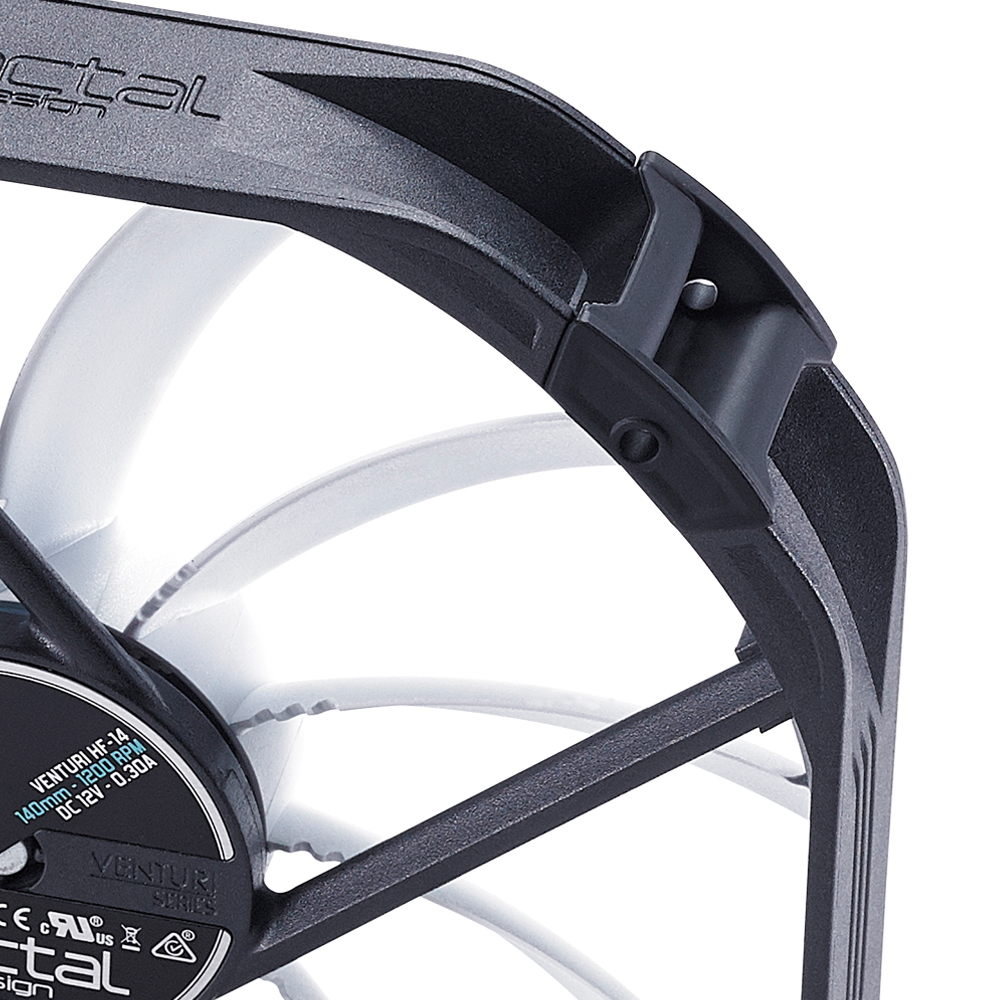

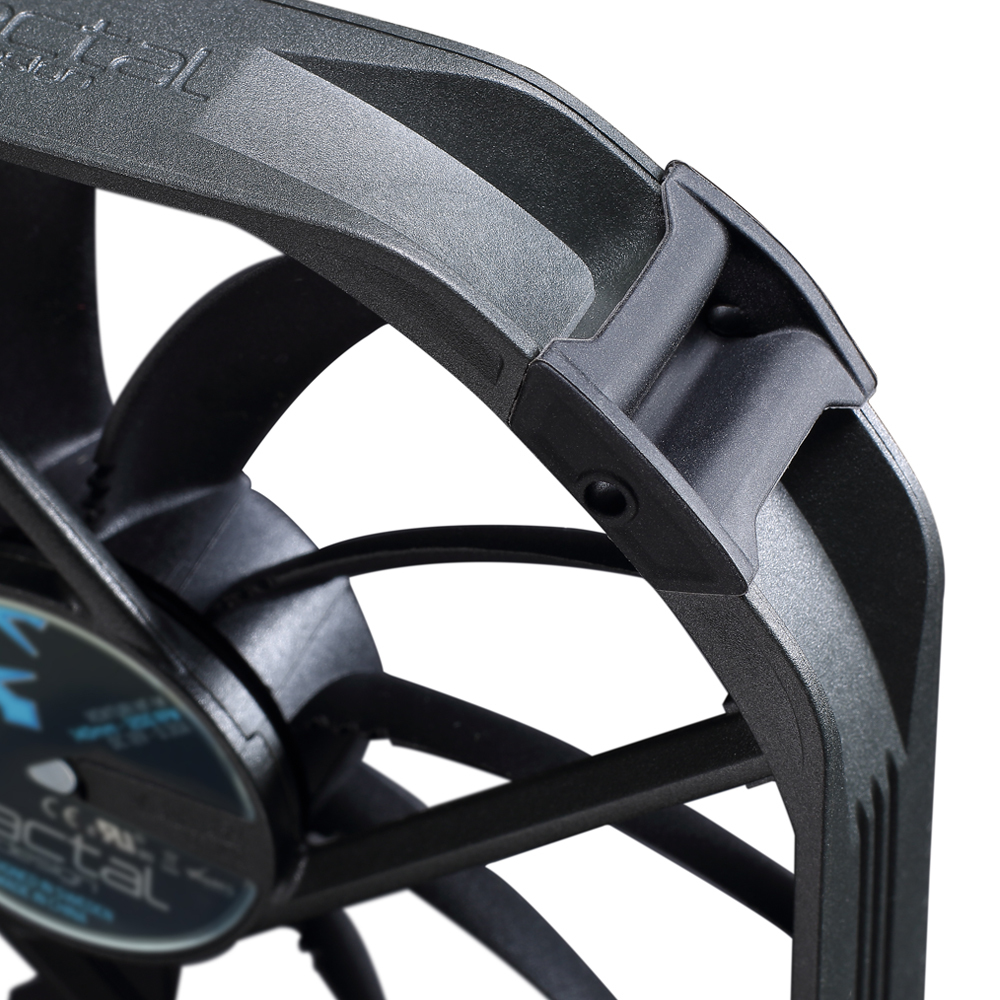

- 140mm fans come with an additional set of vibration-dampening corners are
included that lends compatibility with 120mm fan mounts (105mm screw spacing).
This enables the use of 140mm fans on many CPU coolers.
- Available in 120mm and 140mm fan sizes
- Available in two color combinations, Black blades, black corners, dark grey
(“Gunmetal”) frame and White blades, black corners, black frame
Specifications
- Fan: HF-14
- Size [mm]: 14014025mm
- Colors available: Black blades, black corners, dark grey
(“Gunmetal”) frame White blades, black corners, black frame
- Screw hole pattern: 125*125mm, 105*105mm
- Connector: 3-pin fan header
- Bearing: FDB
- Number of blades: 11
- Rotational speed [RPM]: 1200
- Acoustical noise [dB (A)]: 26.5
- Maximum air flow [CFM]: 118.2
- Maximum air flow [m 3/h]: 200.8
- Maximum pressure [mm H 2 O]: 0.95
- Actual input power [W]: 2.2
- Maximum rated input current [A]: 0.3
- Nominal input voltage [V]: 12V
- Minimum startup voltage [V]: 4V
- Low speed adapter speed: 850 RPM
- Low speed adapter Static pressure: 0.59 mm H2O
- Low speed adapter Air flow: 78.5 CFM, 133.4 m3/h
- Low speed adapter Noise level: 18.3 dB (A)
- MTBF [hours]: 150,000
- Unit weight [g]: 169
- Cable length [mm]: 500
- Cable type: Braided all-black ribbon wire
