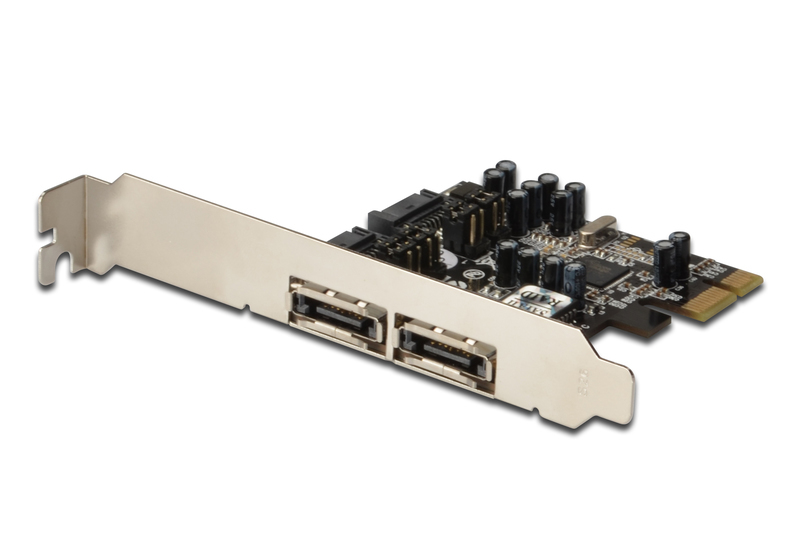

The quick and easy way to add Serial ATA performance to your PC.
- 2 x external eSATA and 2 x internal SATA ports
- Installable in any available PCI Express slot with different lane widths
- Supports data transfer rate of up to 300MB/s
Technical Details
- 2 x external eSATA and 2 x internal SATA ports
- Chipset: Sil 3132
- Int. / ext. ports selectable by configuration
- Compliant with PCI Express Base Specification 1.0a
- Compliant with Serial ATA 1.0a specification
- Installable in any available PCI Express slot with different lane widths
- Supports RAID levels 0, 1, 0+1
- Supports data transfer rate of up to 300MB/s
- Supports NCQ (Native Command Queuing)
- Hot-Plug and Hot-Swapping features
- Operating temperature: 0 °C – 70 °C
- Operating humidity: 25% – 65% RH (non-condensing)
- Supports Windows 8, 7, Vista and XP
