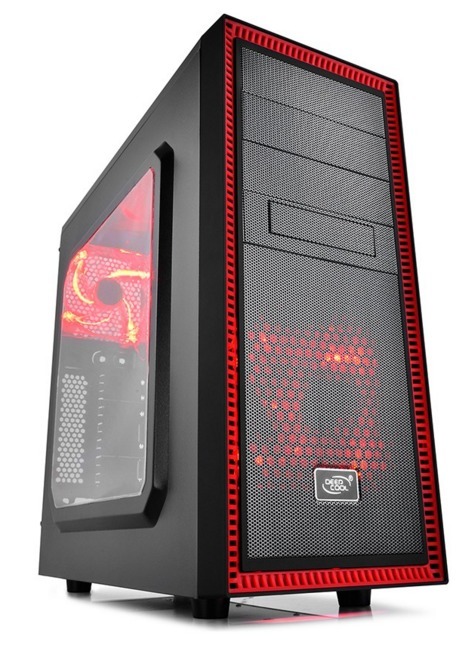

Deepcool: Tesseract SW Mid Tower Case

Tesseract series computer case comes with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. Up to six fan installation, 310 mm graphic card space and various DIY features, what else could you possibly ask for?

FEATURES

Innovative Design for DIY Usage

• ODD installation tool-free design.

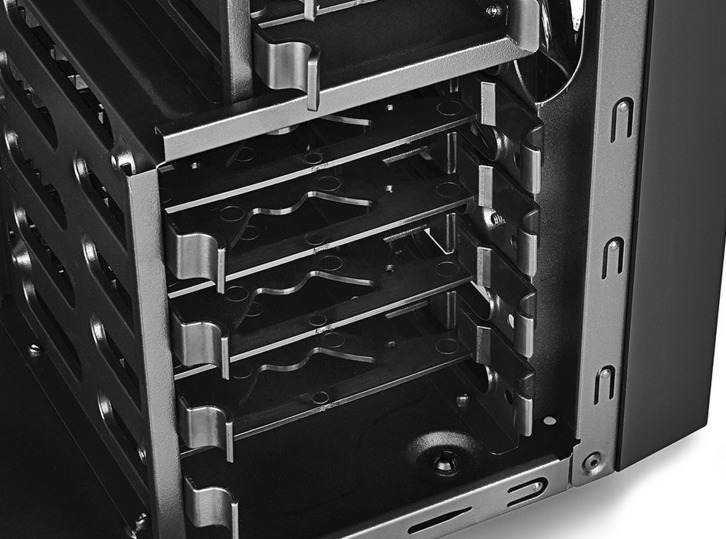

• 2.5HDD/SDD and 3.5 HDD installation tool-free design
• Pre-installed two LED fan on the front and rear.
• High VGA card and CPU cooler installation compatibility.

Top Panel Refinement

• Dust-filter in the top panel.
• USB ports, plugholes and switches on top panel for easier operation.
• Full dust-filter in the interior panel.
• Patented air intake channel on the perimeter of the front panel.
• High-quality rubber coating.
• Pre-installed Blue LED fan in the front panel.

PSU Protective Approaches

• Bottom located PSU for better space management.
• Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake.

Backplate Cable Installation
Multiple channels for supreme cable management.

SPECIFICATIONS

• Motherboards: ATX/MINI ATX/MICRO ATX/MINI-ITX
• Materials: SPCC+PLASTIC+RUBBER COATING(Panel thickness: 0.7mm)
• Dimension: (LxWxH) 472210454mm
• Net Weight: 5.1kg
• 5.25" Drive Bays: 2 (all tool-free installation)
• 3.5" Drive Bays: 4 (all tool-free installation)
• 2.5" Drive Bays: 3 (all tool-free installation)
• I/O Panel: 1×USB3.0/1×US­B2.0/Audio×1/Mic×1
• Expansion Slots: 7
• Cooling Fans: Rear: 1 X 120mm LED fan | Front: 1 X 120 mm LED fan
• Optional: Top: 2 X 120mm | Side: 2 X 120mm
• Power Supply Type: ATX PS2
• CPU Cooler Compatibility: 165mm
• VGA Compatibility: 310mm
