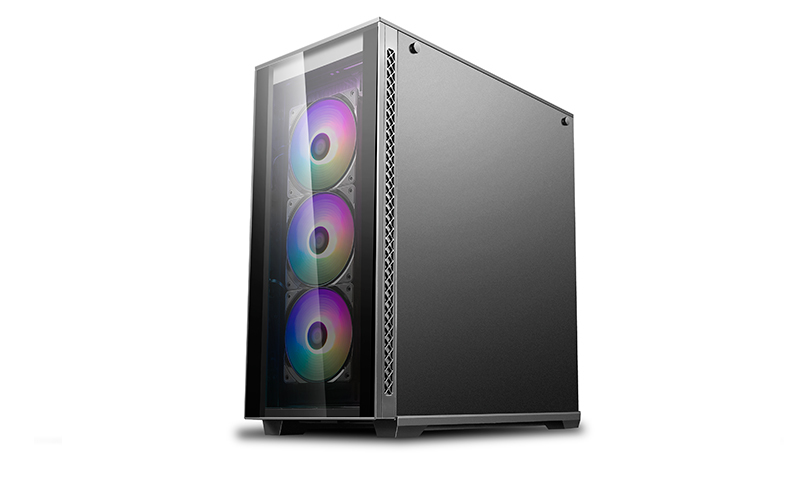

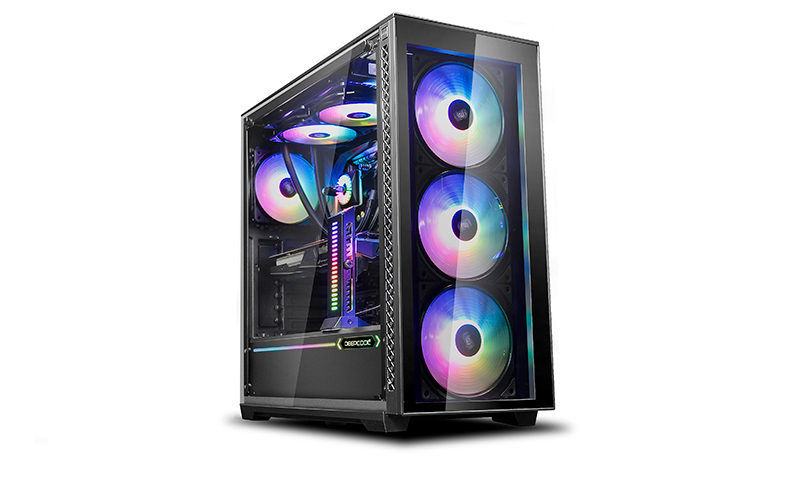

MATREXX 70 ADD-RGB 3F is a new-concept chassis specially designed for the
enjoyment of DIY. By adopting numerous novel structural designs, its
architecture yields convenience and flexibility in PC building. Meanwhile 3 * CF
120 RGB fans and 1* RGB LED strip are included to provide top-notch lighting

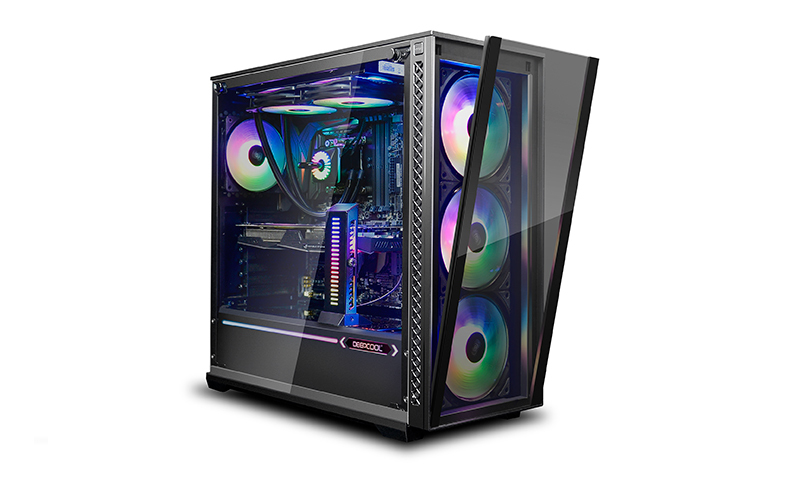

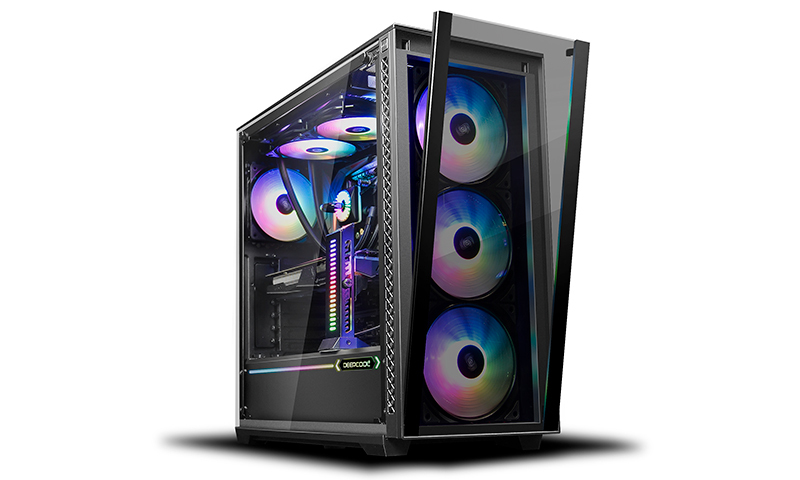

effects. MATREXX 70 ADD-RGB 3F is ready to give you a boost of the gaming
ambience.
Friendly ADD-RGB Ecosystem Included
The ADD-RGB lighting system includes 5 pre-programmed lighting effects (dynamic
color, static, breathing, comet and fashioncollision) and can be easily
controlled by the RGB button on the I/O panel or motherboard. Meanwhile the

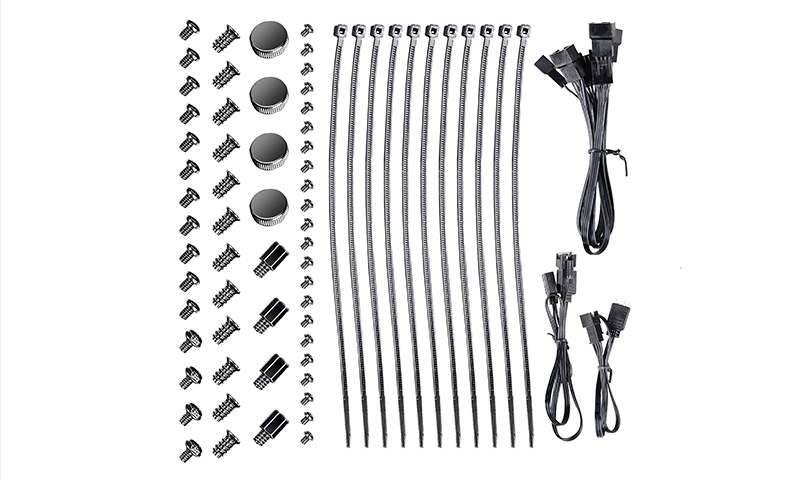

special accessory pack enables the syncing between the products from Deepcool
and other brands, thereby creating a friendly ADD-RGB ecosystem.
Removable radiator/fan Holder
The radiator/fan holder simplifies the installation and replacement of the
radiator and fan, it’s especially effort-saving when you need to install the
radiator and the fan on the different sides of the holder.

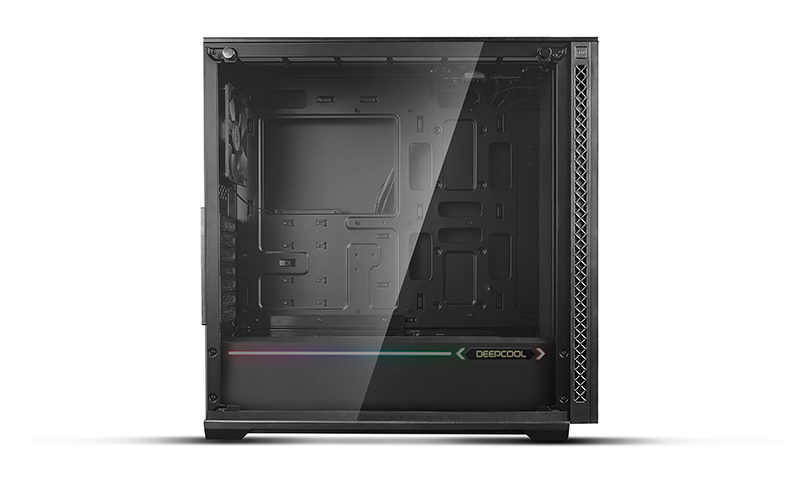

Removable Glass PSU Shroud
In MATREXX 70 ADD-RGB 3F, DEEPCOOL creatively used tinted glass as the top
cover of PSU shroud, which is pioneering in the industry.
The tinted glass can hide the power cables while reflecting the RGB lighting of
your other parts, especially GPU, hence creating an infinite space visual
effect. Effect Diagram of Light Bars Installed on the Power Shield (RGB Light
Bars are included)
Flexible Ventilation Solutions with Excellent
Performance

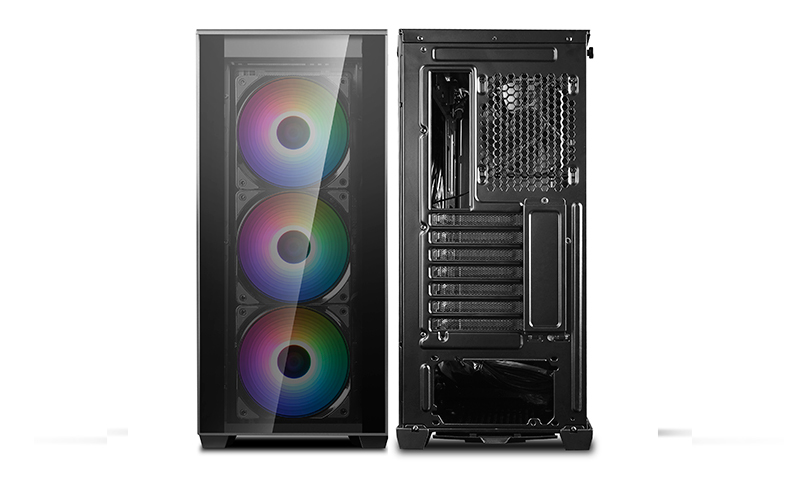

With air intake options at front and bottom, exhaust options at the top and
rear, MATREXX 70 ADD-RGB 3F provides highly flexible ventilation solutions.
Meanwhile the 15mm-wide front intake hole guarantees sufficient air supply,
together with the low friction material applied on all meshes, the cooling
efficiency is maximized.
Motherboard support
E-ATX( Up to 330mm )
ATX
Micro-ATX
Mini-ITX
All-round Dust Proof
Dust filters are installed at the front, top and bottom of the case.The
all-round and fine coverage offers remarkable dust-proof capabilities. Meanwhile
the top filter is magnetic whereas the front/bottom filters are inserted, which
makes them very easy to clean.

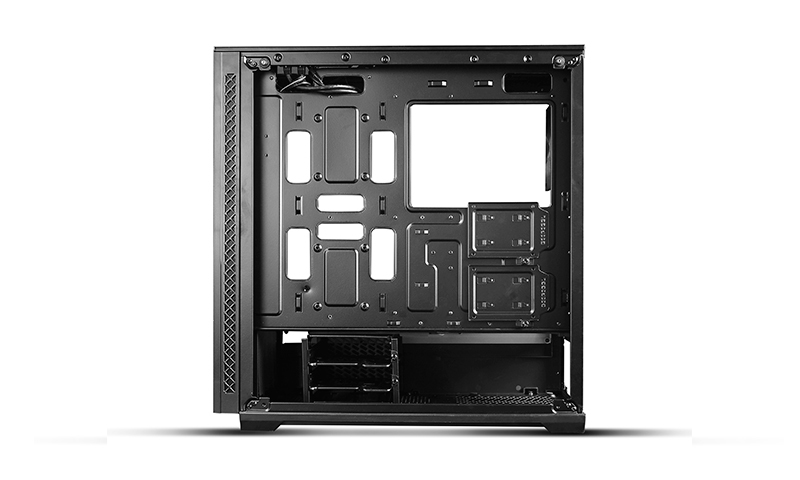

Abundant Storage Support
A total of 6* 2.5’’ drives or 4*2.5’’ + 2* 3.5’’ drives can be
mounted in MATREXX 70 ADD-RGB 3F. 2 SSD bays are fixed at the back of
motherboard tray for quick installation. 2* 3.5/2.5’’ hard drive bays are
mounted at the bottom of the case which are relocatable and removable.After
removal, 2*120mm fans can be installed at the location.

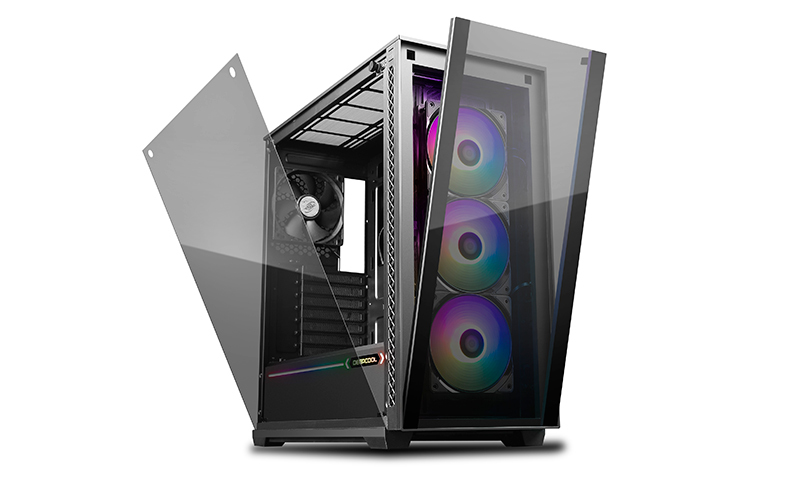

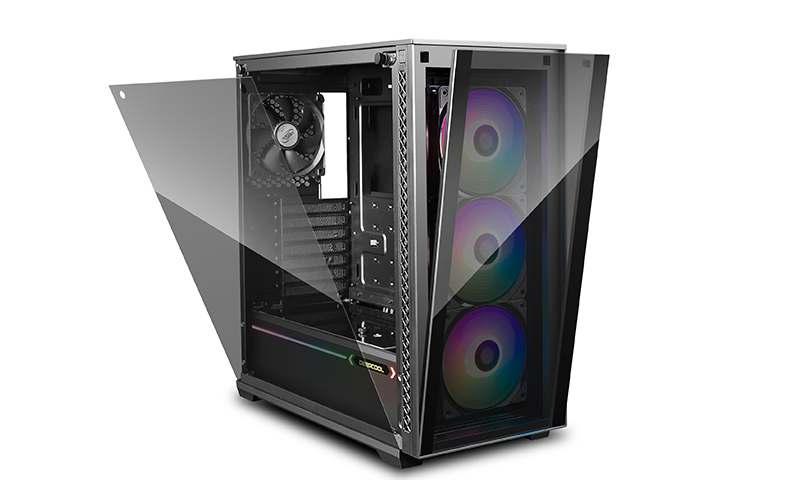

Simple & Sleek Design
The front and side panels are made of full-sized, tinted tempered glass. They
display your gears with a classy filter while keeping the overall look
clean .
Spacious Interior
The case’s dimensions are 484×233×492mm, offering gigantic room to manage
cables (170mm motherboard tray-to-glass clearance, 30mm motherboard tray-to-back
plate clearance).
Features
- 3*CF 120 RGB fans and 1*RGB LED strip pre-installed and synced
- Included ADD-RGB system controllable by either case button or motherboard,
and compatible to other brands’ ADD-RGB products.
- Large mid tower case supporting up to E-ATX(330mm) motherboard.
- 228mm wide tower compartment with 30mm clearance for cable management
- Easy-to-install front and side panels
- Quick-mounting radiator/fan holders pre-installed at the front
- Supports installation of 120/140/240/280/360/420mm radiator liquid cooling
system at front,
- 120/140/240/280/360mm radiator liquid cooling system at top, 120mm
radiator liquid cooling system at rear
- Removable tempered glass PSU-HDD top cover, offering top-notch lighting
ambient.
- Magnetic dust filters at the top, insert-in dust filters at bottom
and front
Specifications
Motherboards E-ATX/ATX/Micro ATX/Mini-ITX
Case Type Mid Tower
Materials ABS+SPCC+Tempered Glass
Product Dimensions (L×W×H) 475×228×492mm
Net Weight 9.39 Kg
Gross Weight 10.81 kg
5.25" Drive Bays 0
3.5" Drive Bays 2
2.5" Drive Bays 4
I/O Ports 2×USB3.0/1×USB2.0/1×Audio(HD)/1×Mic
Expansion Slots 7 +2
Cooling Fans Support
- Pre-installed: Front: 3×120mm ADD-RGB Fan (CF120) Rear: 1×120mm
black fan
- Optional: Front: 3×140mm; Top: 3×120/140mm
Cable Management 30mm Clearance
Liquid Cooler Support
- Front: 120/140/240/280/360mm radiator
- Top: 120/140/240/280/360mm radiator
- Rear: 120mm radiator
Power Supply Type ATX PS2 (maximum length: 200mm)
CPU Cooler Height Limit 170mm
VGA Length Limit 380mm (horizontal)/360mm (vertical)
