Dual SP120L PWM fans with Corsair Link monitoring and control for extreme liquid CPU cooling performance

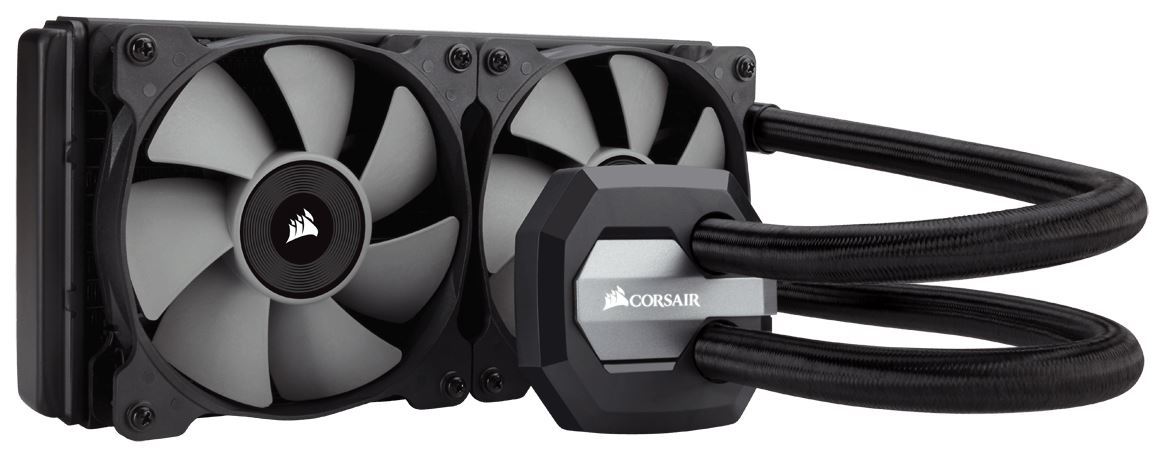

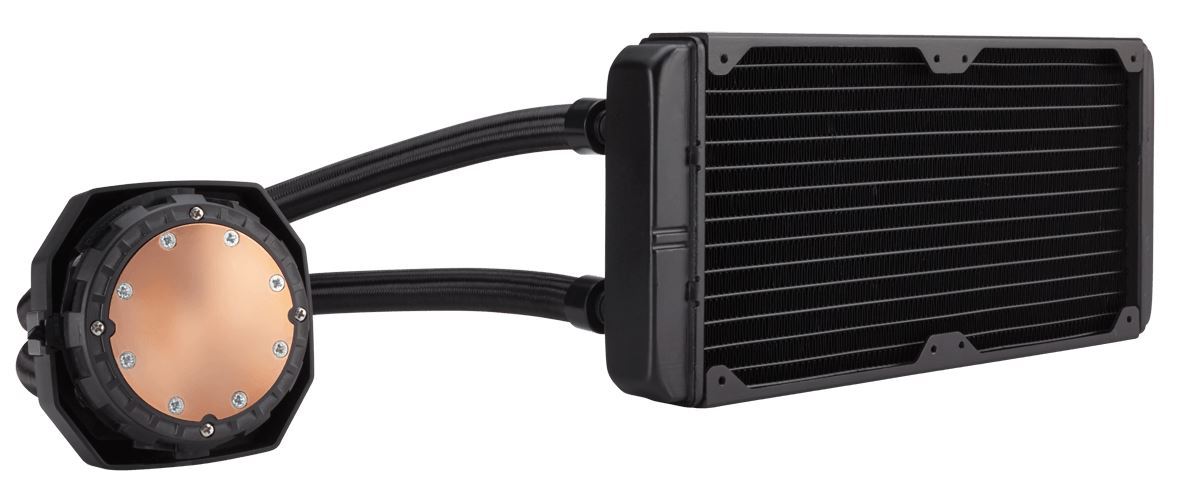

The Hydro Series H100i v2 is an extreme performance, all-in-one liquid CPU cooler for cases with 240mm radiator mounts. The 240mm radiator and dual SP120L PWM fans provide the excellent heat dissipation you need for highly overclocked CPUs. Corsair Link is built in, so you can monitor temperatures, adjust cooling performance and customize LED lighting directly from your desktop.

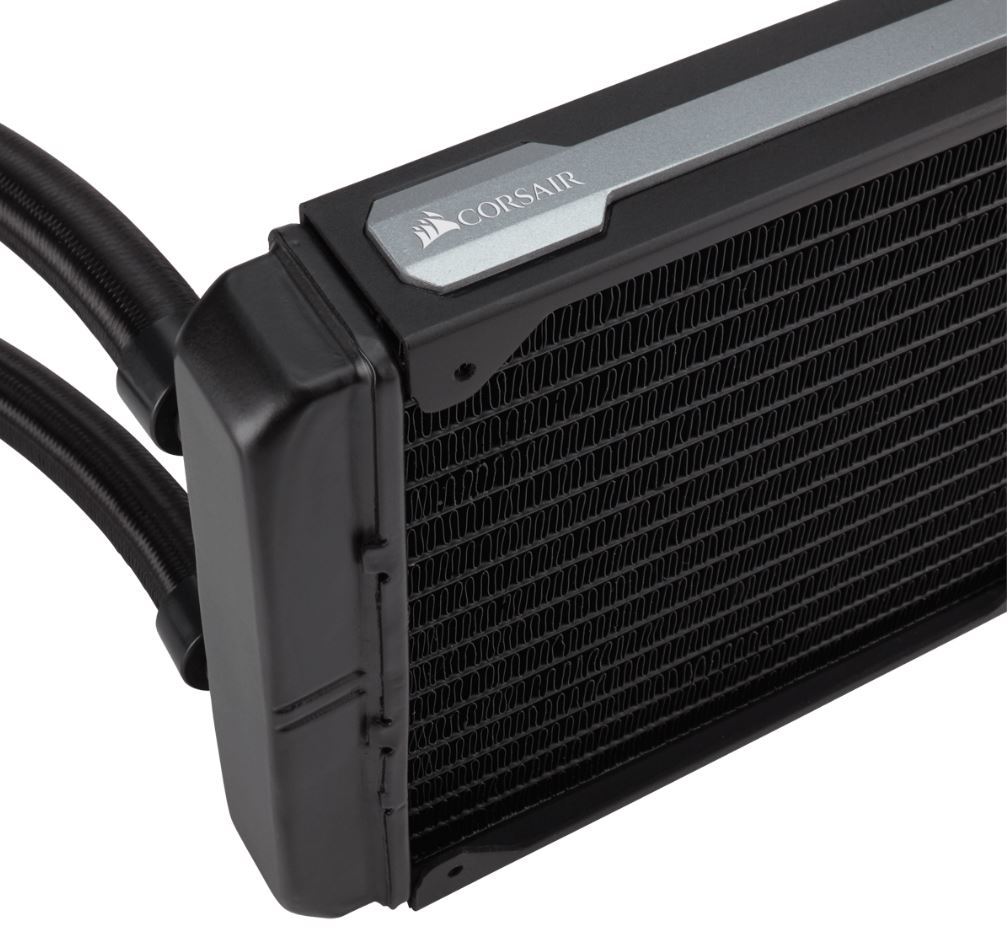

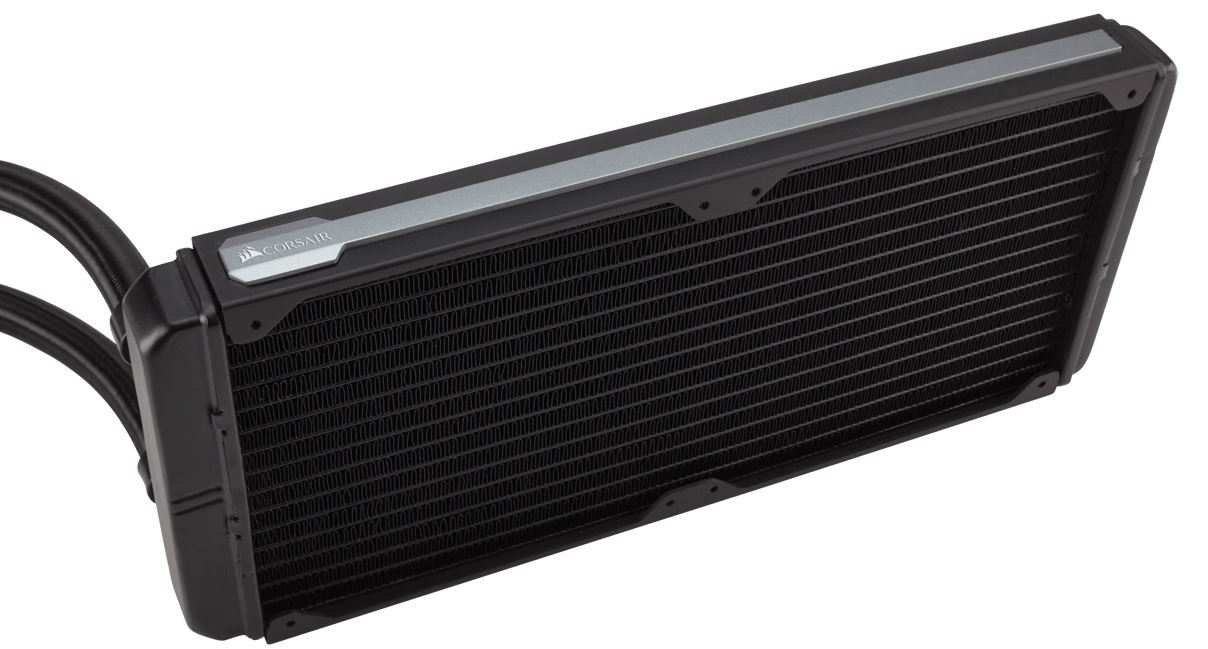

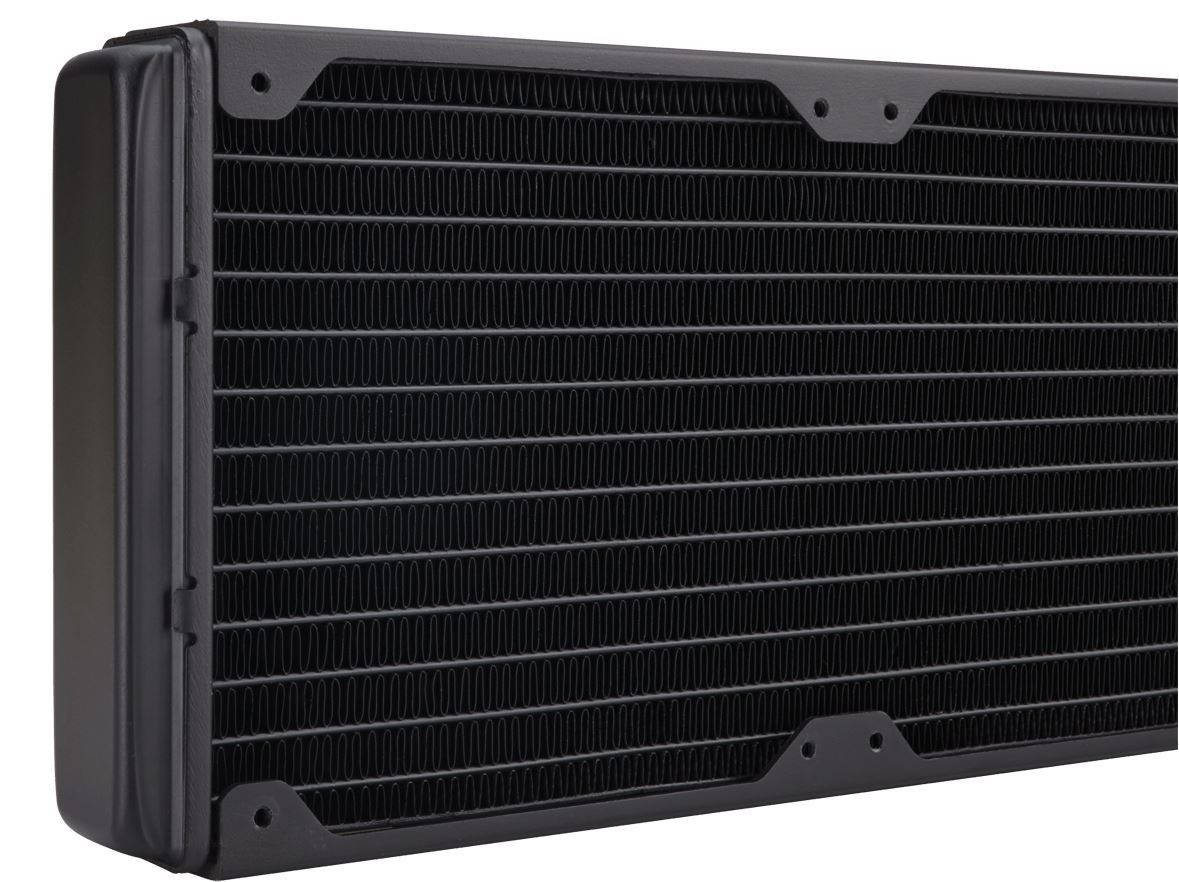

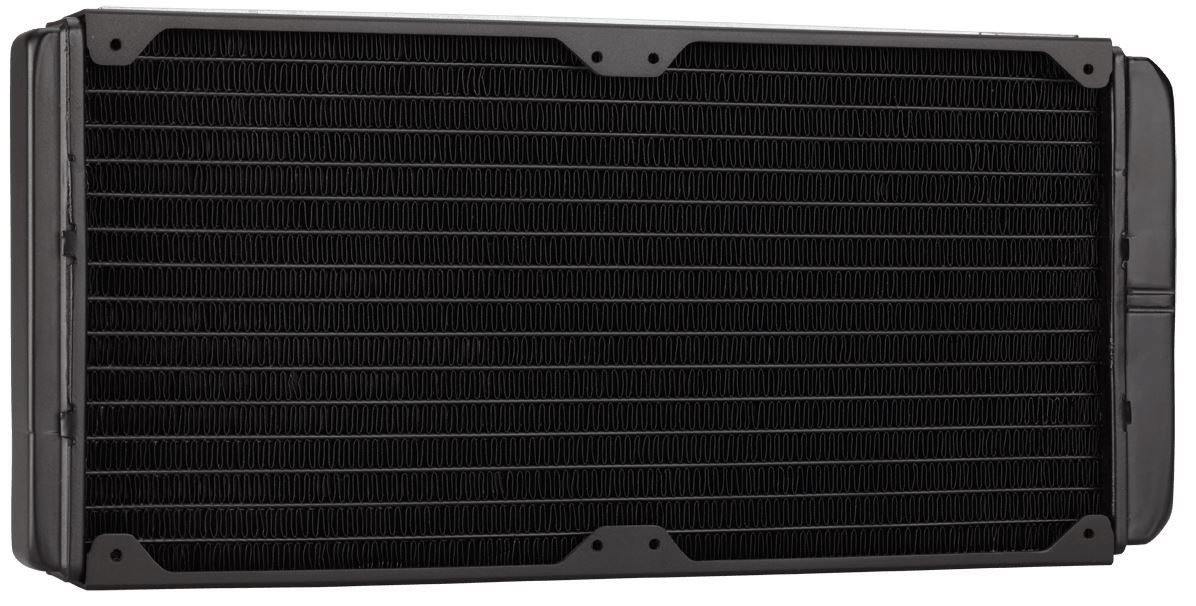

240mm radiator
The double-wide radiator offers approximately twice the cooling area of our
Hydro Series coolers which use a 120mm or 140mm radiator. It fits virtually any
case that has dual 120mm fan mounts spaced for a 240mm radiator.
Advanced SP120L PWM fans
Our custom-designed SP120L fans are different than standard case fans –
they’re custom-designed to deliver high static pressure for mounting directly
against radiators, and the fan blades are specially shaped for maximum air
delivery with minimum noise. Since they’re PWM controlled, you can customize
the fan speed to choose the optimal point on the performance/noise curve.
Built-in Corsair Link for monitoring, customization, and
control
Attach the included Corsair Link cable to a USB header on your motherboard and
download the free Corsair Link software to unlock even more power. You can
customize cooling performance, monitor coolant and CPU temperatures, and change
the color of the RGB LED lighting from the default white to match your system,
or to change color based on temperature readings and other inputs.

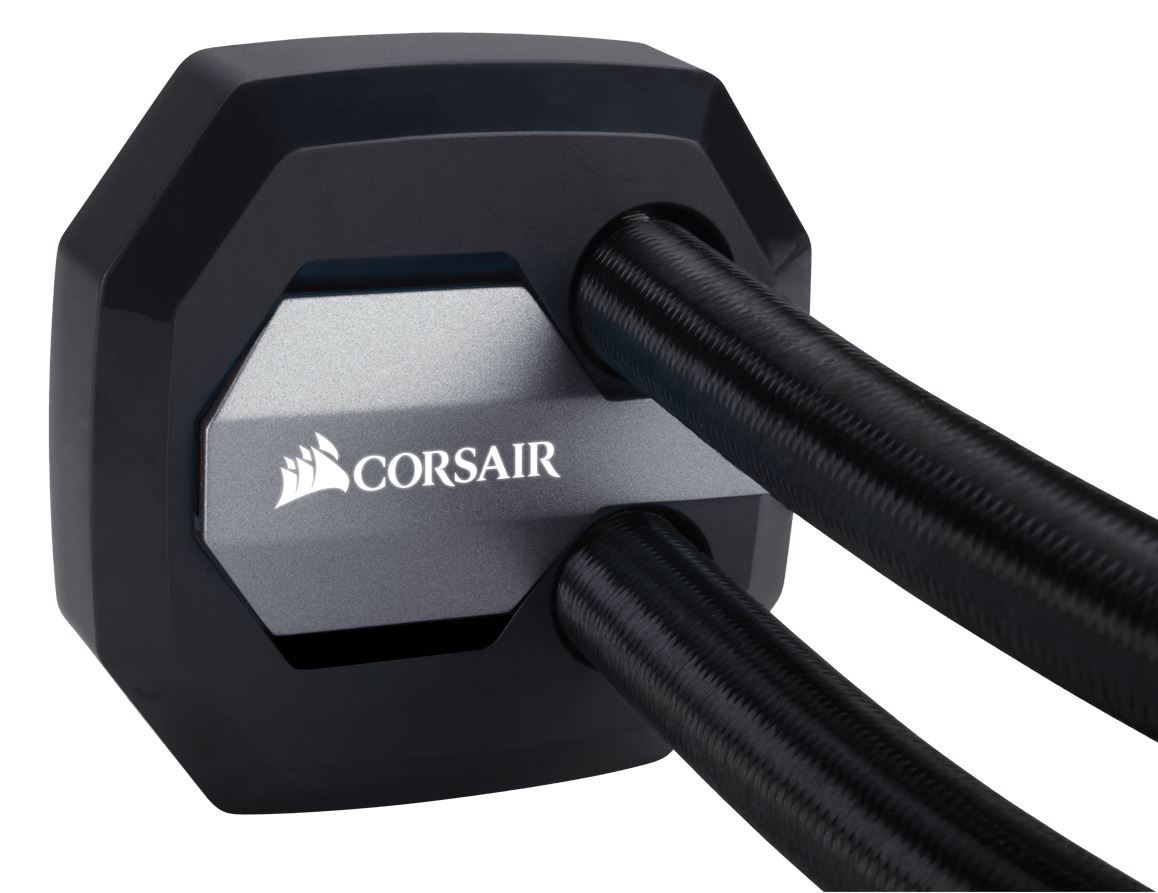

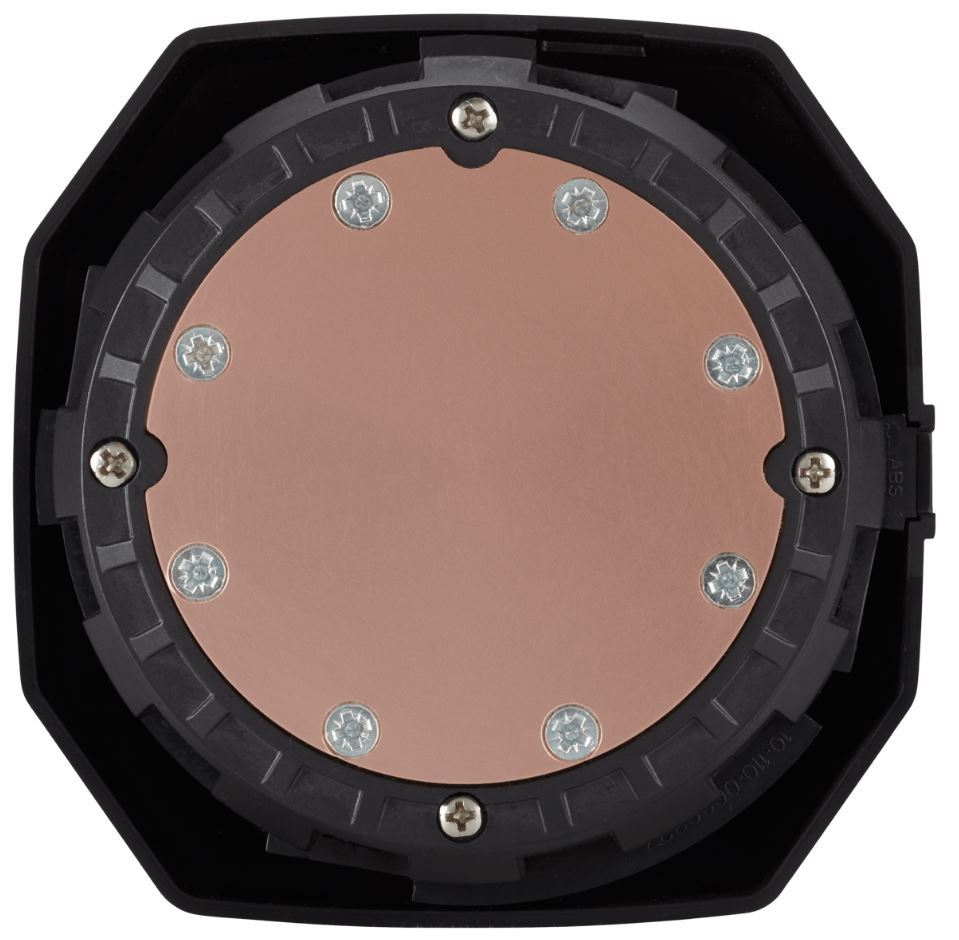

High-performance CPU cooling made simple
Gone are the days when watercooling required lots of work. The H100i v2 is a
closed loop design that comes pre-filled, and it comes with a modular, tool-free
mounting bracket for faster installation.
Compatibility
- Intel™ LGA 1150, 1151, 1155, 1156, 1366, 2011, 2011–3
- AMD™ sockets FM1, FM2, AM2, AM3, AM4
Technical specifications
- Radiator dimensions: 276mm x 125mm x 30mm
- Total cooler height: 84mm
- Fan dimensions: 120mm x 120mm x 25mm
- Fan speed: 2435 +/- 10% RPM
- Fan airflow: 70.69 CFM
- Fan pressure: 4.65 mmH2O
- Fan noise level: 37.7 dB(A)
