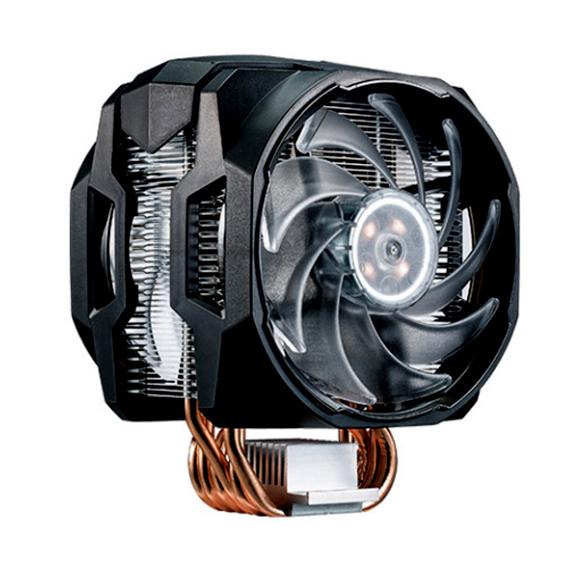

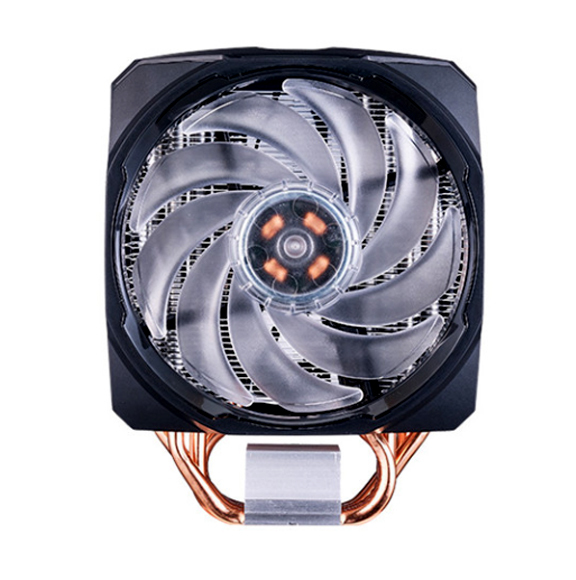

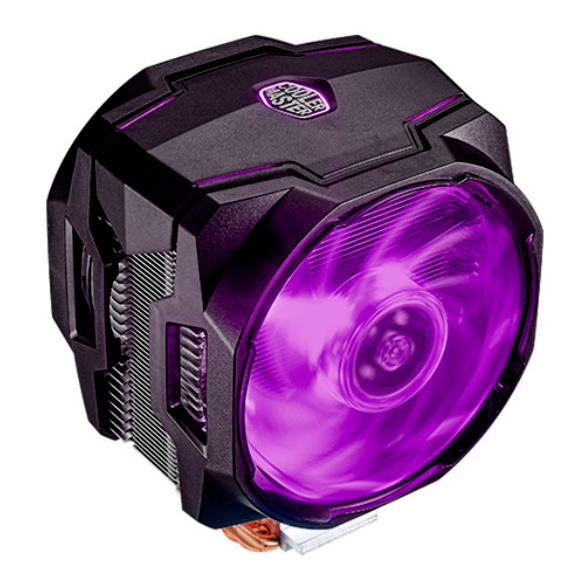

Cooler Master MasterAir MA610P RGB CPU Cooler

Sorry, this product is not currently available to order

Here are some other products you might consider...

Cooler Master MasterAir MA610P RGB CPU Cooler

120mm RGB LED PWM Fan

Customer rating

Click to share your rating 4 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

Performance & Style
The MA610P is for enthusiasts and gamers to push their systems to the limit. Exceptional cooling performance is a must to keep it running stable and at max speeds. The MA610P is also stylishly design to match the precision engineered components in your build. It even comes with a dual RGB fans and controller for you to change the your lighting without limitations.

Precision Engineered Heatsink

Cooler Master's aluminum fin craftmanship is second to none. Optimized fin stacked distance between each layer is based on stringent airflow tests from our labs.

Accelerated Air Pressure To Beat The Heat

The 2 x MasterFan 120 Air Balance RGB accelerates removal of heat with the ‘Push and Pull’. Cold air is drawn into the MA610P heatsink from one side to cool to cool off the heat generated from the CPU. Hot air is then quickly pulled out from the other side to ensure the CPU operates at maximum effiency.

45% More Contact With Cdc 2.0
The Continuous Direct Contact 2.0 Technology increases the surface area of the copper base by 45% to maximize the contact and removal heat from the CPU. The total of 6 heatpipes, the MA610P is able to maximize TDP capacities.

Play With Colors Using The Rgb Led Controller
A wired RGB LED controller is included with the MA610P to change the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.

Easy Installation
The easy install mounting kit ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.

Specifications
Specifications
Product Name
MasterAir MA610P

CPU Socket

  • Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 socket
  • AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket

Dimensions
122.3 × 112.8 × 166­.5 mm (4.8 × 4.4 × 6.5")

Heat Sink Dimensions
116 × 60 × 158 mm (4.5 × 2.4 × 6.2")

Heat Sink Material
6 Heat Pipes / Direct Contact / Aluminum Fins

Heat Sink Weight
616g (1.35lb.)

Heat Pipe Dimensions
Ø6 mm

Fan Dimensions
120 × 120 × 25 mm (4.7 × 4.7 × 1")

Fan Speed
600 – 1,800 RPM (PWM) ± 10%

Fan Air Flow
53.38 CFM (Max)

Fan Air Pressure
1.65mm H2O (Max)

Fan MTTF
40,000 hours

LED Color
RGB ready

Fan Noise Level
35 dBA (Max)

Fan Connector
4-Pin

Fan Rated Voltage
12 VDC

Fan Rated Current
0.30 A

Fan Safety Current
0.37 A

Fan Power Consumption
4.44 W

Release date NZ
May 7th, 2018
Manufacturer code:
MAP-T6PN-218PC-R1
Supported CPU Socket(s)
  • LGA 1150 (Socket H3)
  • LGA 1151 (Socket H4)
  • LGA 1151 (Socket H4) Rev.2
  • LGA 1155 (Socket H2)
  • LGA 1156 (Socket H)
  • LGA 1366 (Socket B)
  • Socket AM3
  • Socket AM3+
  • Socket AM4
  • Socket FM1
  • Socket FM2
  • Socket FM2+
Height (mm)
158
Width (mm)
116
Depth (mm)
60
Box Dimensions (mm)
165x235x140
UPC
884102036088
Product ID
27957609
