PC Parts & Components:

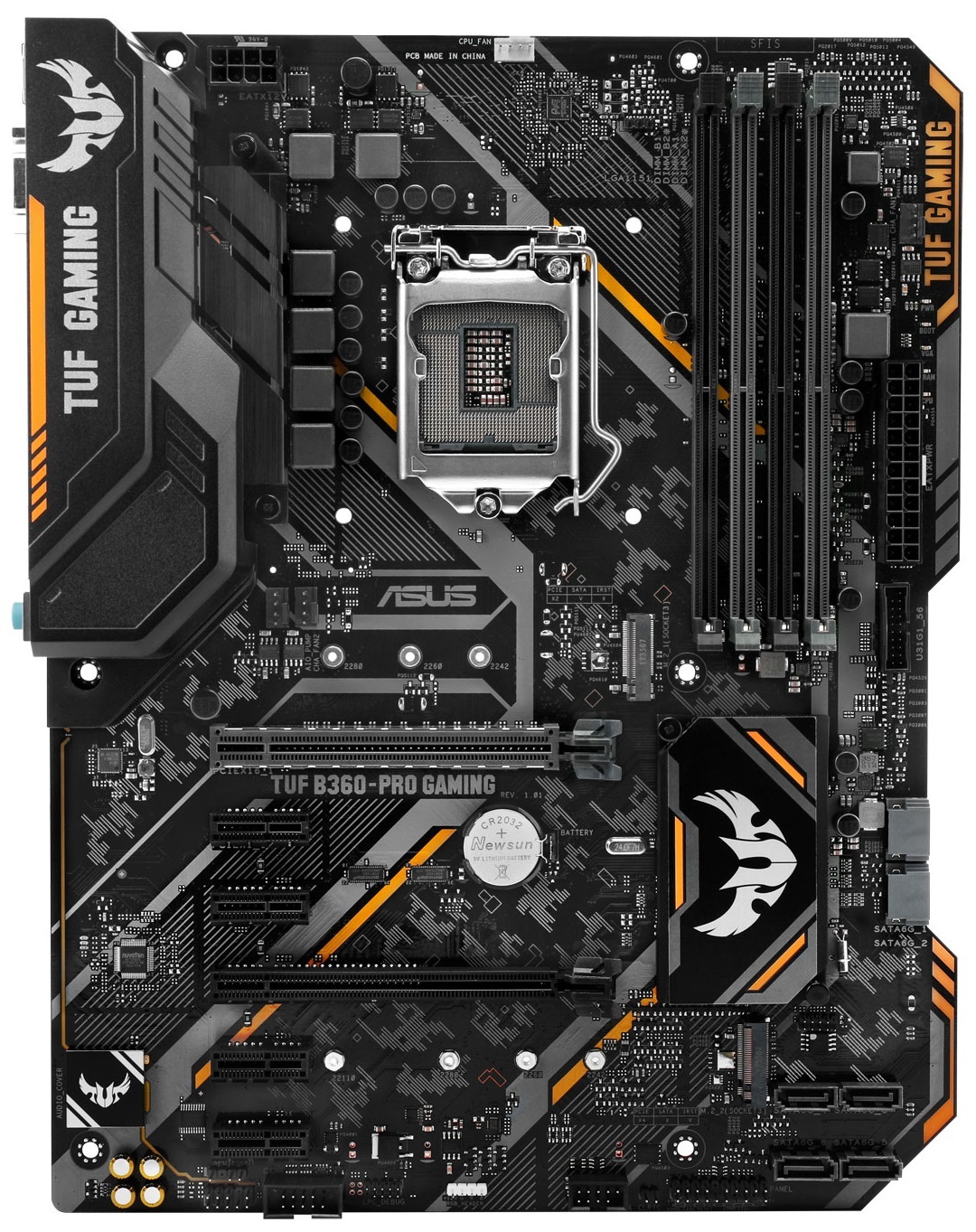

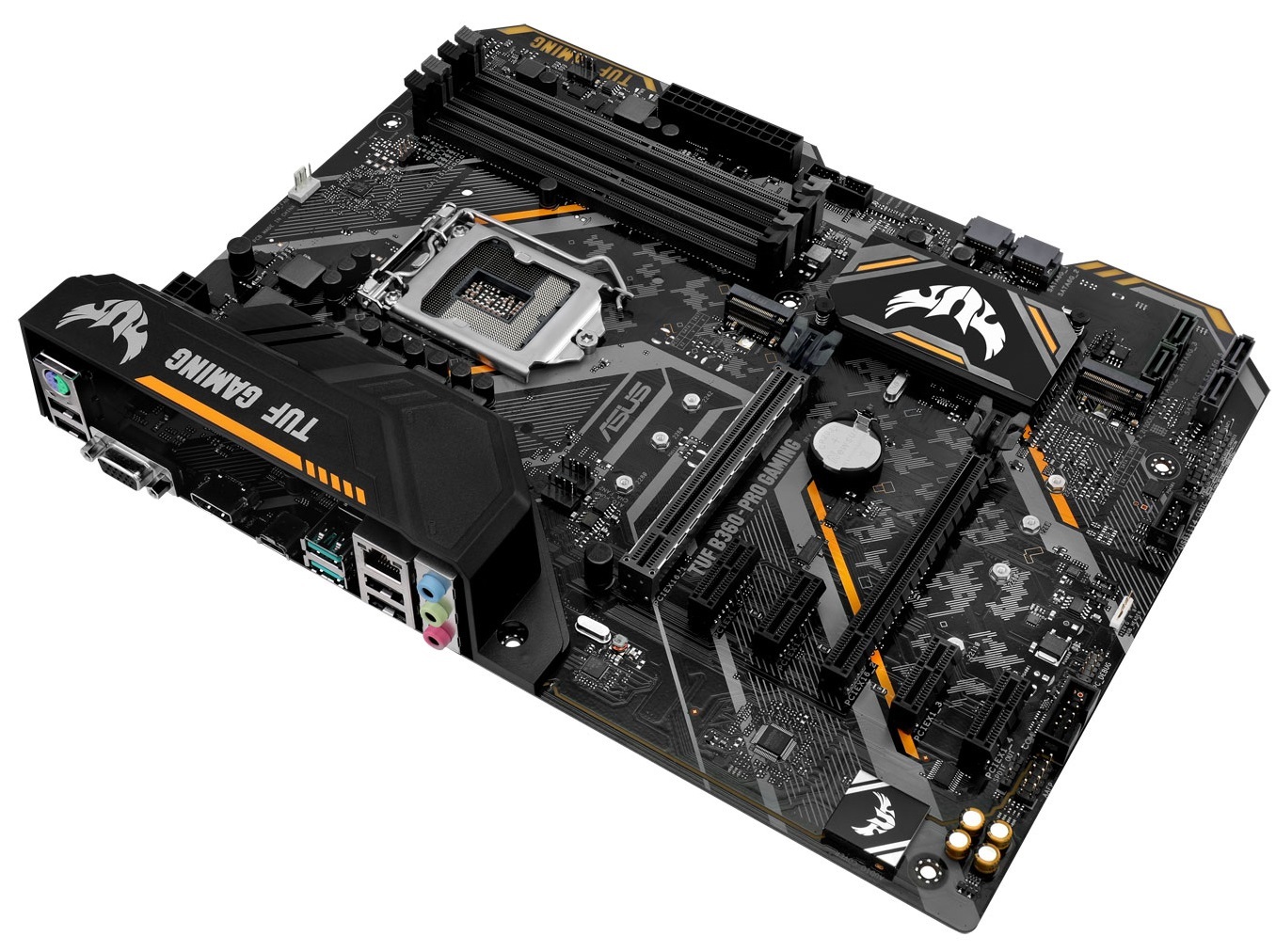

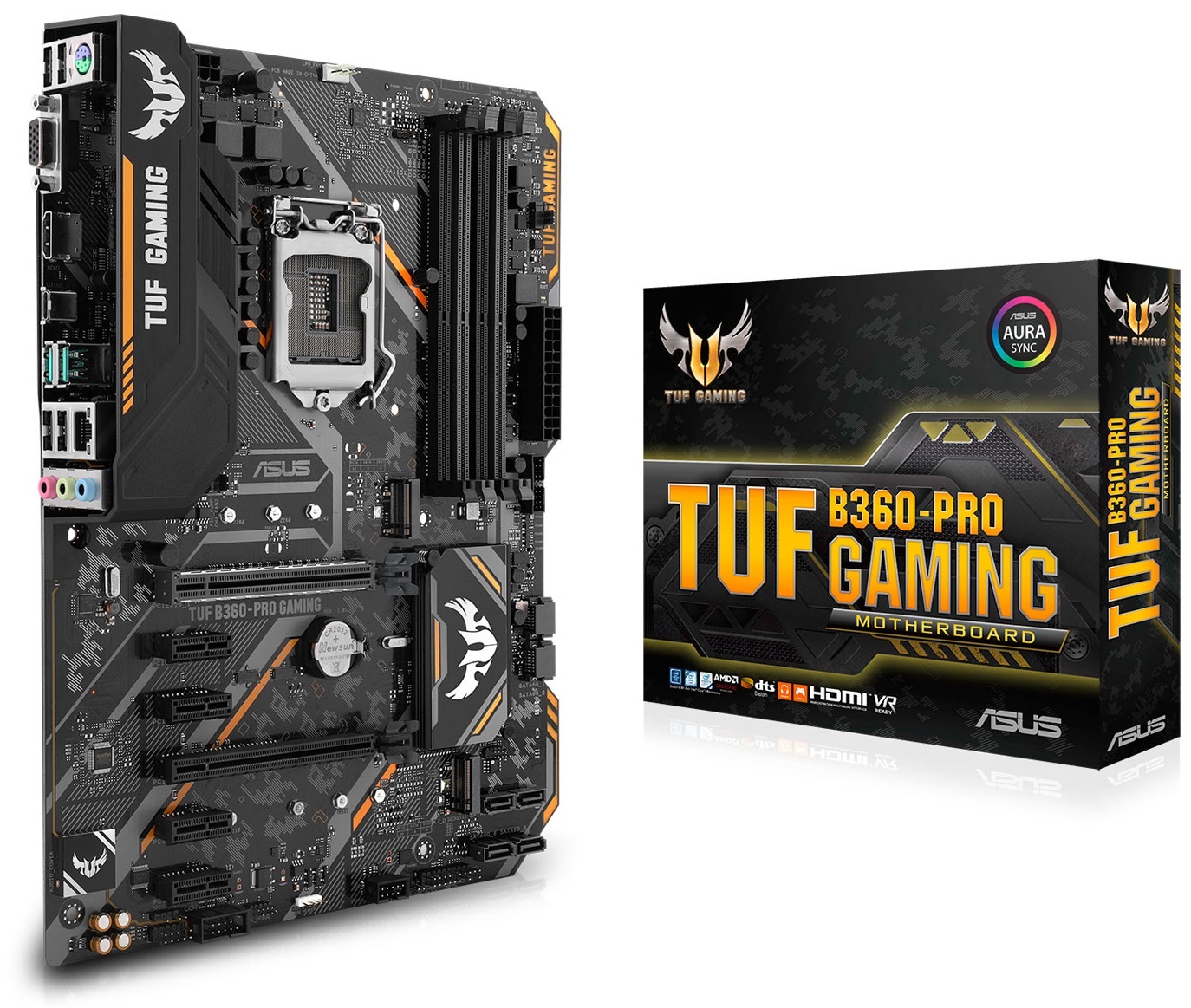

ASUS TUF B360-PRO GAMING Motherboard

Customer rating

Click to share your rating 3 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

$188.00
or 4 payments of $47.00 with Learn more
Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!
Also available from Marketplace sellers:

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
  • Saturday using Saturday Delivery
    Mighty Ape can deliver this product on Saturday to most cities and towns in NZ. Learn more
  • Monday using standard courier delivery

Description

CPU
Intel® Socket 1151 for 8th Generation Core™ Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

  • The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® B360
Memory
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

  • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • The maximum memory frequency supported varies by processor.

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/D-Sub ports

  • Supports HDMI 1.4b with max. resolution 4096 × 2160 @ 24 Hz / 2560 × 1600 @ 60 Hz
  • Supports D-sub with max. resolution 1920 × 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage
Intel® B360 Chipset :
1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 × 2 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/228­0/22110 storage devices support (PCIE 3.0 × 4 mode)
6 x SATA 6Gb/s port(s), gray
Intel® Optane™ Memory Ready
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
TUF LANGuard
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC

  • Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

  • Exclusive DTS Custom for GAMING Headsets.
  • Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  • Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  • Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports
Intel® B360 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
Intel® B360 Chipset :
3 x USB 3.1 Gen 1 port(s) (1 at back panel, , Reversible, 2 at mid-board)
Intel® B360 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Special Features
ASUS TUF PROTECTION

  • ASUS SafeSlot: Protect your graphics card Investment
  • ASUS ESD Guard: Enhanced ESD protection
  • ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  • ASUS Overvoltage Protection: World-class circuit-protecting power design
  • ASUS DIGI + VRM: 4+2+1 Phase digital power design

ASUS EPU :

  • EPU

TUF ENGINE! Power Design :

  • TUF Components (Choke, Cap. & MOSFET; certified by military-standard)

AURA :

  • Aura Lighting Control
  • Aura RGB Strip Headers

ASUS Exclusive Features :

  • AI Suite 3
  • Ai Charger

ASUS Quiet Thermal Solution :

  • Stylish Fanless Design Heat-sink solution
  • ASUS Fan Xpert 4 Core

ASUS EZ DIY :

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

CPU Installation Tool

  • Three-step simplicity and safety

ASUS Q-Design :

  • ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • ASUS Q-Slot
  • ASUS Q-DIMM

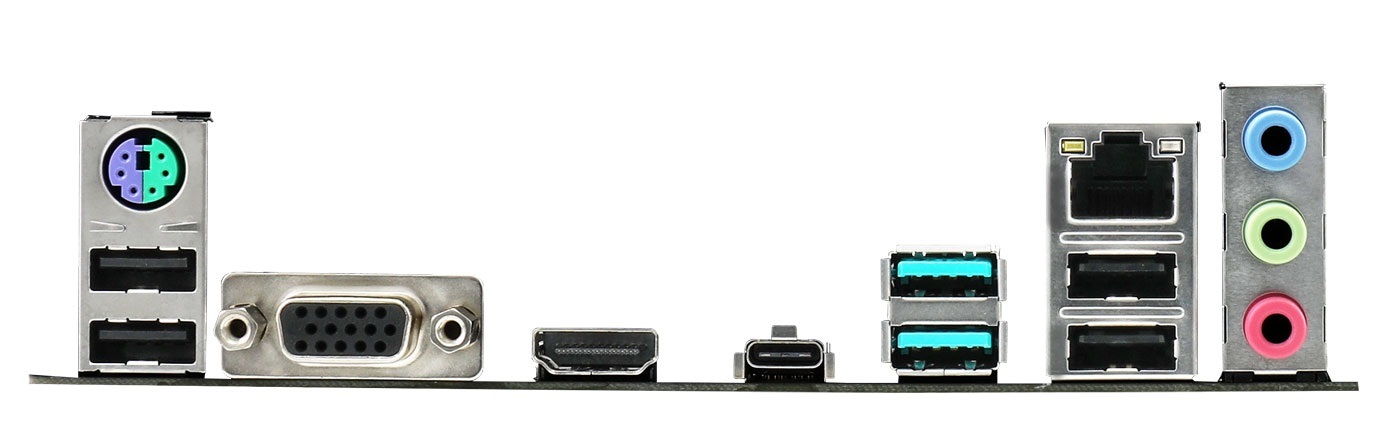

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 × 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/228­0/22110 storage devices support (PCIE 3.0 × 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 × 4 -pin)
2 x Chassis Fan connector(s) (2 × 4 -pin)
1 x AIO_PUMP connector
1 x S/PDIF out header(s)
1 × 24-pin EATX Power connector(s)
1 × 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
*2. The M.2_1 socket shares SATA2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.

Release date NZ
April 4th, 2018
Manufacturer code:
TUF B360-PRO GAMING
Warranty Period
1 year
Brand
Manufacturer
Series
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
64
Number of VGA Ports
1
Number of DVI Ports
0
Number of DisplayPort Ports
0
Number of HDMI Ports
1
Number of PCI Express x16 Slots
2
Number of PCI Express x1 Slots
4
Number of M.2 Sockets
2
Number of SATA Headers
6
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
1
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
2
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Supported Wireless Networking Standards
  • 802.11ac
Box Dimensions (mm)
270x330x55
UPC
889349974711
Product ID
27818699
