Features
- ASRock Super Alloy
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

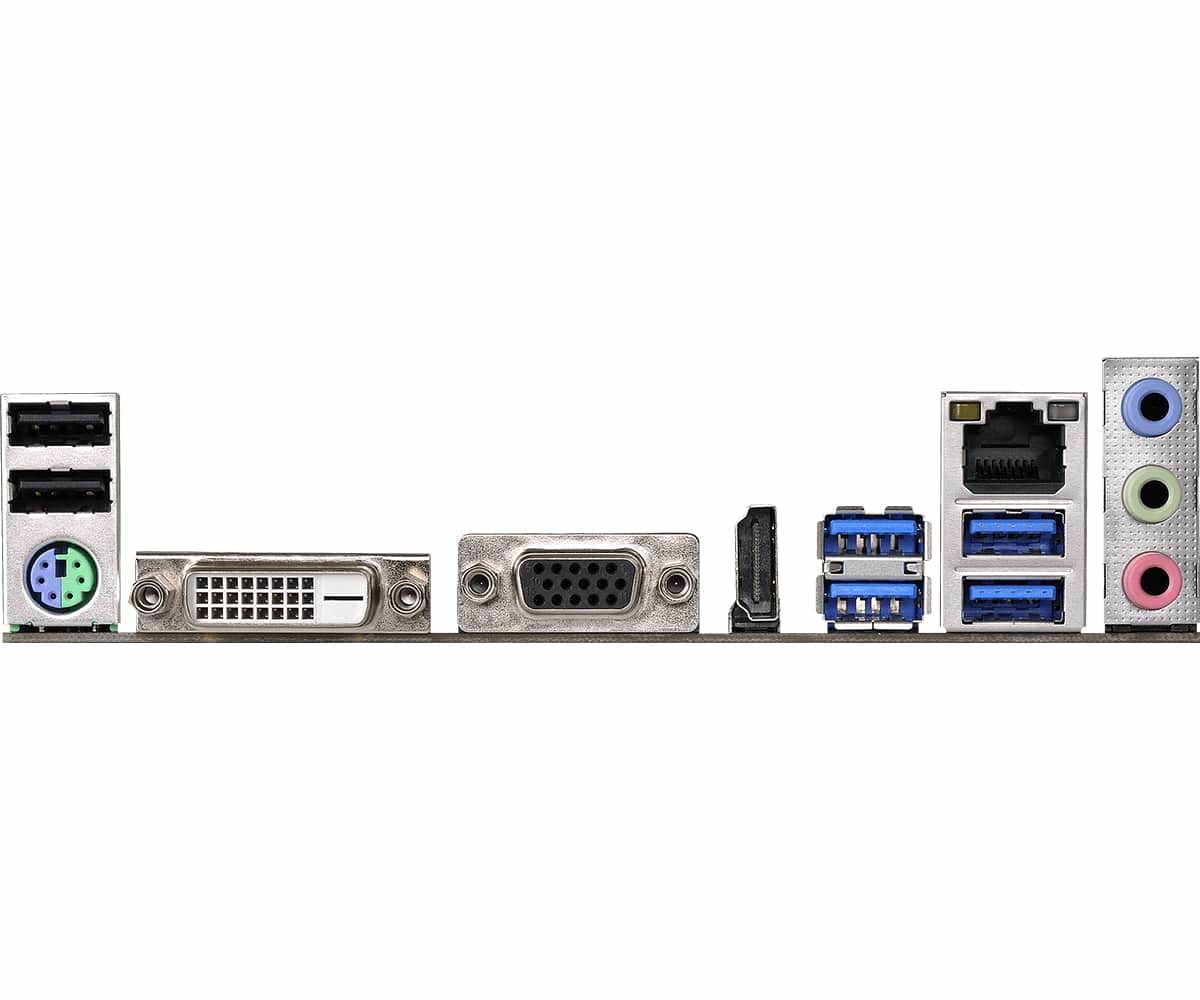

- Graphics Output:HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 USB 3.0 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with
ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3
x4 SSDs.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a
next generation digital PWM (Pulse-Width Modulation) design, which provides CPU
Vcore voltage more efficiently and smoothly, so that the stability and lifespan
of the motherboard is greatly enhanced.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this
motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock
applied ELNA audio capacitors on mainstream and entry-level motherboards!
Compared with traditional solid caps, the leakage current of ELNA audio caps is
merely 3uA. This is the key to reduce noise level significantly and satisfy even
the pickiest audiophiles.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy,
so this motherboard supports Triple Monitor. You may choose up to three display
interfaces from the rear i/o to connect monitors and use them simultaneously
without installing another graphics card.
*Supported with A-Series APUs only.
4K x 2K
Composed by a minimum of 3840 × 2160 pixels, which is twice the horizontal
and vertical resolution of the 1080p format.
- Supported with A-Series APUs only.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power
surges, the excessive current may cause your system to malfunction immediately.
ASRock Full Spike Protection includes various technologies to prevent your
motherboard's components from being damaged by these unexpected voltage
spikes.
