Exceptionally Quiet, Superior Reliability, Great Value

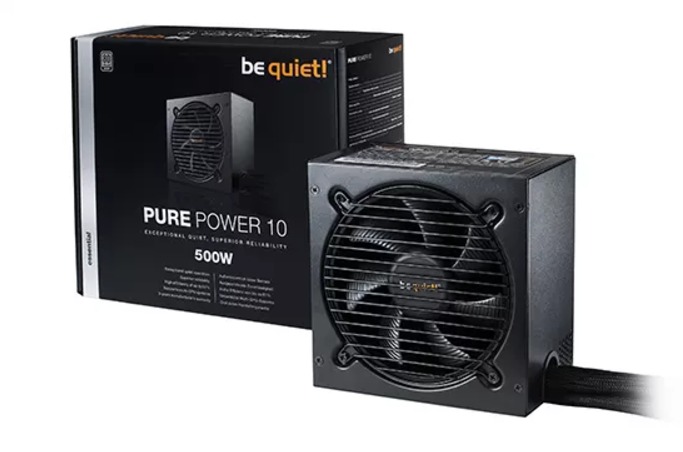

The Pure Power 10 PSU series stands for peerless dependability and best-in-class features. Whether you are assembling a very quiet system, upgrading an existing PC, building a multimedia or a multi-GPU gaming system, your build will benefit from this PSU series. It simply has the best combination of features, performance and quality at very popular price.

500 Watts of continuous power and two 12V-rails ensure rock-solid voltage stability for powerful multi-GPU systems
80PLUS® Silver certification and up to 91% power conversion efficiency
Exceptionally quiet operation is achieved by an array of careful enhancements, including the use of a silence-optimized 120mm be quiet! fan
Stable operation in its class thanks to DC-to-DC power conversion technology
Attractively sleeved cables simplify component installation, increase airflow and improve cooling
Product conception, design and quality control in Germany

Applications

Gaming with multi-GPU capability
Silent PC builds
Quiet multimedia and home theater systems

Feature Details

Engineering

Two independent 12V-rails improve power signal stability
Active Clamp and Synchronous Rectifier (SR) technology produces very stable operation
DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
Two PCI express connectors for multi-GPU system configurations
Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads
High-quality sleeved cables simplify component installation, increase airflow and improve cooling
All-in-one cable with convenient easy-plug HDD connector

Energy Efficiency

80PLUS® Silver certification means very high operating efficiency for its class of up to 91%
High efficiency means cost savings, less wasted heat, and an overall quieter operation
Standby drain of less than 0.11 watts
Meets Energy Star 6.0 guidelines
Fulfills ErP 2014 guidelines
Zero Load design supports Intel’s Deep Power Down C6/C7 mode

Exceptionally Quiet Operation

High-quality 120mm be quiet! fan is thermally controlled and optimally governed to strike the best balance between effective cooling and deep quietness
Airflow-optimized fan blades reduce turbulence, enabling a best-in-class quiet function with excellent airflow
High efficiency design produces low operating temperatures

Outstanding Service and Support

3-year manufacturer's wa­rranty
Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET: +49 (0) 40–736 76 86 – 98

General Data
Continuous power (W)500
Peak power (W)550
Form factor ATX 12VVersion 2.4
Form factor EPS 12V-
Modular cable management-
TopologyActive Clamp + SR + DC/DC
Voltage (Vac)100 – 240
Frequency (Hz)50 – 60
Input current (A)8 / 5
PFCactive
Power factor at 100% load>0.99
Compliant to Intel C6/C7✓
Compliant to Intel C6 mode✓
Power consumption in standby (W)0.10
Average life time (h / 25°C)100.000
Operating temperature up to (°C)40

Output
12V rails (multi-rail operation)2
12V single rail operation-
Overclocking key-
+3.3V (A)24
+5V (A)15
+12V1 (A)28
+12V2 (A)20
+12V3 (A)-
+12V4 (A)-
+12V5 (A)-
+12V6 (A)-

• 12V (A)0.3

+5Vsb (A)3
Max. combined power 12V (W)480
Max. combined power 3.3V + 5V (W)120
Hold-up time (ms @ 100%)34

Fan / Cooling Technology
Fan typeexclusive be quiet! fan
+SilentWings-
Motor technology4-pole fan motor
Bearing technologyRifle
Fan size (mm)120
Max. fan speed (rpm), temperature-dependent1,170
Temperature control for case fans-
dB(A) at 20% load11.3
dB(A) at 50% load11.9
dB(A) at 100% load22.3

Protection
OCP (over current protection)✓
OVP (over voltage protection)✓
UVP (under voltage protection)✓
SCP (short circuit protection)✓
OTP (over temperature protection)✓
OPP (over power protection)✓

Eco / Efficiency
80PLUS certificationSilver
Efficiency (%) at 230V, 20% load90.3
Efficiency (%) at 230V, 50% load91.8
Efficiency (%) at 230V, 100% load90.7

Environmental directives
ENERGY STAR6.0
ErP✓
WEEE✓
RoHS✓

Cable management / Connectors
Modular cable management-
Sleeved cables✓
Flat Cables-
Cable length to mainboard (cm)55
Cable length to first connector (cm)55
Maximum cable length (cm)95
All-in-one cable (SATA/PATA/FDD)✓
No. of cables7
ATX-Mainboard (20+4 pin)1
P8 (CPU)-
P4+4 (CPU)1
P4 (CPU)-
PCI-E 6 pin (GPU)-
PCI-E 6+2 pin (GPU)2
PATA 4 pin3
SATA 15-pin (HDD, Drives)6
FDD (Floppy)1
Mainboard Connector (PATA 4 pin)3
External fan connectors-

GPU compatibility
Multi-GPU ready

Casing
Dimensions without cable (L x W x D), (mm)150 × 150 × 86
Weight incl. fixed cables (kg)1.96
Colorblack

Accessories
Thumb screws-
Screws✓
Hook & Loop cable ties-
Cable ties✓
AC power cord (mm)1.500
Box/Bag for PSU/Cables-
User manual languages EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK Jumper-
