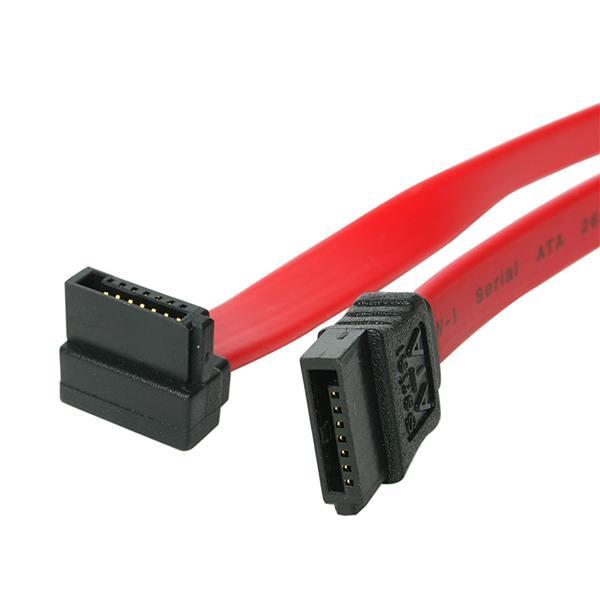

The SATA18RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 18-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.
The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.
Applications
- Installing Serial ATA hard drives, and DVD drives in Small Form Factor computer cases
- Server and storage subsystem applications
- High-end workstation drive installations
- Connections to SATA Drive Arrays
Specifications
HARDWARE
- Cable Jacket Type: PVC – Polyvinyl Chloride
PERFORMANCE
- Type and Rate: SATA III (6 Gbps)
CONNECTOR(S)
- Connector A: 1 – SATA (7 pin, Data) Receptacle
- Connector B: 1 – SATA (7 pin, Data) Receptacle
PHYSICAL CHARACTERISTICS
- Cable Length: 18 in [457.2 mm]
- Color: Red
- Connector Style: Straight to Right Angle
- Product Length: 18 in [457.2 mm]
- Product Weight: 0.6 oz [16 g]
