PC Parts & Components:

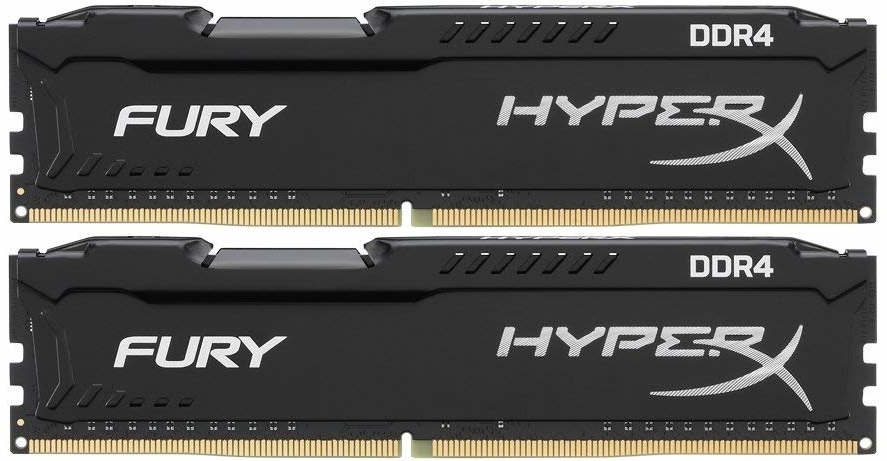

2x8GB Kingston HyperX Fury 2666MHz DDR4 Gaming RAM

Sorry, this product is not currently available to order

Here are some other products you might consider...

2x8GB Kingston HyperX Fury 2666MHz DDR4 Gaming RAM

Customer rating

Click to share your rating 25 ratings (4.8/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Customer reviews

4.8 out of 5 stars Based on 25 Customer Ratings

5 star
(23)
4 star
(1)
3 star
(0)
2 star
(1)
1 star
(0)
Write a Review
"Hyper X Fury"
5 stars"
Purchased on Mighty Ape

Works great faster then 2400mhz ram I had found the bandwith is abit better with 2666 ,67% from the slower speed

0 out of 2 people found this review helpful.

Description

HyperX HX426C15FBK2/8 is a kit of two 1G x 64-bit (8GB) DDR4–2666 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4–2666 at a low latency timing of 16–18–18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

JEDEC/XMP TIMING PARAMETERS

  • JEDEC/PnP: DDR4–2666 CL16–18–18 @1.2V
  • XMP Profile #1: DDR4–2666 CL16–18–18 @1.2V

FEATURES

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP – 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • Height 1.340” (34.04mm), w/heatsink

SPECIFICATIONS

  • CL(IDD): 15 cycles
  • Row Cycle Time (tRCmin): 45ns(min.)
  • Refresh to Active/Refresh Command Time (tRFCmin): 260ns(min.)
  • Row Active Time (tRASmin): 26.25ns(min.)
  • Maximum Operating Power: TBD W*
  • UL Rating: 94 V – 0
  • Operating Temperature:0 C to +85 C
  • Storage Temperature: –55 C to +100 C
Release date NZ
February 12th, 2019
Manufacturer code:
HX426C16FB2K2/16
Memory Module Type
DIMM
Memory Type
DDR4 SDRAM
Memory Channels
  • Dual Channel
Memory Speed (MHz)
2666
Number of Memory Modules
2
Memory Size Per Module (GB)
8
Total Memory Size (GB)
16
Brands
Manufacturer
Warranty Period
1 year
Box Dimensions (mm)
95x175x15
All-time sales rank
Top 5000
Product ID
29101453
