PC Parts & Components:

1TB Samsung 970 PRO SSD

Sorry, this product is not currently available to order

Here are some other products you might consider...

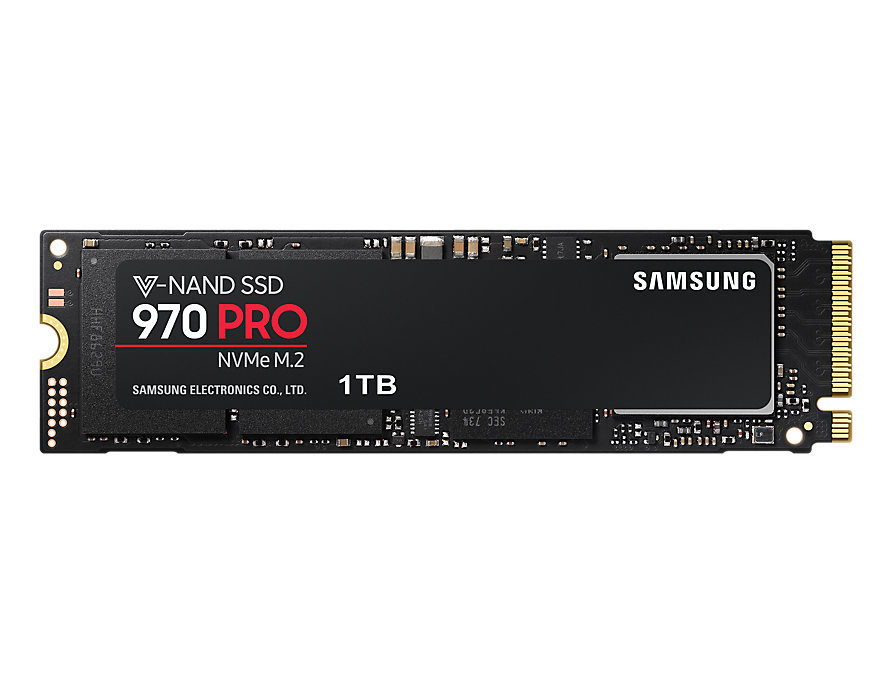

1TB Samsung 970 PRO SSD

M.2 2280 | PCI Express 3.0 x4 | NVMe 1.3
Click to share your rating 3 ratings (4.7/5.0 average) Thanks for your vote!
Sorry, this product is not currently available to order

Customer reviews

4.7 out of 5 stars Based on 3 Customer Ratings

5 star
4 star
3 star
2 star
1 star
Write a Review
"very Good"
5 stars"
Purchased on Mighty Ape

love this drive got it for a steel on sale use it as my boot drive works like a cham thanks guys


V-NAND | R/W(Max) 3,500MB/s/2,7­00MB/s

The SSD that goes beyond
Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung's NVMe SSD leadership. Samsung's latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor is designed to surpass the demands of tech enthusiasts and professionals.

Fearless Performance
Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3×4 NVMe interface with Samsung's latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30% faster than the previous generation of Samsung's SSDs.

Exceptional Endurance
Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, helps to achieve 50% greater endurance than the previous generation, all powered by the latest V-NAND technology.

Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO is designed to enable exceptional heat dissipation. The Dynamic Thermal Guard can automatically monitor and maintain optimal operating temperatures to help minimize performance drops.

Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.


General Feature

  • Application Client PCs
  • Capacity 1,024GB (1GB=1 Billion byte by IDEMA)
  • Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form Factor M.2 (2280)
  • Interface PCIe Gen 3.0 x4, NVMe 1.3
  • Dimension (WxHxD) 80.15 × 22.15 × 2­.38 (mm)
  • Weight Max 8.0 g Weight
  • Storage Memory Samsung V-NAND 2-bit MLC
  • Controller Samsung Phoenix Controller
  • Cache Memory Samsung 1GB Low Power DDR4 SDRAM

Special Feature

  • TRIM Support Supported
  • S.M.A.R.T Support Supported
  • GC (Garbage Collection) Auto Garbage Collection Algorithm
  • Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
  • WWN Support Not supported
  • Device Sleep Mode Support Yes


  • Sequential Read Up to 3,500 MB/s
  • Sequential Write Up to 2,700 MB/s
  • Random Read (4KB, QD32) Up to 500,000 IOPS
  • Random Write (4KB, QD32) Up to 500,000 IOPS
  • Random Read (4KB, QD1) Up to 15,000 IOPS
  • Random Write (4KB, QD1) Up to 55,000 IOPS
  • Performance may vary based on system hardware & configuration


  • Average Power Consumption (system level) Average: 5.7 W / Maximum: 8.5 W (Burst mode)
  • Actual power consumption may vary depending on system hardware & configuration
  • Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
  • Allowable Voltage 3.3 V ± 5 % Allowable voltage
  • Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
  • Operating Temperature 0 – 70 ℃ Operating Temperature
  • Shock 1,500 G & 0.5 ms (Half sine)


  • Management SW Magician Software for SSD management


  • 5-Year Limited Warranty or 1,200 TBW Limited Warranty
Release date NZ
May 22nd, 2018
Manufacturer code:
Warranty Period
5 Years
Storage Capacity (GB)
Storage Form Factor
M.2 Module Size Code
Storage Interface Type
  • PCIe NVMe 3.0 x4
Box Dimensions (mm)
Product ID
