Reliable, affordable and loaded with essential features.
A 20" display with essential features, an environmentally conscious design and
rigorous reliability testing define the Dell 20 Monitor – E2016H.
A dependable and affordable 20” monitor with essential features that meet everyday office demands.
- Essential features: HD quality display at multiple angles with VESA-mount compatibility and tilt options, as well as VGA and DisplayPort connectivity.
- Dependable performance: Uncompromising quality testing standards with 3-year warranty and service ensure long-term performance.
- Eco-conscious design: Save energy with power-efficient features.
An everyday office essential
- Screen performance: View your applications, spreadsheets and more on 20 inches of 1600×900 HD clarity, with 16.7 million colours, a colour gamut of 86% gamut1 and a 170° / 160° horizontal / vertical viewing angle.
- Plug and view: Compatible with both legacy and current PCs via VGA and DisplayPort connectivity.
- Mounting option: Keep your desk clutter-free by mounting your VESA® compatible monitor on the wall or using the optional Dell Single Monitor Arm, detailed below.

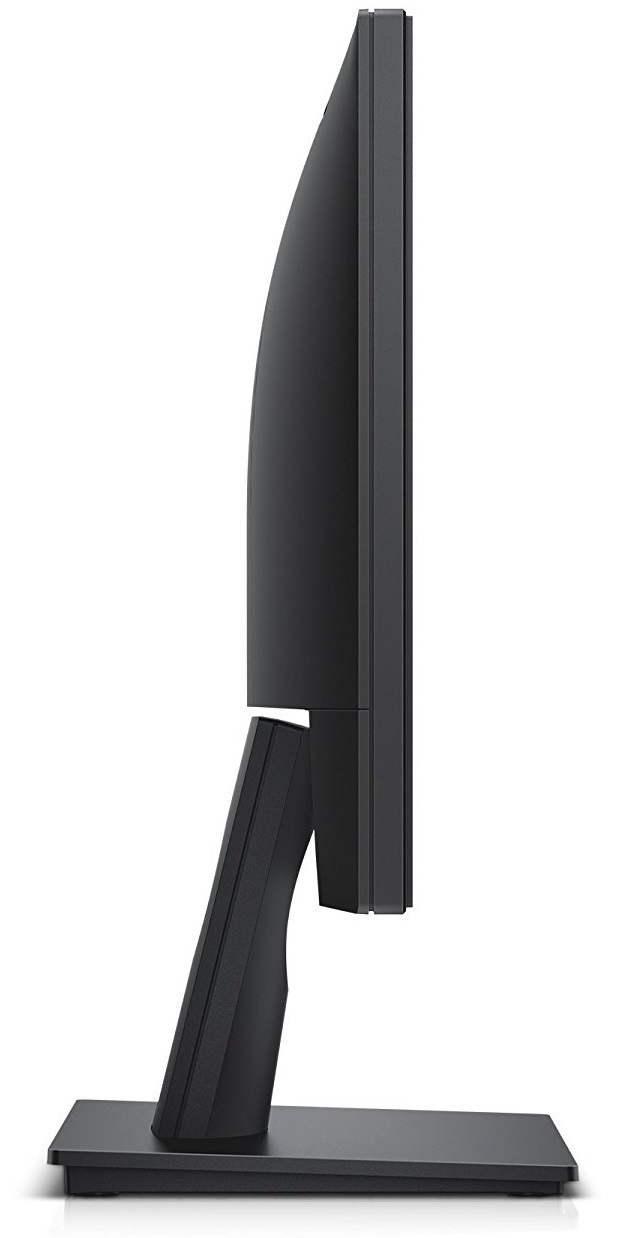

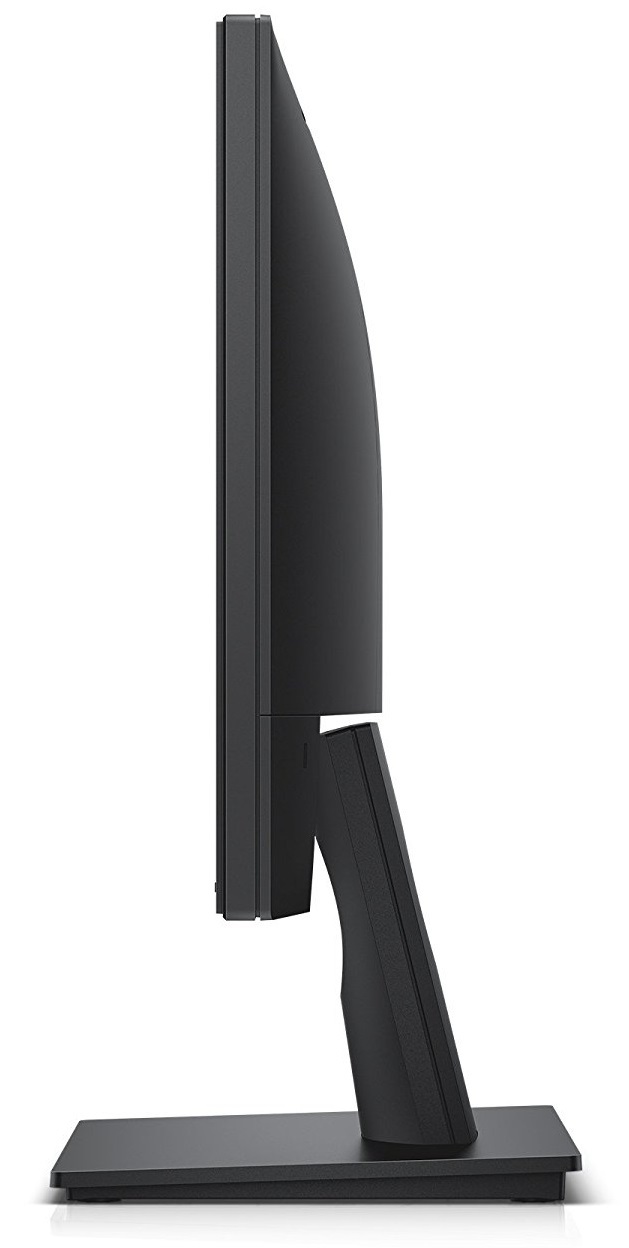

- Tilt at will: Work comfortably by tilting the monitor 5° forwards or 21° backwards.
- Convenient controls: Easily access buttons for power, brightness, contrast and customisable preset modes on the monitor’s front panel.
Eco-conscious and reliable
Peace of mind included: Relax knowing that your Dell monitor comes with a 3-year
Advanced Exchange Service2 within its 3-Year Limited Hardware Warranty.3
Reduced footprint: The Dell 20 Monitor features PowerNap technology that reduces screen brightness or puts the monitor in sleep mode when it's not in use. This monitor also meets the latest regulatory and environmental standards:
- ENERGY STAR® Qualified
- EPEAT® Silver Rated
- CECP Certified
- TCO Certified Displays
Environment-friendly materials: Your new Dell monitor is made with arsenic-free glass and a mercury-free LED panel. Its circuit boards are made from brominated flame retardant (BFR)- and PVC-free laminates, and it has more than 25% post-consumer recycled plastics in its chassis.
Specs
- Color: Black
- Diagonal Viewing Size: 19.5 inches
- Aspect Ratio : Widescreen (16:9)
- Panel Type, Surface: TN
- Optimal Resolution: 1600 × 900 at 60 Hz
- Preset Display Area (H x V): 103602.65 sq-mm (160.4 sq-inches)
- Contrast Ratio: 1000:1 (typical)
- Backlight Technology: WLED
- Brightness: 250 cd/m² (typical)
- Response Time: 5 ms typical (Black to White)
- Viewing Angle: 160° vertical / 170° horizontal
- Color Support: 16.7 million colors
- Pixel Pitch: 0.27 × 0.27 mm
- Display Type : Widescreen Panel Display
- Device Type: Monitor
- Display Screen Coating : Anti-Glare with 3H hardness
- Audio Output : No
- Flat Panel Mount Interface: VESA (100 mm)
- Connectivity: DP, VGA
- Adjustability : Tilt
- Built-in Devices : N.A.
- Security: Security lock slot (cable lock sold separately)
- Height with stand (compressed /extended): 368.9 mm (14.52 inches)
- Depth : 167.0 mm (6.57 inches)
- Width : 471.5 mm (18.56 inches)
- Height without stand : 275.4 mm (10.84 inches)
- Depth without stand : 51.5 mm (2.03 inches)
- Width without stand : 471.5 mm (18.56 inches)
- Weight (panel only – for VESA mount) : 2.22 kg (4.89 lb)
- Weight (with packaging) : 4.11 kg (9.06 lb)
- Power: Voltage Required : 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 0.8 A (typical)
- Power Consumption (Operational) : 15 W (Typical). 11W (Energy Star)
- Power Consumption Standby / Sleep : Less than 0.3 W
- Temperature Range Operating : 0 °C to 40 °C (32 °F to 104 °F)
- Temperature Range Non-operating
- Storage: –20 °C to 60 °C (-4 °F to 140 °F)
- Shipping: –20 °C to 60 °C (-4 °F to 140 °F)
- Humidity Range Operating : 10% to 80% (non-condensing)
- Humidity Range Non-operating
- Storage: 5% to 90% (non-condensing)
- Shipping: 5% to 90% (non-condensing)
- Altitude Operating : 5,000 m (16,404 ft) (maximum)
- Altitude Non-operating : 12,191 m (40,000 ft) (maximum)
- Regulatory
- ENERGY STAR
- EPEAT Gold
- CECP
- TCO
- What's in the box
- Dell 20 Monitor
- Stand
- VESA Screw Cover
- Power Cable (varies by country)
- DP Cable
- Divers and Documentation Media (CD)
- Quick Setup Guide
- Safety and Regulatory Information
