Having received more than 100 awards and recommendations from international
hardware websites and magazines, the NF-S12A is one of Noctua’s most renowned
and popular 120mm fans. Its outstanding airflow efficiency and superb acoustics
make it ideal for case cooling and other low-impedance applications. The
chromax.black.swap edition combines the NF-S12A’s signature quiet cooling
performance with an attractive all-black design and a bundle of swappable red,
white, blue, green, yellow and black anti-vibration pads that allow the
colour-customisation of the fan to match individual build colour schemes. For
further customisation, a wide range of accessories such as coloured cables,
additional anti-vibration pads and anti-vibration mounts are available
separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more
than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-S12A
PWM chromax.black.swap is the perfect choice for all users who value individual,
focused build aesthetics just as much as class-leading quality and
performance.

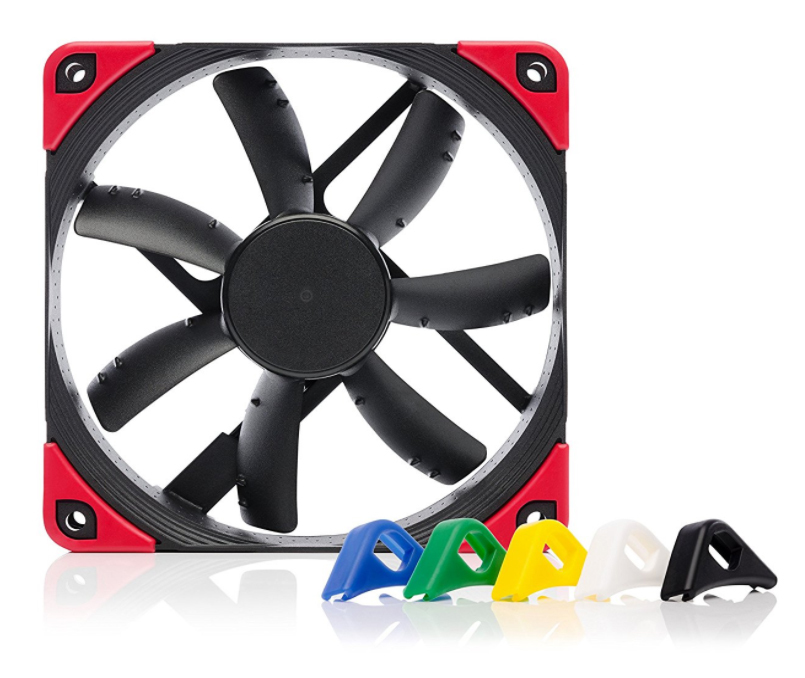

Swappable anti-vibration pads in 6 colours
The NF-S12A PWM chromax.black.swap comes with 4 black, white, red, blue, green
and yellow NA-AVP1 anti-vibration pads respectively. By combining the various
colours with black or leaving off the pads on one side, the fan can be
coordinated with most popular build colour schemes out of the box. Additional
NA-SAVP1 sets for outfitting both sides in one colour can be purchased
separately.
FAN Specification
Size: 120×120×25 mm
Mounting hole spacing: 105×105 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: S-Series with Anti-Stall Knobs
Frame Technology: AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%): 1200 RPM
Min. Rotational Speed (PWM, +/-20%): 300 RPM
Airflow: 107,5 m³/h
Acoustical Noise: 17,8 dB(A)
Static Pressure: 1,19 mm H₂O
Max. Input Power: 1,44 W
Max. Input Current: 0,12 A
Voltage: 12 V
MTTF: > 150.000 h
Scope of delivery:
4× NA-AVP1 chromax.black anti-vibration pads
4× NA-AVP1 chromax.blue anti-vibration pads
4× NA-AVP1 chromax.green anti-vibration pads
4× NA-AVP1 chromax.red anti-vibration pads
4× NA-AVP1 chromax.white anti-vibration pads
4× NA-AVP1 chromax.yellow anti-vibration pads
4× fan screws
Warranty 6 years
