- NVIDIA TURING™: ROG GeForce RTX™ graphics cards are powered by the Turing™ GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
- DirectX 12: Power new visual effects and rendering techniques for more lifelike gaming.
- NVIDIA Shadowplay™ Record and share high-quality gameplay videos, screenshots, and livestreams with your friends.
- Patented Wing-blade Fans deliver high air pressure, reduced noise levels, IP5X certified dust resistance, and 0dB mode for silent gaming.*
- MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
- Auto-Extreme Technology uses automation to enhance reliability.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages to fuel Turing™’s cores.
- ASUS FanConnect II equips 2 hybrid-controlled fan headers for optimal system cooling.
- GPU Tweak II provides intuitive performance tweaking and thermal controls.
OUTSHINE THE COMPETITION

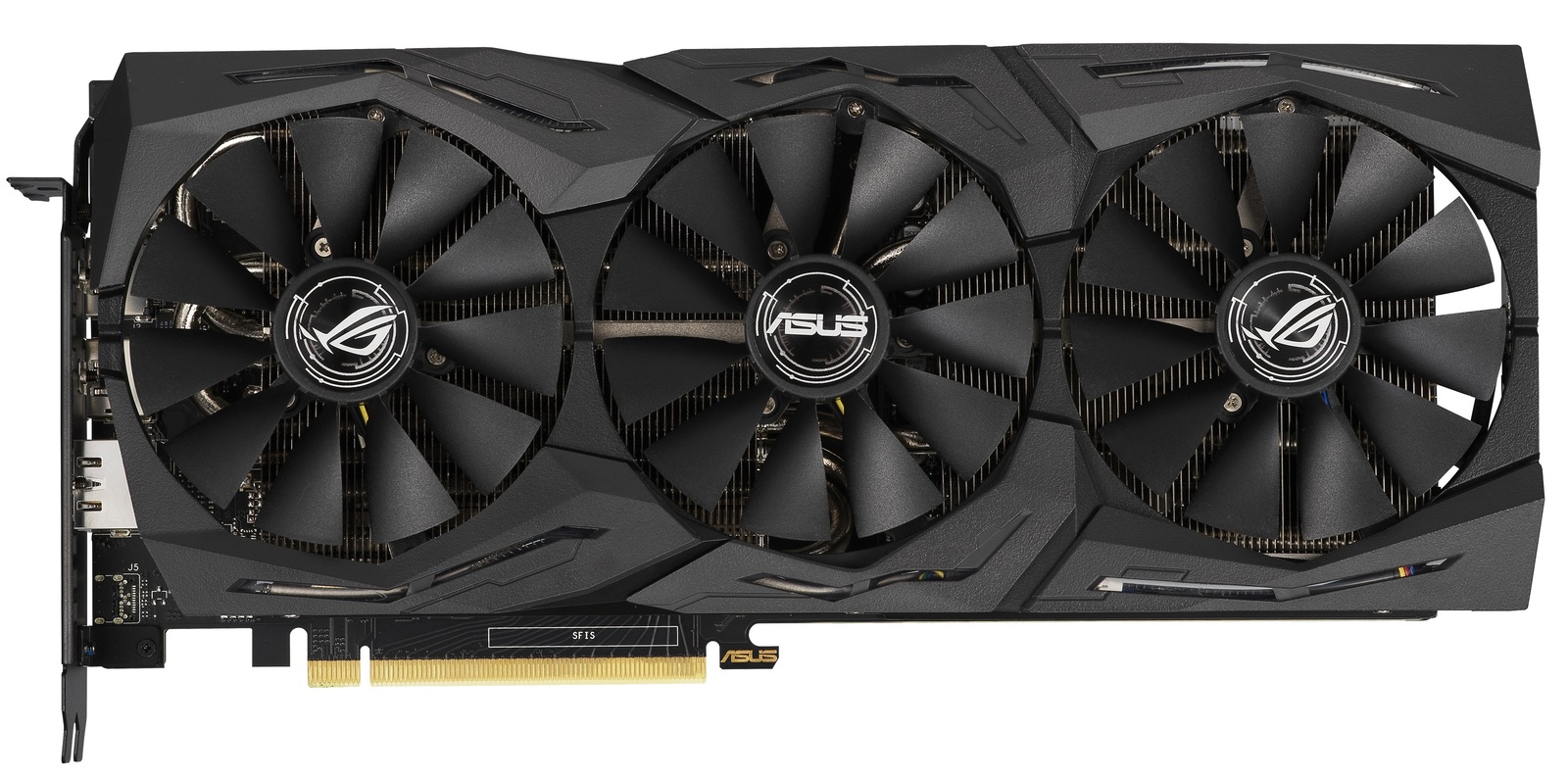

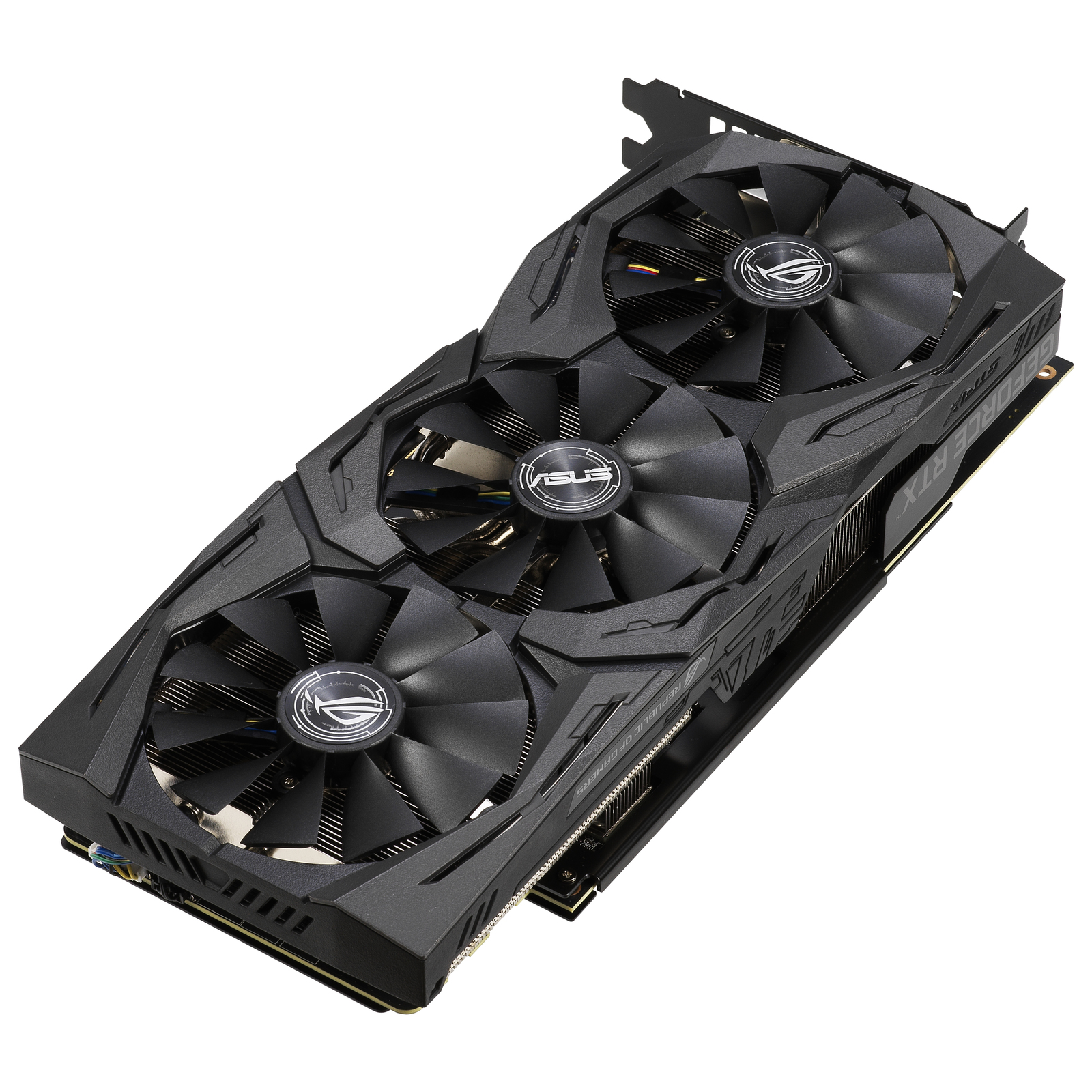

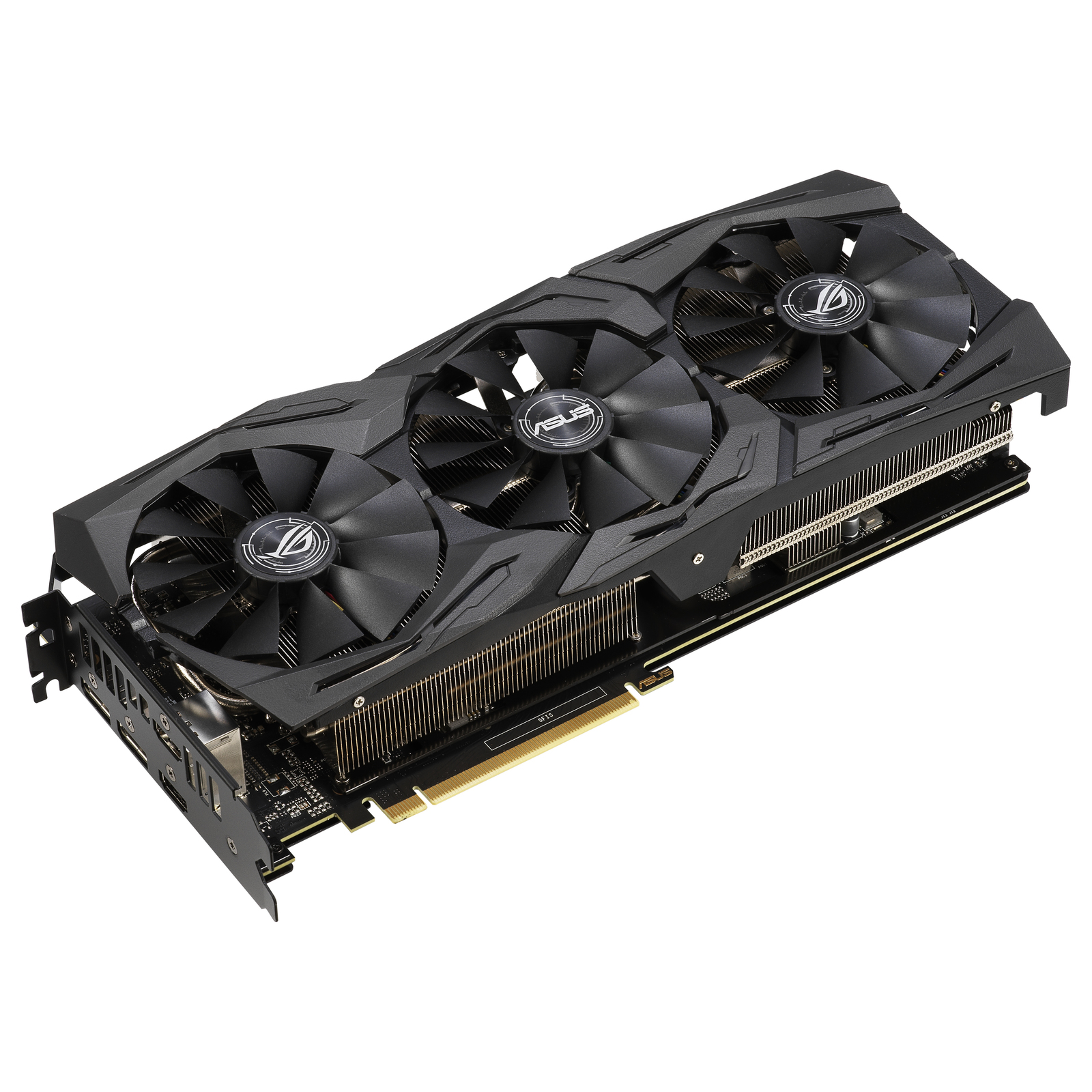

The ROG Strix GeForce RTX™ 2060 empowers NVIDIA®'s latest GPU with a
serious cooling solution, setting the stage for high-stakes gameplay. An
automated production process ensures reliability, and tried and true Wing-blade
fans let Turing™'s performance shine. And with an arsenal of utilities that
allow you to customize and tweak this powerful hardware, you call
the shots.
COOLING
Patented Wing-blade Fans
Our patented Wing-blade fan design is cool and quiet with 105% greater static
pressure over the heatsink compared to traditional axial fans. IP5X dust
resistance seals the fan's internals from particle ingress to keeps things
running smoothly.
0dB Technology
0dB technology allows fans to stop spinning when the GPU core temperature
remains below 55 Celsius, letting you enjoy light gaming in complete silence*.
If temps rise, the fans automatically start up again.
*To activate 0dB mode, please engage Quiet (Q) bios mode by using the onboard switch.
- Graphics Engine: NVIDIA® GeForce RTX™ 2060
- OpenGL: OpenGL®4.5
- Video Memory: GDDR6 6GB
- Engine Clock
- OC Mode – GPU Boost Clock : 1860 MHz , GPU Base Clock : 1395 MHz
- Gaming Mode (Default) – GPU Boost Clock : 1830 MHz , GPU Base Clock : 1365 MHz
- CUDA Core: 1920
- Memory Clock: 14000 MHz
- Memory Interface: 192-bit
- Resolution: Digital Max Resolution:7680×4320

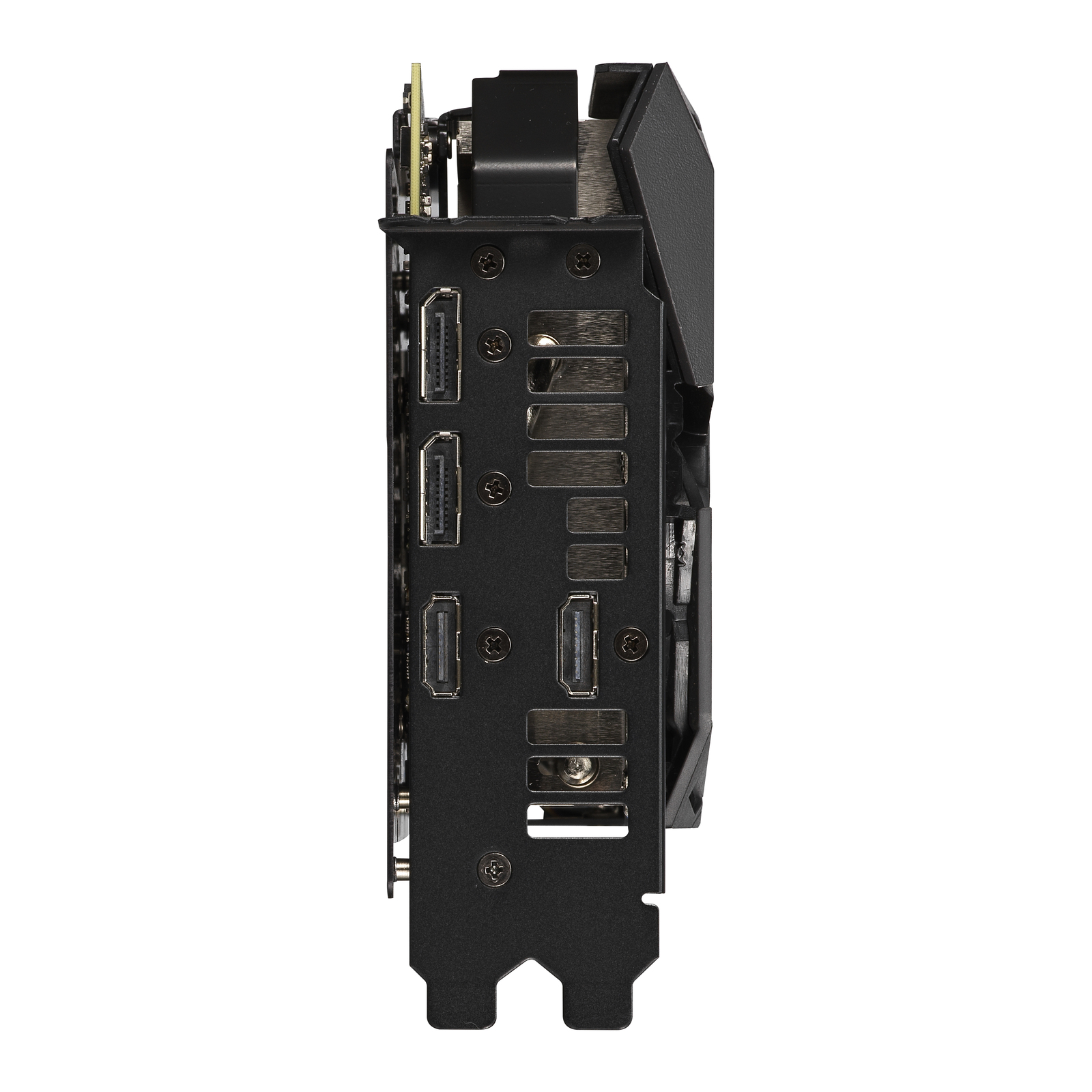

- Interface
- HDMI Output : Yes x 2 (Native) (HDMI 2.0b)
- Display Port : Yes x 2 (Native) (DisplayPort 1.4)
- HDCP Support : Yes (2.2)
- Maximum Display Support: 4
- NVlink/ Crossfire Support: No
- Recommended PSU: 500W
- Accessories
- 1 x ROG Velcro Hook & Loop
- 1 x CD
- 1 x Quick Guide
- Software: ASUS GPU Tweak II & Driver
- Dimensions
- 11.81 " x 5.2 " x 1.97 " Inch
- 30 × 13.2 x5 Centimeter
