World First PCIe 4.0×4 Controller
With the new PCIe 4.0 controller, AORUS NVMe Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 2,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
FEATURES
- PCIe 4.0×4, NVMe 1.3 Interface
- DDR4 DRAM cache
- 8 CH with 32 CEs
- Phison 4th Gen LDPC & RAID ECC
- Support Pyrite

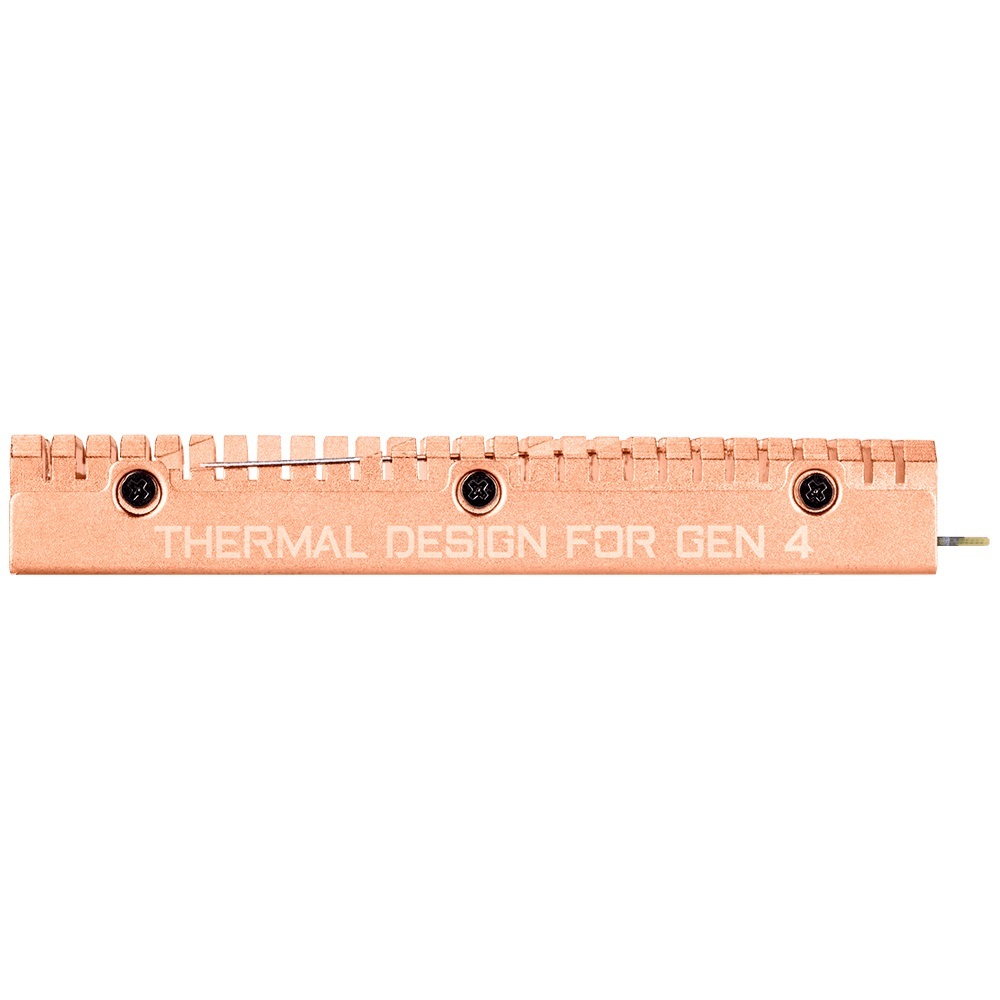

- Full Body Copper Heat Spreader for controller
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
SPECIFICATIONS
- Interface: PCI-Express 4.0×4, NVMe 1.3
- Form Factor: M.2 2280
- Total Capacity: 500GB
- Warranty: Limited 5-years or 850TBW
- NAND: 3D TLC Toshiba BiCS4
- External DDR Cache: DDR4 512MB
- Sequential Read speed: Up to 5000 MB/s
- Sequential Write speed: Up to 2500 MB/s
- Random Read IOPS: up to 400k
- Random Write IOPS: up to 550k
- Dimension: 80.5 × 11.4 × 23.5 mm
- Mean time between failure (MTBF): 1.77 million hours
- Power Consumption (Active): Average: R : 5.9W; W : 4.5W
- Power Consumption (Idle): 13.21mW
- Temperature (Operating): 0°C to 70°C
- Temperature (Storage): –40°C to 85°C
