Tamiya 1:10 RC The Bigwig 2017 Kit

Sorry, this product is no longer available to order

Here are some other products you might consider...

Tamiya 1:10 RC The Bigwig 2017 Kit

Remote Control Assembly Kit
Click to share your rating 1 rating (5.0/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Description

This is a radio control car assembly kit, which requires preparation and assembly. Additional items such as radio gear, servo, batteries and charger are required for operation (sold separately).

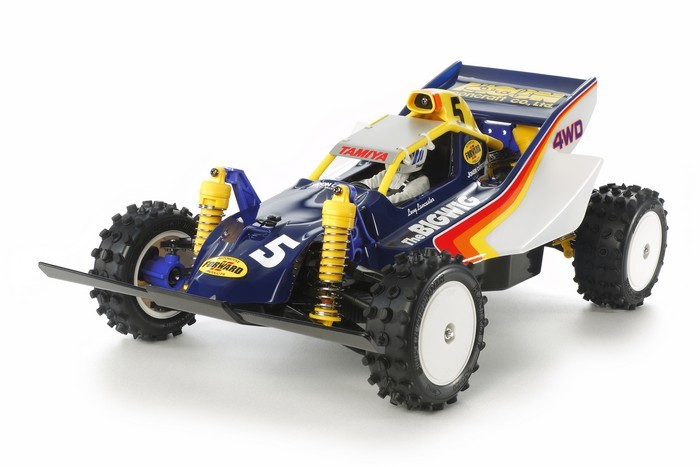

The Tamiya one of a kind classic is back! The BIGWIG 4WD off-road buggy was released back in 1986 to commemorate 10 years of Tamiya R/C models and was the first Tamiya car with a body designed by an outside designer: Japanese full size race car designer and team owner Takuya Yura. This re-release version is based closely upon the original, with some tweaks to bring it up to date.

Specifications:

  • Scale: 1/10
  • Construction type: Assembly kit
  • Terrain use: On-Road
  • Drive-train: 4WD
  • Drive type: Gearbox
  • Drive line: Dog bone
  • Differential type: Gear
  • Suspension: Fully independent double wishbone
  • Steering mechanism: Rack-in-pinion
  • Shock damper: Oil-filled damper
  • Shock damper material: Plastic
  • Tire type: Rubber
  • Tire tread: Pin spike
  • Body material: Polycarbonate
  • Chassis material: Plastic
  • Electronic Speed Control (ESC): Not included
  • ESC mode:l N/A
  • LED Light buckets: No
  • LED lights: No
  • Motor: 25T GT tuned
  • Bearings: Shielded ball bearing
  • Adjustable camber: Fixed
  • Adjustable toe angles: Front only
  • Adjustable ground clearance: Yes
  • Adjustable gear ratio: Yes
  • Adjustable wheelbase: Fixed
  • Adjustable track width: Fixed
  • Adjustable shock angle: Fixed
  • Special feature 1: Length: 390mm, width: 234mm, height: 163mm.
  • Special feature 2: Aerodynamic body is made of lightweight and durable polycarbonate.
  • Special feature 3: Engine and exhaust details are depicted by integrated chassis parts.

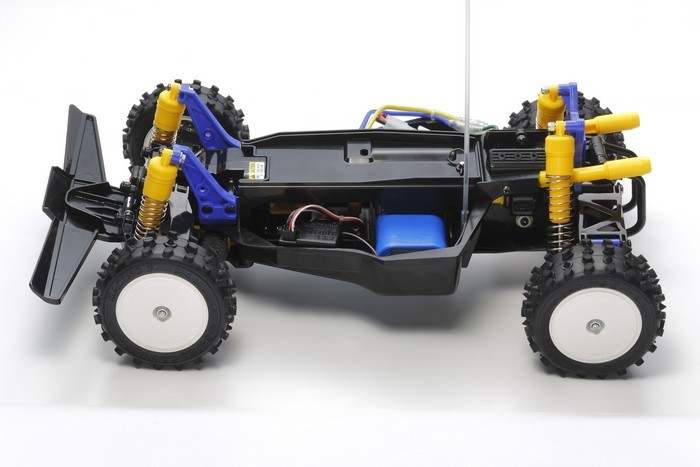

  • Special feature 4: ABS resin bathtub-type chassis.
  • Special feature 5: Shaft-driven 4WD drivetrain equipped with full ball bearings ensuring minimal power loss.
  • Special feature 6: Rack and pinion steering (the only of its kind on a Tamiya model) gives excellent driving feel.
  • Special feature 7: Boots cover the steering tie-rods, and anti-wear grease is included in the kit to seal the steering mechanism from dirt and gravel.
  • Special feature 8: “Aerodish” 1-piece wheels are combined with oval block pattern tires for superior grip.
  • Special feature 9: Newly designed stickers keep to the overall theme of the original.
  • Special feature 10: Includes a GT-Tuned motor (25T) with sticker unique to the Big Wig.
  • Requires A: 2-channel radio gear
  • Requires B: Electronic speed control
  • Requires C: Polycarbonate paint
  • Requires D: 7.2 battery & charge

Note: Kit requires a 7.2 battery & charger, 2-channel radio gear, servo, to complete.

Release date NZ
April 19th, 2017
Brand
Manufacturer
Collection
Box Dimensions (mm)
515x370x130
UPC
4950344473304
Product ID
26788584
