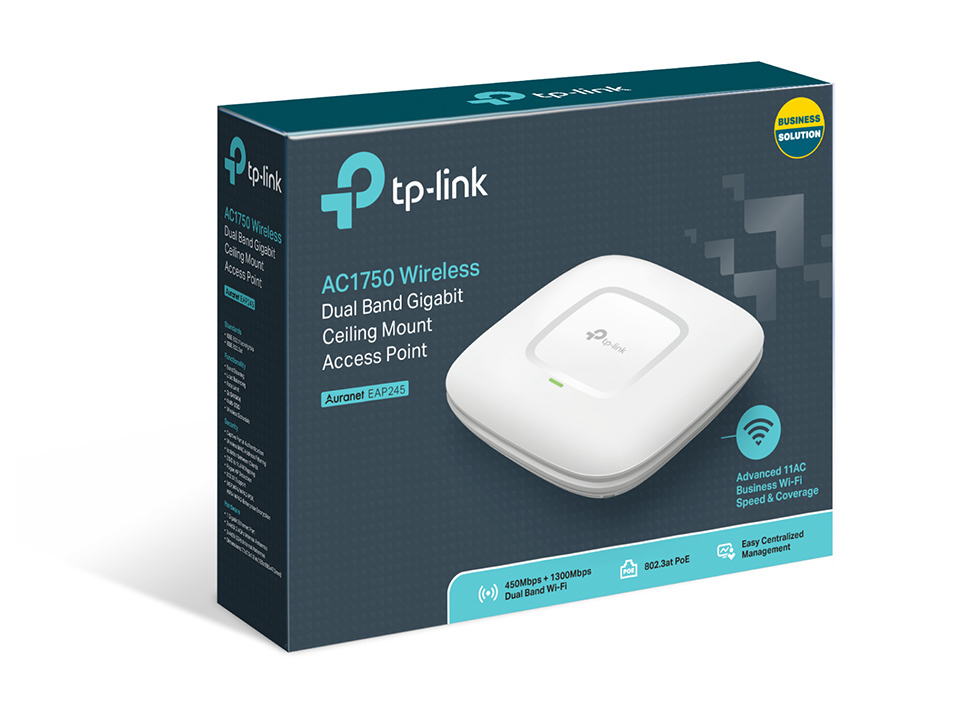

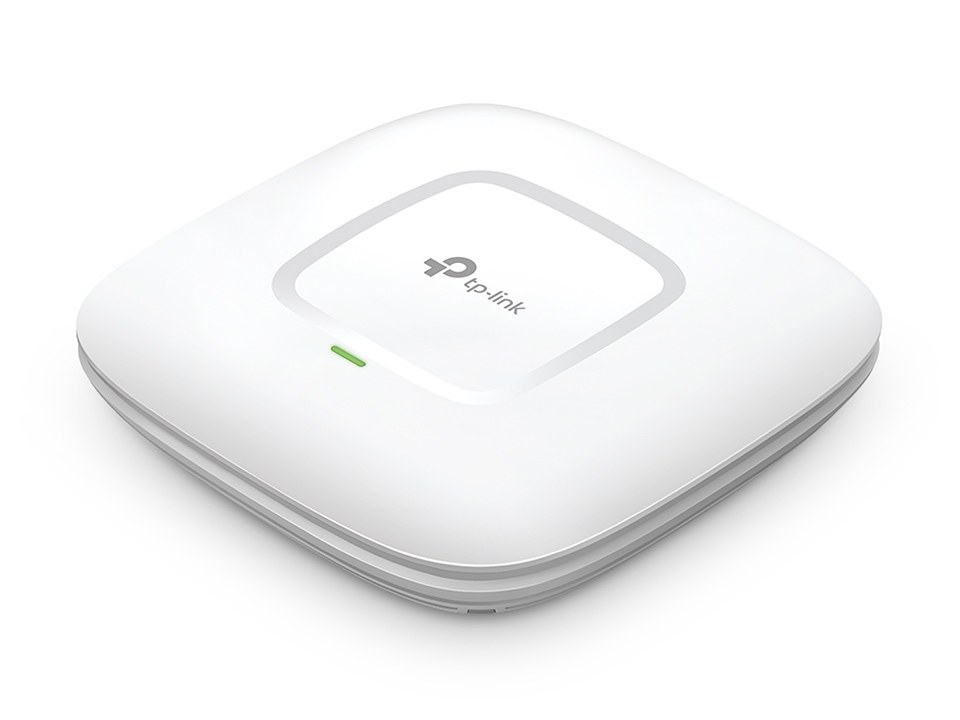

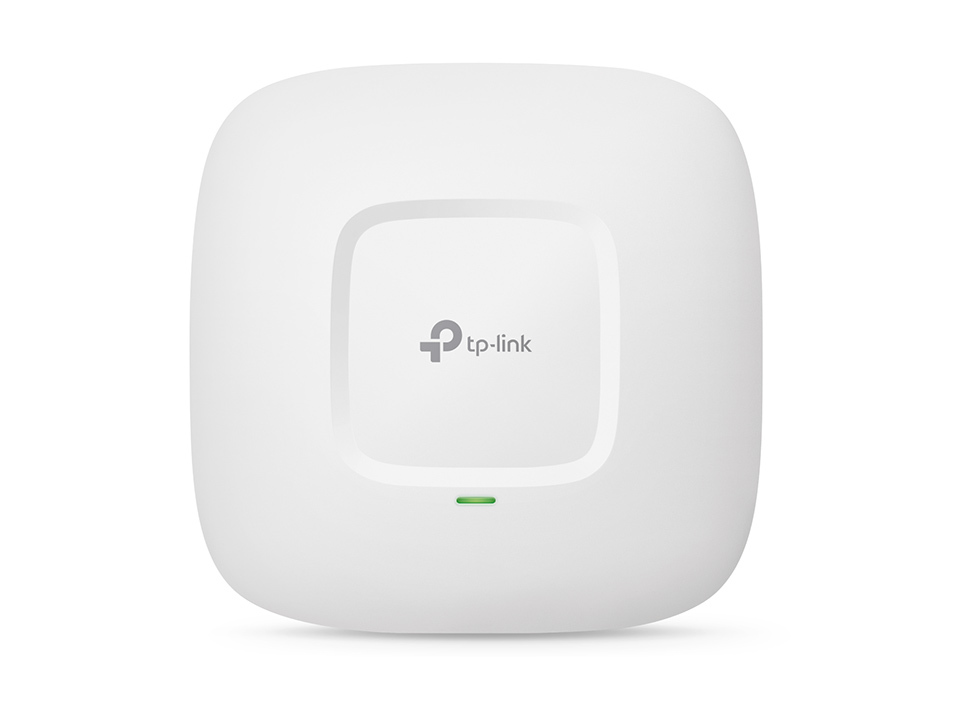

TP-Link EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Support Power over Ethernet(802.3at) for convenient and affordable installation
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high density business networks

• 1750Mbps wireless data rate for uninterrupted wireless connection
• Free Controller Software for easy centralized management of hundreds of EAPs
• Power over Ethernet(802.3at) Support for convenient and affordable installation
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Simple mounting design makes easy to install on any wall or ceiling surface
• Rate limit on per SSID to restrict the bandwidth of each client
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Access Control restricts or only allows the client to access the specified network segment
• Reboot Schedule enables all the APs to reboot automatically at a specified time
• WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
• Multi-SSID divides multiple wireless network for different users
• Compatible with 802.11 a/b/g/n/ac products
• Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
• Multiple operating modes including managed AP and standalone AP satisfy different application conditions
• Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

Features:

HARDWARE FEATURES

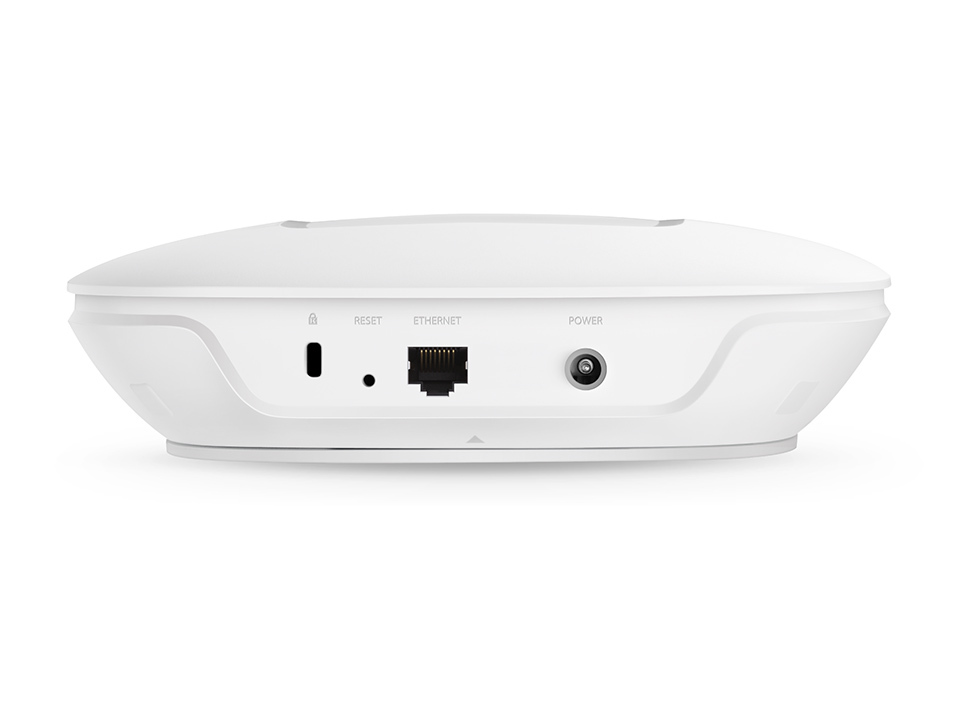

Interface: Gigabit Ethernet (RJ-45) Port 1（Support IEEE802.3at PoE）
Button: Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE）
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 12.7 W
Dimensions ( W x D x H ) 7.1 × 7.1 × 1.9in. (18018047.5mm)
Antenna Type Internal Omni. 2.4GHz: 3 4dBi. 5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate: 5GHz:Up to 1300Mbps. 2.4GHz:Up to 450Mbps
Wireless Functions:
Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power:
CE：
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)

MANAGEMENT

EAP Controller Software: Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
