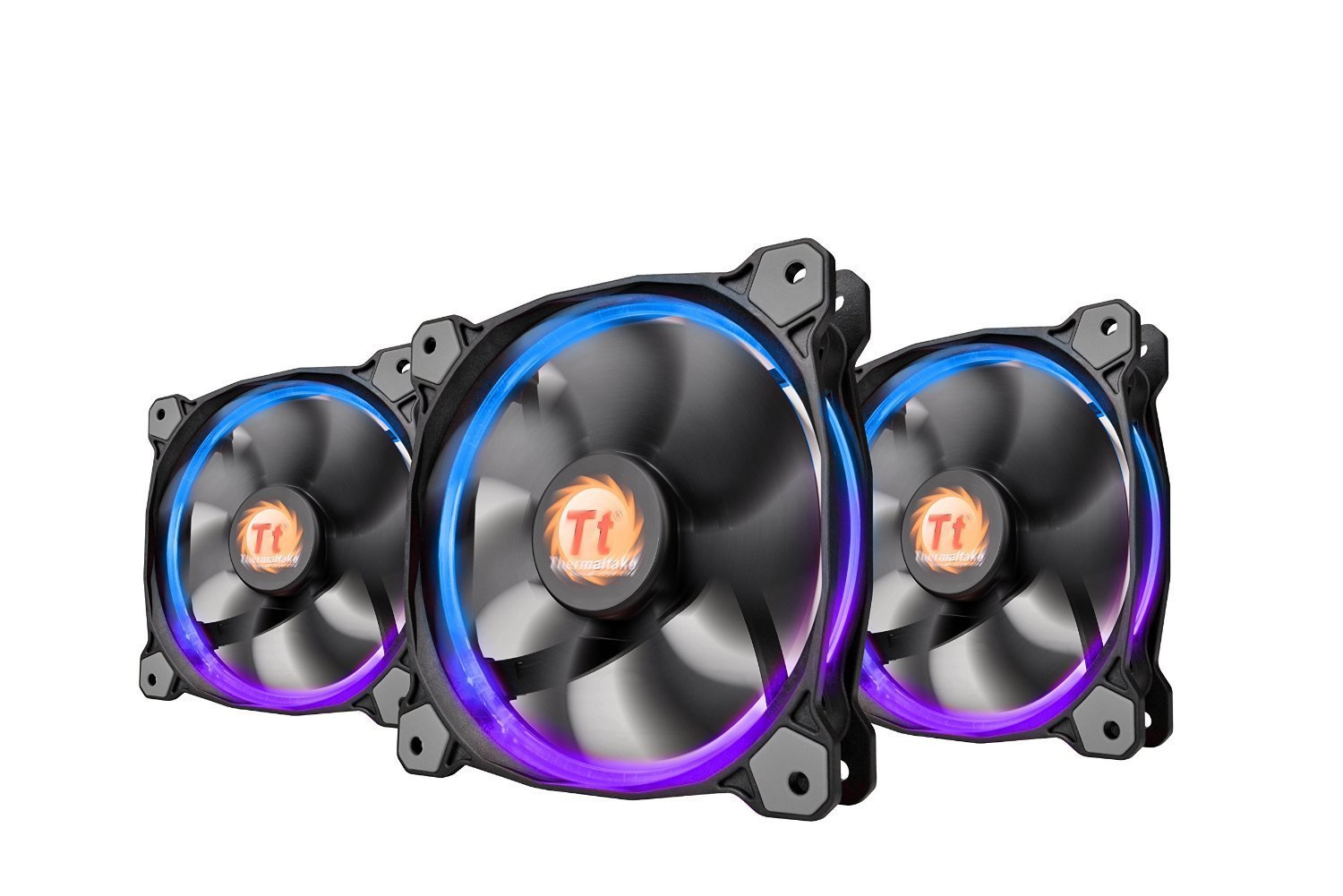

Thermaltake: Riing 14 LED RGB 256 Colours High Static Pressure LED Radiator Fans + Controller (3 Fan Pack)
The latest Riing RGB Series fan introduced by Thermaltake is a patented circular 256 multi-colored 140mm radiator fan. Users can freely adjust fan speed as well as fan colors by clicking “MODE”, “PLAY/PAUSE”, and “SPEED” button on the fan controller. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. The color and brightness uniformity of the multicolored LED ring is visible from all directions and adds style to the chassis.
Tt LCS Certified
“Tt LCS Certified” is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it
sets the benchmark for all true LCS chassis and is applied only to products that
meet our stringent design standards for delivering what hardcore enthusiasts
demand. The Tt LCS certification is a way for Thermaltake to designate to all
power users the chassis which have been tested for best compatibility with
extreme liquid cooling configurations.
Patented Design
The color and brightness uniformity of the Patented LED ring is visible from all
directions and adds style to the chassis.

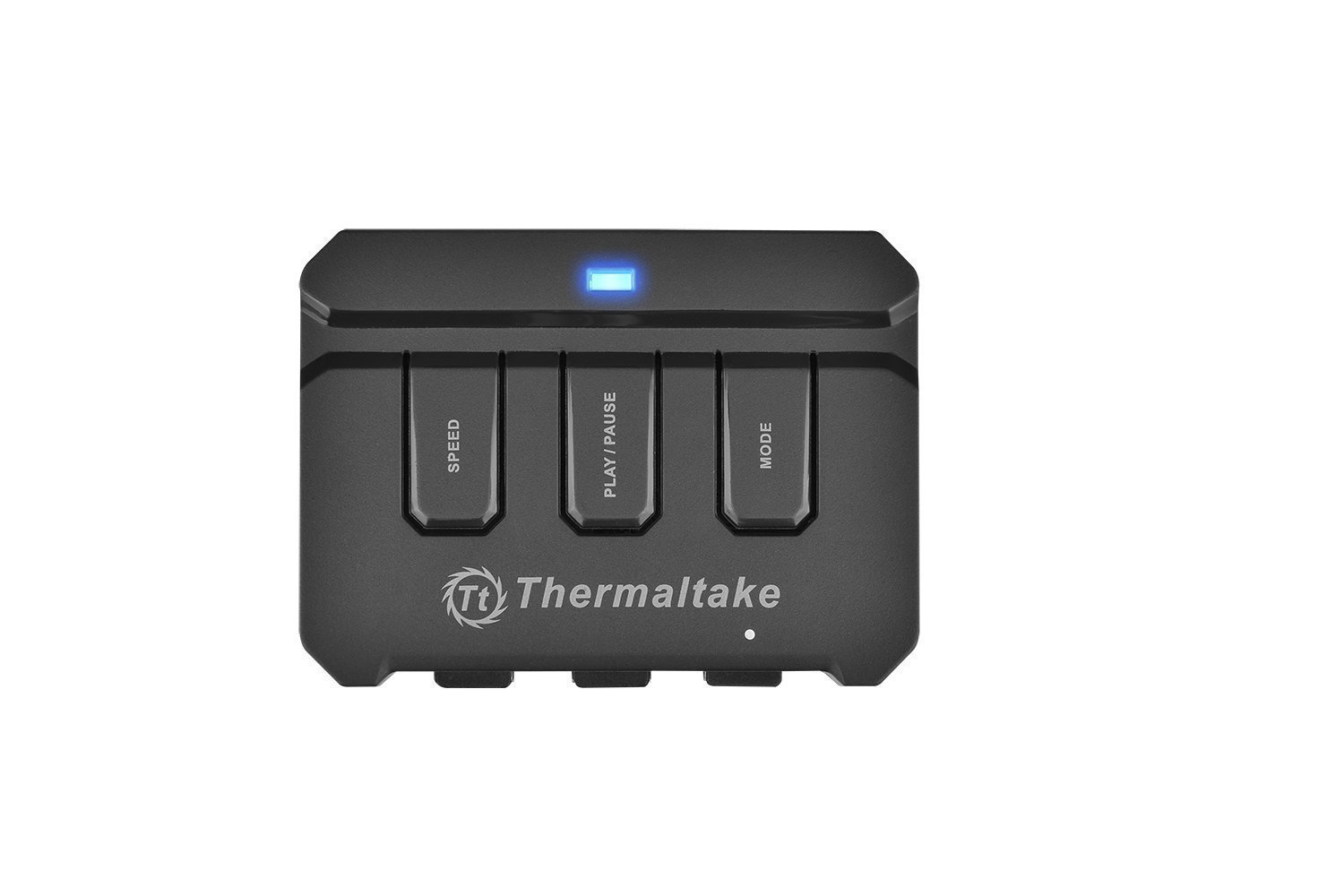

Smart Fan Controller
A self-contained fan controller can switch between 5 LED modes including solid
colors of red, blue, white, green or disable and cycle through 256 colors.
Play/Pause functions allow users to cycle colors (color remains unchanged even
after the PC has been turned off or rebooted) with speed control options reduce
noise even more all from your fingertips.
Concentrated Compression Blade
Custom designed for high static pressure requirements of demanding applications
such as radiators, the concentrated compression blade is engineered to focus the
weaker, inner circle of air outward, allowing the outer section to pressurize
the air.
Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker frame
is designed to work with the Concentrated Compression Blade’s (CCB) pressure
mechanism by directing airflow towards the middle section of the blade, thereby
creating a compression effect and blocking any pressure from escaping. This
reduces the blade’s noise and vibration, creating a perfect balance between
power and sound
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing
substance which lowers operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant, and improves the lifespan of the unit. By
clicking the “SPEED” button on fan controller, the noise level can be
reduced to 32%.
Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for 80%
protection coverage, including all four corners.
Features
- Patented Design
- Smart Fan Controller
- Concentrated Compression Blade
- Hydraulic Bearing with Low-Noise Design
- Wind Blocker Frame
- Anti-Vibration Mounting System
Specifications
- Fan Dimension: 140 × 140 × 25 mm
- Started Voltage:9.0 V
- Rated Voltage: 12 V
- Rated Current: 0.26 A
- Power Input 3.12 W
- Fan Speed 800 ~ 1400 R.P.M
- 600~1100 R.P.M (Low Noise Mode)
- Max. Air Pressure 0.515 ~ 1.58 mm-H2O
- Max. Air Flow 29.229~ 51.15 CFM
- Noise 19 ~ 28.1 dB-A
- Bearing Type Hydraulic Bearing
- Life Expectation 40,000 hrs,
- Connector 4P PWM (Controller To M/B)
- 2510–5P (Fan To Controller)
- Weight 191.6 g
- LED Light Red → Blue → White → Green → LED off → 256 colors
