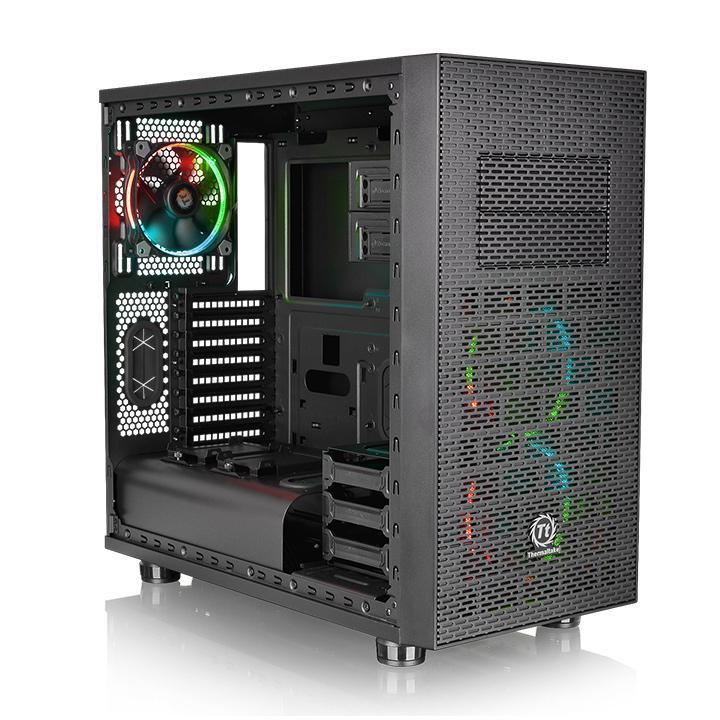

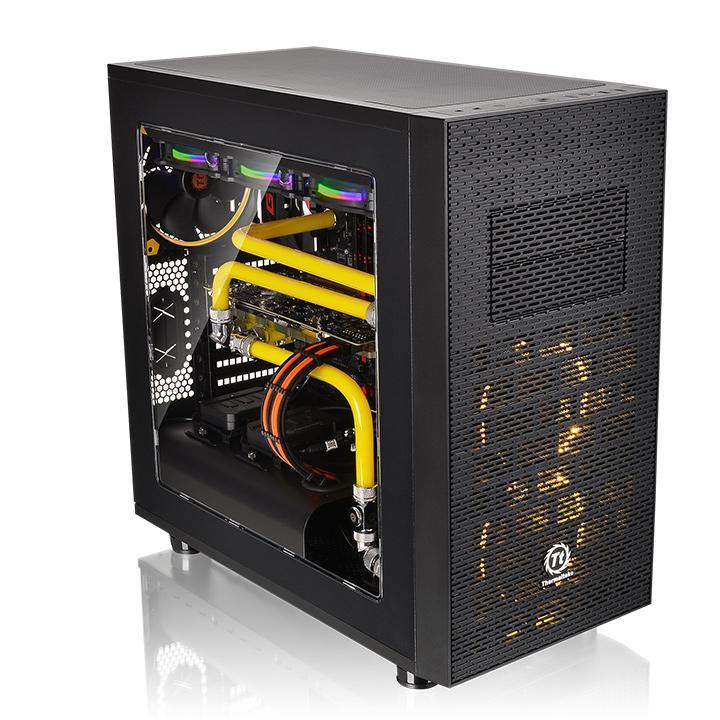

Thermaltake: Core X31 – Riing RGB Edition

The Core X31 RGB Edition features outstanding cooling performance with compatibility for liquid cooling components. With its unprecedented space for high-end hardware and liquid cooling expansion, the Core X31RGB Edition supports the latest ATX, Micro ATX, Mini-ITX motherboards, and all high-end GPU cards. Moreover, the Core X31RGB Edition’s inte­grated power cover helps tidy the entire bottom area by allowing users to easily organize unused cables, and in return provide the maximum interior space needed for advance cooling performance or liquid system build.

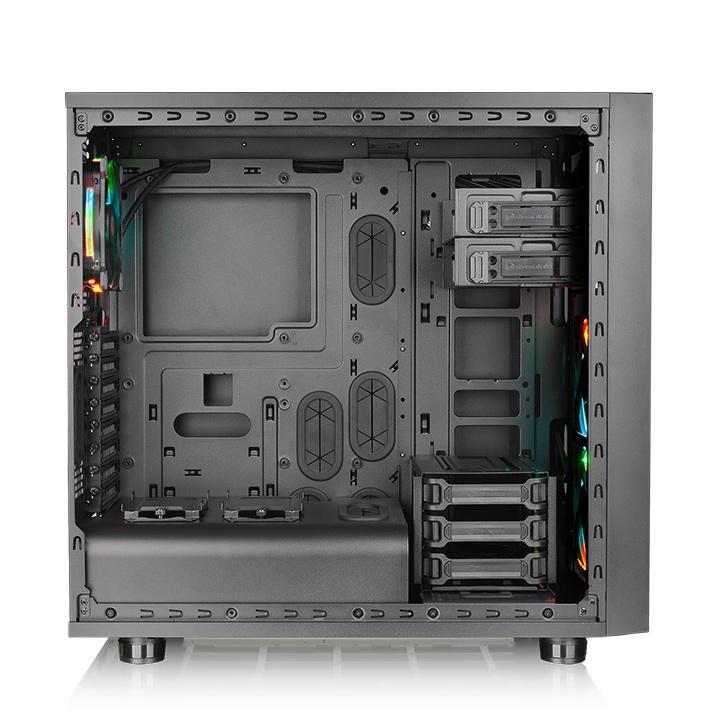

  • Power Cover Design: Power supply placement design is one of the Core X31 RGB Edition unique features. The entire bottom area can be used to reorganize unused cables, which makes for a tidy-looking system. Users can enjoy the freedom of gaining the maximum interior space for advance cooling performance or liquid system build. Furthermore, the PSU cover can hold two additional 2.5?HDD drive bays.

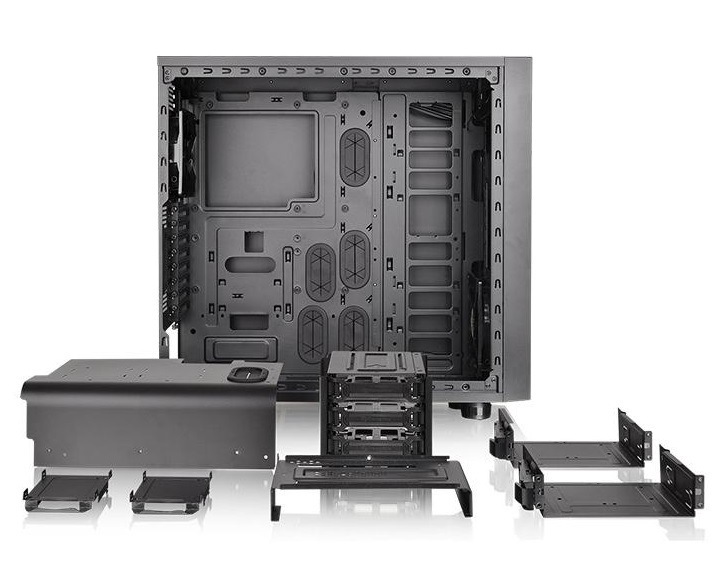

  • Fully Modular Concept: A ? + 3?drive bay design for storage devices makes setting up the latest storage solution super easy and flexible. Besides hanging 3 × 3.5?2.5?at the back of motherboard tray, users are capable of freely adjusting the 3.5?hard-drive cage to suit their particular needs.
  • Dust Reduction: Super-fine fan filters provide excellent protection and minimize dirt and dust on the top, inside the front-side panel, and at the bottom. A magnetic fan filter on the top makes it super easy to attach the filter for dust filtration.


  • Model: Core X31 RGB
  • P/N: CA-1E9–00M1WN-02
  • Case Type: Mid Tower
  • Dimension (H x W x D): 497 × 250 × 511 mm (19.5 × 9.8 × 20­.1 inch)
  • Net Weight: 8.5 kg / 18.7 lb

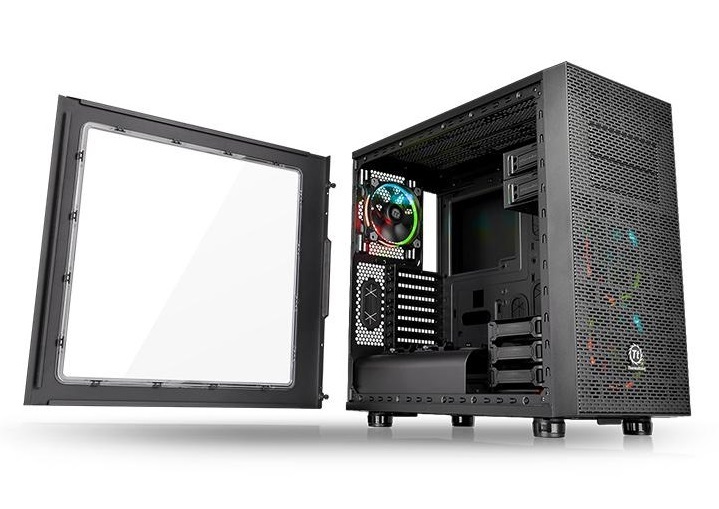

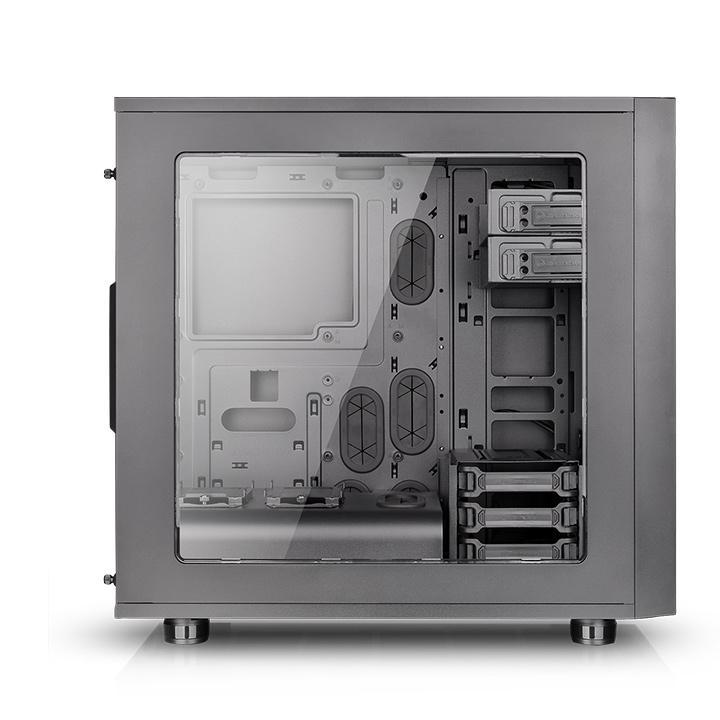

  • Side Panel: Transparent Window
  • Colour: Exterior & Interior : Black
  • Material: SPCC

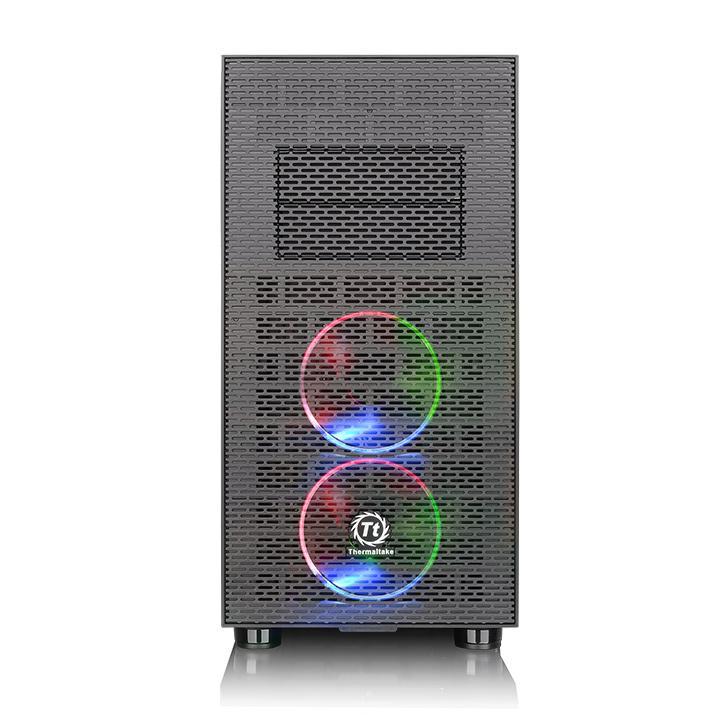

  • Cooling System Front (intake): 120 × 120 × 25 mm Riing RGB fan (1400rpm, 28dBA) x 2
  • Cooling System Rear (exhaust): 120 × 120 × 25 mm Riing RGB fan (1400rpm, 28dBA)
  • Drive Bays – (Accessible): 2 × 5.25’’
  • Drive Bays – (Hidden): 3 × 3.5’’ or 2.5’’ (HDD Cage) / 3 × 3.5’’ or 2.5’’ (Behind the M/B tray) / 2 × 2.5’’ (With Power Cover)
  • Expansion Slots: 8
  • Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
  • I/O Port: USB 3.0 × 2, USB 2.0 × 2, HD Audio x 1
  • PSU: Standard PS2 PSU (optional)

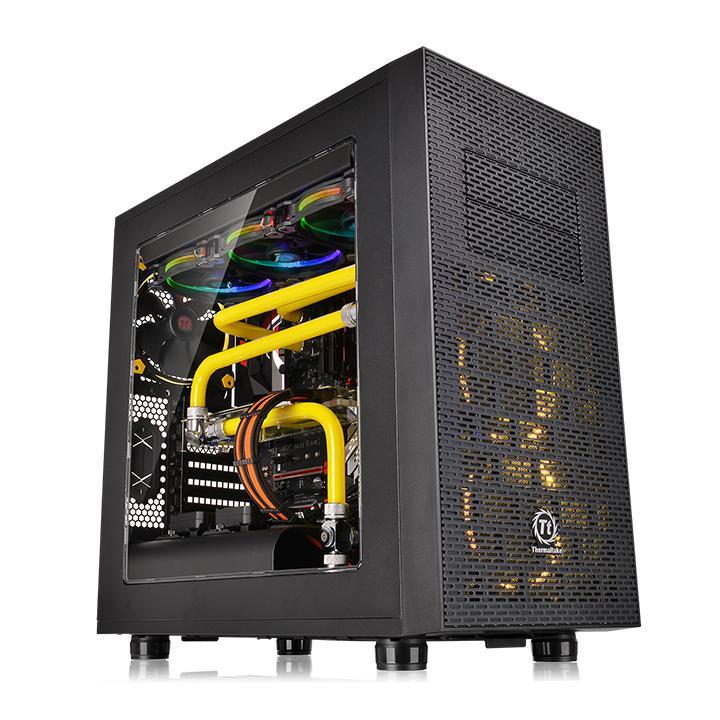

  • LCS Upgradable: Supports 1/2”、3/8”、1/4” water tube
  • Fan Support (Front): 2 × 120mm or 2 × 140mm or 1 × 200mm
  • Fan Support (Top): 3 × 120mm or 3 × 140mm or 2 × 200mm
  • Fan Support (Rear): 1 × 120mm or 1 × 140mm
  • Fan Support (Bottom): 2 × 120mm or 2 × 140mm
  • Radiator Support (Front): 1 × 360mm or 1 × 280mm
  • Radiator Support (Top): 1 × 360mm or 1 × 280mm
  • Radiator Support (Rear): 1 × 120mm or 1 × 140mm
  • Radiator Support (Bottom): 1 × 120mm or 1 × 140mm
  • Clearance (CPU cooler height limitation): 180mm
  • Clearance (VGA length limitation): 278mm(with HDD rack), 420mm(without HDD rack)
  • Clearance (PSU length limitation): 180mm (With One Bottom Fan), 220mm (Without Bottom Fan)
Release date NZ
October 18th, 2017
