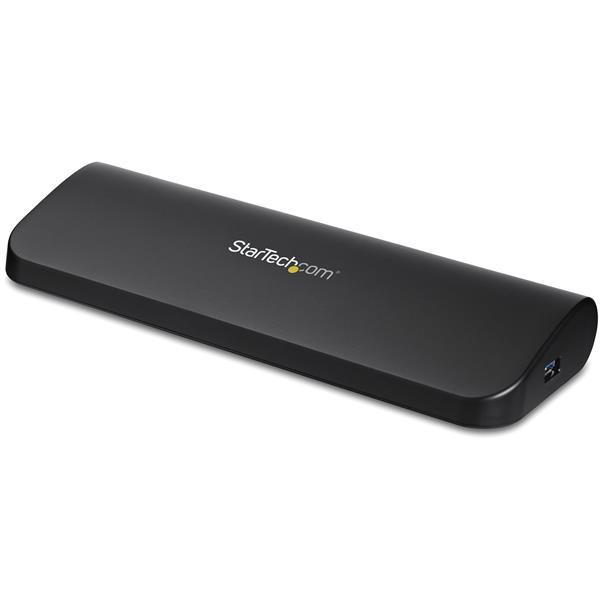

StarTech: Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA

TAA compliant docking station - USB 3.0 port replicator - Dual monitor docking station creates a multi-monitor setup - Display Combos: HDMI + DVI or HDMI + VGA - RJ45 Ethernet port built into the USB dock - USB 3.0 dock provides three USB ports

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$306.00

or 4 payments of $76.50 with . Learn more

In stock with supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 48-72 hours

Availability

Delivering to:

Estimated arrival:

  • Around 30 Sep to 7 Oct using standard courier delivery

Description

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048×1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

  • HDMI + VGA
  • HDMI + DVI

Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

Applications

  • Shared workspaces
  • Hot/Remote desks
  • Convert laptop to desktop workstation

Specifications

HARDWARE

  • 4K Support: No
  • Bus Type: USB 3.0
  • Chipset ID: DisplayLink – DL-3900, Genesys Logic – GL3520, Realtek – RTL8211E
  • Displays Supported: 2
  • Fast-Charge Port(s): No
  • Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0

PERFORMANCE

  • Audio Specifications: The HDMI port supports audio output
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Analog Resolutions: 2048×1152 (VGA)
  • Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: 1920×1200 (DVI-D), 1920×1080 (HDMI), Lower resolutions are also supported.
  • Type and Rate: USB 3.0 – 5 Gbit/s

CONNECTOR(S)
Connector Type(s)

  • 1 – DVI-D (25 pin) Female
  • 1 – HDMI (19 pin) Female
  • 1 – RJ-45 Female
  • 1 – USB Type-B (9 pin) USB 3.0 Female
  • 1 – VGA (15 pin, High Density D-Sub) Female
  • 2 – 3.5 mm Mini-Jack (3 Position) Female
  • 3 – USB Type-A (9 pin) USB 3.0 Female

SOFTWARE

  • OS Compatibility: Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 / macOS 10.6 – 10.12, 10.14

SPECIAL NOTES / REQUIREMENTS

  • Available AC electrical outlet
  • HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables
  • USB 3.0 enabled computer system with available USB 3.0 port

POWER

  • Center Tip Polarity: Positive
  • Input Current: 0.9 A
  • Input Voltage: 100 ~ 240 AC
  • Output Current: 4 A
  • Output Voltage: 5 DC
  • Plug Type: B
  • Power Consumption (In Watts): 20
  • Power Source: AC Adapter Included

ENVIRONMENTAL

  • Humidity: 0~90% RH
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: –10°C to 60°C (14°F to 140°F)

PHYSICAL CHARACTERISTICS

  • Cable Length: 3 ft [0.9 m]
  • Color: Black
  • Enclosure Type: Plastic
  • Product Height: 1.7 in [44 mm]
  • Product Length: 12 in [304 mm]
  • Product Weight: 10.4 oz [295 g]
  • Product Width: 7 in [178 mm]
Release date NZ
February 27th, 2019
Manufacturer code:
USB3SDOCKHDV
Brand
UPC
065030851299
Product ID
29313587
