- Core/Memory
- Boost Clock / Memory Frequency
- 1393 MHz / 8100 MHz (OC Mode)
- 1380 MHz / 8000 MHz (Gaming Mode)
- 1340 MHz / 8000 MHz (Silent Mode)
- 8GB GDDR5
- Boost Clock / Memory Frequency

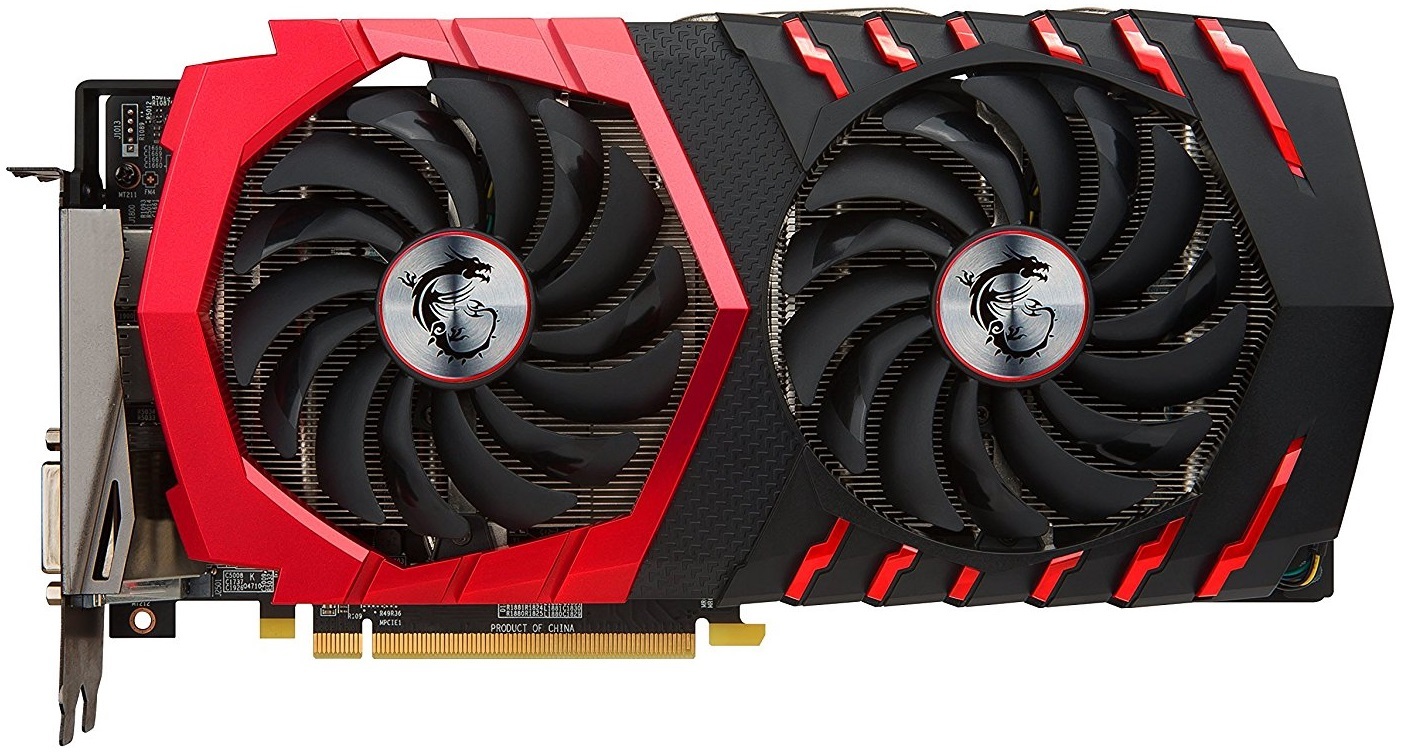

- TWIN FROZR VI
- Smooth Heat Pipes: Squared shape at bottom maximize heat transfer from the copper base plate.
- Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
- Airflow Control Technology: Deflectors thrusts air onto heat pipes for lower temperatures and better gaming.
- TORX FAN 2.0: Supremely silent
- Dispersion fan blade: Steeper curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
- Gaming App
- Instant Performance Gain: Unlock extra performance or keep your card silent during light use in one click.
- LED control: Full control on your RGB GAMING LEDs to set the mood.
TORX 2.0 FAN
TEAMWORK FOR GREATER STRENGTH
Just like in games, the exclusive MSI TORX 2.0 Fan technology uses the power of
teamwork to allow the TWIN FROZR VI to achieve new levels of cool.
TORX 2.0 Fan design generates 22% more air pressure for supremely silent performance in the heat of battle.
ZERO FROZR-STAY UNDETECTED
First introduced in 2008 by MSI, ZeroFrozr technology has made its mark and is
now the industry standard among graphics cards. It eliminates fan noise by
stopping the fans in low-load situations. This means you can focus on gaming
without the noise of spinning fans.
CATCH THE VIBE WITH COOL LED EFFECTS
Each LED can be controlled individually by choosing any of the animation effects
availiable in the MSI Gaming App, ranging from responding to your game sounds or
music to steady light, breathing and flashing. Of course, you can also turn
them off.
HEATSINK
Lurking under the cover of the GAMING graphics card is an engineering
masterpiece designed to keep the graphics card cool. Every tiny detail of the
intricate heatsink plays an essential part in providing a cool & quiet
gaming experience.

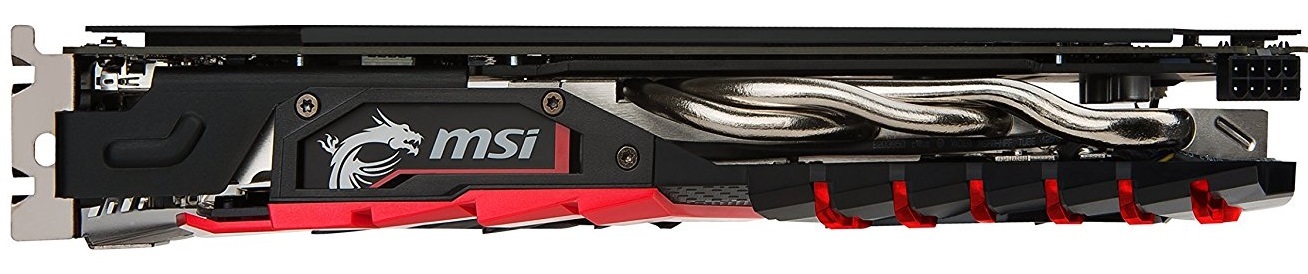

SMOOTH HEAT PIPES
Up to 8mm thick copper heat pipes with a smooth squared shape at the bottom
maximize heat transfer from the surface of the copper base plate.
SOLID BASEPLATE
To temper the heat generated by a powerful GPU, MSI GAMING series graphics cards
use a solid nickel-plated copper base plate. The base plate catches the heat
from the GPU and transfers it to the heat pipes for dissipation so you can
keep cool.
PREMIUM THERMAL COMPOUND
Every detail counts when it comes to creating the ultimate thermal design, which
is why TWIN FROZR VI uses a premium thermal compound to make sure it outlives
the competition.

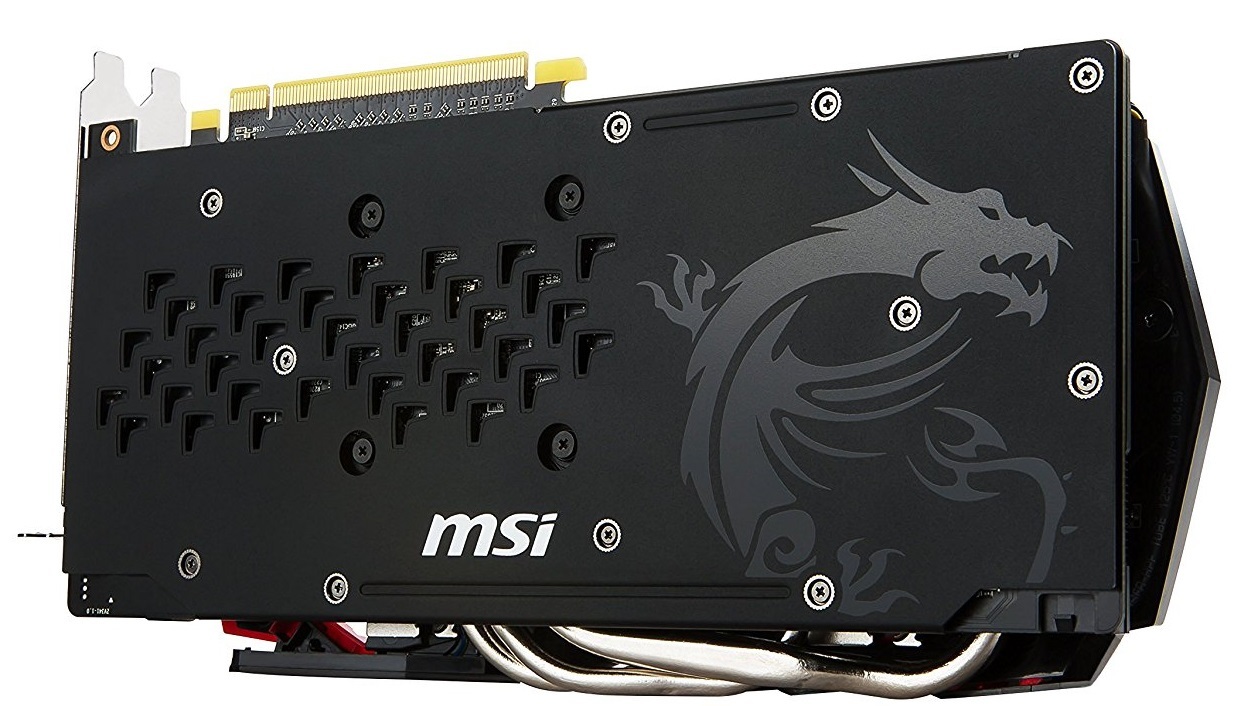

BACKPLATE
A powerful graphics card needs a strong build to harness its performance. MSI
GAMING X graphics cards are fitted with a solid metal back plate to make it
extra tough. The matte black finish completes the TWIN FROZR VI design to
perfection.
MULTI GPU
Gaming enthusiasts are always looking for more performance to get the ultimate
experience. Using multiple graphics cards in SLI or Crossfire is a great way to
find out just how good it gets. MSI GAMING graphics cards fully support multi
GPU technologies.
FREESYNC – THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating
screen tearing, display shutter and input lag.
PREPARE FOR VR WITH MSI
To experience and enjoy the impressive world of Virtual Reality,
high-performance hardware is required. MSI, world leading brand in high-end
gaming and eSports, provides the right advice to make sure your system is VR
Ready. Integrating the very best of cutting edge technologies in recommended MSI
VR gaming hardware for smooth performance. Together with our VR partners, MSI
brings gamers an extremely realistic VR experience where games come alive.
GAMING APP
The MSI Gaming App allows for one-click performance profiles that unlock extra
performance for gaming or keep your card silent during light use. It also
features the EyeRest tab, giving you easy access to image quality improving
technology. The LED control tab gives you full control over your MSI GAMING LED
lights to set the mood.
SPECIFICATIONS
- Model Name: Radeon™ RX 580 GAMING X 8G
- Graphics Processing Unit: Radeon™ RX 580
- Interface: PCI Express x16
- Core Name: Polaris 20 XTX
- Cores: 2304 Units
- Core Clocks
- 1393 MHz (OC Mode)
- 1380 MHz (Gaming Mode)
- 1340 MHz (Silent Mode)
- Memory Clock Speed
- 8100 MHz (OC Mode)
- 8000 MHz (Gaming / Silent Mode)
- Memory: 8GB GDDR5
- Memory Bus: 256-bit

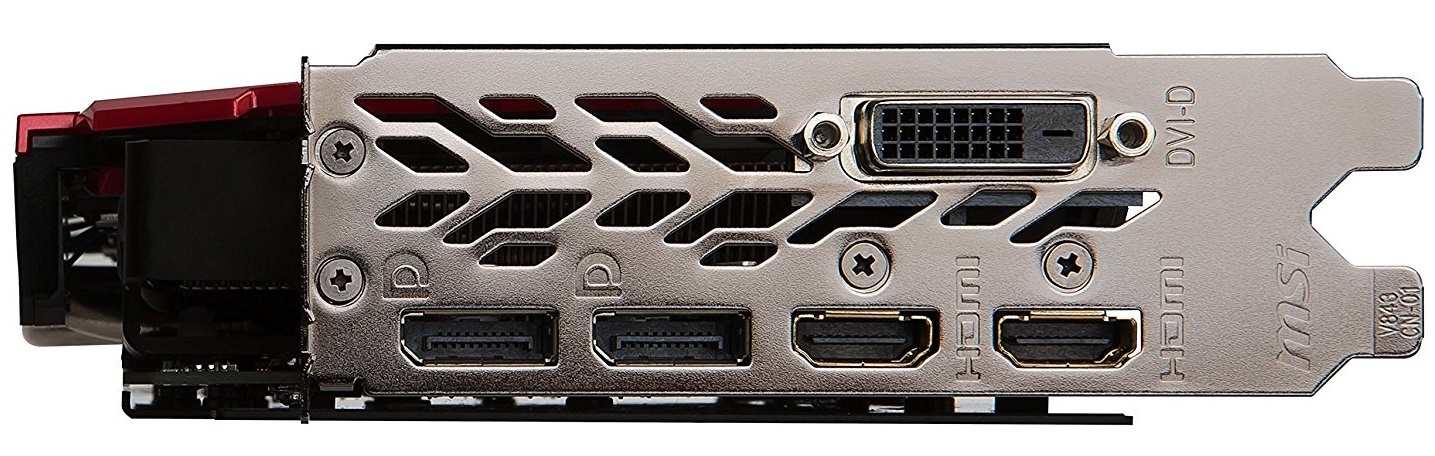

- Output: DisplayPort x 2 / HDMI x 2 / DL-DVI-D
- HDCP Support: Y
- Power connectors: 8-pin x 1
- Card Dimension(mm): 276 × 140 × 42 mm
- Weight (Card / Package): 978 g / 1571 g
- Afterburner OC: Y
- DirectX Version Support: 12
- OpenGL Version Support: 4.5
- Multi-GPU Technology: Crossfire™, 2-Way (Bridgeless)
- Maximum Displays: 5
- VR Ready: Y
