Computer Components:

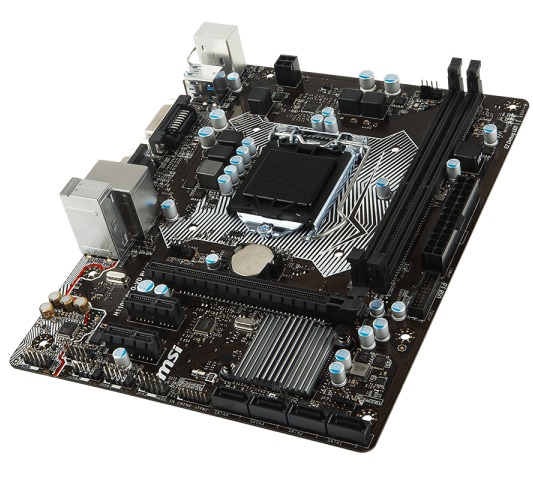

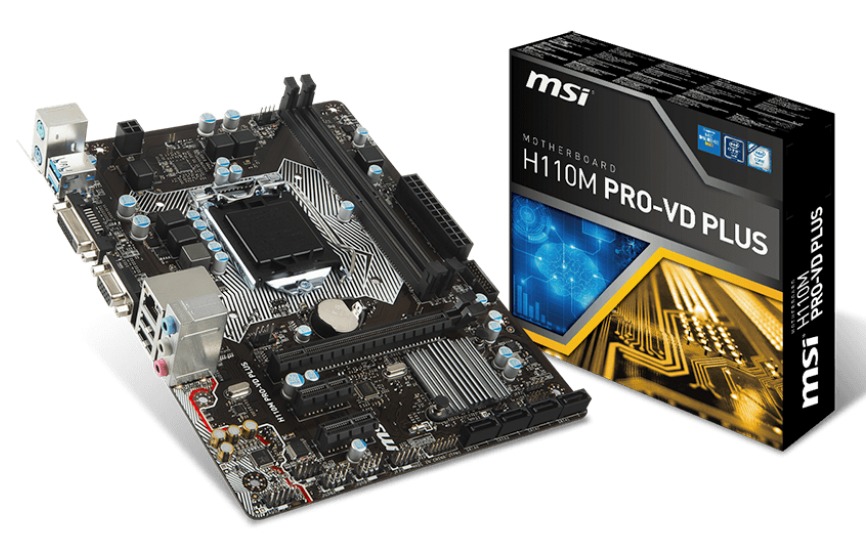

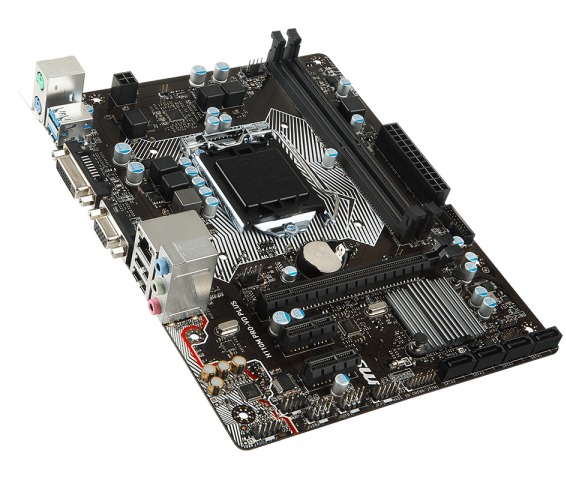

MSI H110M Pro-VD Plus Motherboard

Sorry, this product is not currently available to order

Here are some other products you might consider...

MSI H110M Pro-VD Plus Motherboard

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

Unavailable
Sorry, this product is not currently available to order

Description

  • Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
  • Supports DDR4–2133 Memory
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • USB 3.1 Gen1 + SATA 6Gb/s
  • VGA Armor: Reinforced Armor slot
  • Click BIOS: Secure and Reliable UEFI BIOS solution
  • Audio Boost: Reward your ears with studio grade sound quality
  • Military Class 4: Top Quality & Stability
  • Guard-Pro: Improved Protection and Power Efficiency
  • EZ Debug LED: Easiest way to troubleshoot
  • Intel® SBB Support: Improves Productivity, Management and Security
  • WHQL CERTIFIED.WINDOWS 10 READY.

MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.

DDR4 Boost
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

SECURE AND RELIABLE UEFI BIOS SOLUTION
This next generation UEFI BIOS is completely rebuilt and features a plethora of system builders’ favorite options. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS hands you the tools to fully protect and optimize the system.

Through smart design and optimizations for Windows 10, CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts faster and adds a smooth experience when changing settings. Smart categorizing of functions and settings make this the easiest BIOS you’ll ever see.

M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.

EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overcurrent protection prevents overcurrent and short-circuit damage of the CPU and other components. There shows a warning message let’s you know that overcurrent protection is activated for easier troubleshooting.

VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.

FAN CONTROL
Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.

WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.

MSI is world’s first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI PRO Series motherboard.

ISOLATED AUDIO PCB WITH LED LINE
Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

CHEMI-CON AUDIO CAPACITORS
Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

SEPARATED AUDIO LAYERS
Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.

ANTI-POPCORN NOISE
Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.

With high quality audio connectors you get the best possible signal output with less chance of distortion.

FRONT DEDICATED HEADPHONE OUT
Convenient use of the front panel audio output while retaining high quality amplified sound.

2X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.

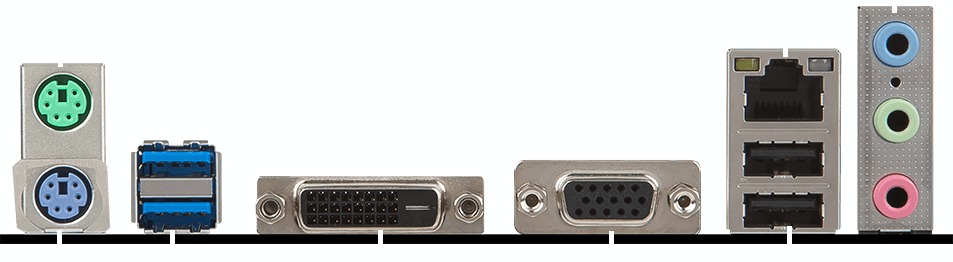

LEGACY DVI / VGA VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays, this MSI motherboard features DVI and a VGA video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.

SPECIFICATIONS

  • Socket: 1151
  • CPU (Max Support): i7
  • Chipset: Intel® H110 Chipset
  • DDR4 Memory: 2133 MHz
  • Memory Channel: Dual
  • DIMM Slots: 2
  • Max Memory (GB): 32
  • PCI-Ex16: 1
  • PCI-E Gen: Gen3
  • PCI-Ex1: 2
  • SATAIII: 4
  • TPM (header): 1
  • LAN: 10/100/1000*1
  • USB 3.1 ports (Front): 2(Gen1)
  • USB 3.1 ports (Rear): 2(Gen1)
  • USB 2.0 ports (Front): 4
  • USB 2.0 ports (Rear): 2
  • Audio ports (Rear): 3
  • VGA: 1
  • DVI: 1
  • DirectX: DX12
  • Form Factor: M-ATX
Release date NZ
August 31st, 2017
Manufacturer code:
H110M PRO-VD PLUS
Warranty Period
1 year
Brand
Manufacturer
MSI
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 4-pin
Motherboard Chipset
Intel H110
Supported CPU Socket
LGA 1151 (Socket H4)
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
2
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Size (GB)
32
Number of VGA Ports
1
Number of DVI Ports
1
Number of DisplayPort Ports
0
Number of PCI Express x16 Slots
1
Number of PCI Express x1 Slots
2
Number of SATA Headers
4
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
1
Number of USB 3.0 Type-A Back Panel Ports
2
Number of USB 3.1 G2 Type-A Back Panel Ports
0
Number of USB Type-C Back Panel Ports
0
Integrated Ethernet Networking
Yes
Product ID
26879643
