Graphics Cards:

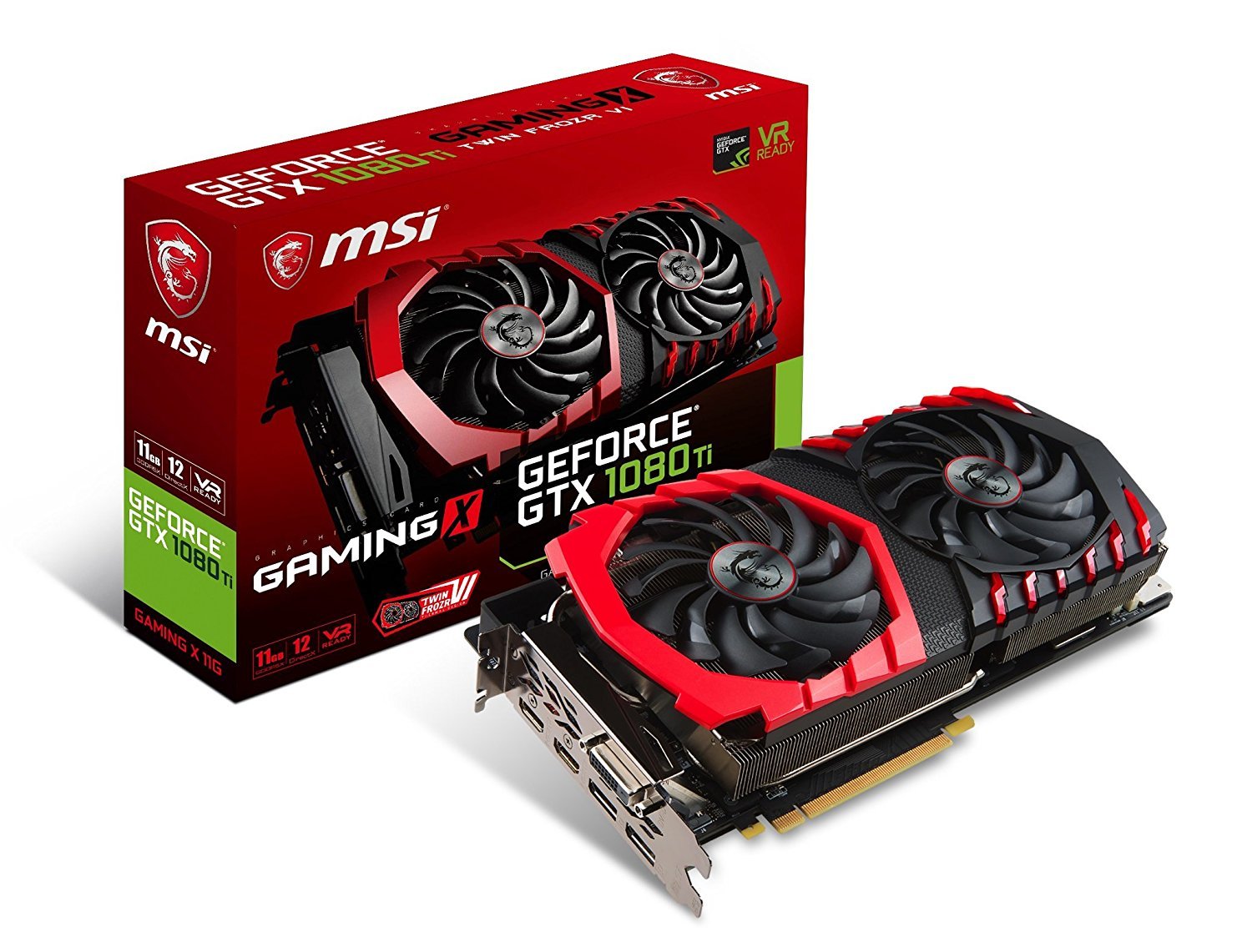

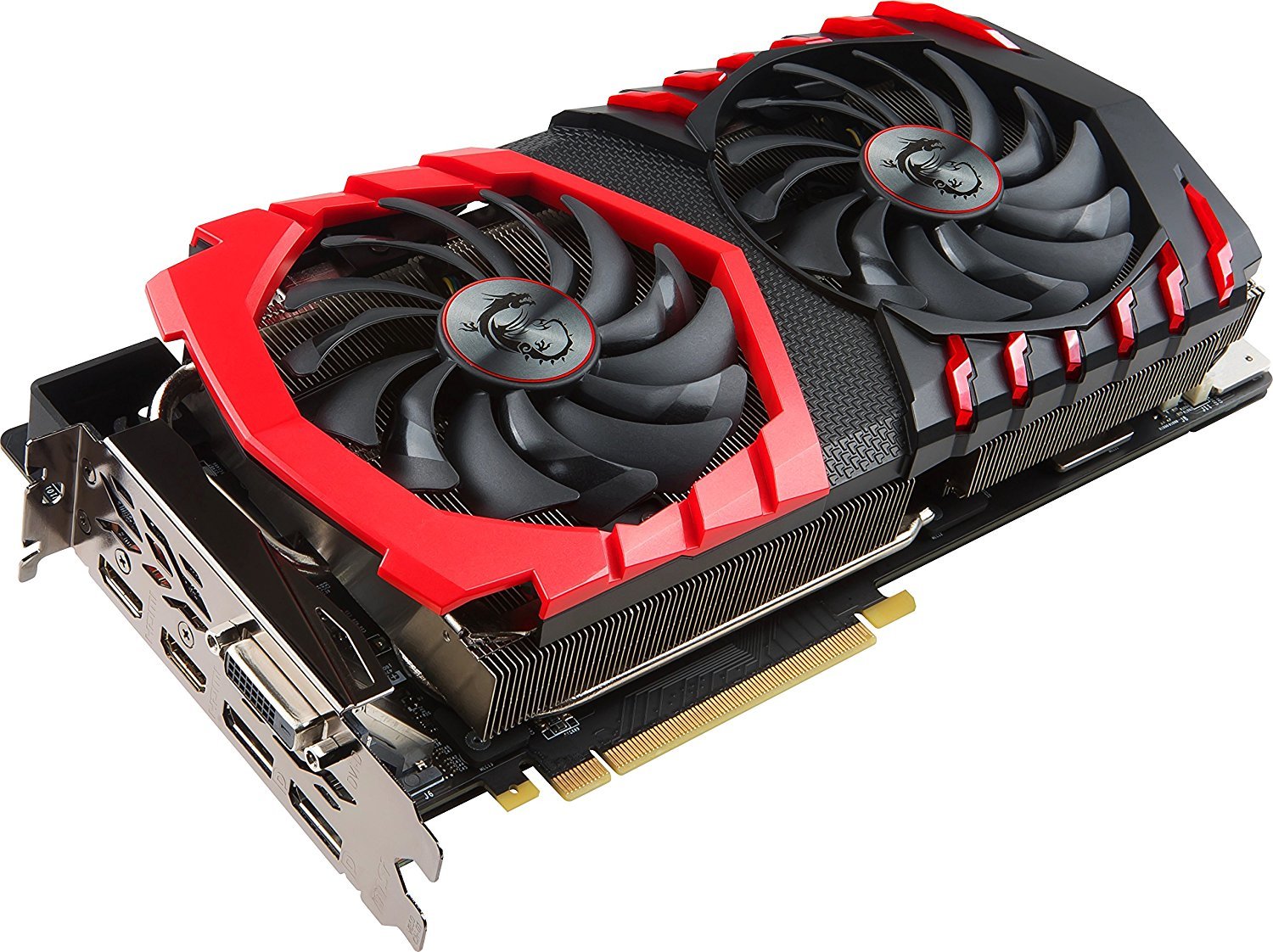

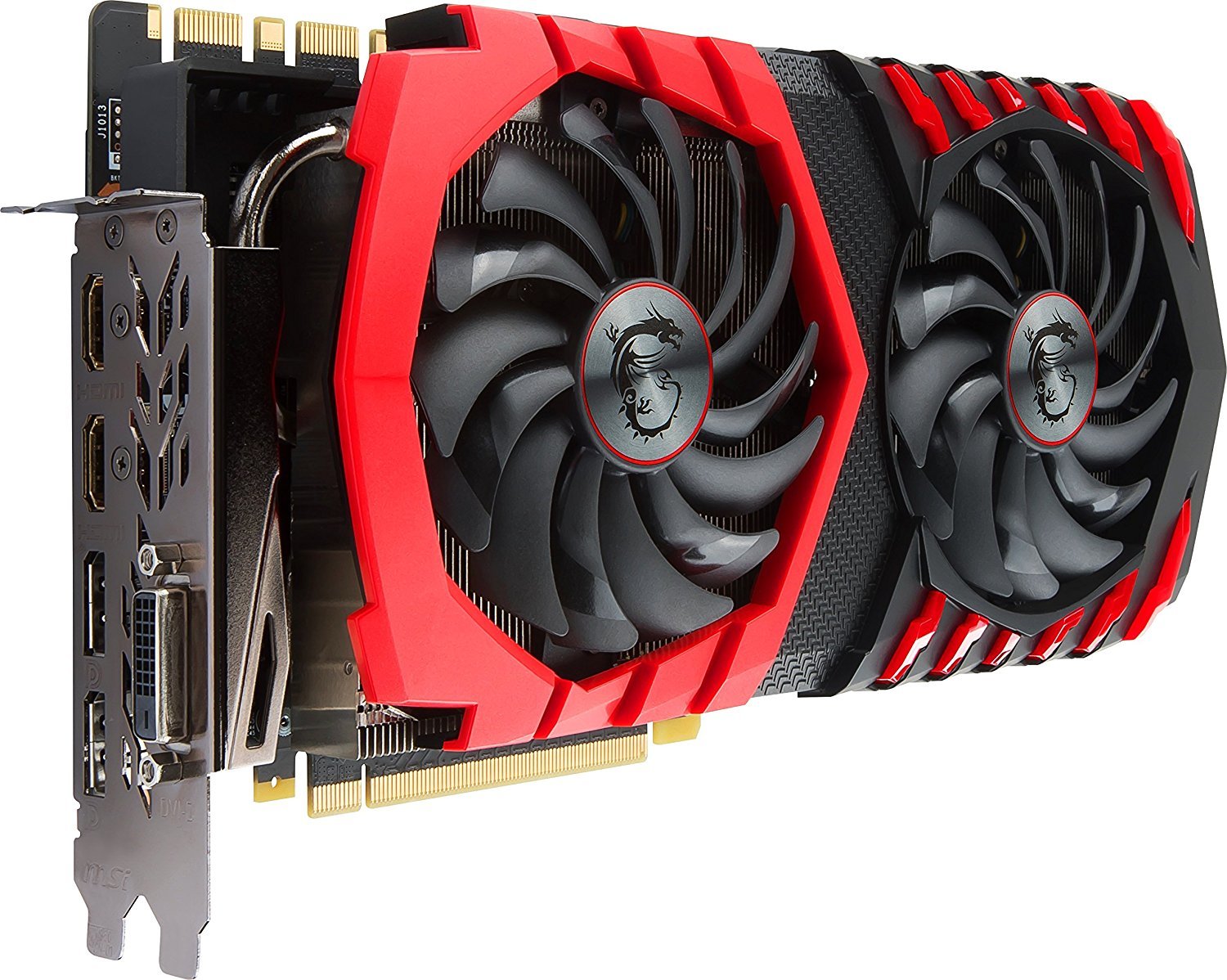

MSI GeForce GTX 1080 TI Gaming X 11GB Graphics Card

1683 MHz / 1569 MHz / 11124 MHz (OC Mode)
Click to share your rating 4 ratings (4.0/5.0 average) Thanks for your vote!
Unavailable
Sorry, this product is not currently available to order

Description

  • Core/Memory
    • Boost Clock / Base Clock / Memory Frequency
    • 1683 MHz / 1569 MHz / 11124 MHz (OC Mode)
    • 1657 MHz / 1544 MHz / 11016 MHz (Gaming Mode)
    • 1582 MHz / 1480 MHz / 11016 MHz (Silent Mode)
    • 11GB GDDR5X
  • The Ultimate GAMING: TWIN FROZR VI
    • Smooth Heat Pipes: Squared shape at bottom maximize heat transfer from the copper base plate.
    • Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
    • Airflow Control: Technology Deflectors thrusts air onto heat pipes for lower temperatures and better gaming.
  • TORX FAN 2.0: Supremely silent
    • Dispersion fan blade: Steeper curved blade accelerating the airflow.
    • Traditional fan blade: Provides steady airflow to massive heat sink below.
    • Double ball bearing: Strong and lasting core for years of smooth gaming.
  • Gaming App
    • Instant Performance Gain: Unlock extra performance or keep your card silent during light use in one click.
    • LED control: Full control on your RGB GAMING LEDs to set the mood.

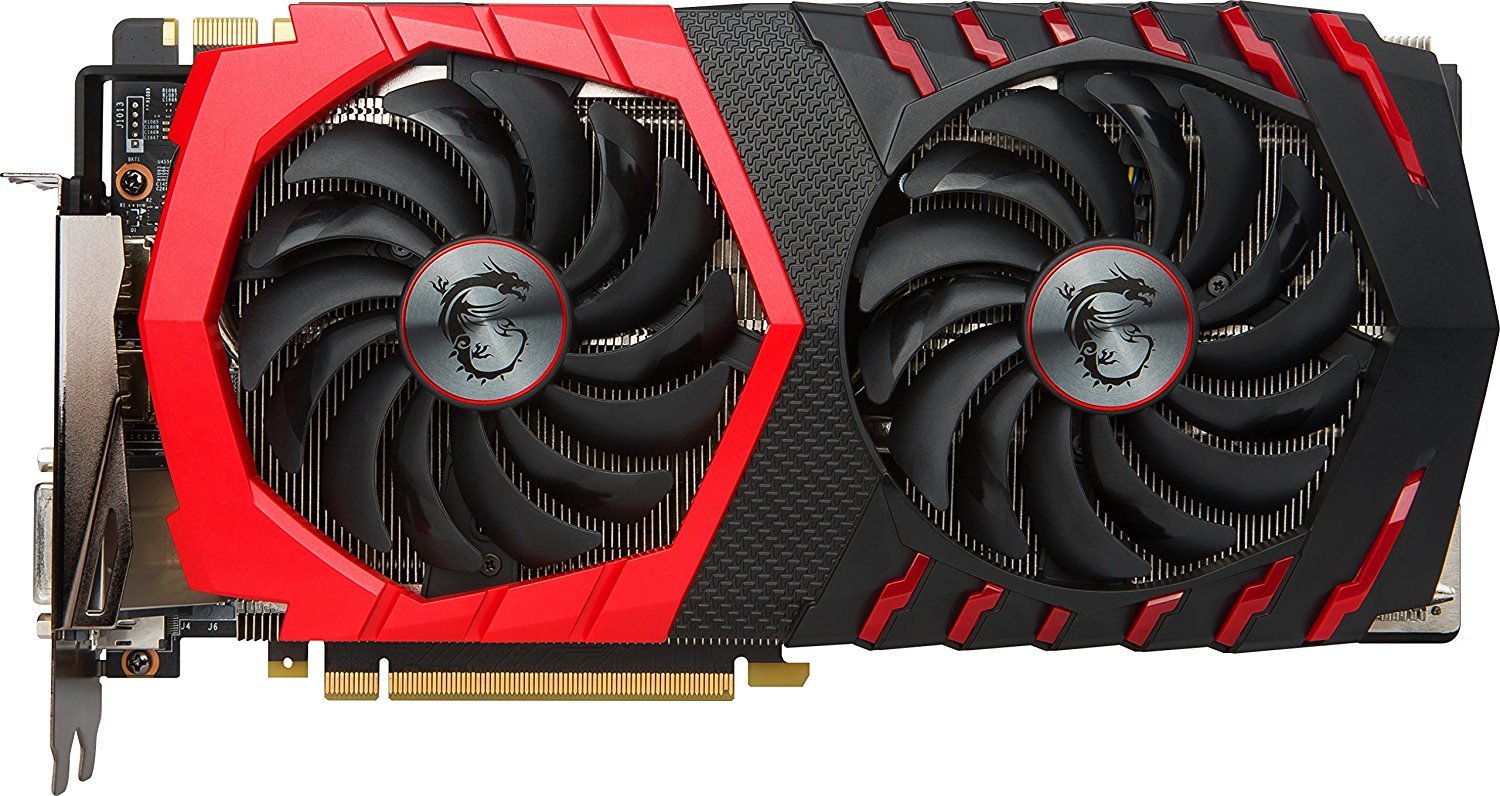

TORX 2.0 FAN
TEAMWORK FOR GREATER STRENGTH
Just like in games, the exclusive MSI TORX 2.0 Fan technology uses the power of teamwork to allow the TWIN FROZR VI to achieve new levels of cool.

TORX 2.0 Fan design generates 22% more air pressure for supremely silent performance in the heat of battle.

  • Dispersion Fan Blade: has a steeper curved blade which accelerates the airflow, increasing its effectiveness.
  • Traditional Fan Blade: pushes down a steady airflow to the massive heatsink below.

DOUBLE BALL BEARINGS
Double Ball Bearings give the unique MSI TORX 2.0 Fans a strong and lasting core for years of smooth gaming. They also remain virtually silent while spinning under load, keeping your graphics card cool during intense and lengthy gaming sessions.

ZERO FROZR-STAY UNDETECTED
First introduced in 2008 by MSI, ZeroFrozr technology has made its mark and is now the industry standard among graphics cards. It eliminates fan noise by stopping the fans in low-load situations. This means you can focus on gaming without the noise of spinning fans.

  • +60 degrees FANS SPINNING: During intense gaming or benchmarking
  • –60 degrees FANS STOP: Completely silent during idle, multimedia or light gaming

CATCH THE VIBE WITH COOL LED EFFECTS
Each LED can be controlled individually by choosing any of the animation effects availiable in the MSI Gaming App, ranging from responding to your game sounds or music to steady light, breathing and flashing. Of course, you can also turn them off.

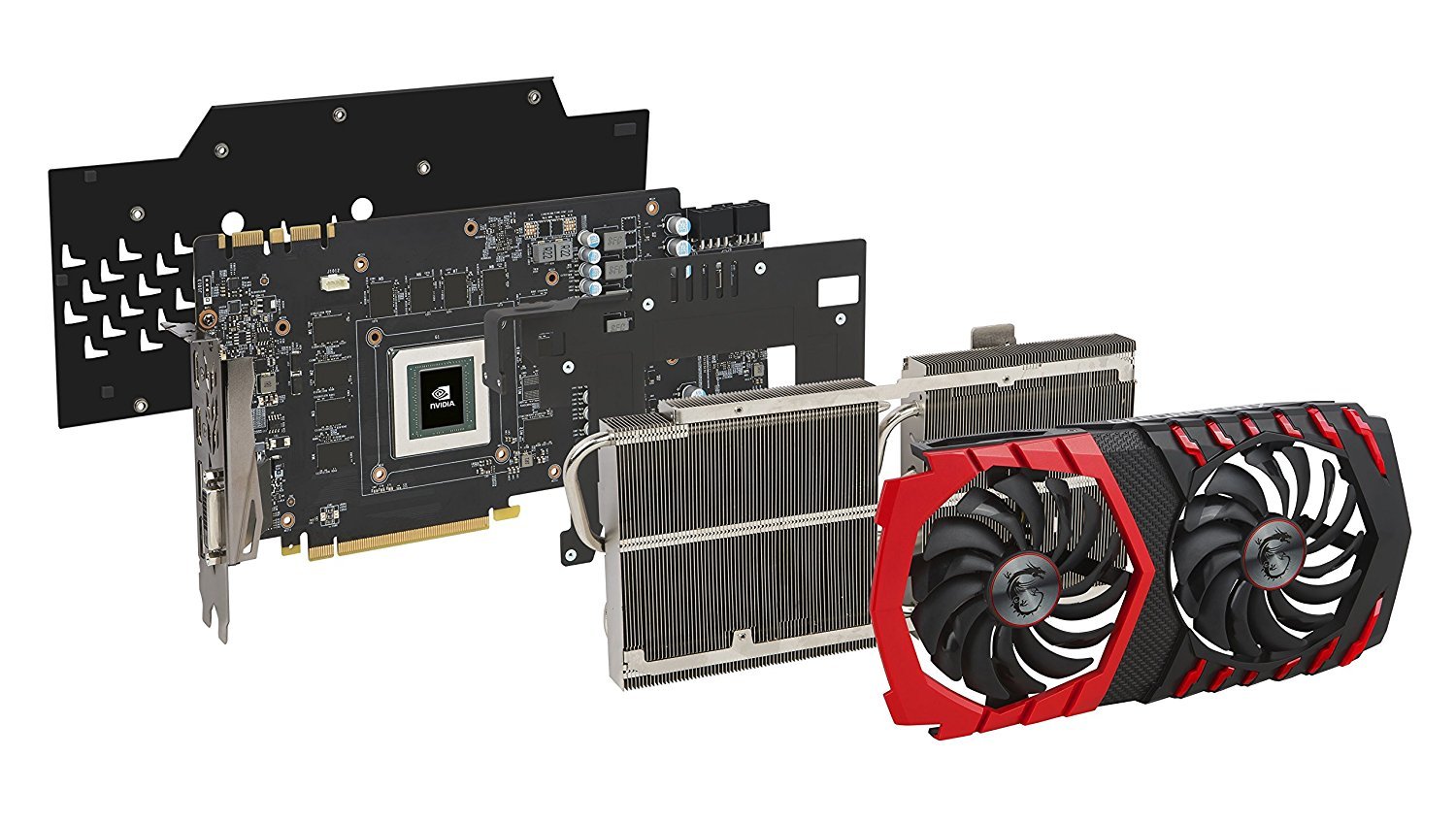

HEATSINK
Lurking under the cover of the GAMING graphics card is an engineering masterpiece designed to keep the graphics card cool. Every tiny detail of the intricate heatsink plays an essential part in providing a cool & quiet gaming experience.

AIRFLOW CONTROL TECHNOLOGY
Using advanced aerodynamics, Airflow Control Technology directs more air directly onto the TWIN FROZR VI heat pipes. The special deflectors on the heat sink enlarge the surface area, which means lower temperatures and better gaming.

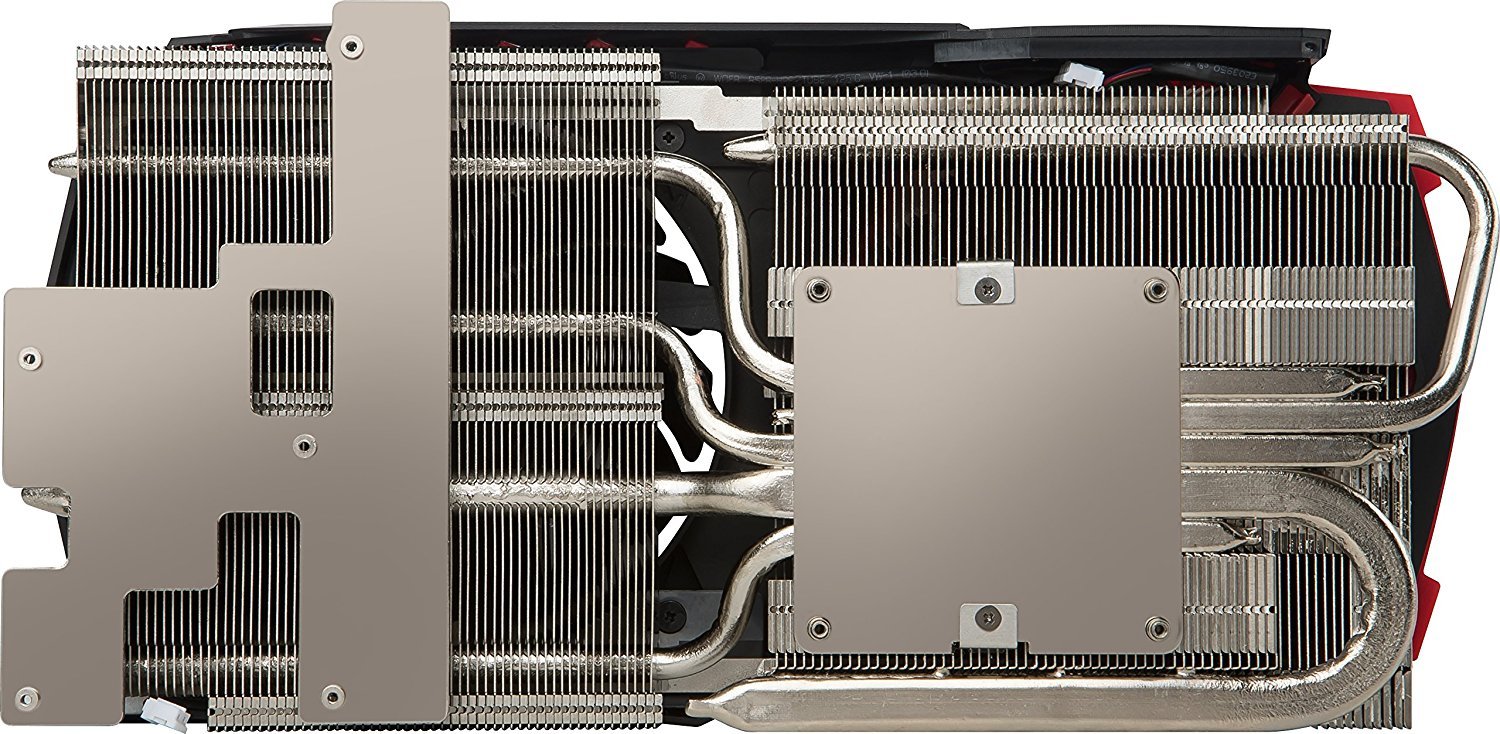

SMOOTH HEAT PIPES
Up to 8mm thick copper heat pipes with a smooth squared shape at the bottom maximize heat transfer from the surface of the copper base plate.

SOLID BASEPLATE
To temper the heat generated by a powerful GPU, MSI GAMING series graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation so you can keep cool.

PREMIUM THERMAL COMPOUND
Every detail counts when it comes to creating the ultimate thermal design, which is why TWIN FROZR VI uses a premium thermal compound to make sure it outlives the competition.

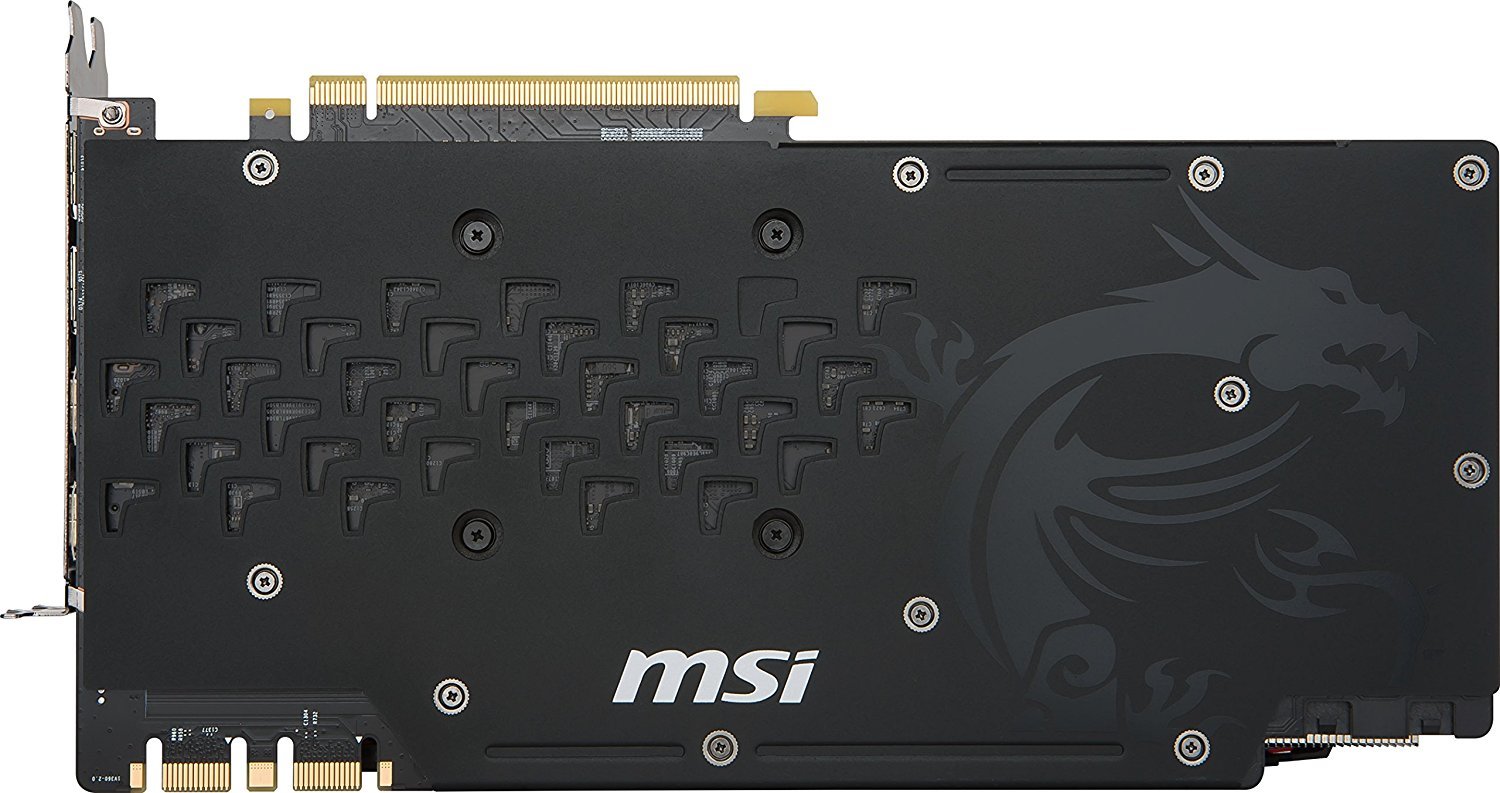

BACKPLATE
A powerful graphics card needs a strong build to harness its performance. MSI GAMING X graphics cards are fitted with a solid metal back plate to make it extra tough. The matte black finish completes the TWIN FROZR VI design to perfection.

gSYNC – THE FUTURE OF GAMING
The smoothest, fastest and most exciting gaming experience ever by eliminating screen tearing, display shutter and input lag.

PREPARE FOR VR WITH MSI
To experience and enjoy the impressive world of Virtual Reality, high-performance hardware is required. MSI, world leading brand in high-end gaming and eSports, provides the right advice to make sure your system is VR Ready. Integrating the very best of cutting edge technologies in recommended MSI VR gaming hardware for smooth performance. Together with our VR partners, MSI brings gamers an extremely realistic VR experience where games come alive.

GAMING APP
The MSI Gaming App allows for one-click performance profiles that unlock extra performance for gaming or keep your card silent during light use. It also features the EyeRest tab, giving you easy access to image quality improving technology. The LED control tab gives you full control over your MSI GAMING LED lights to set the mood.

SPECIFICATIONS

  • Model Name: GeForce® GTX 1080 Ti GAMING X 11G
  • Graphics Processing Unit: NVIDIA® GeForce® GTX 1080 Ti
  • Interface: PCI Express x16 3.0
  • Core Name: GP102–350
  • Cores: 3584 Units
  • Core Clocks
    • 1683 MHz / 1569 MHz (OC Mode)
    • 1657 MHz / 1544 MHz (Gaming Mode)
    • 1582 MHz / 1480 MHz (Silent Mode)
  • Memory Clock Speed
    • 11124 MHz (OC Mode)
    • 11016 MHz (Gaming / Silent )
  • Memory: 11GB GDDR5X
  • Memory Bus: 352-bit

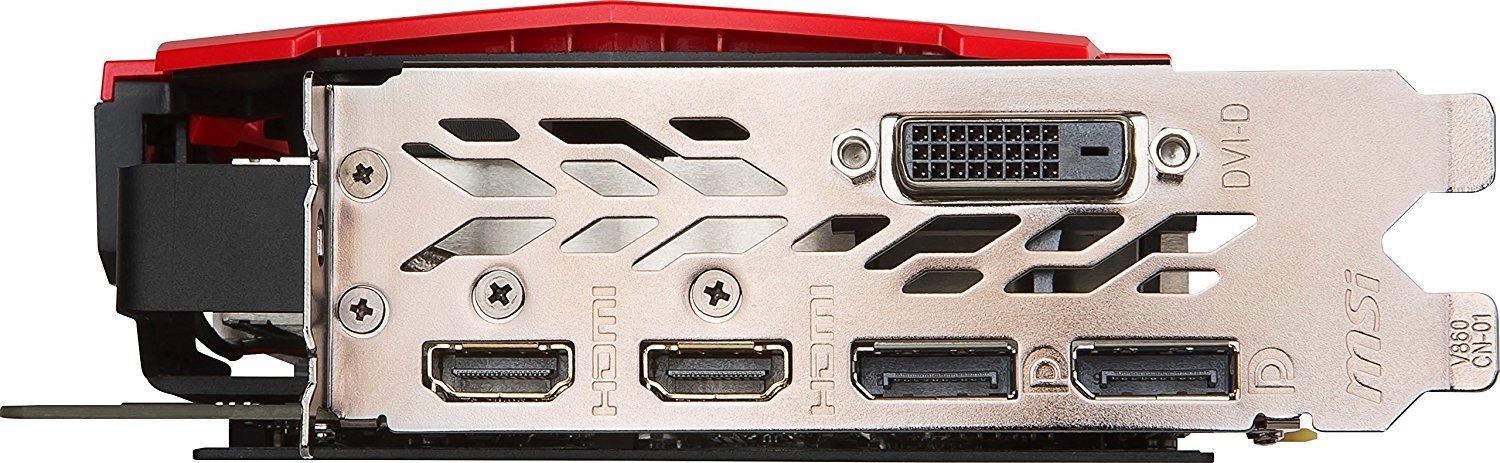

  • Output: DisplayPort x 2 (Version 1.4) / HDMI x 2 (Version 2.0) / DL-DVI-D
  • HDCP Support: 2.2
  • Power consumption: 250 W
  • Power connectors: 8-pin x 2
  • Card Dimension(mm): 290 × 140 × 51 mm
  • Weight (Card / Package): 1257 g / 1986 g
  • Afterburner OC: Y
  • DirectX Version Support: 12
  • OpenGL Version Support: 4.5
  • Multi-GPU Technology: SLI, 2-Way
  • Maximum Displays: 4
  • VR Ready: Y
  • G-SYNC™ technology: Y
  • Adaptive Vertical Sync: Y
Release date NZ
August 31st, 2017
Manufacturer code:
GEFORCE GTX 1080 TI GAMIN
Warranty Period
1 Year
Brand
Manufacturer
Number of Full Length Full Height Expansion Slots
2
Interface Type
PCI Express x16
Number of PCI Express 6-pin Power Connectors
0
Number of PCI Express 6+2-pin Power Connectors
2
GPU Multi Technology
NVIDIA 2-Way SLI
GPU Memory Size (GB)
11
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
2
Number of HDMI Ports
2
Minimum PSU Output Wattage (W)
700
Box Dimensions (mm)
350x270x85
UPC
824142145043
Product ID
26879666
