Computer Components:

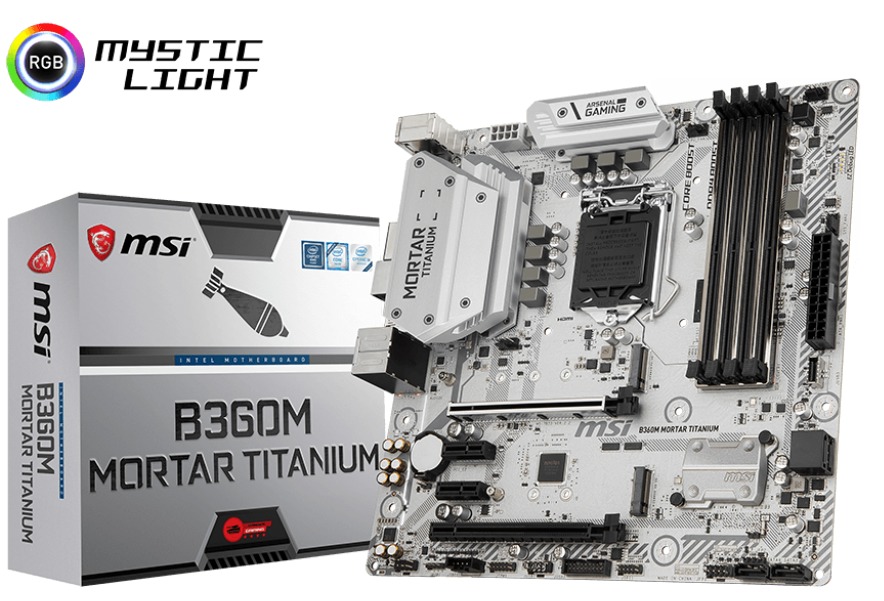

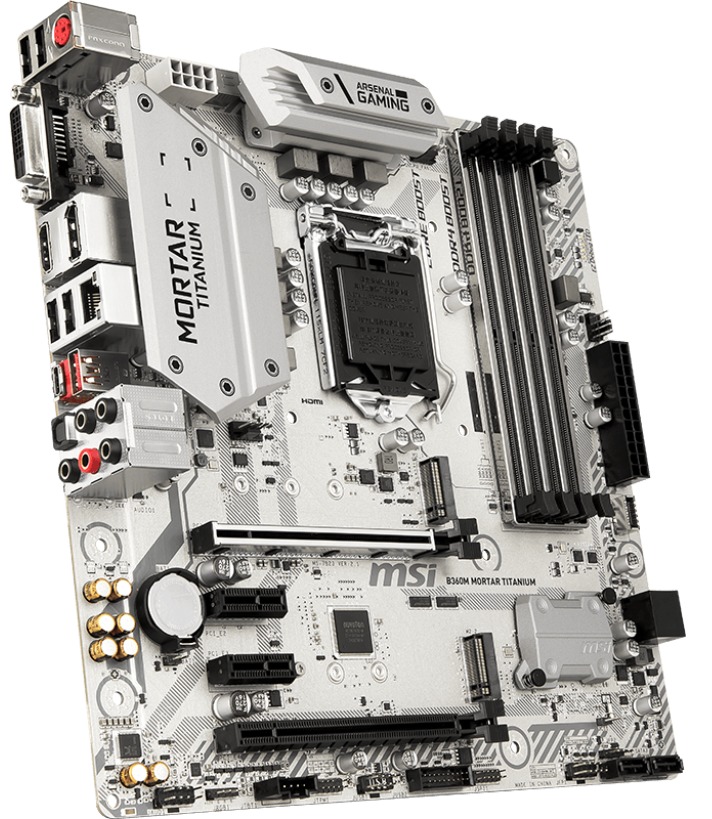

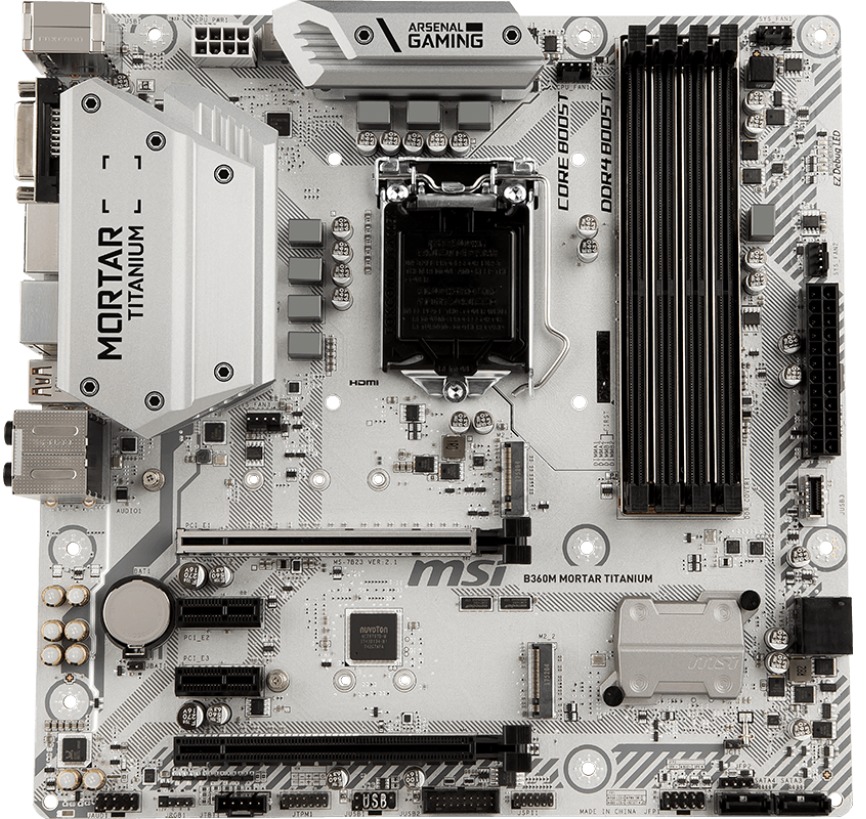

MSI B360M Mortar Titanium Motherboard

Customer rating

Click to share your rating 1 rating (4.0/5.0 average) Thanks for your vote!

Share this product

$193.00
Hurry! Only 4 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships Monday!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Monday 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm on 19 November to qualifying addresses in Auckland. Learn more
  • Tuesday using standard courier delivery

Description

Supports 8th Gen Intel® Core™ / Pentium® Gold /Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666 MHz
Twin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Intel Turbo USB 3.1 Gen2: Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Core Boost: With premium layout optimized power design to support more cores and provide better performance.
DDR4 Boost with Steel Armor: Fully isolated and shielded DIMM slots to deliver pure data signals for the best gaming performance and stability.
GAMING LAN: Experience smooth online gaming experience by reducing CPU overhead and offer long-term network usage.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
MULTI-GPU: With STEEL ARMOR PCI-E slot. Supports 2-Way AMD Crossfire™
EZ Debug LED: Easiest way to troubleshoot.

BUILT FOR HARDCORE GAMERS AND PC ENTHUSIAST
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

CONQUER THE BATTLEFIELD
Featuring heavy plated heat sink**s and fierce looks, MSI ARSENAL GAMING motherboards are packed with gaming features for a refined gaming experience.

Specifications

  • PROCESSOR
    • Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151
  • CHIPSET
    • Intel® B360 Chipset
  • MEMORY
    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memorye
    • Supports Intel® Extreme Memory Profile (XMP)
  • SLOTS
    • 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
    • 2 x PCIe 3.0 x1 slots
  • ONBOARD GRAPHICS
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
    • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
    • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
  • STORAGE
    • Intel® B360 Chipset
      • 4 x SATA 6Gb/s ports
      • 2 x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices2
    • Intel® Optane™ Memory Ready ,supported on M2_23
    • SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • USB
    • Intel® B360 Chipset
      • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
      • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
      • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • AUDIO
    • Dual Realtek® ALC892 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
  • LAN
    • 1 x Intel I219-V Gigabit LAN controller
  • INTERNAL CONNECTORS
    • 1 × 24-pin ATX main power connector
    • 1 × 8-pin ATX 12V power connector
    • 4 x SATA 6Gb/s connectors
    • 1 x USB 3.1 Gen2 Type-C port
    • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
    • 1 × 4-pin CPU fan connector
    • 3 × 4-pin system fan connectors
    • 1 x Front panel audio connector
    • 2 x Front panel connectors
    • 1 × 5050 RGB LED strip 12V connector
    • 1 x Thunderbolt add-on card connector
    • 1 x TPM module connector
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
  • BACK PANEL PORTS
    • PS/2 Combo Port
    • DisplayPort
    • LAN Port
    • USB 3.1 Gen2 Type A
    • HD Audio Connectors
    • USB 2.0 Port
    • DVI-D Port
    • HDMI Port
    • USB 2.0 Port
    • USB 3.1 Gen2 Type C
    • Optical S/PDIF OUT
    • MSI B360M MORTAR TITANIUM back panel ports
  • DIMENSIONS
    • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
    • Micro-ATX Form Factor
Release date NZ
April 9th, 2018
Manufacturer code:
B360M-MORTAR-TITANIUM
Brand
Manufacturer
MSI
Motherboard Form Factor(s)
  • microATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
64
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
1
Number of HDMI Ports
1
Number of PCI Express x16 Slots
2
Number of PCI Express x1 Slots
1
Number of M.2 Sockets
2
Number of SATA Headers
4
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
1
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
275x285x70
UPC
824142159460
Product ID
27821835
