PC Parts & Components:

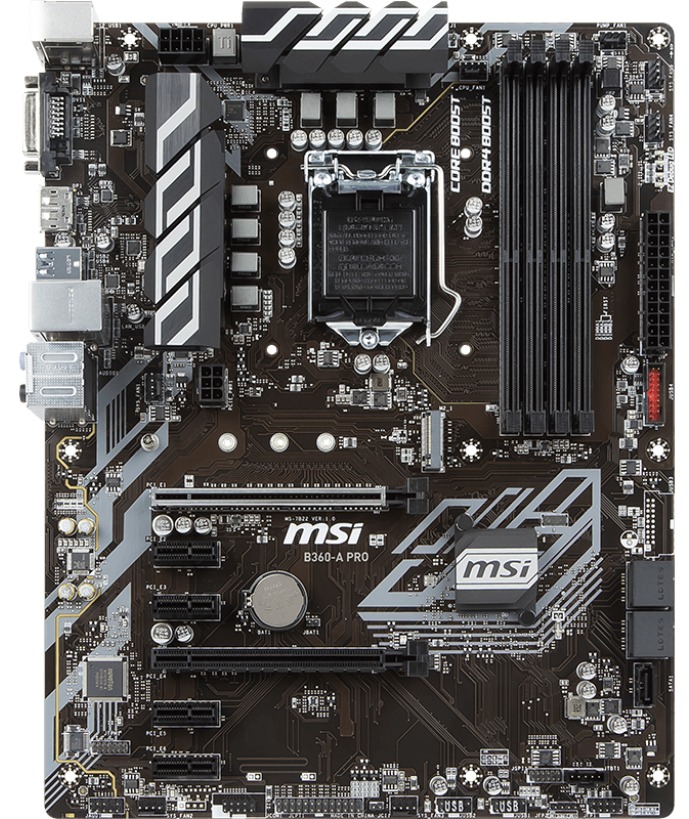

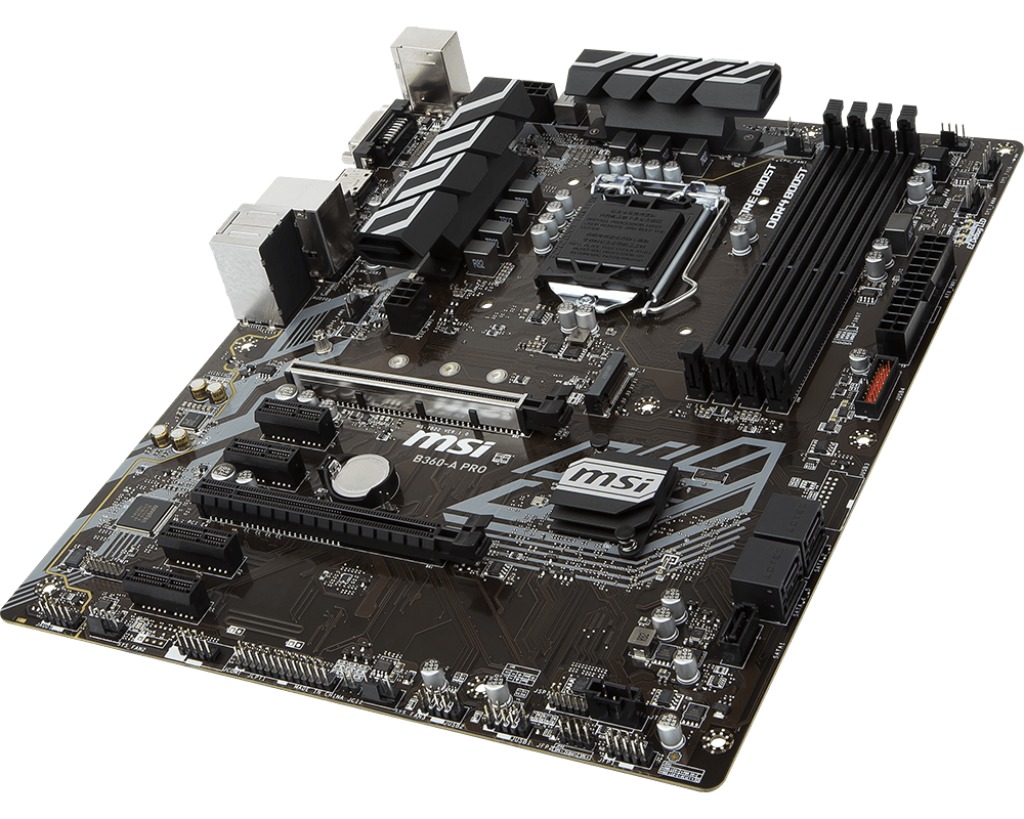

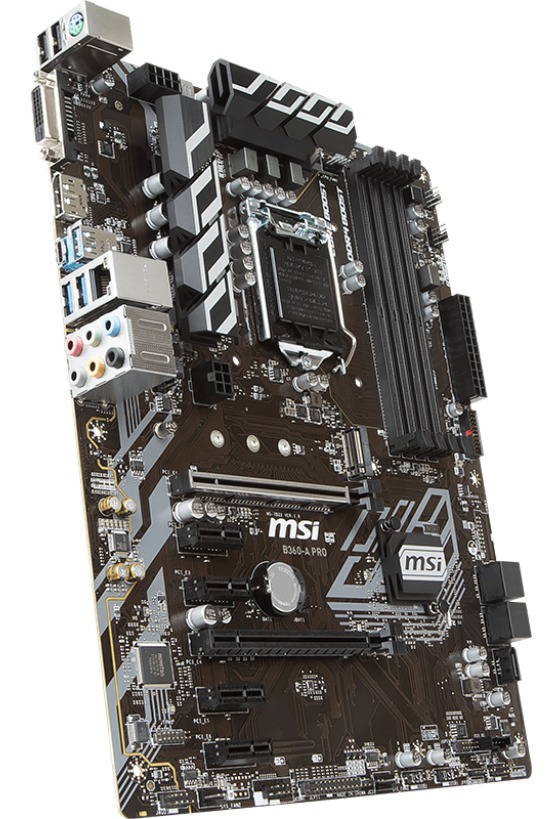

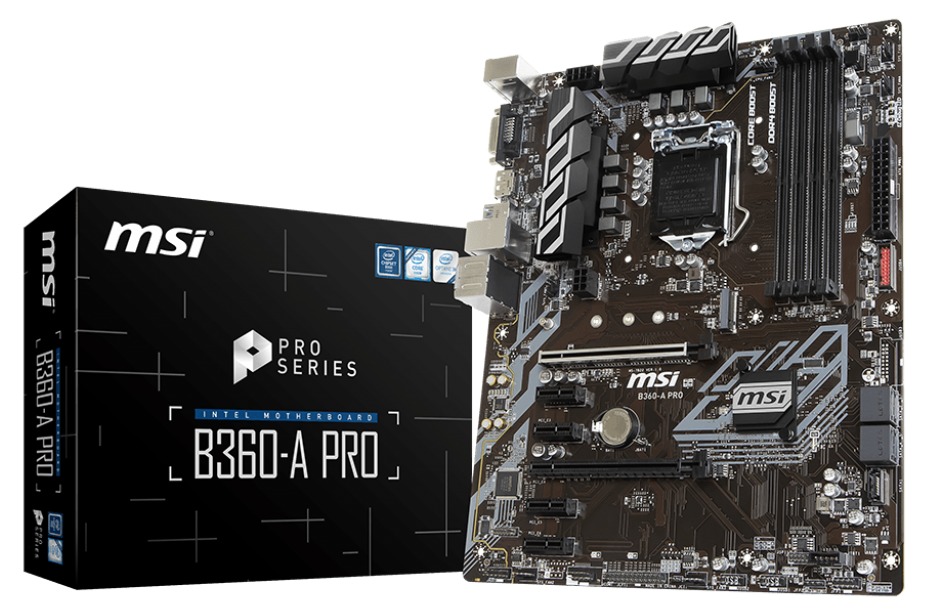

MSI B360-A PRO ATX Motherboard

Customer rating

Click to share your rating 2 ratings (5.0/5.0 average) Thanks for your vote!

Share this product

$183.00
or 4 payments of $45.75 with Learn more
Hurry! Only 1 left at Mighty Ape!

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships tomorrow!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Tomorrow 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm tomorrow to qualifying addresses in Auckland. Learn more
  • Saturday using Saturday Delivery
    Mighty Ape can deliver this product on Saturday to most cities and towns in NZ. Learn more
  • Monday using standard courier delivery

Description

  • Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666MHz
  • Audio Boost : Reward your ears with studio grade sound quality.
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • Intel® LAN:Premium network solution from Intel® for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Multi-GPU : With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • Turbo M.2 : Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • EZ Debug LED : Easiest way to troubleshoot.
  • PCI-E Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
  • X-Boost : Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
  • Core Boost : With premium layout and fully digital power design to support more cores and provide better performance.

BUILT FOR CONTENT CREATORS AND PROFESSIONALS
This motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming.

MAKING YOUR LIFE EASIER IS OUR BUSINESS
Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

Specifications

  • PROCESSOR
    • Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
  • CHIPSET
    • Intel® B360 Chipset
  • MEMORY
    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
    • Dual channel memory architecture
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    • Please refer to Compatibility for more information on compatible memory
  • SLOTS
    • 2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)
    • 4 x PCIe 3.0 x1 slots
  • ONBOARD GRAPHICS
    • 1 x DisplayPort 1.2, supports a maximum resolution of 4096×2304 @ 60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz
  • MULTI-GPU
    • Supports 2-Way AMD® CrossFire™ Technology
  • STORAGE
    • Intel® B360 Chipset
      • 5 x SATA 6Gb/s ports1
      • 1 x M.2 slot (Key M)
      • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
    • Intel® Optane™ Memory Ready
    • SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  • USB
    • Intel® B360 Chipset
      • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
      • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
      • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • AUDIO
    • Realtek® ALC892 Codec
    • 7.1-Channel High Definition Audio
  • LAN
    • 1 x Intel® I219-V Gigabit LAN controller
  • INTERNAL CONNECTORS
    • 1 × 24-pin ATX main power connector
    • 1 × 8-pin ATX 12V power connector
    • 1 × 6-pin ATX PCIe power connector
    • 5 x SATA 6Gb/s connectors
    • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 × 4-pin CPU fan connector
    • 1 × 4-pin water pump fan connector
    • 5 × 4-pin system fan connectors
    • 1 x Front panel audio connector
    • 2 x Front panel connectors
    • 1 x Series port connector
    • 1 x Parallel port connector
    • 1 x TPM module connector
    • 1 x Thunderbolt Add-on Card Connector
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
  • BACK PANEL PORTS
    • PS/2 Combo Port
    • DVI-D Port
    • DisplayPort
    • USB 3.1 Gen2 Type A
    • LAN Port
    • HD Audio Connectors
    • USB 2.0 Port
    • USB 3.1 Gen2 Type C
    • USB 3.1 Gen1

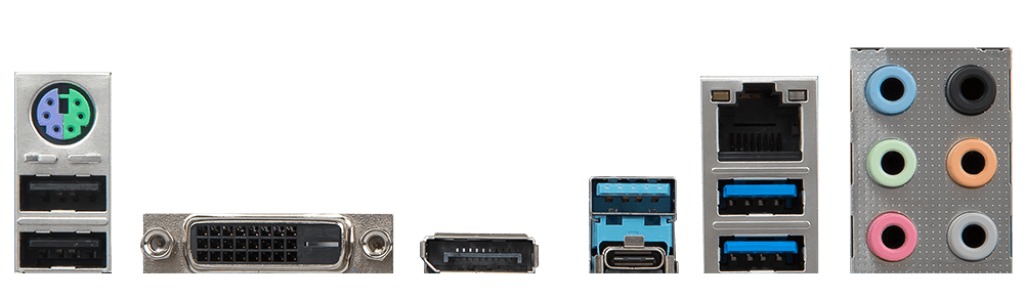

    • MSI B360-A PRO back panel ports
  • DIMENSIONS
    • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
    • ATX Form Factor
Release date NZ
April 9th, 2018
Manufacturer code:
B360-A-PRO
Brand
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
LGA 1151 (Socket H4) Rev.2
Supported Memory Module Type(s)
  • DIMM
Number of Memory Sockets
4
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
2666
Maximum Memory Size (GB)
64
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
1
Number of HDMI Ports
0
Number of PCI Express x16 Slots
2
Number of PCI Express x1 Slots
4
Number of M.2 Sockets
1
Number of SATA Headers
5
Number of U.2 Headers
0
Number of USB 3.0 Headers
1
Number of USB 2.0 Headers
2
Number of USB 3.0 Type-A Back Panel Ports
0
Number of USB 3.1 G2 Type-A Back Panel Ports
3
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Box Dimensions (mm)
350x275x70
UPC
824142159170
Product ID
27821836
