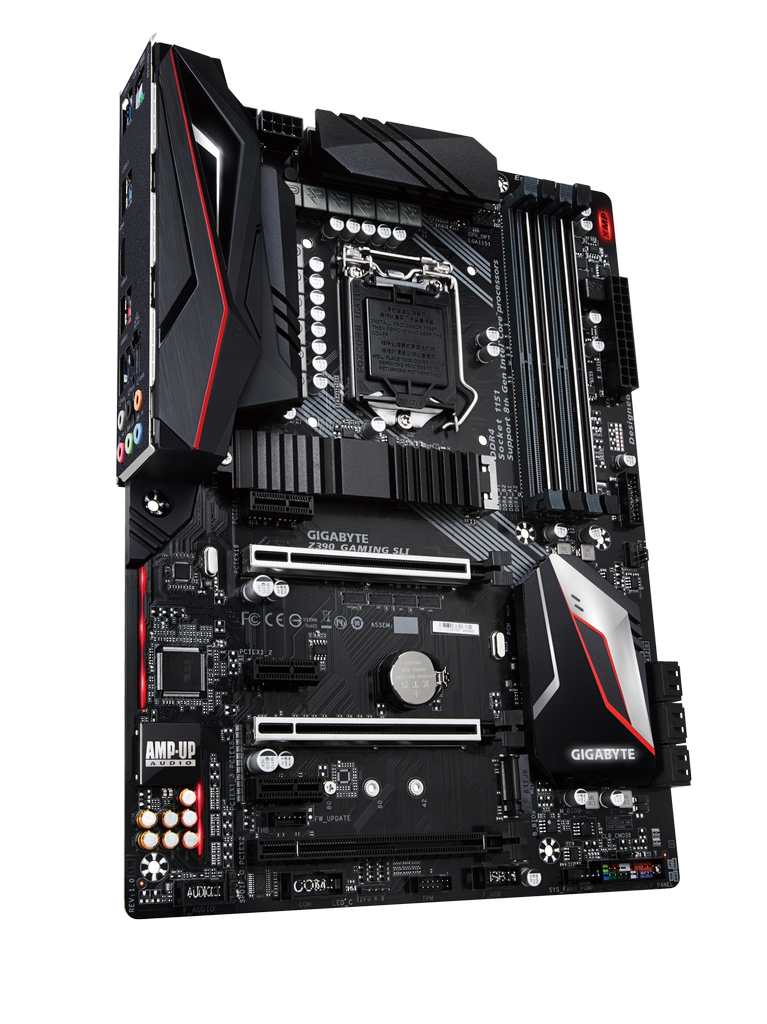

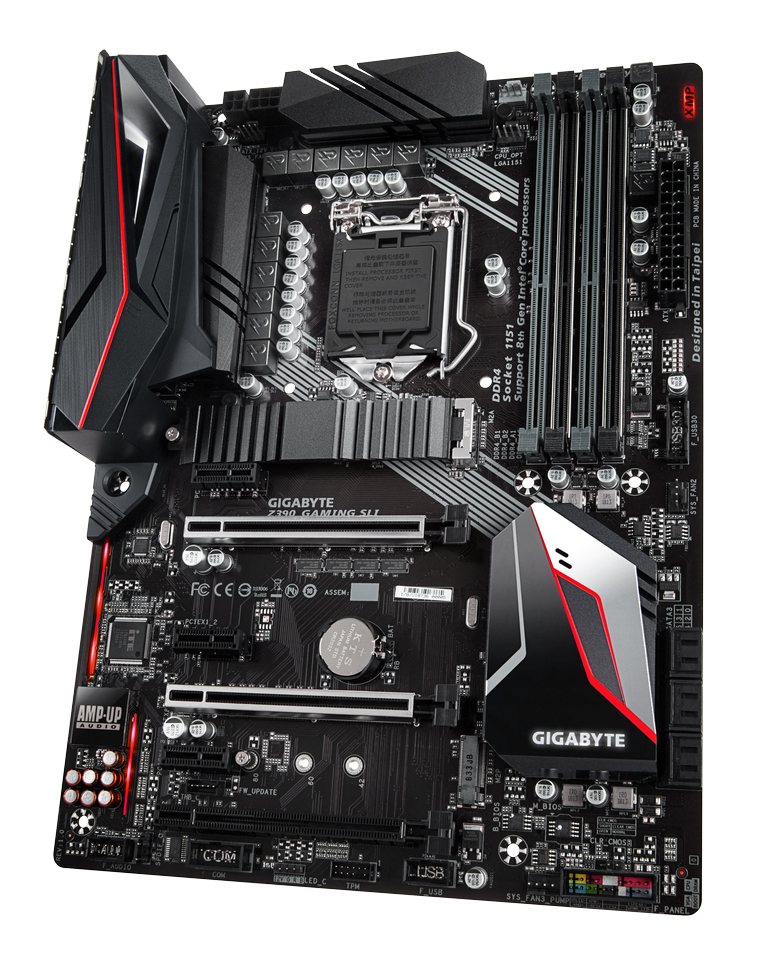

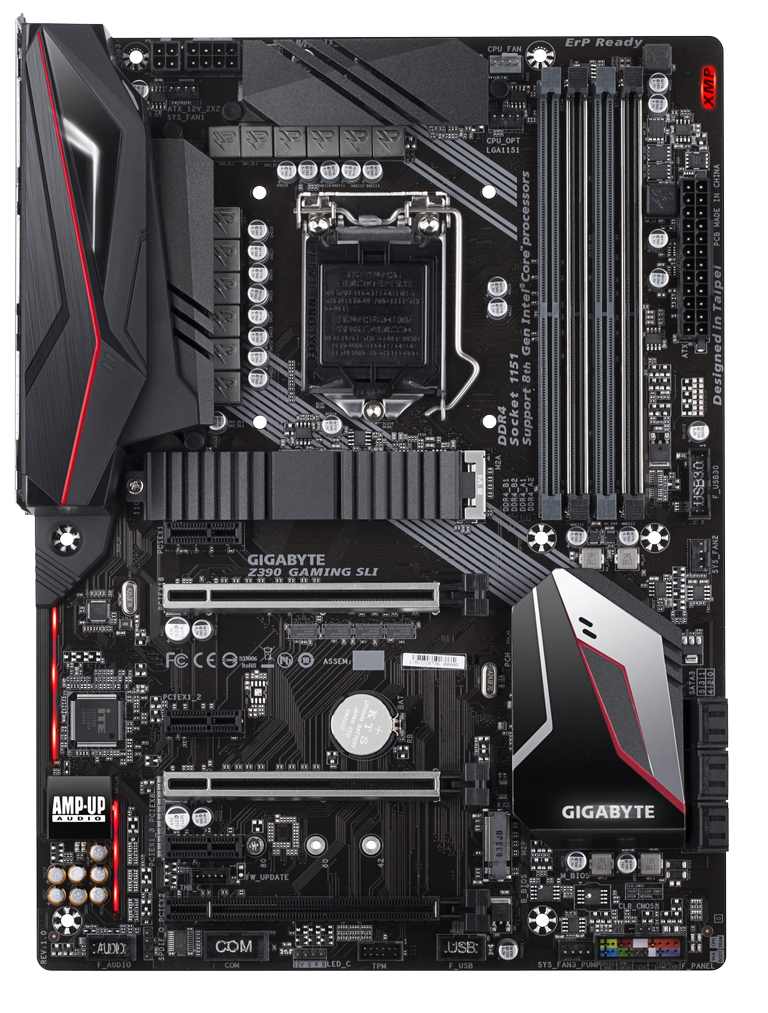

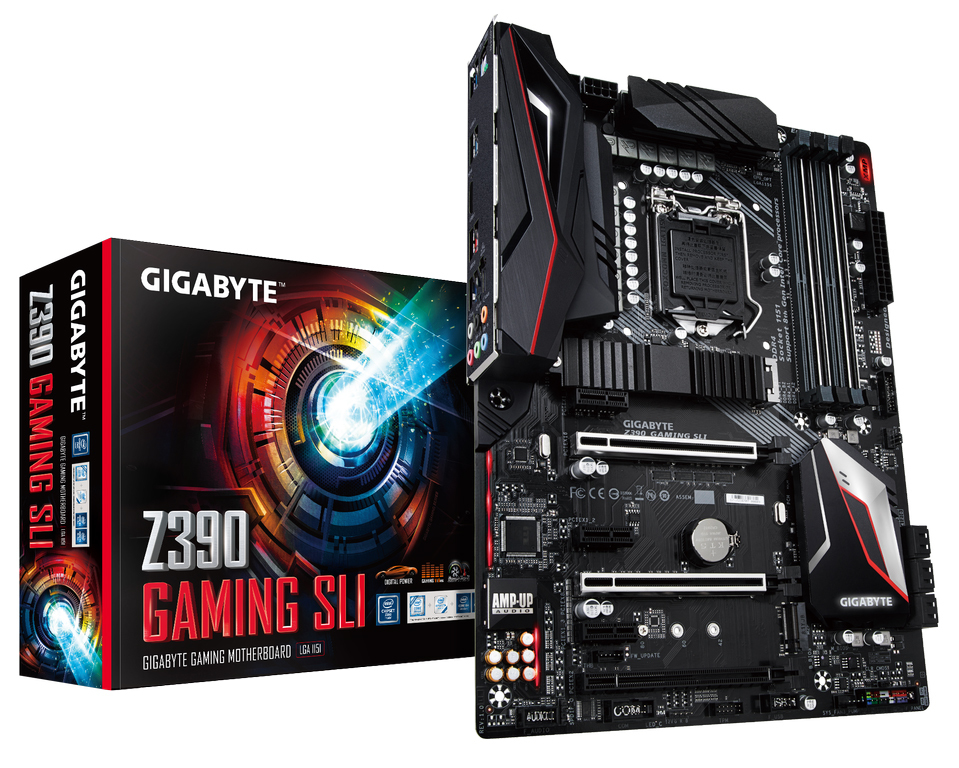

Gigabyte Z390 Gaming SLI Motherboard

Customer rating

Click to share your rating 1 rating (2.0/5.0 average) Thanks for your vote!

Share this product

$338.99
or 4 payments of $84.75 with Learn more
In stock at Mighty Ape

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships Monday!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Monday 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm on 22 July to qualifying addresses in Auckland. Learn more
  • Tuesday using standard courier delivery

Description

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, ALC1220-VB, 2-Way SLI™ / 2-Way CrossFire™ Multi-Graphics, USB 3.1 Gen2 Type-A, M.2 Thermal Guard, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable™ Technology, CEC 2019

  • Supports 9th and 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New 10+2 Phases Digital PWM Design
  • Immersive Gaming ViBes with ALC1220-VB and High Quality Audio Capacitors
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • Intel® Native USB 3.1 Gen2 Type-A
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Support RGB Lighting Effect in Full Colors
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® Optane™ Memory Ready

PERFORMANCE
10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET
Optimized for 8-Core Intel® Core™ CPU
GIGABYTE GAMING series motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-Core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Advanced Thermal Design
M.2 Thermal Guard
Cover with 110 M.2 Heatsinks keep SSD performance.
MOSFET Heatsinks
Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.
Thick Thermal Pad
Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.

Pre-installed I/O Shield
With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.

Support for DDR4 XMP Up to 4000MHz and Beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their motherboard.

2-Way SLI™ / 2-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Immersive VR
Gaming Experience

VR requires more performance than Full HD graphics for a steady 90FPS or greater.
Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC
■ Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output
■ CPU: Intel 8th Gen. Core i3 equivalent or greater
■ Motherboard: AORUS/GIGABYTE Z390 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3× USB 3.0 ports plus 1× USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer

LIGHTING
Support RGB Lighting Effect in Full Color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

AUDIO
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp, it automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

ALC1220-VB 120dB SNR Rear HD Audio with Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

CONNECTIVITY
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Dual-Mode M.2 Slot Design
Support PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.

COOLING

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

■ 5 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

ULTRA DURABLE
GIGABYTE Patented Double Locking Bracket

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable™ Memory Armor
GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

Solid Pin Power Connectors
Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

CPU
Support for Intel 9000 Processors and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
Intel® Z390 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

  • Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Audio
Realtek® ALC1220-VB codec

  • The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

  • The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x2 (PCIEX2)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

  • Refer to “1–8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 × 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

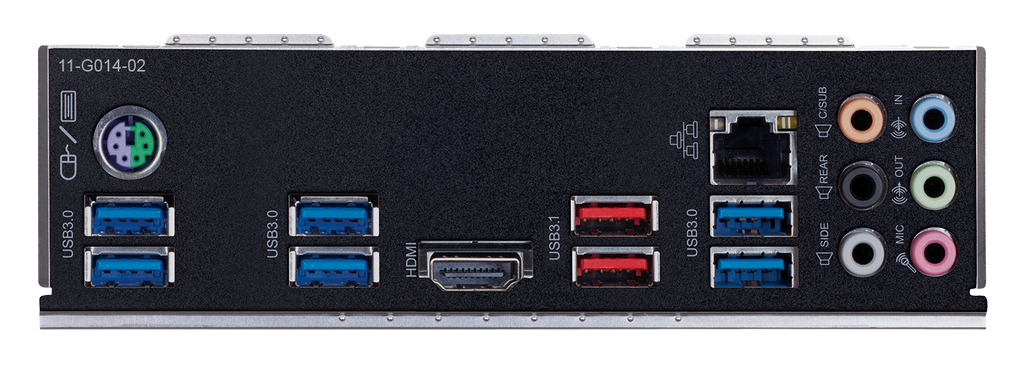

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
2 x USB 3.1 Gen 2 Type-A ports (red)
6 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control

  • Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center

  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 22.5cm

Release date NZ
October 10th, 2018
Manufacturer code:
GA-Z390GAMING-SLI
Manufacturer
Series
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported Memory Module Type(s)
  • DIMM
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
266
Maximum Memory Size (GB)
64
Supported Multi-GPU Technology(ies)
  • NVIDIA 2-Way SLI
Supported M.2 Module Code(s)
  • 22110
  • 2242
  • 2260
  • 2280
Number of SATA Headers
6
Box Dimensions (mm)
340x275x80
UPC
889523014868
Product ID
28447165
