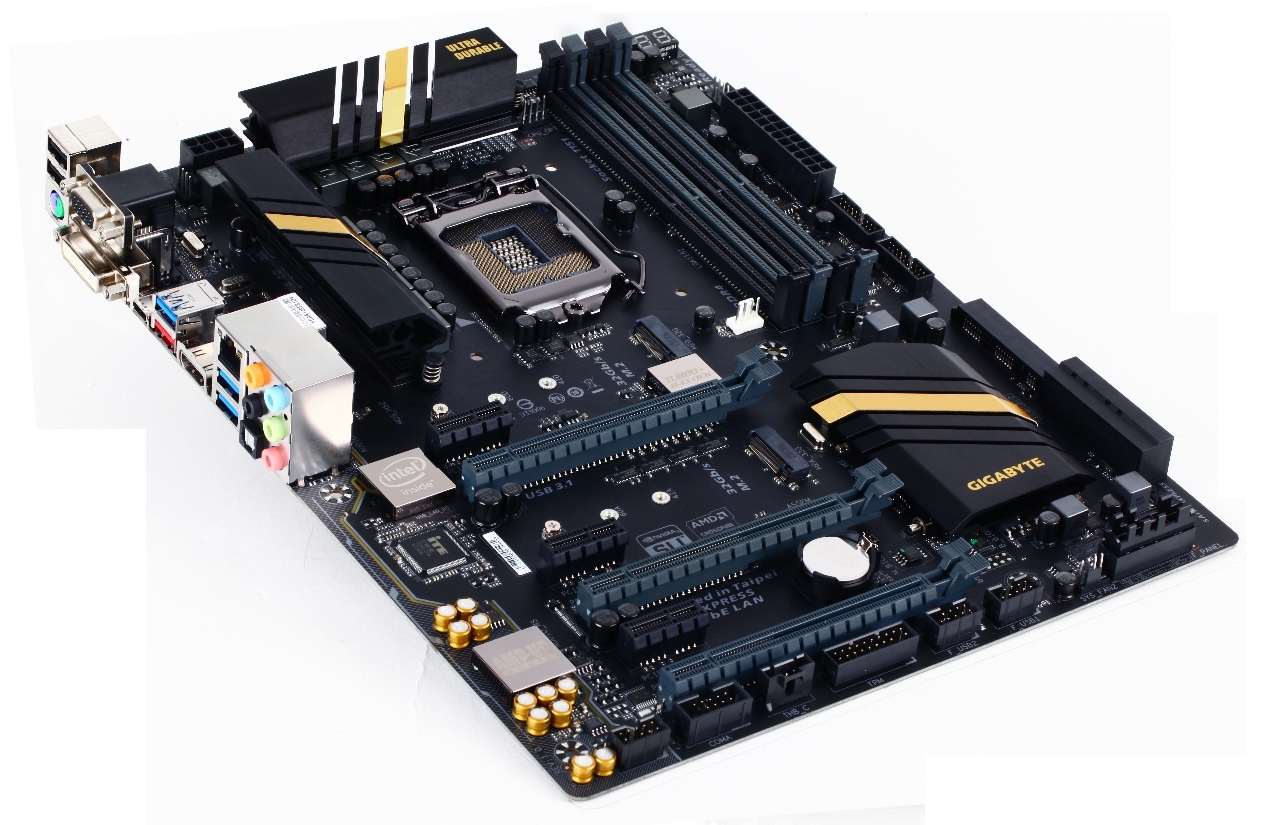

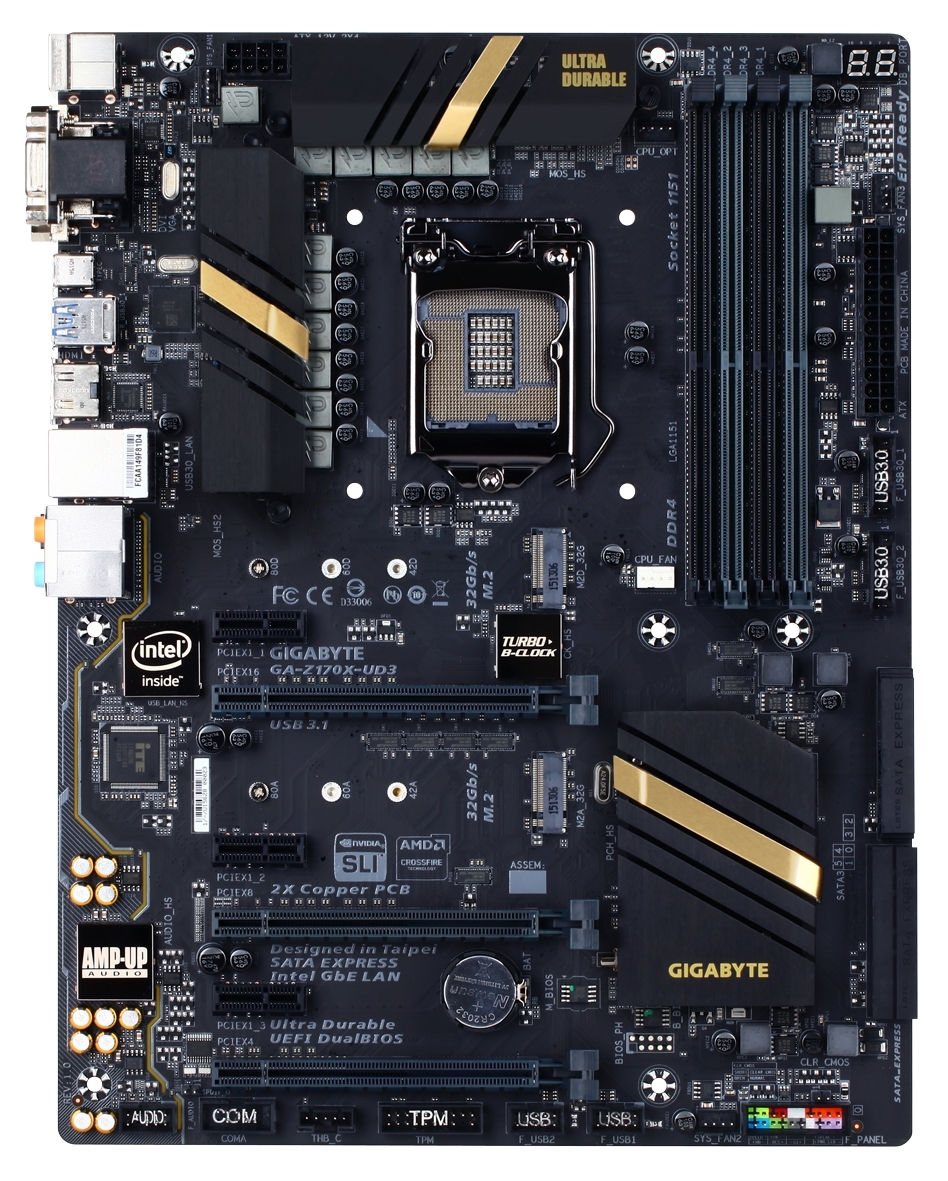

Gigabyte Z170X-UD3 Motherboard

This motherboard is designed for Intel's 6th generation Core Skylake processors, it supports dual-channel 2133MHz DDR4 RAM across four slots.

Graphics:

• Nvidia: 2-Way Sli Ready
• AMD: Crossfire Ready
• Interface: PCI-E 3.0 x16

Memory:

• Socket: 4 DIMM
• Frequency: DDR4, 2133
• Type: 2-CH DDR4

Expansion:

• PCI Express x1 slot: 3×
• PCI Express x4 slot: 1×
• PCI Express x8 slot: 1×
• PCI Express x16 slot: 1×
• M.2: 1× socket 3 for SSD (PCIe & SATA mode)

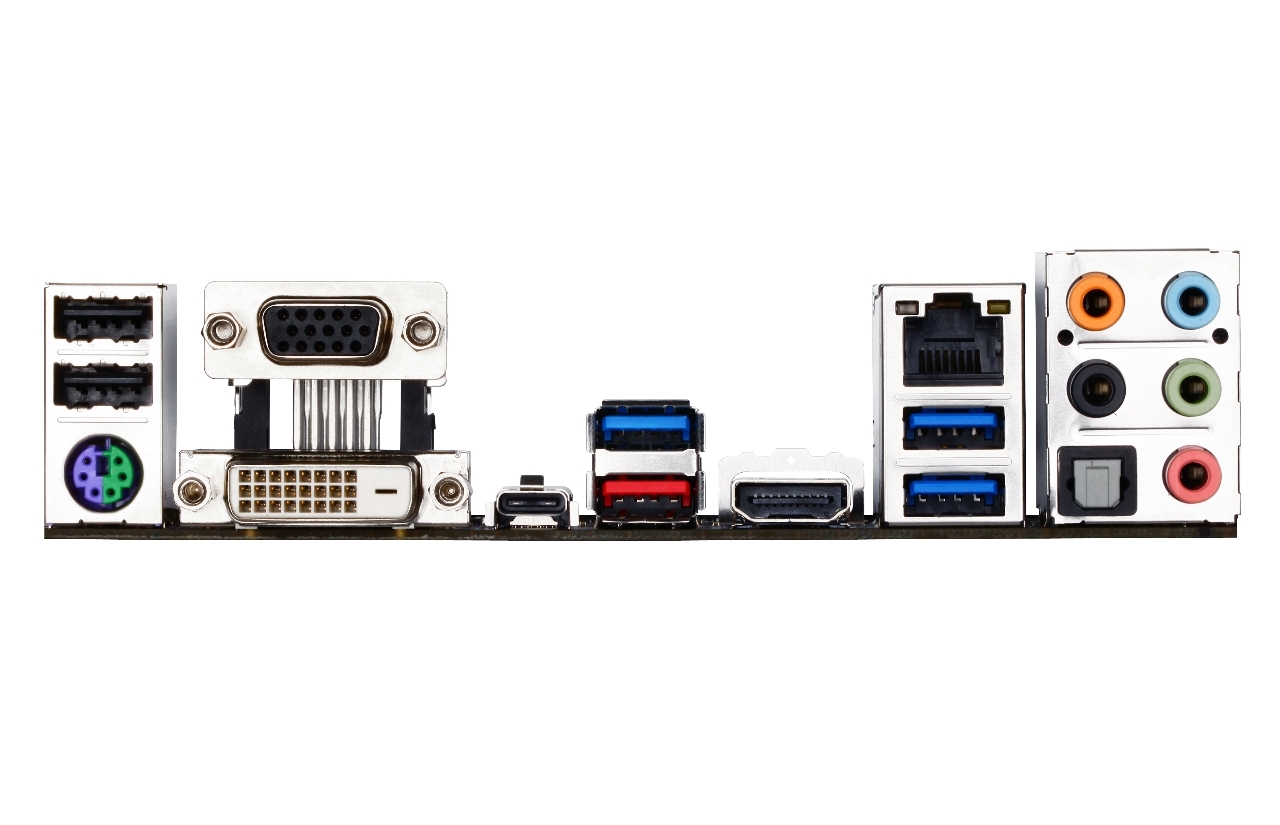

Rear inputs and outputs:

• PS2: 1×
• USB 2.0: 2×
• USB 3.0: 3×
• USB 3.1: 1× Type C 1× Type A
• LAN (RJ45): 1×
• HDMI: 1×
• DVI: 1×/DVI-D
• D-SUB: 1×
• Optical SPDIF out: 1×
• Audio: 6× audio jacks

Other:

• North Bridge: Z170
• CPU Socket: LGA1151
• Dual BIOS: Yes
• Form Factor: ATX
• Size (D x W): 305× 235mm
