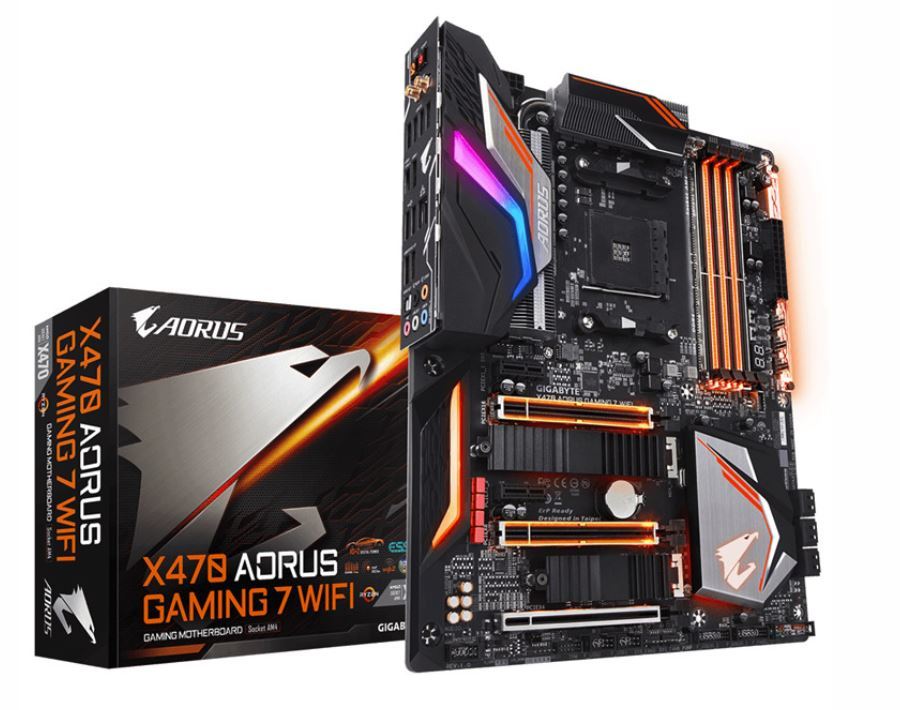

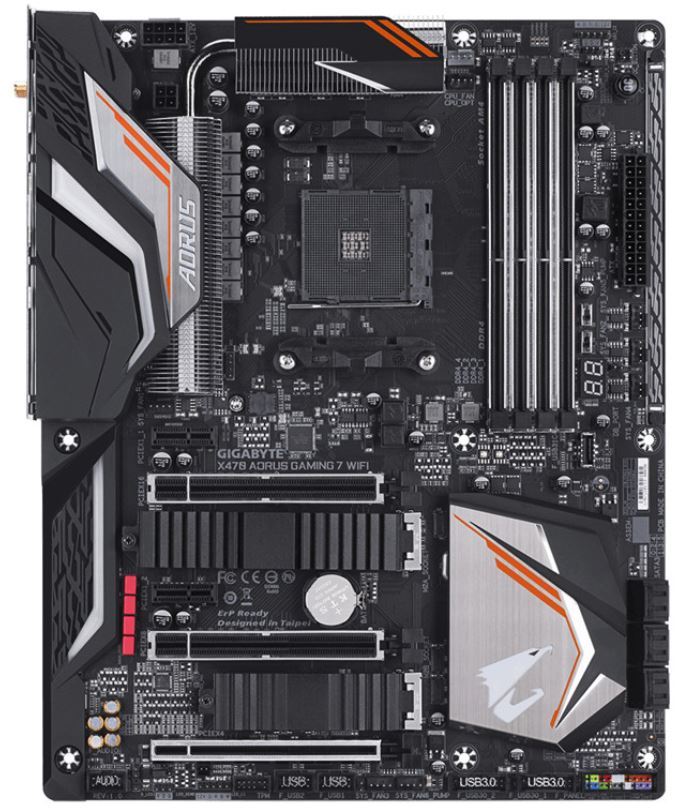

Gigabyte X470 AORUS GAMING 7 WIFI For AMD Ryzen

Socket AM4. AMD X470 Chipset

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$545.00
or 4 payments of $136.25 with Learn more
In stock at Mighty Ape

The item is brand new and in-stock in the Mighty Ape warehouse. The item will ship within the timeframe shown below.

Order now and it ships Monday!

Availability

Mighty Fast Delivery Guaranteed

This product is In stock at Mighty Ape and ready for immediate dispatch

Delivering to:

It should arrive:

  • Monday 6-9pm using Evening Express Delivery
    Mighty Ape can deliver this product in the evening between 6pm - 9pm on 22 July to qualifying addresses in Auckland. Learn more
  • Tuesday using standard courier delivery

Description

Features
AMD X470 AORUS motherboard with 10+2 IR Digital PWM, Fins-Array Heatsink & Direct Touch Heatpipe, Dual M.2 with Thermal Guard, ALC1220-VB + ESS SABRE DAC, Intel® 802.11ac Wave2 WIFI, CEC 2019 Ready

  • Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Gaphics/ Ryzen™ 1st Generation
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phase IR Digital PWM Design
  • Fins-Array Heatsink & Direct Touch Heatpipe
  • 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
  • Intel® 802.11ac Wave2 2T2R WIFI & BT 5
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone and Built-in ESS SABRE DAC with WIMA Audio Capacitors
  • Dual Ultra-Fast M.2 with NVMe PCIe X4 with Dual Thermal Guard
  • RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Swappable Overlay for Accent LED
  • Intel® Ethernet LAN with cFOS Speed Internet Accelerator
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • USB DAC-UP 2 with Adjustable Voltage
  • Integrated Base Plate & I/O Shield Armor
  • Rear Power/Reset/Clear CMOS Button
  • CEC 2019 Ready, Save Power with a Single Click
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

Design Concept
GIGABYTE AORUS X470 Gaming Motherboards feature a design concept inspired by the wings of an eagle. The sleek design of the I/O armor resembles the shape of the wing while the claw marks and airflow design are inspired by the wing's impressive aerodynamic features. The all new functions of AORUS X470 Motherboards which include their Fins-Array Heatsink, Direct Touch Heatpipe, metal reinforced base plate as well as integrated I/O shield reflect the efficient yet cool nature of the eagle's wings' kinetic motion while flying.

GIGABYTE X470 AORUS Gaming motherboards are based on the AMD X470 Chipset, and support 2nd Gen AMD Ryzen™ Processors. These selections of boards come with new ID design and covers a wide spectrum of price points and features including Gen3 PCIe lanes, future proof connectivity with USB Type-C™ as well as improved Audio and WIFI capabilities while providing all the performance and novelties of the new chipset. The motherboards represent the 2nd Gen AMD Ryzen™ Processors' performance on this new AMD X470 platform by means of an updated power design, offering the best experience to the users who care about performance.

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's X470 series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

10+2 Digital Power Design – IR Digital PWM Provider for High Performance Power IC solutions
AORUS X470 AORUS GAMING 7 WIFI uses an all IR digital CPU power design which includes both digital PWM Controllers and Power Stage controllers, capable of providing at least 40A of power. These 100% digital controllers and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 2nd Gen AMD Ryzen™ processors.

10+2 Digital Power Design
10 Phases Vcore, 2 Phases SOC (Memory Controller) Digital Power
40A for each Vcore Phase, 50A for each SOC phase
Server level reliability
High current capacity
Lower temperature

Advanced Thermal Design – Direct Touch Heatpipe & Fins-Array Heatsink
AORUS X470 motherboards use graphics card style stacked fins design, called Fins-Array Heatsink (>100 fins in total), increase close to 300% of heat dissipation area compared to traditional heatsink.
Direct Touch Heatpipe helps transfer heat from MOS to heatsink and fins.
The VRM temperature is 40% cooler than that of the traditional heatsink design.

Base plate + I/O Shield Armor – Durable design and easy installation

  • With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
  • With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.
  • Integrated Power/Reset/Clear CMOS button on the I/O shield enables users easier debugging and operation.

Dual NVMe M.2 PCIe SSDs in RAID
Extreme Performance with PCI-E x4 NVMe PCIe SSDs
With Dual M.2s available on the AORUS X470 motherboards, configuring RAID Arrays has never been simpler.

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

ESS SABRE reference DAC (ESS9018Q2C)
Hypertream Dynamic Range (DNR 121dB).
High-Res music (32bit, 384kHz PCM).
Super low THD+N (THD+N –115db).

USB DAC-UP 2 Adjustable Voltage USB Port with Dedicated Power Design
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Smashes the GbE Barrier!
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed than previous generation.

Intel ® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel ® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

USB Type-C™ Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 Gen2 drive or charging your new mobile device.

Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2× faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

Connecting the Future – USB Type-C™
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1 Gen 2

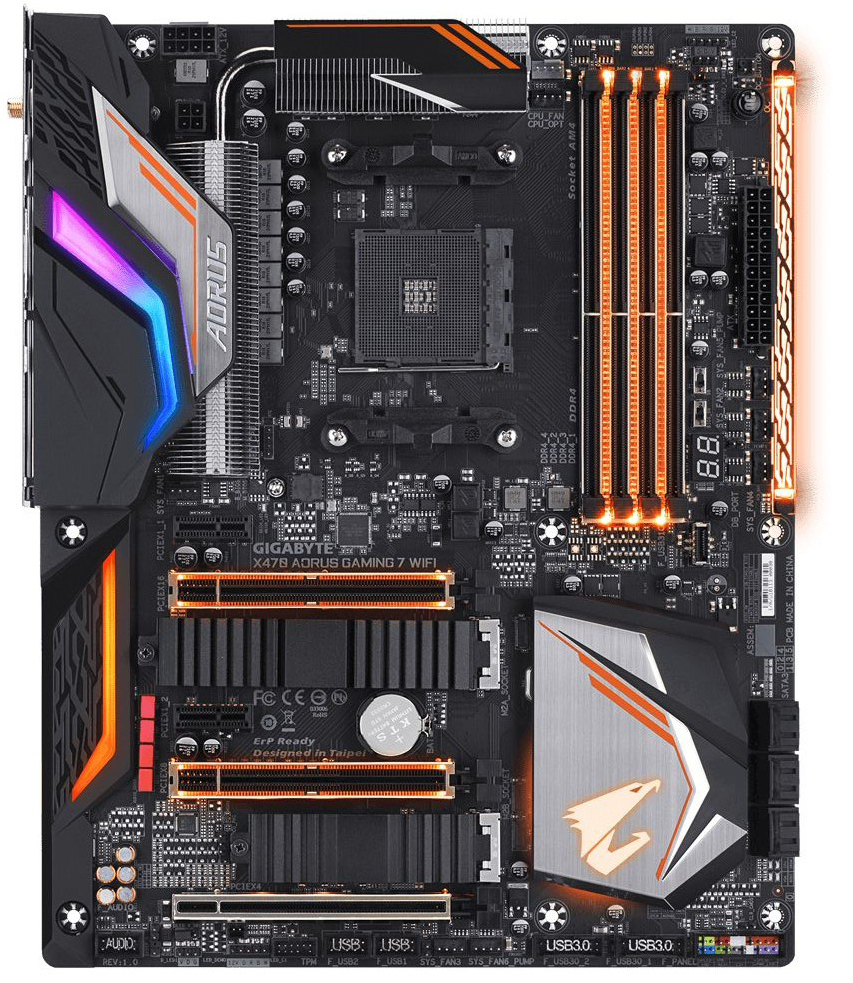

AORUS STYLE – RGB Fusion with Digital LEDs Support

With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come. * Digital LEDs are available only on select Motherboards, external LED Strips, Digital LED Strips are not included with Motherboard purchase.

Surround Lighting
Multi-light zones are equipped with high brightness RGB LEDs, namely the Memory, Armor, Audio, PCI-Express and Swappable Overlay for Accent LED. When it's all set and done, your system will shine like never before.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature-all of it can be customized to your liking.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors-giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Specifications
CPUAM4 Socket:
AMD Ryzen™ processor
(Please refer “CPU Support List” for more information.)

Chipset
AMD X470

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Audio
Realtek® ALC1220 codec
ES9018Q2C chip
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module
Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate

  • Actual data rate may vary depending on environment and equipment.

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)

  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

  • The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)

  • The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.

2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/228­0/22110 SATA and PCIe x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB
ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 × 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x OC button
1 x BIOS switch
1 x DualBIOS™ switch
2 x temperature sensor headers

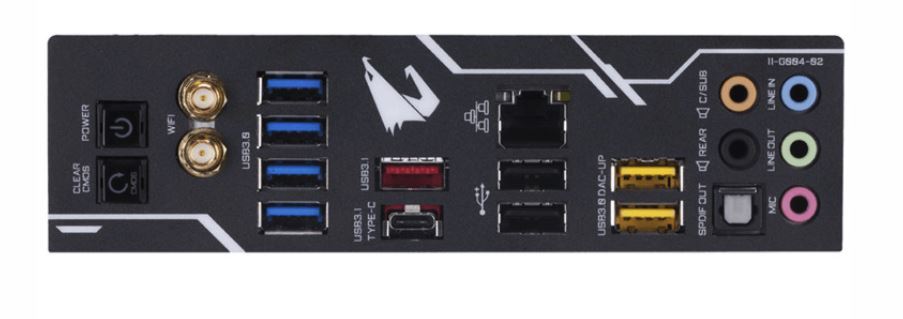

Back Panel Connectors
1 x power/reset button
1 x Clear CMOS button
2 x MMCX antenna connectors (2T2R)
6 x USB 3.1 Gen 1 ports
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control

  • Whether the fan (pump) speed control function is supported will depend on the cooler (pump)you install.

BIOS
2 × 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center

  • Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System
Support for Windows 10 64-bit
Support for Windows 7 64-bit

  • To support Windows 7 64-bit, you must install an AMD Ryzen™ Summit Ridge CPU.

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Release date NZ
April 26th, 2018
Manufacturer code:
GA-X470AORUSGAMING7-WIFI
Manufacturer
Motherboard Form Factor(s)
  • ATX
Motherboard Main Power Connector
ATX 24-pin
Motherboard 12V Power Connector
ATX12V 8-pin
Supported CPU Socket
Socket AM4
Supported Memory Module Type(s)
  • DIMM
Supported Memory Type(s)
  • DDR4 SDRAM
Supported Memory Channels
  • Dual Channel
Minimum Memory Speed (MHz)
2133
Maximum Memory Speed (MHz)
3600+(O.C.)
Maximum Memory Size (GB)
64
Supported Multi-GPU Technology(ies)
  • AMD 3-Way CrossFireX
  • NVIDIA 2-Way SLI
Number of HDMI Ports
0
Number of M.2 Sockets
2
Supported M.2 Module Code(s)
  • 22110
  • 2242
  • 2260
  • 2280
Number of SATA Headers
6
Number of USB 2.0 Headers
6
Number of USB 3.0 Type-A Back Panel Ports
6
Number of USB 3.1 G2 Type-A Back Panel Ports
1
Number of USB Type-C Back Panel Ports
1
Integrated Ethernet Networking
Yes
Supported Wireless Networking Standards
  • 802.11ac
Box Dimensions (mm)
295x350x80
UPC
889523013281
Product ID
27837517

Customer reviews

Nobody has reviewed this product yet. You could be the first!

Write a Review

Marketplace listings

There are no Marketplace listings available for this product currently.
Already own it? Create a free listing and pay just 9% commission when it sells!

Sell Yours Here

Help & options

  • If you think we've made a mistake or omitted details, please send us your feedback. Send Feedback
  • If you have a question or problem with this product, visit our Help section. Get Help
  • Seen a lower price for this product elsewhere? We'll do our best to beat it. Request a better price
Filed under...
