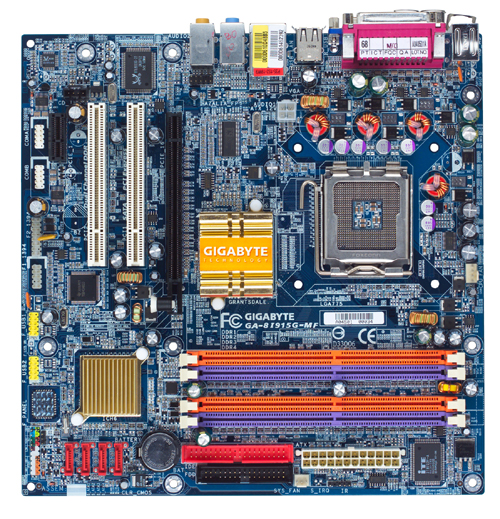

GA-8I915G-MF designed with pack of features and dedicated to satisfying the needs of cost-effective platforms. Experience next-generation processing with the latest LGA 775 Intel® Pentium® 4 Processor with Hyper-Threading Technolgy! The GA-8I915G-MF supports DDR 400 / 333 delivers complete range of usage from highest performance to cost-effective systems.
The GA-8I915G-MF provides an broad range of peripheral connections by offering IEEE 1394a and USB 2.0 for high-speed data transfer, and high speed Serial ATA for connection of storage devices. The GA-8I915G-MF also offers multimedia advancements through PCI-Express for outstanding graphics output, doubling that of the current AGP8X interface. For improved networking, Gigabit LAN provides LAN connection at a blazing fast network connection speed of up to 1,000 Mbps. Along with top-notch hardware is the addition of the GIGABYTE Shieldware. Shieldware includes solid pack of unique software feature elements that are easy to use and focused on making computing both simple and straightforward. Finally to round off the GA-8I915G-MF is home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
Intel® 915G Express Chipset
The new Intel® 915G Express chipset with Hyper-Threading Technology delivers significant perfomance gains with variety of new generation architectures including dual-channel DDR main memory, PCI-Express inteface, revolutionary graphics experience with Intel® Media Accelerator 900 Techonoloy,and Serial-ATA interface for improving storage performance.
Supports LGA 775 Intel® Pentium® 4 Processor with HT Technology
With new 90nm technology, the world's most advanced chip-making process, it delivers significant gains in performance through the combination of lower-power transistors, strained silicon, high-speed copper interconnects and a new low-k dielectric material.
Dual Channel DDR 400 Memory Architecture
With double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8I915G-MF allows you to handle memory-intensive tasks with ease.
PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface delivers the utmost graphics experience, PCI-E x1interface delivers twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
Intel® Graphics Media Accelerator 900
Experience the newest integrated graphics architecture with Intel® Media Graphics Accelerator 900 technology that packs with 4 pixel pipelines and core-speed of 333MHz, the fastest integrated graphics engine ever available. With support of DirectX 9.0 capabilities and OpenGL 1.4, provides the best graphics quality while gaming.
Gigabit LAN connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
IEEE 1394 Firewire Interface
Highly anticipated interface which enhances PC connectivity for consumer electronics A/V appliances, storage peripherals and portable devices.
Serial ATA Interface
Serial ATA provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
Intel High Definition Audio
Experience home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
A solid pack of unique software features focused on performing important system essentials with speed and ease. Find out what these great features can do for your system!
1. LGA 775 for Pentium® 4 Processor
1. Northbridge : Intel® 915G
2. Southbridge : Intel® ICH6
3. Integrated Peripherals :
1. T.I. IEEE1394 controller
2. Realtek 8110S Gigabit Ethernet controller
3. Realtek ALC880 audio codec
Front Side Bus
1. 800 / 533 MHz FSB
1. Type: Dual Channel DDR 400/333
2. Max capacity: 4 GB
3. DIMM slots: 4
Internal I/O Connectors
1. 4 x Serial ATA connectors
2. 2 x USB 2.0 connectors (4 ports by cable)
3. 1 x FDD connector
4. 1 x UltraDMA 100/66 IDE
5. 1 x IEEE 1394 pin header (by optional cable)
6. 2 x cooling fan pin headers
7. 1 x CD in
8. 1 x COM port connector
9. 1 x S/P-DIF input/output pin header
10. 1 x 24-pin ATX Power connector
11. 1 x 4-pin ATX 12V Power connector
1. 1 x PCIe X 16 slot
2. 1 x PCIe X 1 slot
3. 2 x PCI slots
Rear Panel I/O
1. 4 x USB 2.0 ports
2. 1 x RJ45 LAN port
3. 6 x Audio jacks (Line Out / Line-in / Mic in)
4. 1 x VGA port
5. 1 x LPT port
6. 2 x PS/2 ports(Keyboard/Mouse)
2. 24.4cm x 24.4cm
1. ITE 8712F
2. System health status auto-detect and report by BIOS
3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
1. 1 x 2M bit flash ROM
1. M.I.T. (Motherboard Intelligent Tweaker)
2. Download Center
3. S.O.S. (System Overclock Saver)
4. C.O.M. (Corporate Online Management)
5. Miracle of Xpress3
1. Norton Internet Security 2004
1. Norton Anti Virus
2. Norton Personal Firewall
3. Norton Privacy Control
4. Norton Parental Control
5. Norton Spam Alert
2. GIGABYTE Windows Utility Manager
3. Adobe Acrobat Reader
