PC Parts & Components:

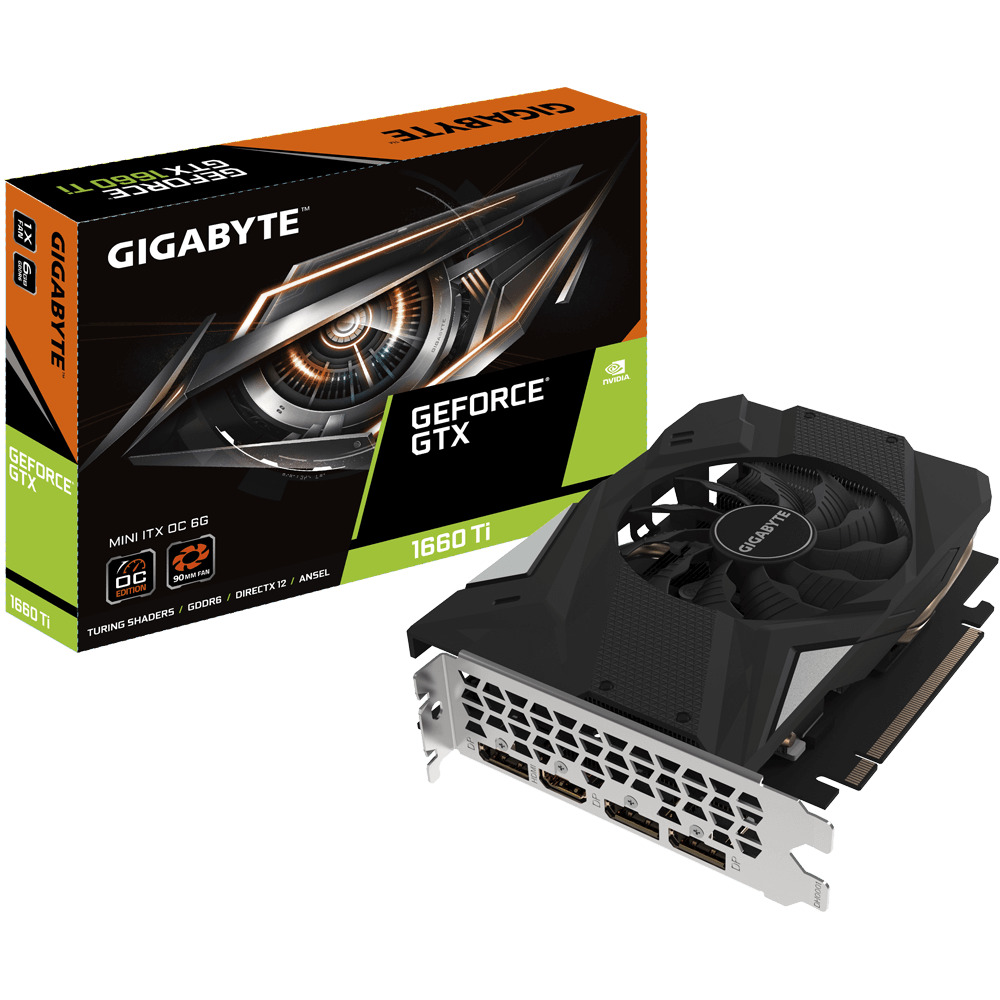

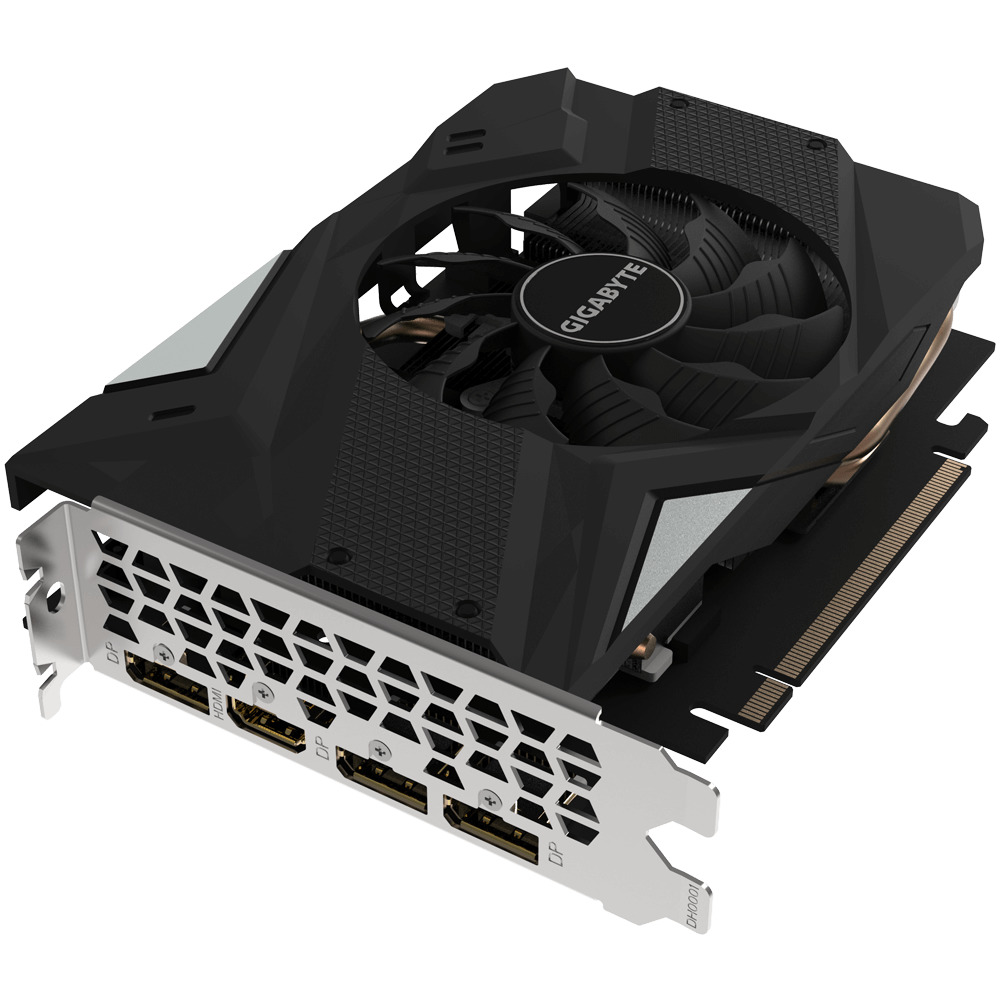

Gigabyte Mini ITX GeForce GTX 1660 Ti OC 6GB GPU

Customer rating

Click to share your rating 0 ratings (0.0/5.0 average) Thanks for your vote!

Share this product

$567.00
or 4 payments of $141.75 with Learn more
In stock with supplier

The item is brand new and in-stock in with one of our preferred suppliers. The item will ship from the Mighty Ape warehouse within the timeframe shown below.

Usually ships within 48-72 hours

Availability

Delivering to:

Estimated arrival:

  • Around 30 Jul to 6 Aug using standard courier delivery

Description

  • Features
    • Powered by GeForce® GTX 1660 Ti
    • Integrated with 6GB GDDR6 192-bit memory interface

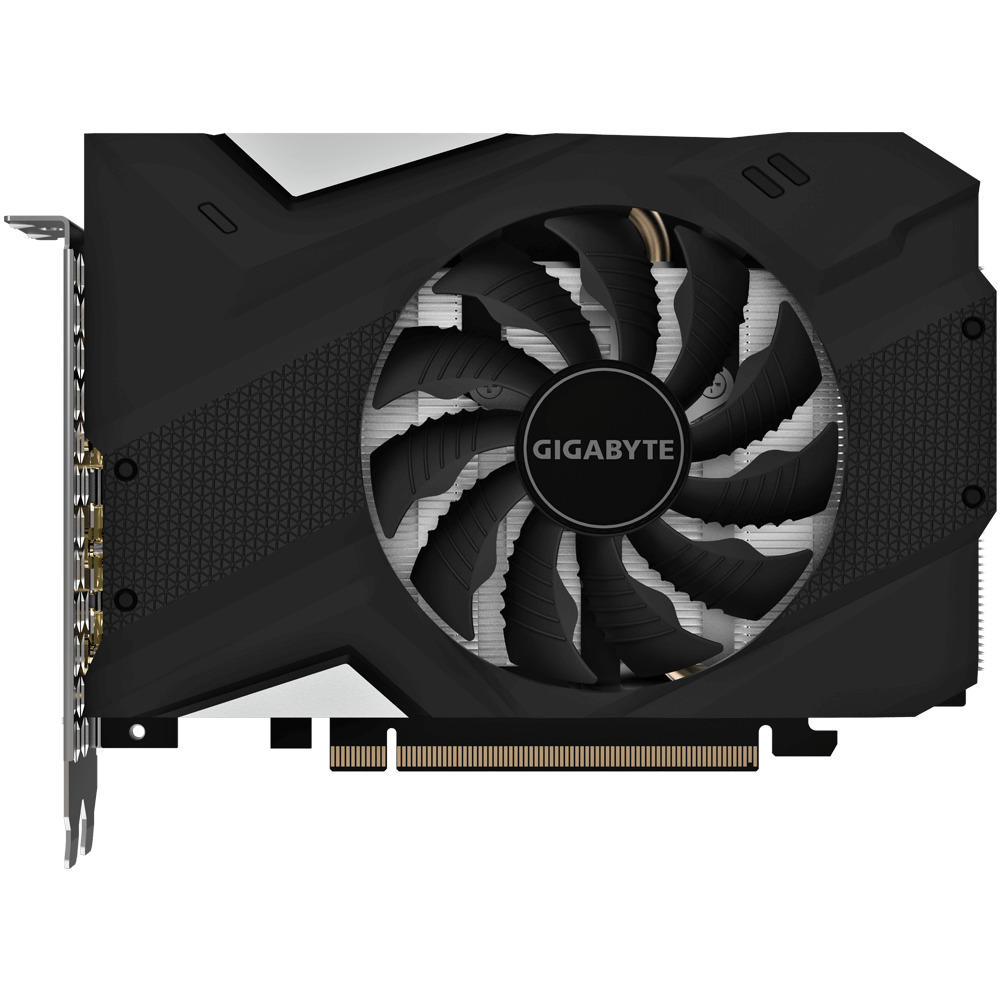

    • 90mm unique blade fan
    • 170mm compact card size
  • Core Clock
    • 1785 MHz (Reference card is 1770 MHz)

TINY SIZE WITH MIGHTY PERFORMANCE. AT ONCE.
For users who prefer small chassis and expect strong performance, GIGABYTE delivers with the new 170mm length GeForce® GTX 1660 Ti MINI ITX OC graphics card. Not only does the MINI ITX OC embed powerful GeForce® GTX 1660 Ti graphics processing to provide gamers with the best experience in each gaming masterpiece, but it’s also easily installed in smaller sized chassis. You never have to worry about the card you purchased not fitting into the chassis.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPE DIRECT TOUCH GPU
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

  • Graphics Processing: GeForce® GTX 1660 Ti
  • Core Clock: 1785 MHz (Reference card is 1770 MHz)
  • CUDA® Cores: 1536
  • Memory Clock: 12000 MHz
  • Memory Size: 6 GB
  • Memory Type: GDDR6
  • Memory Bus: 192 bit
  • Memory Bandwidth (GB/sec): 288 GB/s
  • Card Bus: PCI-E 3.0 × 16
  • Digital max resolution: 7680×4320@60Hz
  • Multi-view: 4
  • Card size: L=170 W=121.3 H=36.4 mm
  • PCB Form: ATX
  • DirectX: 12
  • OpenGL: 4.5
  • Recommended PSU: 450W

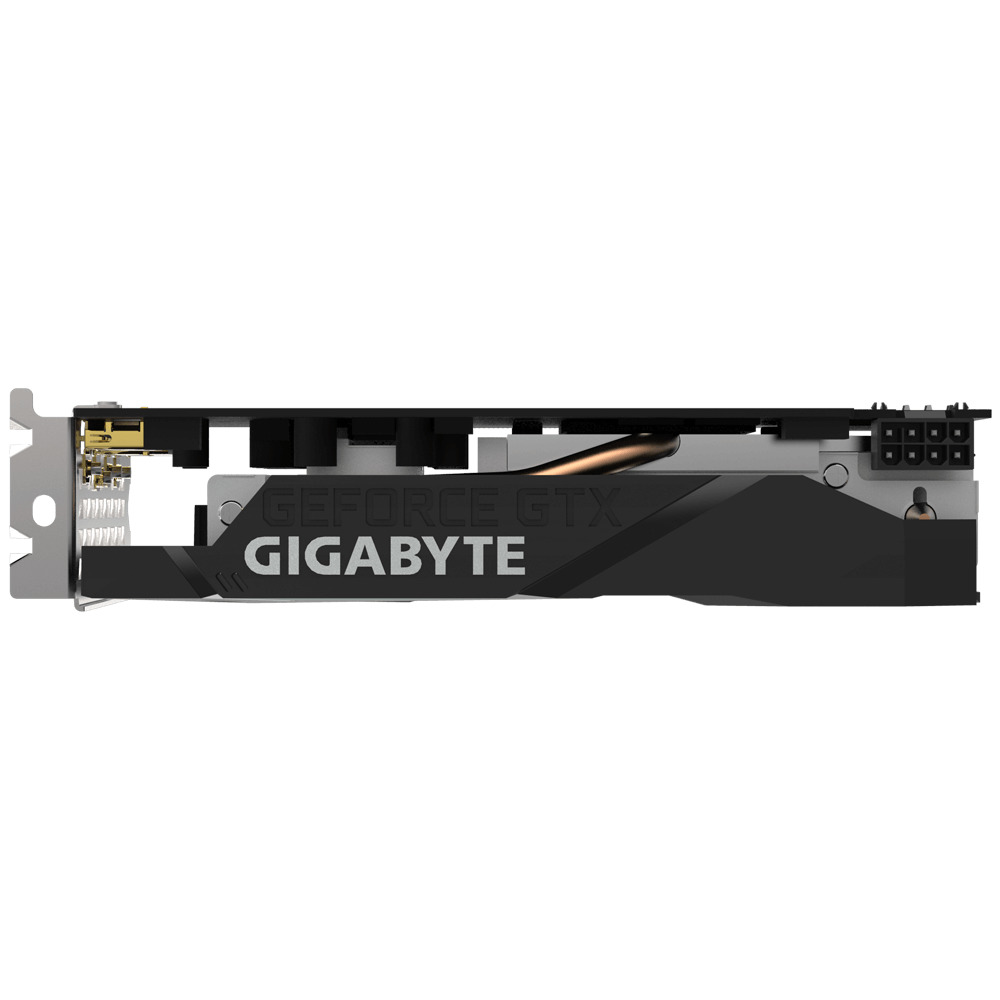

  • Power Connectors: 8 Pin*1

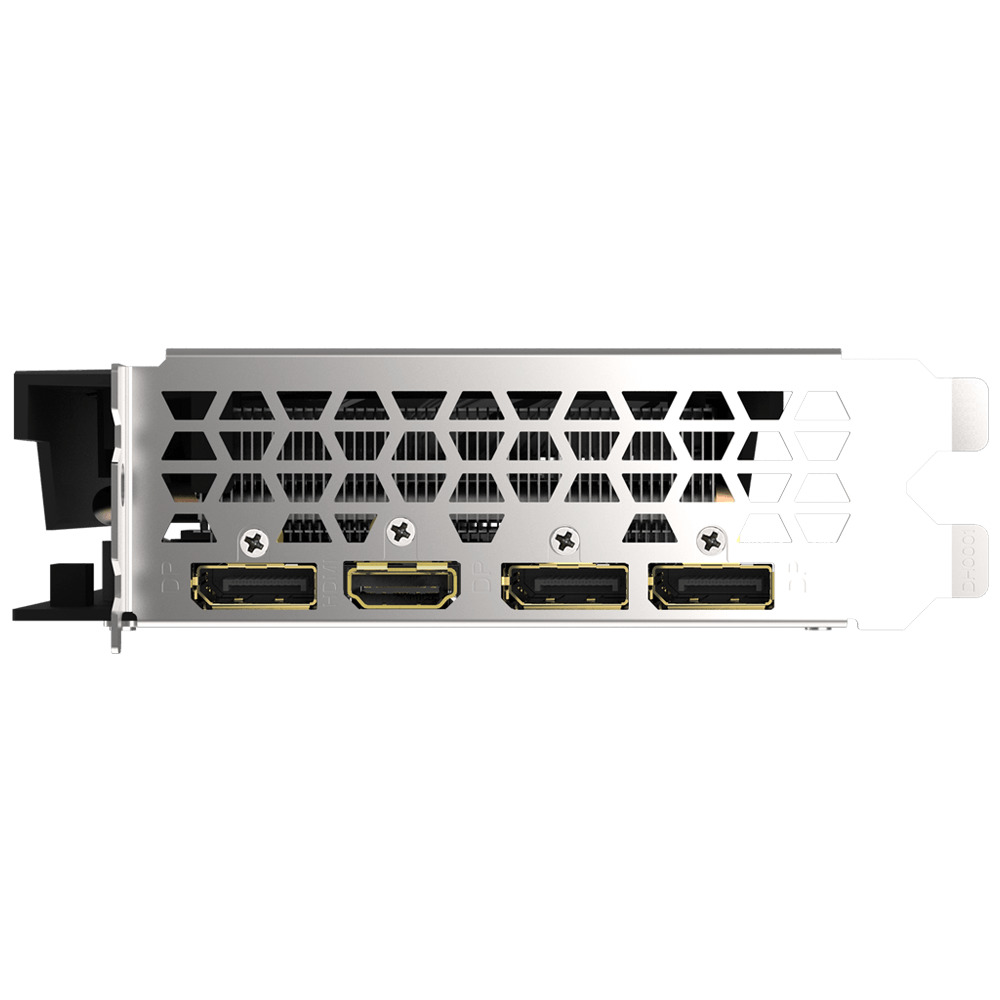

  • Output
    • DisplayPort 1.4 *3 (Max Resolution: 4096×2160 @60 Hz)
    • HDMI 2.0b *1 (Max Resolution: 7680×4320 @60 Hz)
  • SLI support: No
  • Accessories
    • 1. Quick guide
    • 2. Driver CD
Release date NZ
March 15th, 2019
Manufacturer code:
GV-N166TIXOC-6GD
Warranty Period
1 year
Brand
Manufacturer
Number of Full Length Full Height Expansion Slots
2
Number of Full Length Half Height Expansion Slots
0
Number of MD1 Low Profile Expansion Slots
0
Number of MD2 Low Profile Expansion Slots
0
Depth (mm)
170
Interface Type
PCI Express x16
Number of PCI Express 6-pin Power Connectors
0
Number of PCI Express 6+2-pin Power Connectors
0
Number of PCI Express 8-pin Power Connectors
1
GPU Memory Size (GB)
6
Number of VGA Ports
0
Number of DVI Ports
1
Number of DisplayPort Ports
1
Number of HDMI Ports
2
Minimum PSU Output Wattage (W)
450
Product ID
29233402
